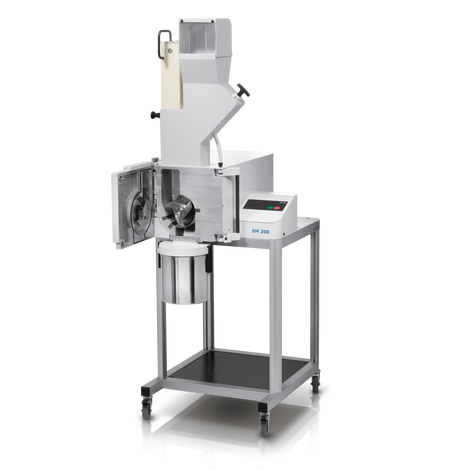

Cutting Mill SM 200
Cutting mills are suitable for the grinding of soft, medium-hard, elastic, fibrous, and heterogeneous mixes of products. The new cutting mill SM 200 is a powerful and easy-to-operate instrument for efficient primary and fine size reduction. Cleaning is made particularly easy.Within the group of the RETSCH cutting mills, it is the universal standard model which covers a vast range of applications with its strong 2.2 kW drive and 1,500 rpm rotor speed. When operated with the optional cyclone-suction-combination, the SM 200 is also suitable for grinding light sample materials or smaller quantities. In combination with the wide choice of bottom sieves, hoppers and collecting vessels, the mill can be easily adapted to varying application requirements.
应用实例
优点
- optimum cutting effects thanks to double acting cutting bars

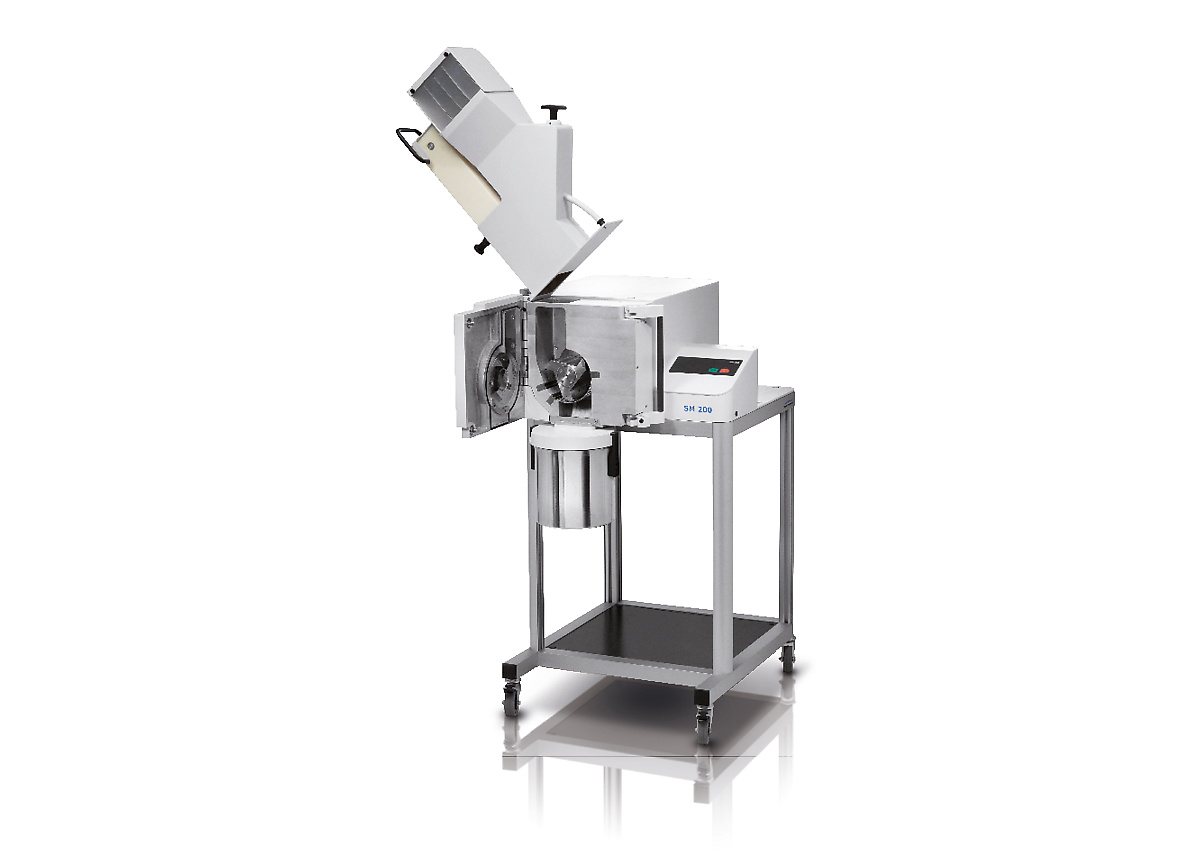

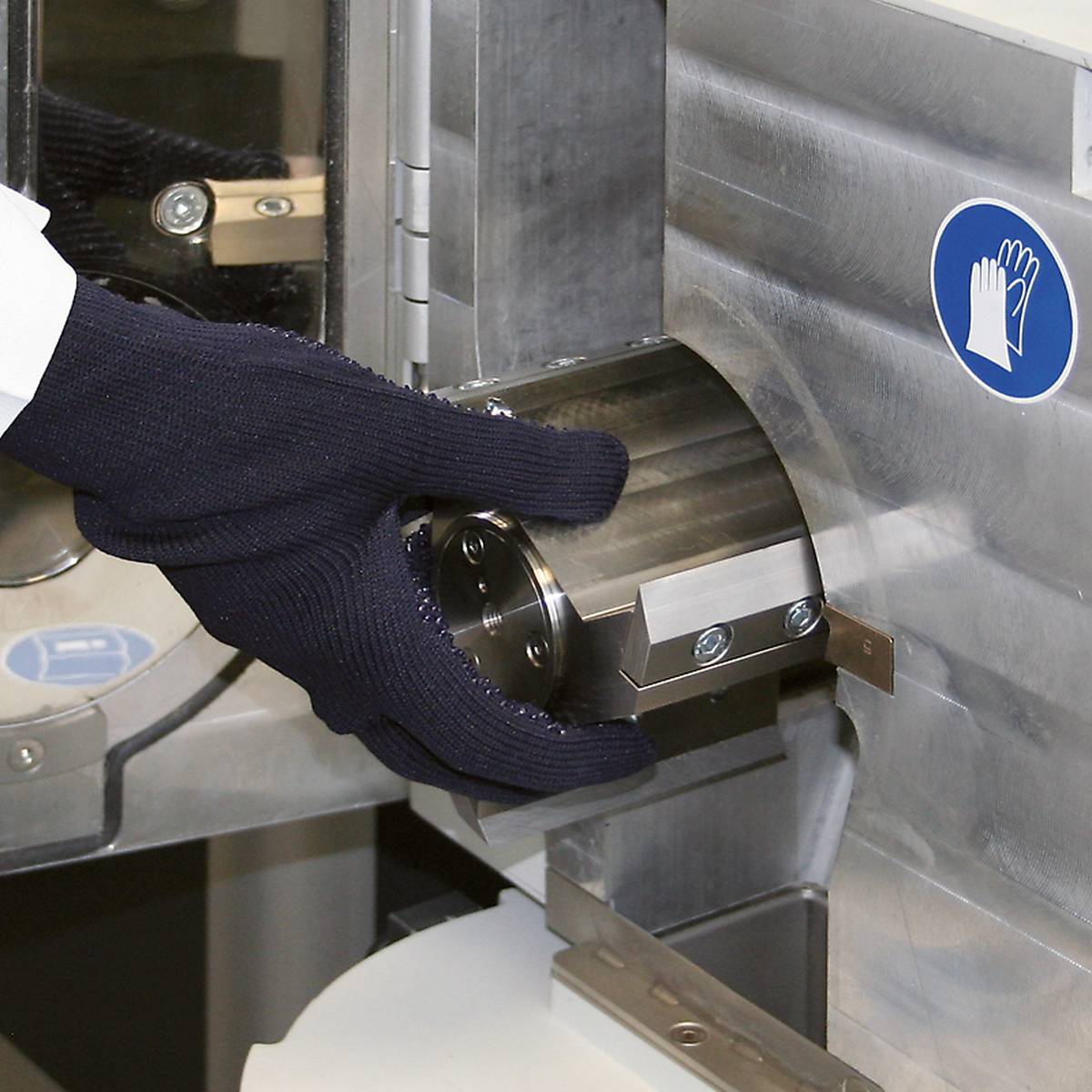

- quick and easy cleaning due to fold-back hopper, smooth surfaces and push-fit rotor
- powerful size reduction with 2.2 kW drive
- defined final fineness due to bottom sieves with aperture sizes from 0.25 - 20 mm
- wide range of accessories including various hoppers, collection systems, rotors and sieves
- highest safety standards due to engine brake, central locking device, electronic safety check and safety base frame
性能指标
| 应用 | 切割粉碎 |
| 应用领域 | 工程/电子, 农业, 医药品, 化学 / 合成材料, 环境 / 资源回收利用, 生物, 食物 |
| 样品特征 | 软性的, 中硬性, 硬的, 弹性的, 含纤维的 |
| 粉碎原理： | 剪切力 |
| 最大进样尺寸 | < 60 x 80 mm |
| 最终出料粒度 * | 0.25 - 20 mm |
| 网频50赫兹（60赫兹）下的转速 | 1,500 min-1 |
| 旋翼圆周线速度 | 9.4 - 11.4 m/s |
| 转刀直径 | 129.5 mm |

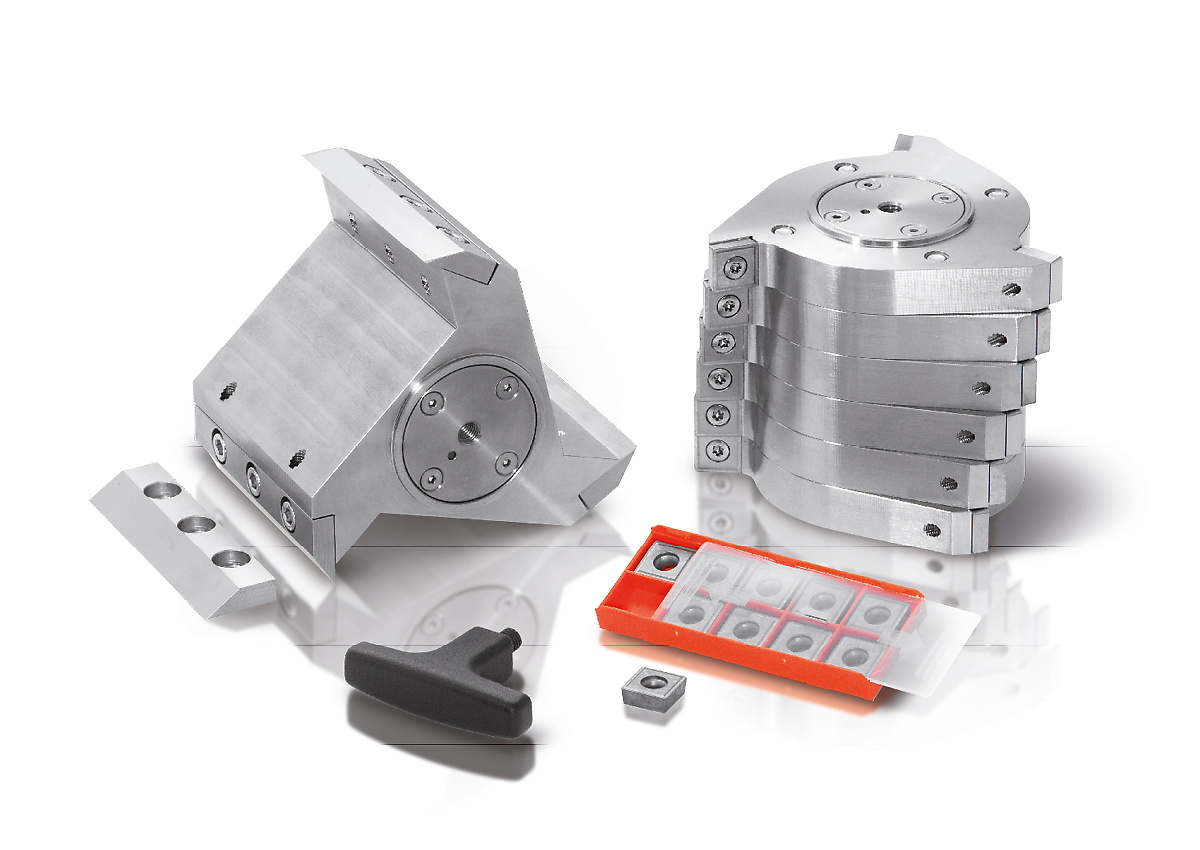

| 转刀类型 | 平行切割-旋翼 / 6叶组合式-旋翼 |
| Types of hoppers | standard, long stock |
| 研磨套件材料： | 硬质刚, 不锈钢, 防重金属研磨钢, 碳化钨 |
| 筛网尺寸： | 梯形孔筛网 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm 方孔筛网2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm |
| 收集系统/容量 | collecting receptacle 5 l / optional: 30 l collecting unit 0.25 / 0.5 l cyclone-suction combination (0.25 l - 5 l) |
| 驱动 | 三相电机 |
| 驱动功率 | 2.2 kW |
| 电源数据： | 不同电压 |
| 电源接头： | 3-phase |
| 制动系统 | 是 |
| 防护类型 | IP54 |
| 机体尺寸（宽x高x纵深） | 576 (1090 opened) x 1675 x 760 mm (with base frame and standard hopper) |
| 净重 | ~ 90 kg without hopper |
| 附件 | Operation & Application Video |
| 标准 | CE |
| 受样品材料性质和仪器配置/设定的影响 |
作用原理

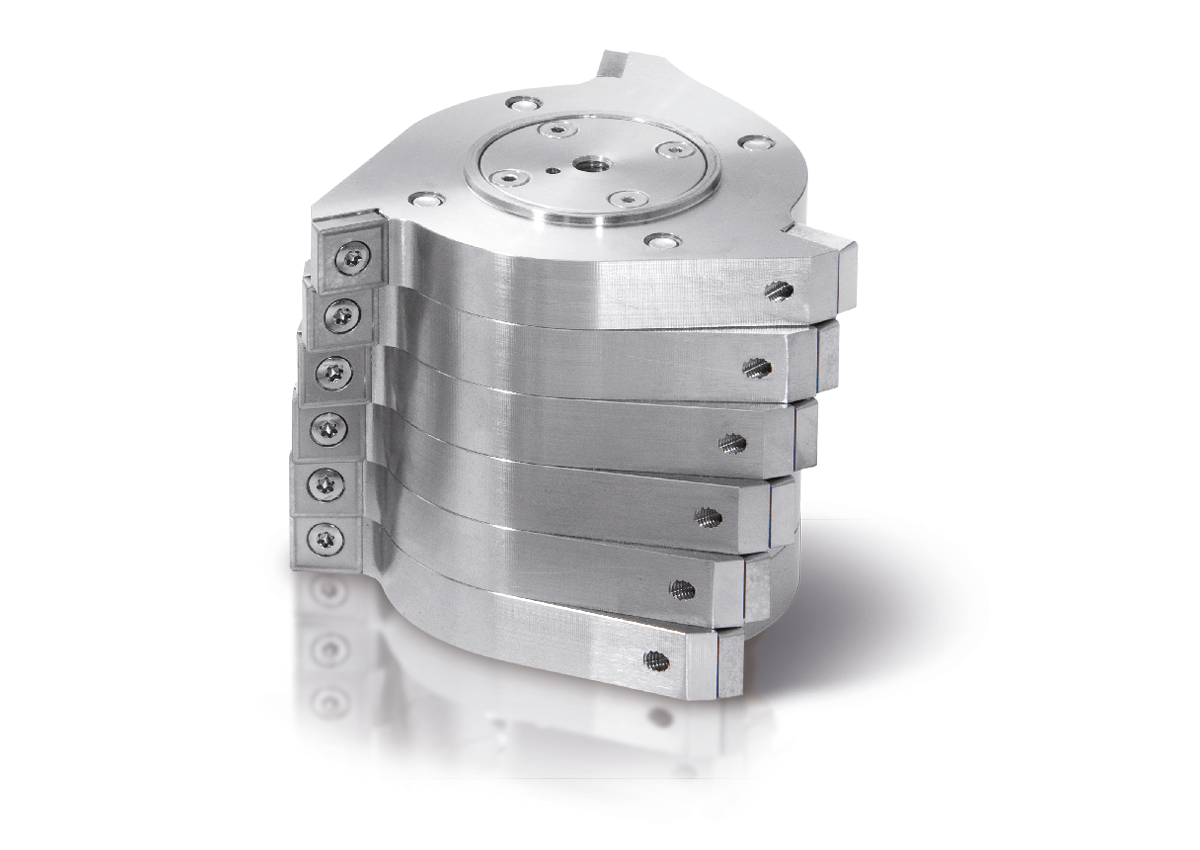

Size reduction in the Cutting Mill SM 200 takes place by cutting and shearing forces. The sample comes into contact with the rotor, and is comminuted between the blades and the stationary double acting cutting bars inserted in the housing.In the 6-disc rotor, spirally arranged reversible hard metal plates operate by cutting in sequence. The knives of the parallel section rotor carry out comminution with a powerful cutting action. The dwelling time of the sample in the chamber is short; as soon as it is small enough to pass through the openings of the bottom sieve it is discharged and collected in the receptacle. The rotorspeed of 1.500 min-1 ensures gentle and rapid size reduction. The optional cyclone-suction-combination not only has a cooling effect on the sample but also improves the discharge of material from the grinding chamber.根据技术改造和误差调整
