刀式混和研磨仪 GRINDOMIX GM 300

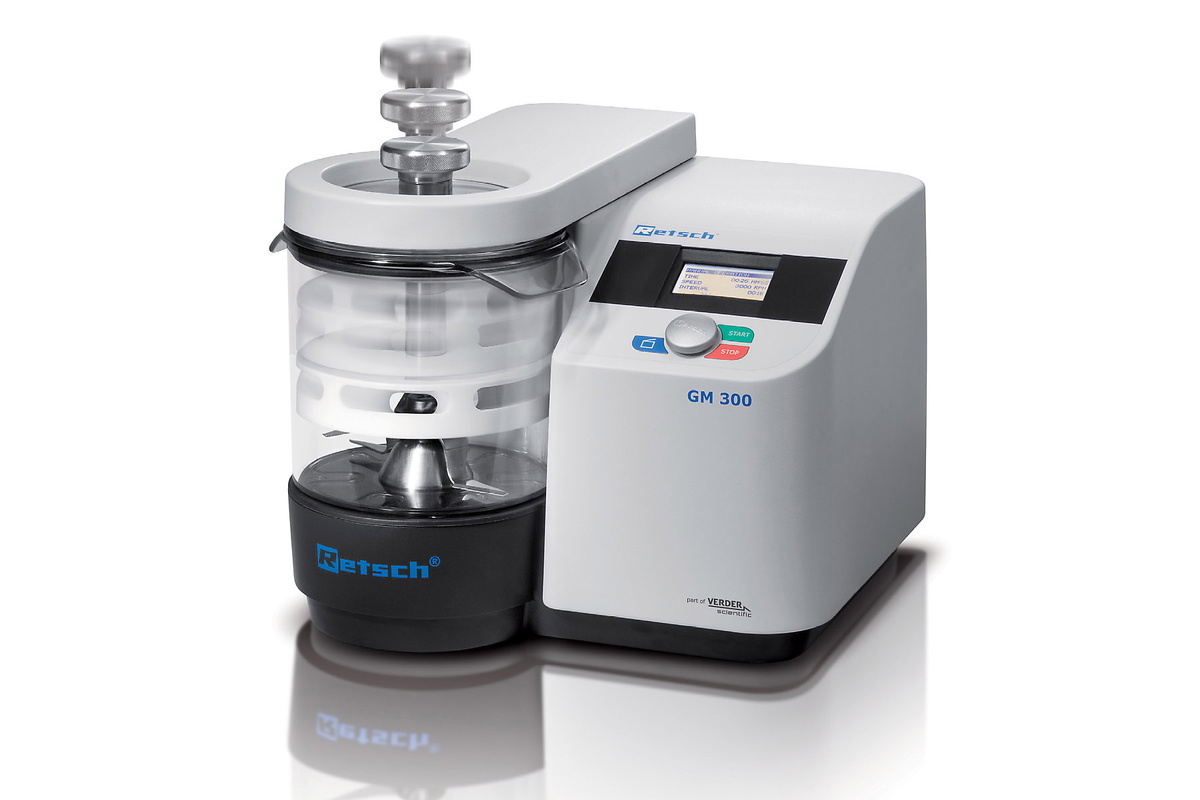

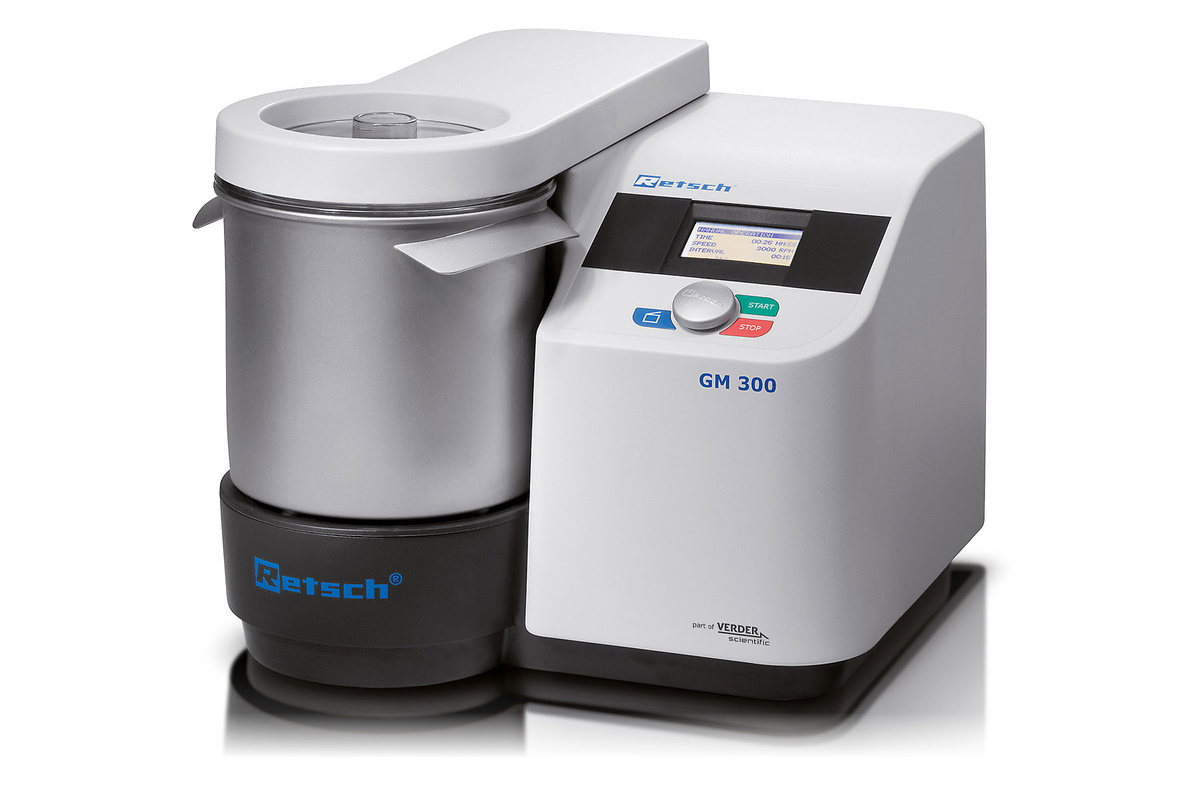

The new knife mill GRINDOMIX GM 300 is the ideal instrument for the grinding and homogenization of foodstuffs. It allows to process sample volumes up to 4.5 liters quickly and reproducibly.
With four sharp, robust blades and a powerful industrial motor which can reach temporary peaks of 3000 W, it is ideal for homogenizing substances with a high water, oil or fat content as well as for grinding dry, soft and medium-hard products. The GRINDOMIX GM 300 meets and exceeds all special laboratory and analytical requirements and is superior to any commercial household mixer.
应用实例
植物原料, 油料种子, 干燥的和新鲜的水果, 干酪, 冷冻产品, 制药材料, 压块干粮, 可可粒, 坚果, 糖果, 糖衣片, 火腿, 生菜, 香料, 香肠, 鱼, 食物增补剂, 谷类食物, 进样小球, 肥皂, 肉, 蔬菜, ... -
优点
- quick and gentle grinding and homogenization of foodstuffs
- variable speed from 500 – 4,000 min-1
- powerful 1.1 kW industrial motor
- autoclaveable grinding tools
- easy changing and cleaning of grinding containers
- interval operation, reverse mode
- mode for preliminary and fine grinding
- digital parameter setting
- memory for 10 parameter combinations
性能指标
| 应用 | 粉碎、均化、混和 |
| 应用领域 | 农业, 医药品, 生物, 食物 |
| 样品特征 | 软性的, 中硬性, 弹性的, 含水/ 脂肪 / 油, 干性的, 含纤维的 |
| 粉碎原理： | 切割力 |
| 最大进样尺寸 | ~ 130 mm |
| 最终出料粒度 * | <300微米 |
| 批次加料量* | 使用重力顶盖4500 ml 使用重力顶盖4000 ml |
| 粉碎腔容积 | 5000 ml, 使用重力顶盖改变容积 |
| 速度设置 | digital, 500 - 4000 min-1 |
| 干磨 | 是 |
| 湿磨 | 是 |
| 研磨套件材料： | 研磨罐：高压灭菌塑料, 不锈钢1.4435 刀片：不锈钢1.4034 刀架：PVDF 制动阀密封： 三元乙丙橡胶, 氟橡胶(FKM) |
| 粉碎时间设定 | digital, 5 s - 3 min |
| 间歇驱动 | 是 |
| 转动时间 | 可调 |
| 可存储运行模式 | 10 |
| 驱动 | 3-phase asynchronous motor with frequency converter |
| 驱动功率 | continuously 1.1 kW, short term 3 kW |
| 电源数据： | 不同电压 |
| 电源接头： | 1-phase |
| 防护类型 | IP 20 |
| 机体尺寸（宽x高x纵深） | 440 mm x 340 mm x 440 mm |
| 净重 | 约30公斤 |
| 附件 | Operation & Application Video |
| 标准 | CE |
| 受样品材料性质和仪器配置/设定的影响 |
作用原理
Four sharp, robust blades rotate in the center of the grinding container. Depending on the rotational direction, size reduction is effected with the blunt side (preliminary size reduction) or the sharp side (fine grinding). The knifes are protected with a counterblade from damages by hard sample materials.
The knife is indirectly driven by a powerful industrial motor of 1,100 W which can reach temporary peaks of 3,000 W. A pre-selectable speed which is maintained electronically ensures reproducible grinding results.
The knife is indirectly driven by a powerful industrial motor of 1,100 W which can reach temporary peaks of 3,000 W. A pre-selectable speed which is maintained electronically ensures reproducible grinding results.
根据技术改造和误差调整
