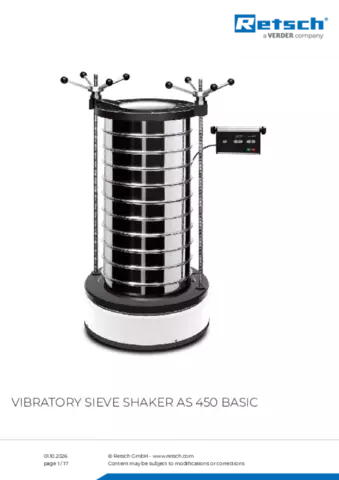

Sieve Shaker AS 450 basic
The AS 450 basic, is a budget-priced alternative to the AS 450 control sieve shaker. The new sieve shaker covers a size range from 20 μm to 125 mm and accepts loads of up to 15 kg. Time and amplitude are digitally set, a memory function allows storage of one program. The AS 450 basic is suitable for dry sieving. It is the economic solution for customers who need to sieve larger quantities of dry material with reliable results.
The AS 450 basic will be available as of the second quarter 2012.
应用实例
水泥熔渣, 沙子, 填充物, 塑料, 建筑原料, 化学制品, 土壤, 焦炭, 煤, 矿物, 矿石, ... -
优点
- efficient electromagnetic drive with 3D movement
- maintenance-free
- easy operation, ergonomic design
- suitable for dry sieving
- excellent separation efficiency even with short sieving times
- up to 10 fractions in one sieving operation
- mobile operation panel for comfortable handling
- digital setting of time and amplitude
性能指标
| 应用 | 分离、分级、确定粒径 |
| 应用领域 | 工程/电子, 建筑原料, 化学 / 合成材料, 地质 / 冶金, 环境 / 资源回收利用, 玻璃/ 陶瓷 |
| 样品特征 | 粉末，松散物质 |
| 测量范围* | 25 µm - 125 mm |
| 筛分运动形式 | throwing motion with angular momentum - 3D movement |
| 最大负载 | 15公斤 |
| 最大级数 | 10 / 7 |
| 最大筛塔质量 | 50公斤 |
| 振幅或转速 | digital, 0 - > 2 mm |
| 时间显示 | digital, 0 - 99.9 min |
| 间歇驱动 | 1 - 99 s |
| 可存储运行模式 | 1 |
| 适用于干筛 | 是 |
| 适用于湿筛 | - |
| 并行接口 | - |
| 可用分析筛直径 | 400 mm / 450 mm |
| 筛塔最大高度： | 830 mm |
| 紧固装置 | "standard" |
| 电源数据： | 不同电压 |
| 电源接头： | 1-phase |
| 机体尺寸 (宽x高x纵深) | 680 x 280 x 680 mm |
| 净重 | ~ 140 kg |
| 标准 | CE |
| 受样品材料性质和仪器配置/设定的影响 |
作用原理
The AS 450 basic works with an electromagnetic drive. This drive produces a 3D throwing motion that moves the product to be sieved equally over the whole sieving surface. The advantage: high stress capacity, extremely smooth operation and short sieving times with high separation efficiency.
根据技术改造和误差调整
