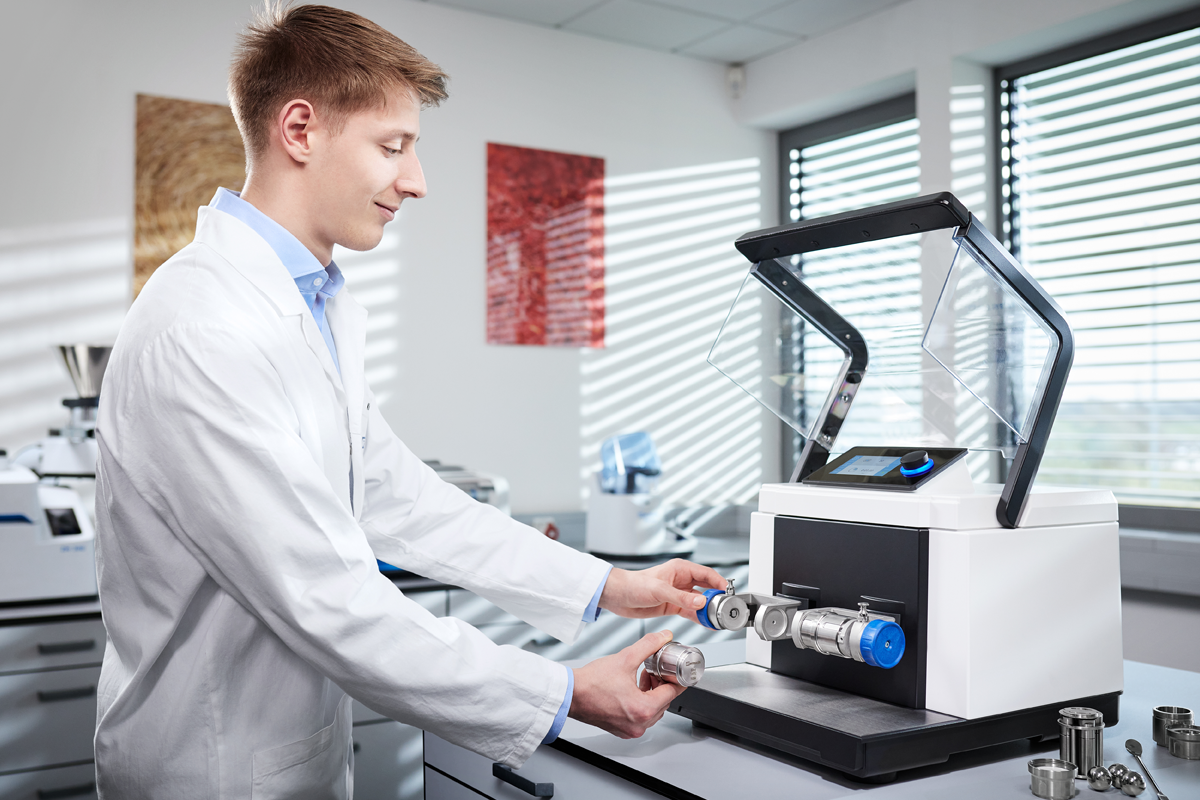

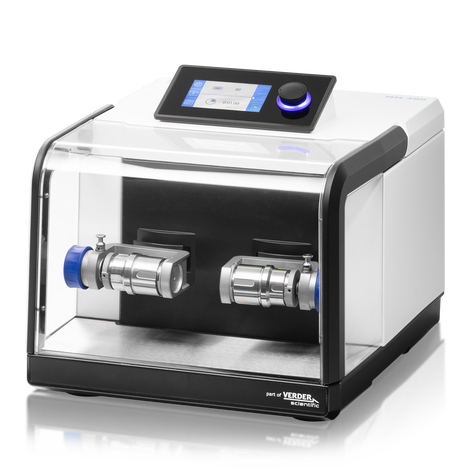

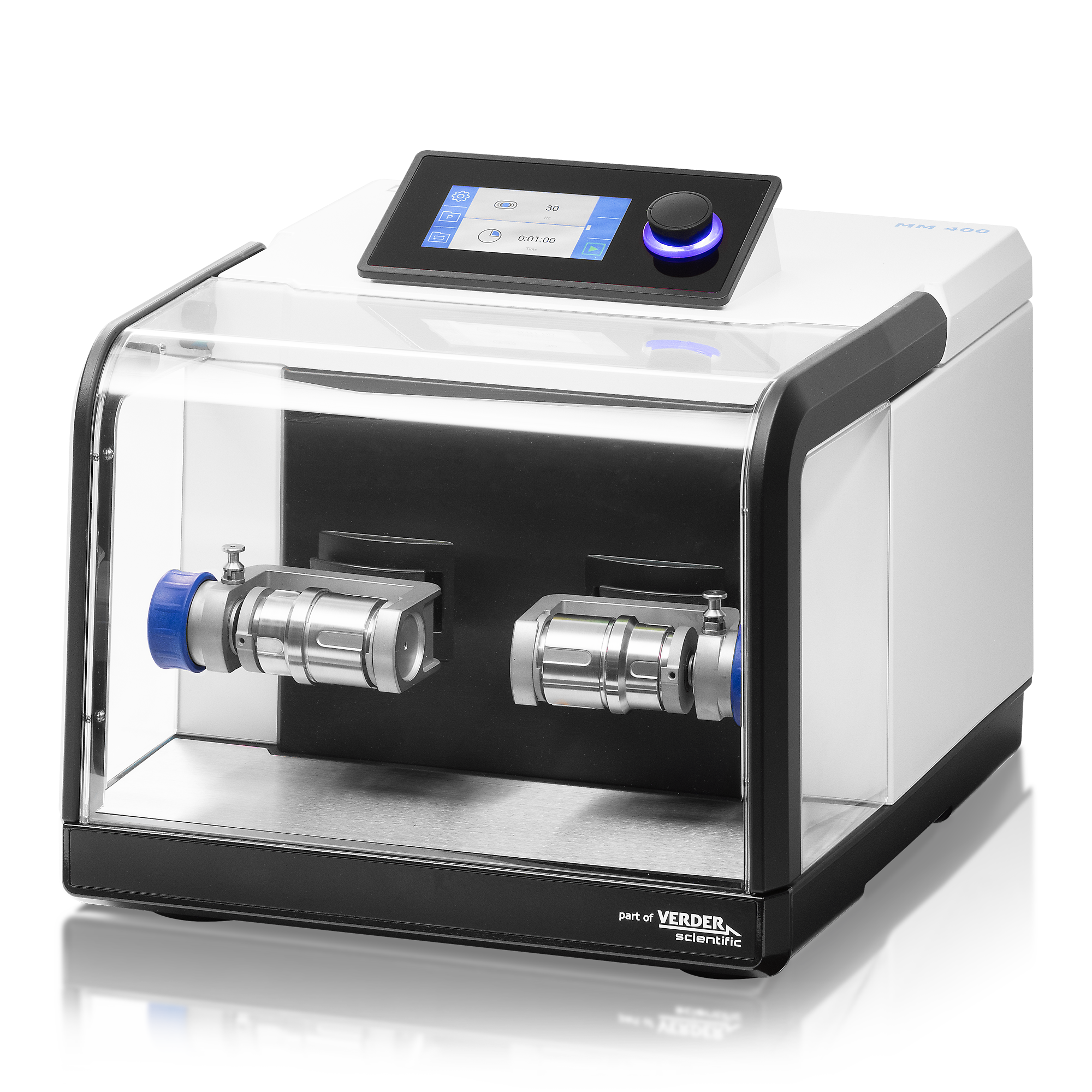

Mixer Mill MM 400
Mixer Mill MM 400 with quick release clamp
(please order grinding jars and balls separately)
20.715.0001
MM 400
100–240 V, 50/60 Hz

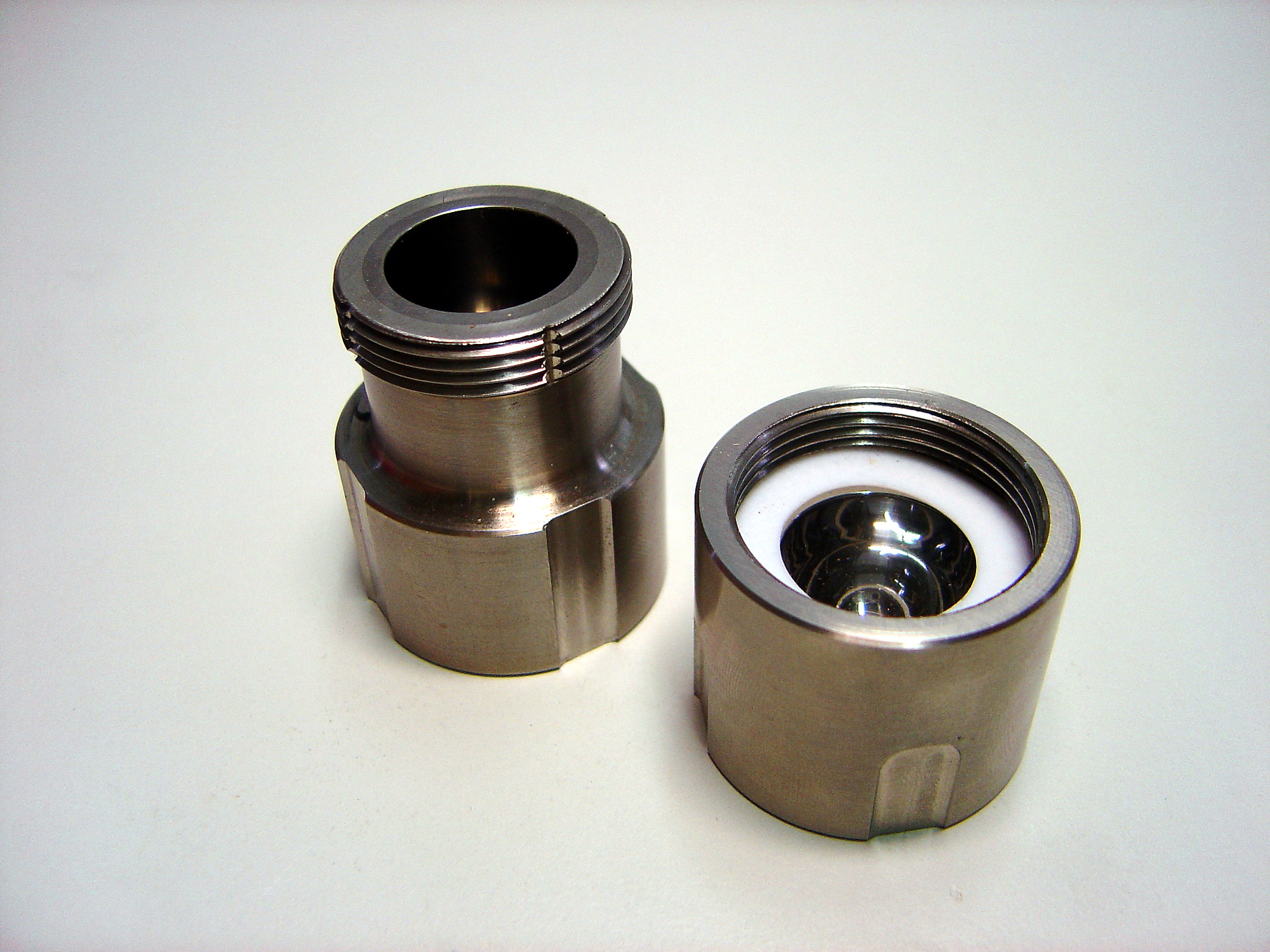

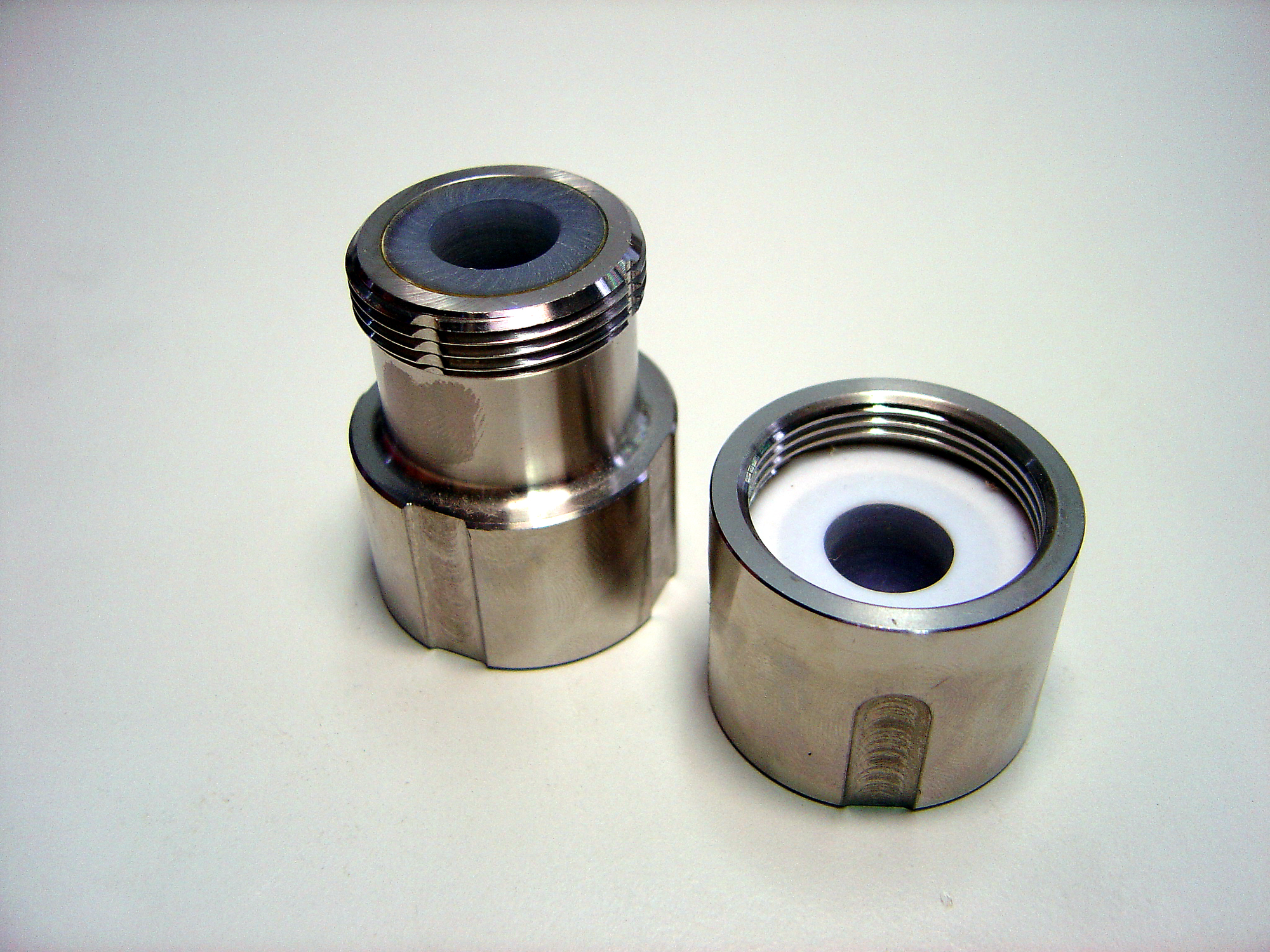

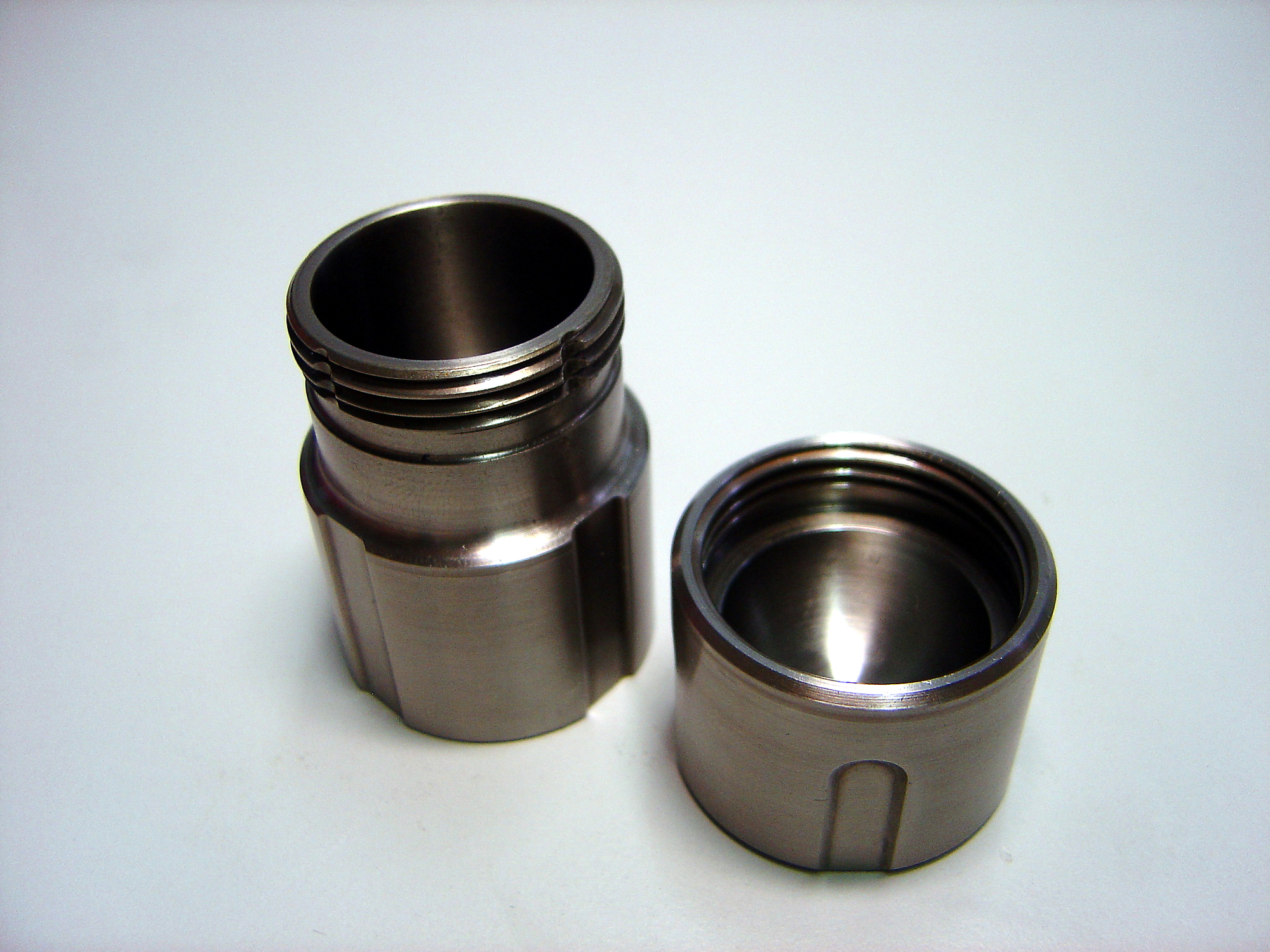

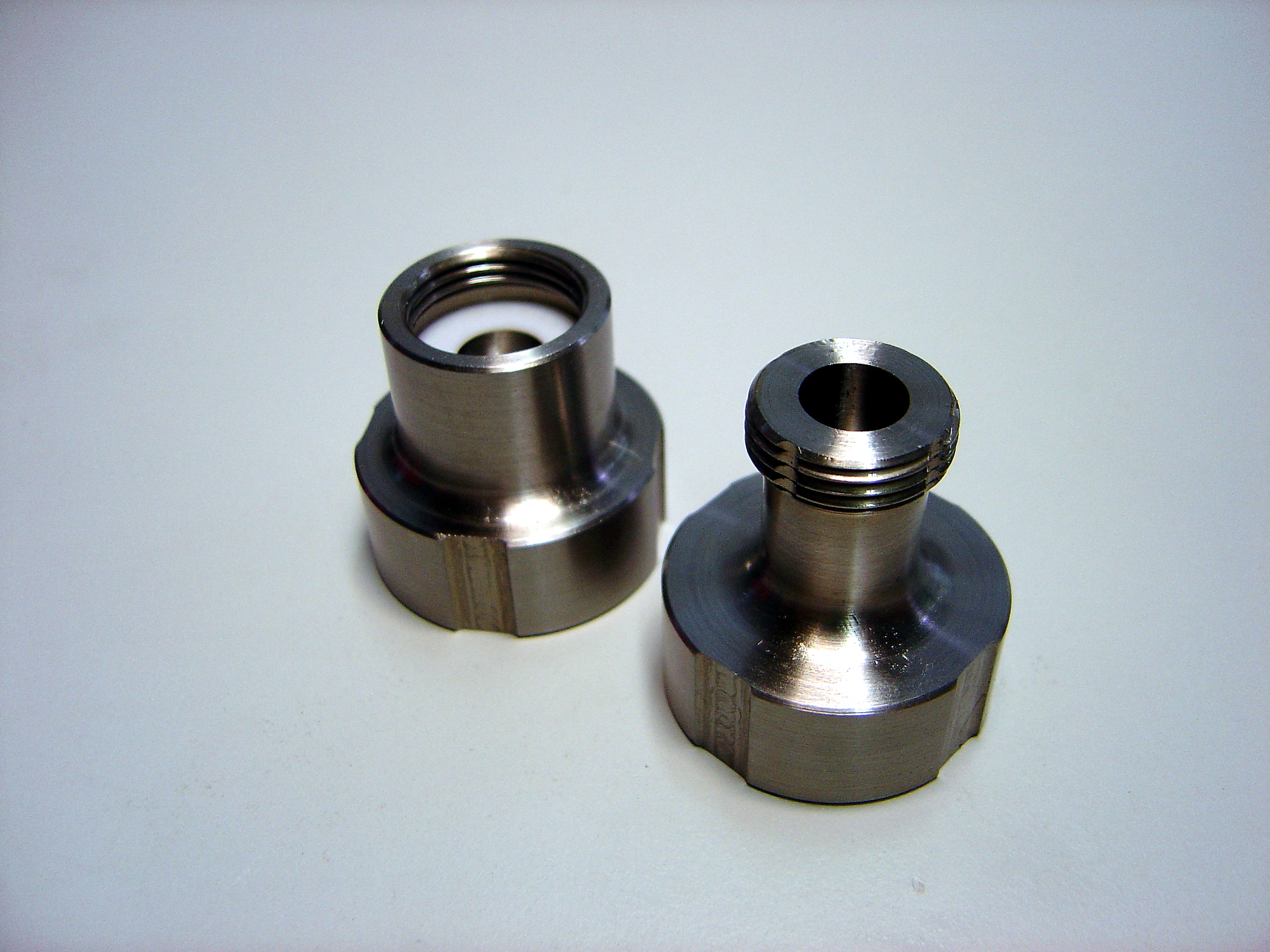

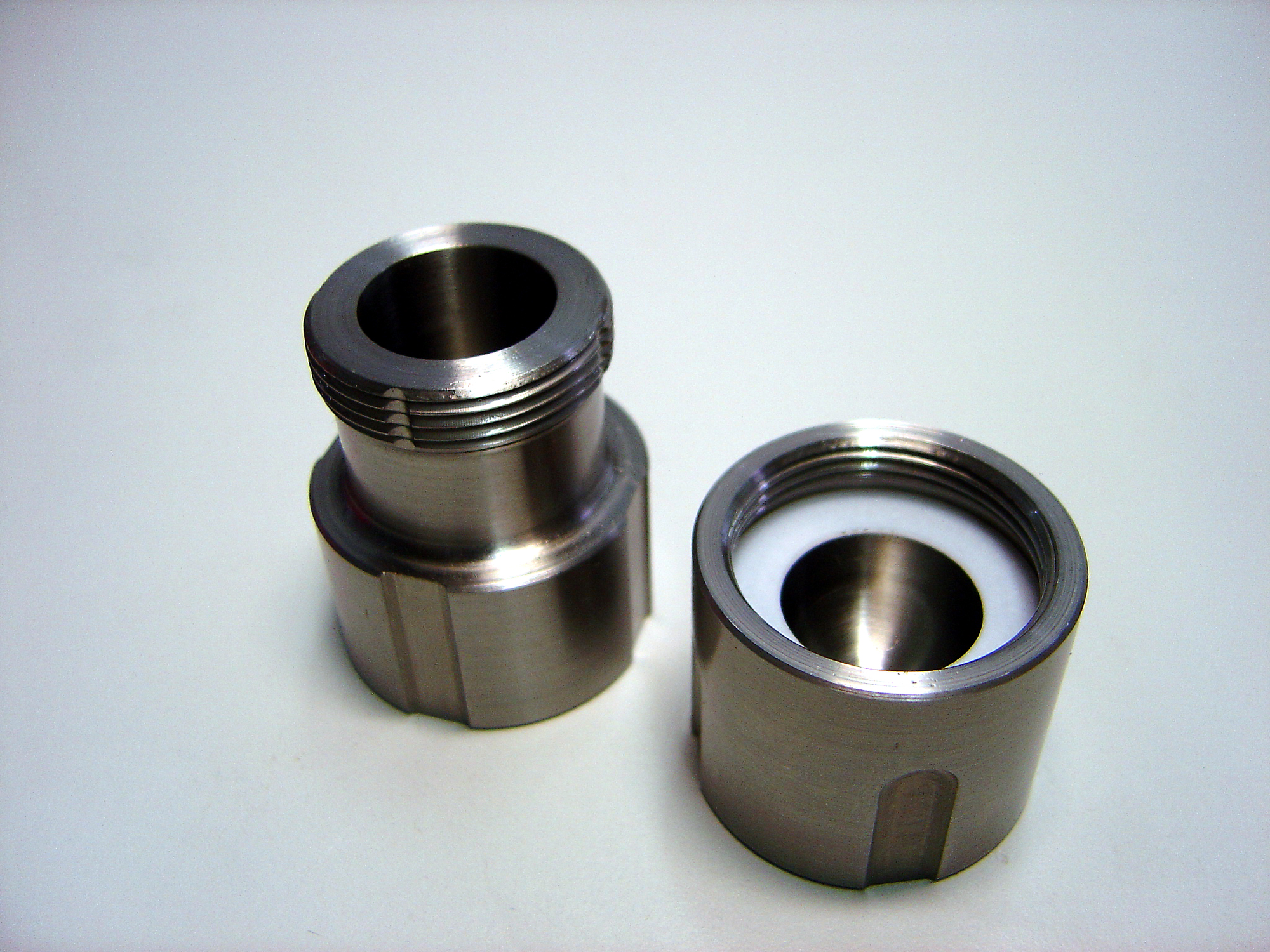

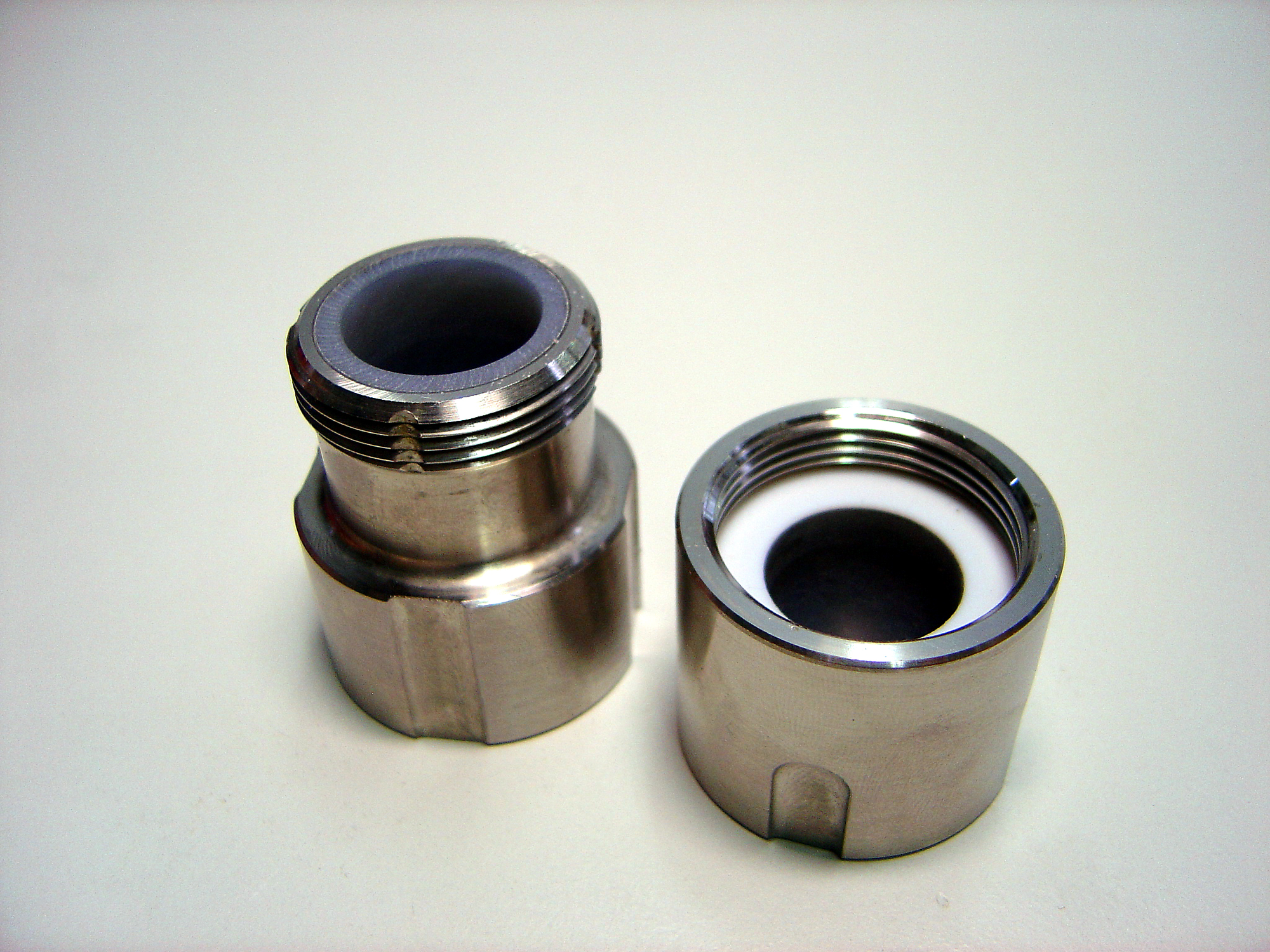

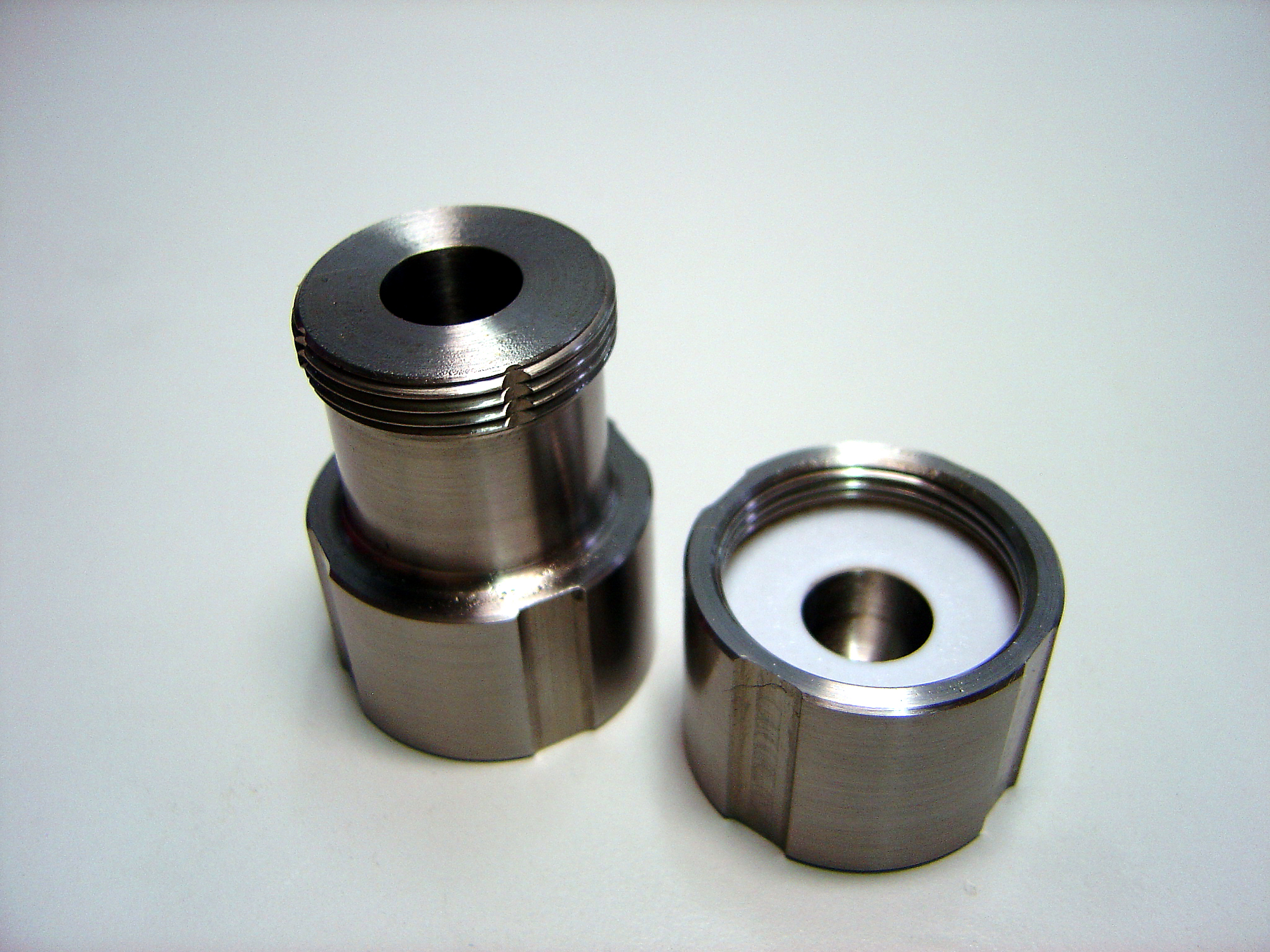

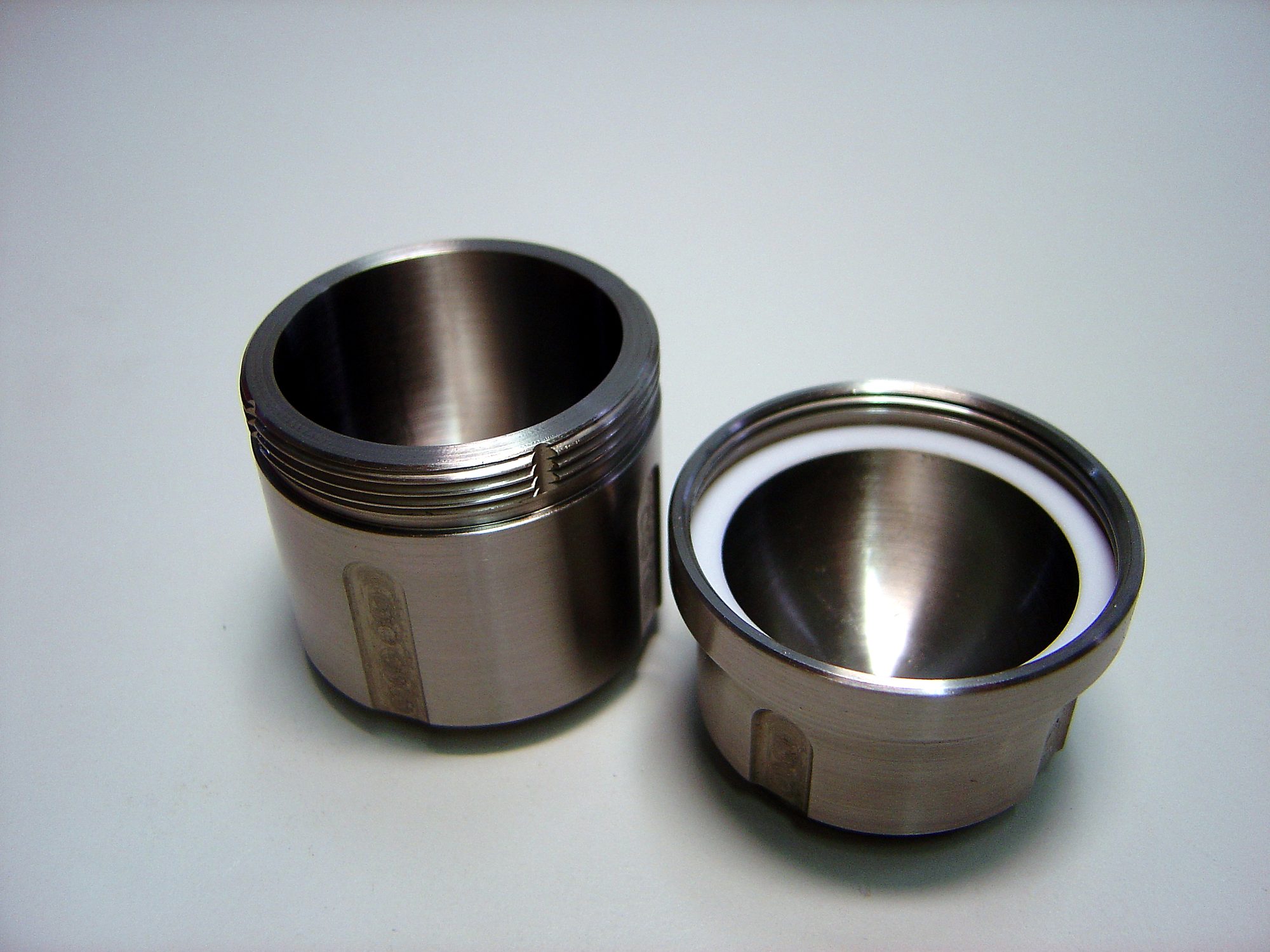

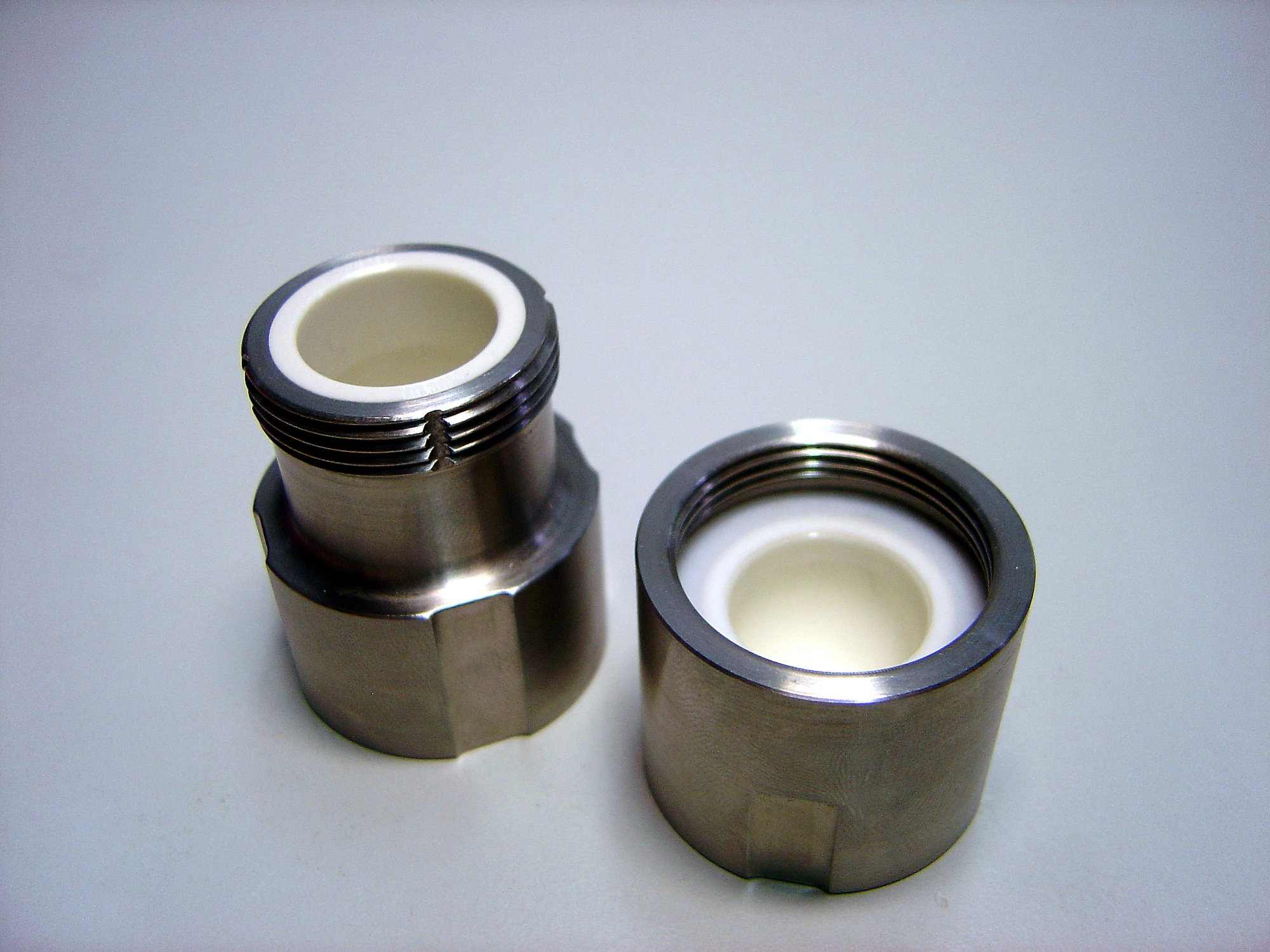

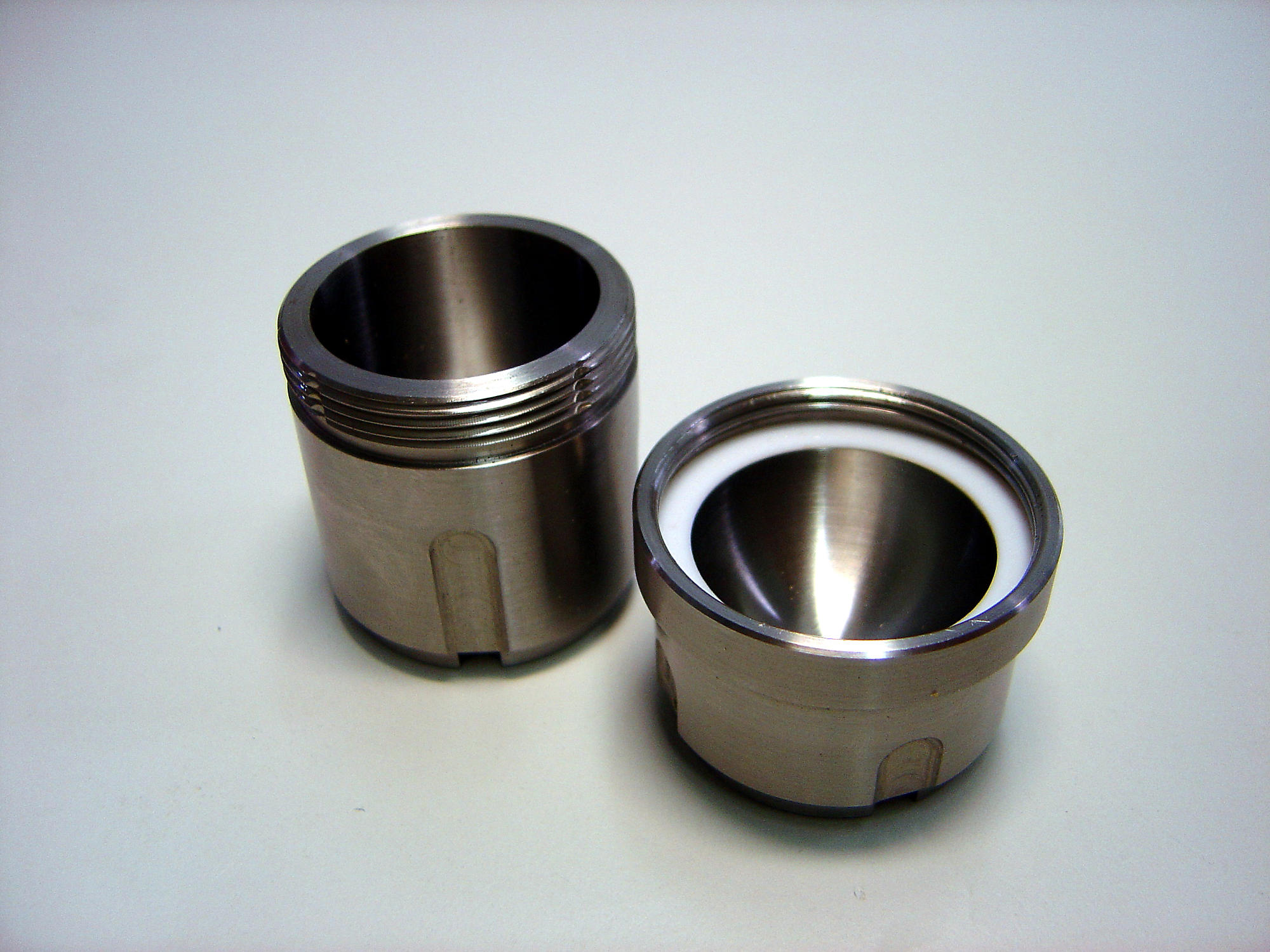

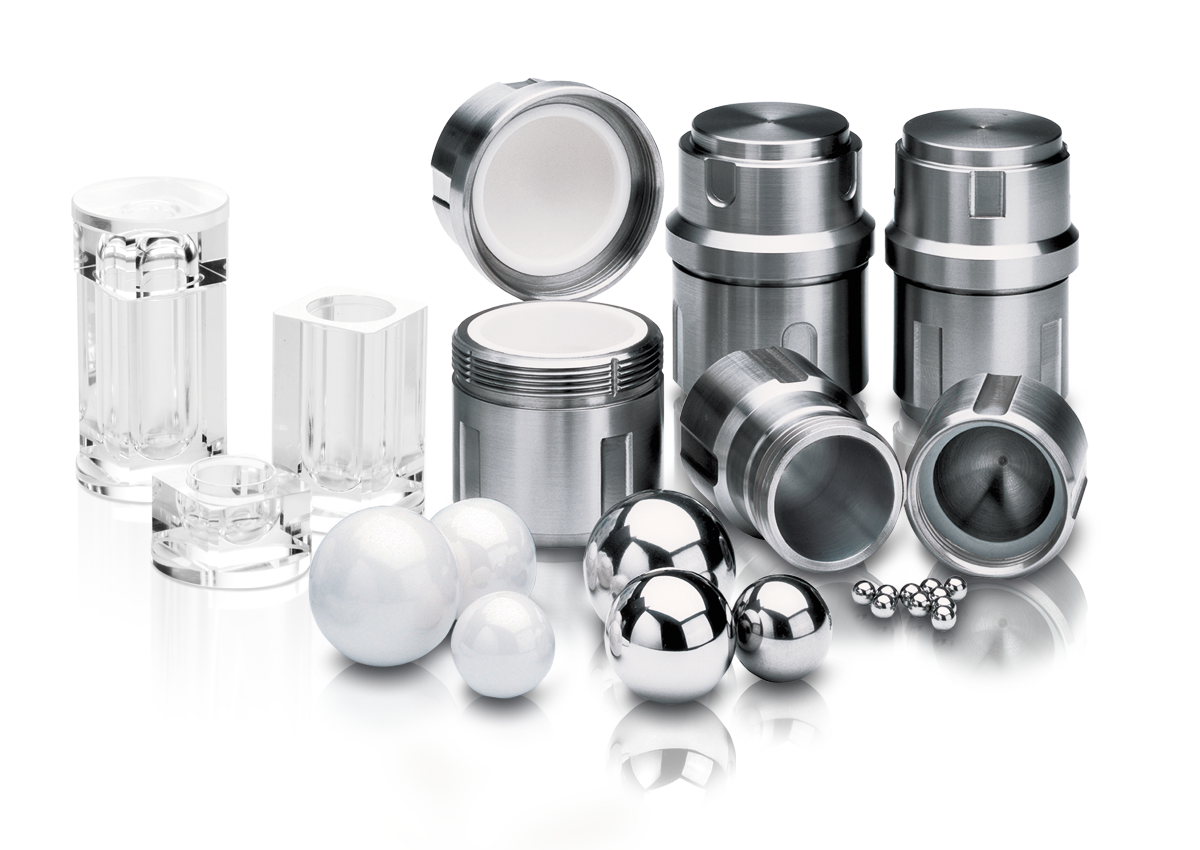

Grinding jars MM 400, screw top design
有螺旋盖的研磨罐具有防尘和较好的气密性，适合干磨、湿磨和低温研磨。此外，研磨罐在放入手套箱后可安全地封闭惰性气体。
而且，始终选择适合样品体积的研磨罐体积（大约30%的研磨罐装满样品材料）。研磨罐的尺寸从1.5毫升到25毫升不等（并非所有材料都有）。
“研磨罐球料比”文件详细说明了研磨罐的可用体积、最大进料尺寸、干磨和湿磨用研磨球的量以及尺寸。
为了确保有效的研磨，研磨罐有3种不同的材料可用于无污染的研磨过程（无意外磨损）。
能量输入随着材料密度的增加而增加。对于粉碎软性样品，应使用低至中等密度的材料，而对于硬性样品，最好使用高密度材料。
可用材质:
- 硬质钢 (密度 7.8 g/cm2; 硬度 ≤ 235 HB, 中等耐磨)
特别适合粉碎中等硬度、硬脆性样品。 - 不锈钢 (密度 7.7 g/cm2; 硬度 ≤ 245 HB, 中等耐磨)
特别适合粉碎中等硬度、硬脆性样品。 - 碳化钨(密度 14.8 g/cm3; 硬度 93.6 HRA; 高耐磨性) 用于研磨非常硬、脆性样品。通过使用碳化钨材质，样品可免受铁元素污染。
- 玛瑙 (密度 2.6 g/cm3; 硬度 6.5 – 7 Mohs, 低耐磨性) 一种高纯度的天然材料，适用于粉碎软性至中硬性或纤维状样品。玛瑙密度低，适合于低能耗的轻磨工艺。
- 氧化锆 (密度 6.05 g/cm2; 硬度 1250 HV, 高耐磨性)
氧化锆陶瓷特别适合粉碎中等硬度、硬脆性样品。通常用于将样品研磨至超细粒度、无重金属污染的研磨工艺和应用。
Hardened steel
01.462.0237
25 ml

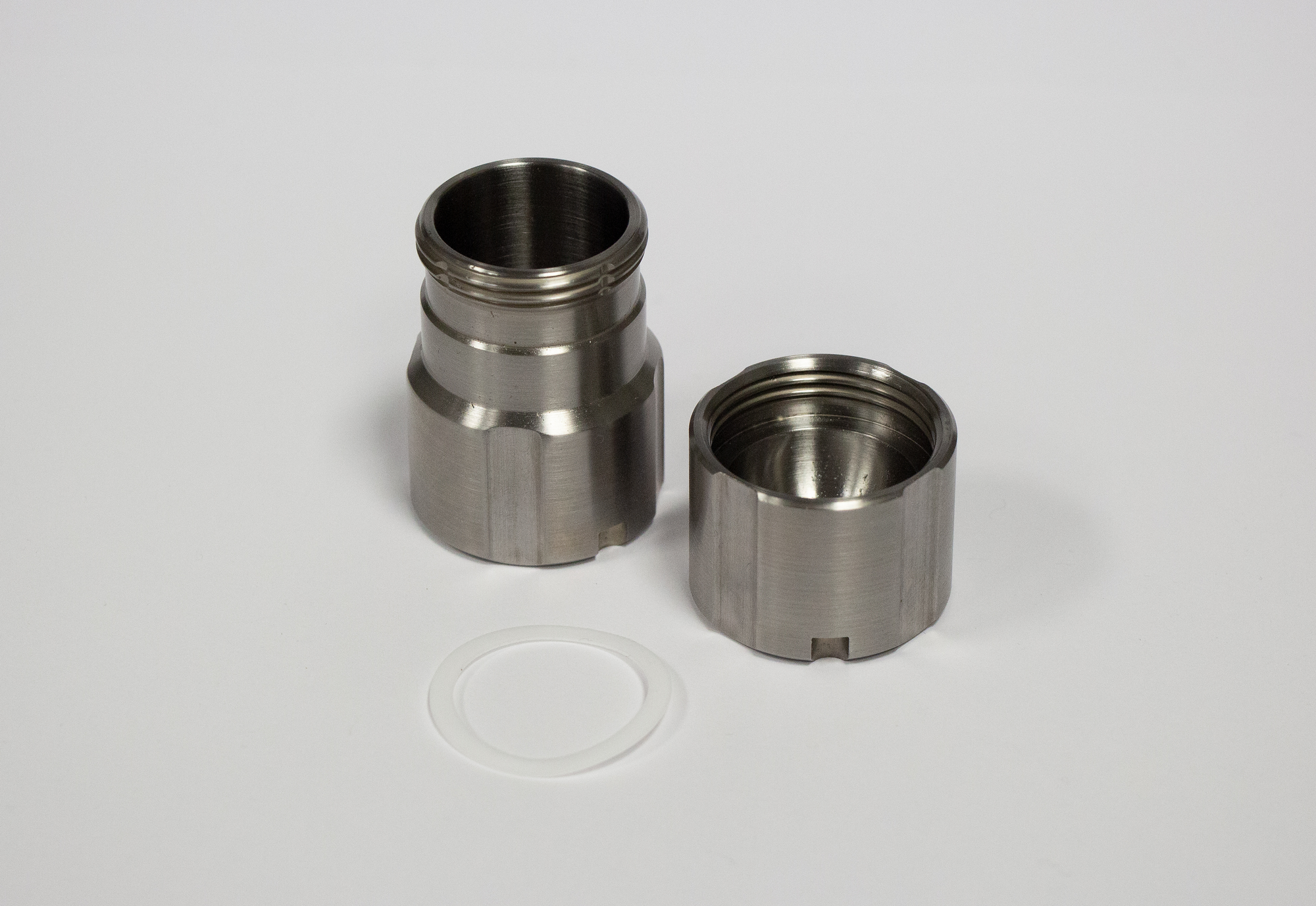

Stainless steel
01.462.0230
1.5 ml
01.462.0231
5 ml
01.462.0290
5 ml (for use with adapter 02.706.0351)
01.462.0236
10 ml
01.462.0213
25 ml
01.462.0214
35 ml
01.462.0216
50 ml

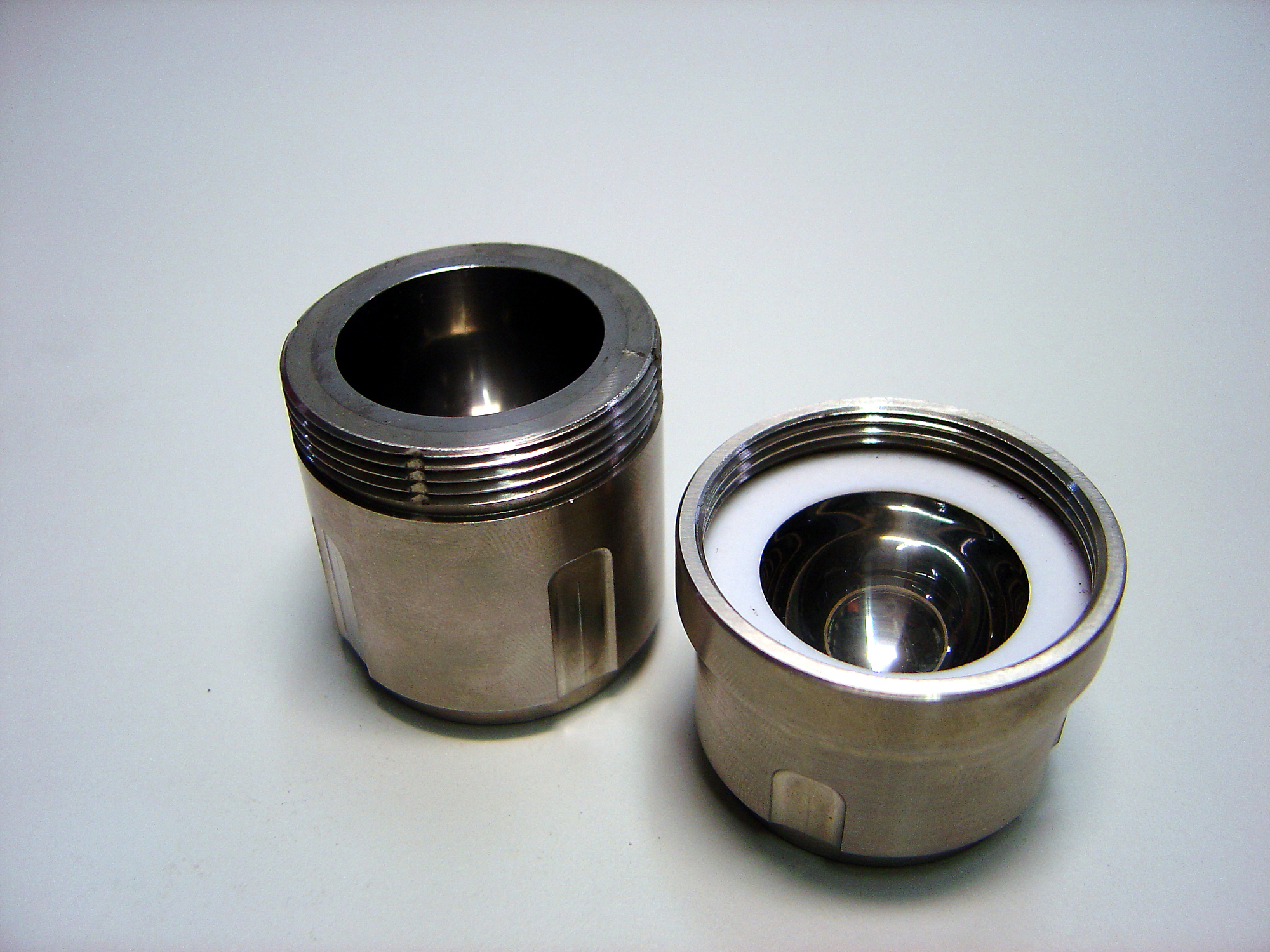

Tungsten carbide
01.462.0235
10 ml
01.462.0217
25 ml
Agate
01.462.0232
5 ml
01.462.0233
10 ml

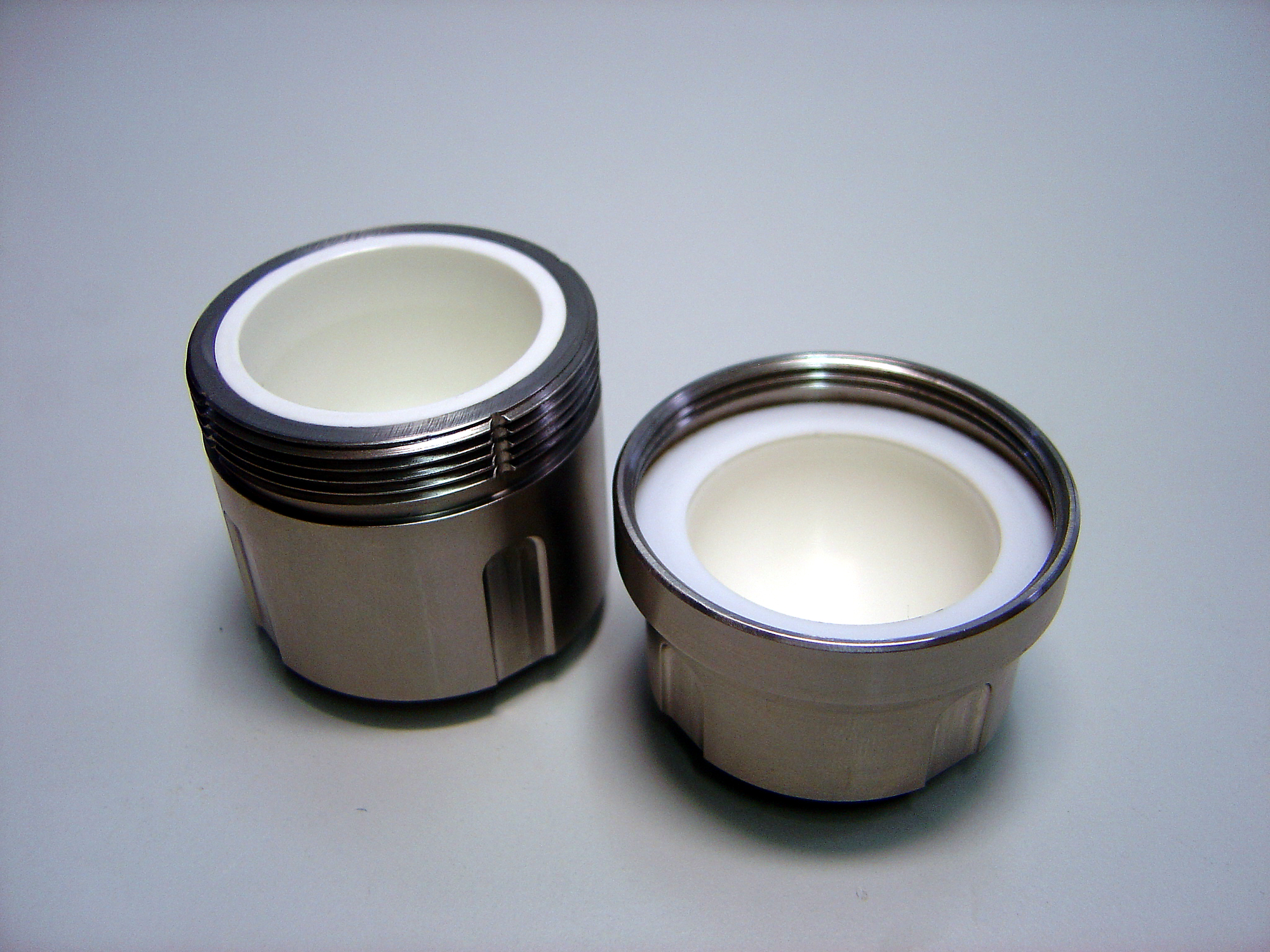

Zirconium oxide
01.462.0234
10 ml
01.462.0201
25 ml
01.462.0215
35 ml

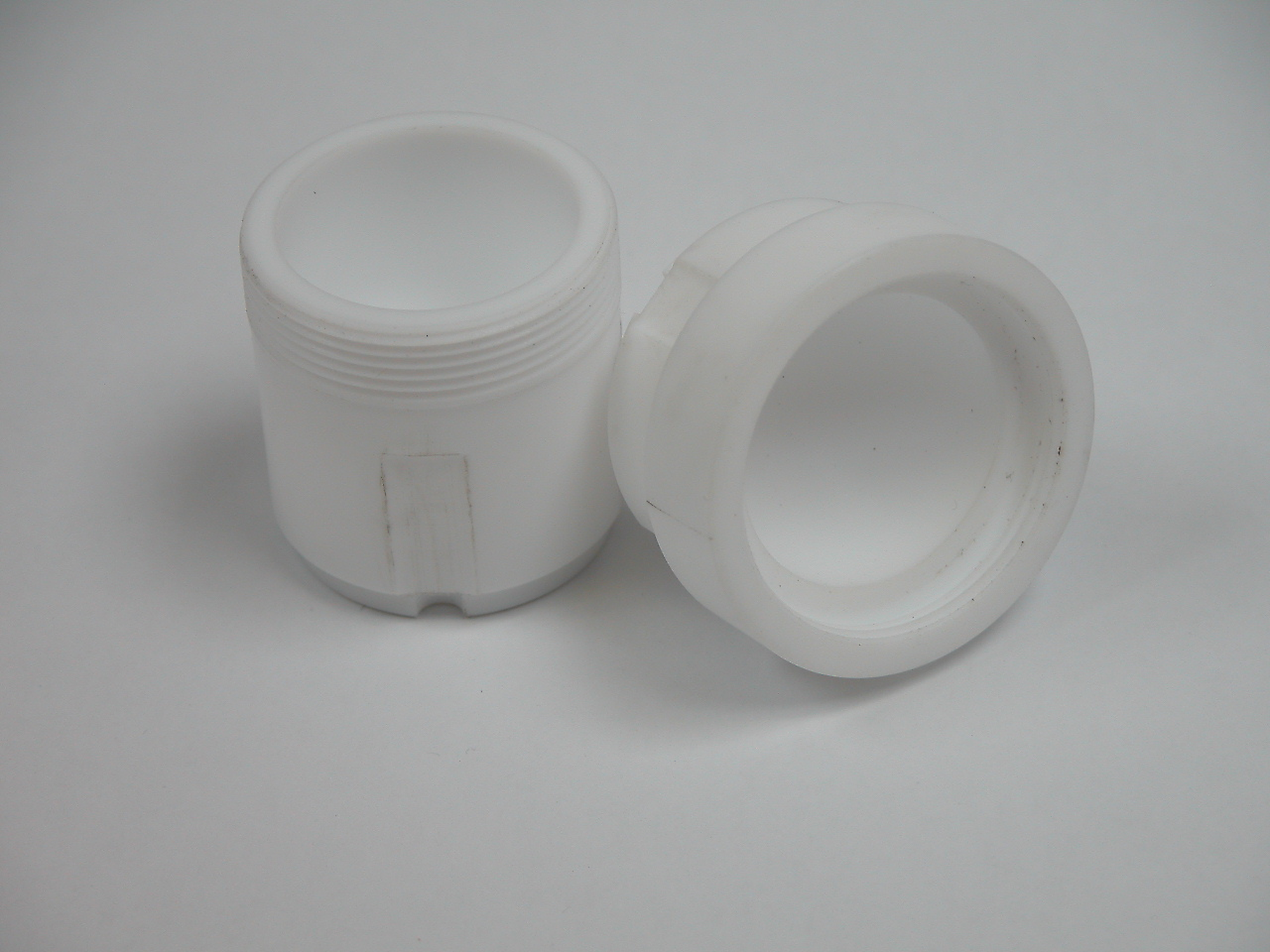

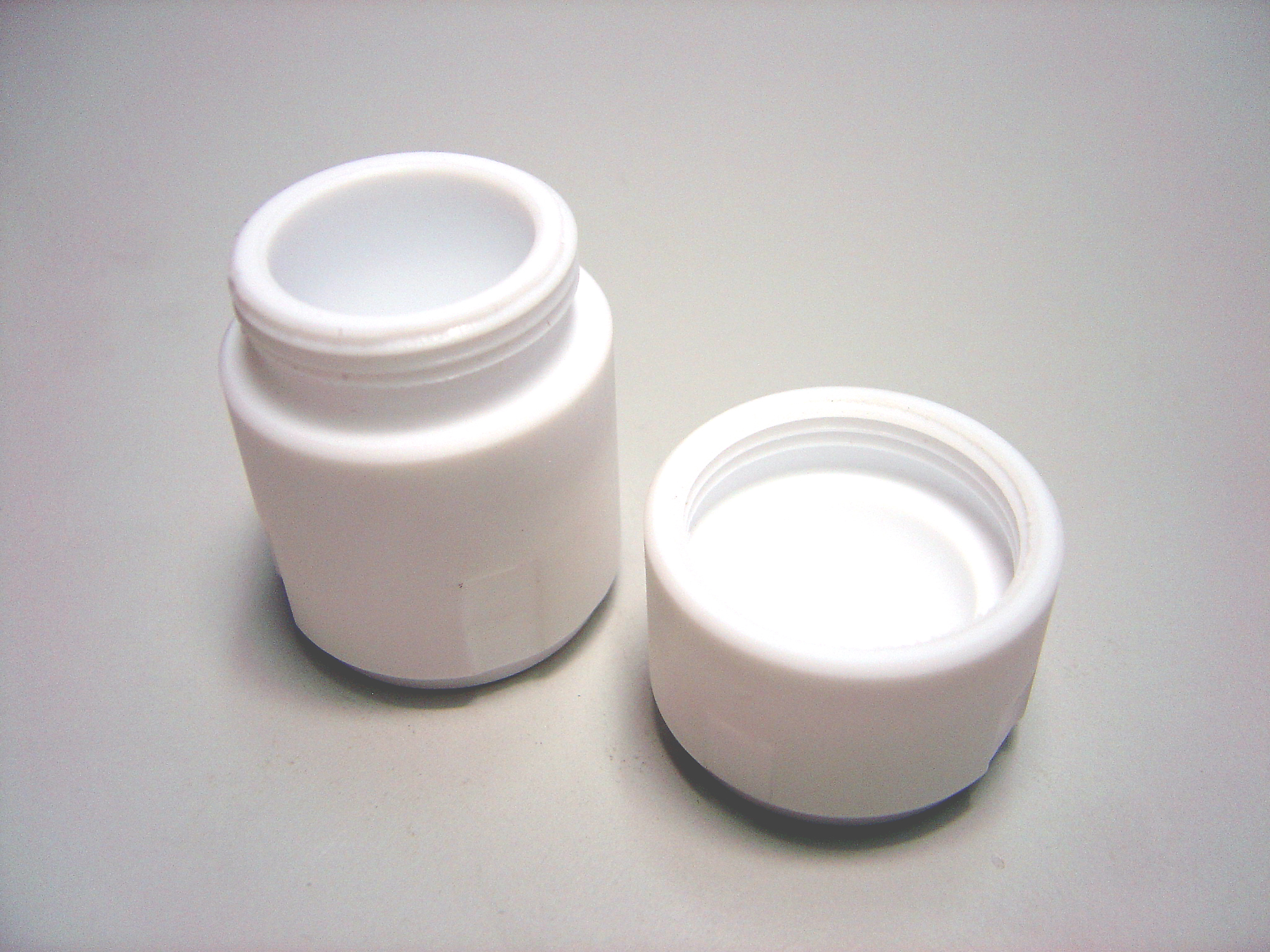

PTFE
01.462.0238
25 ml
01.462.0244
35 ml
22.041.0004
Mixing beakers of polystyrene, 56 ml, 100 pcs.

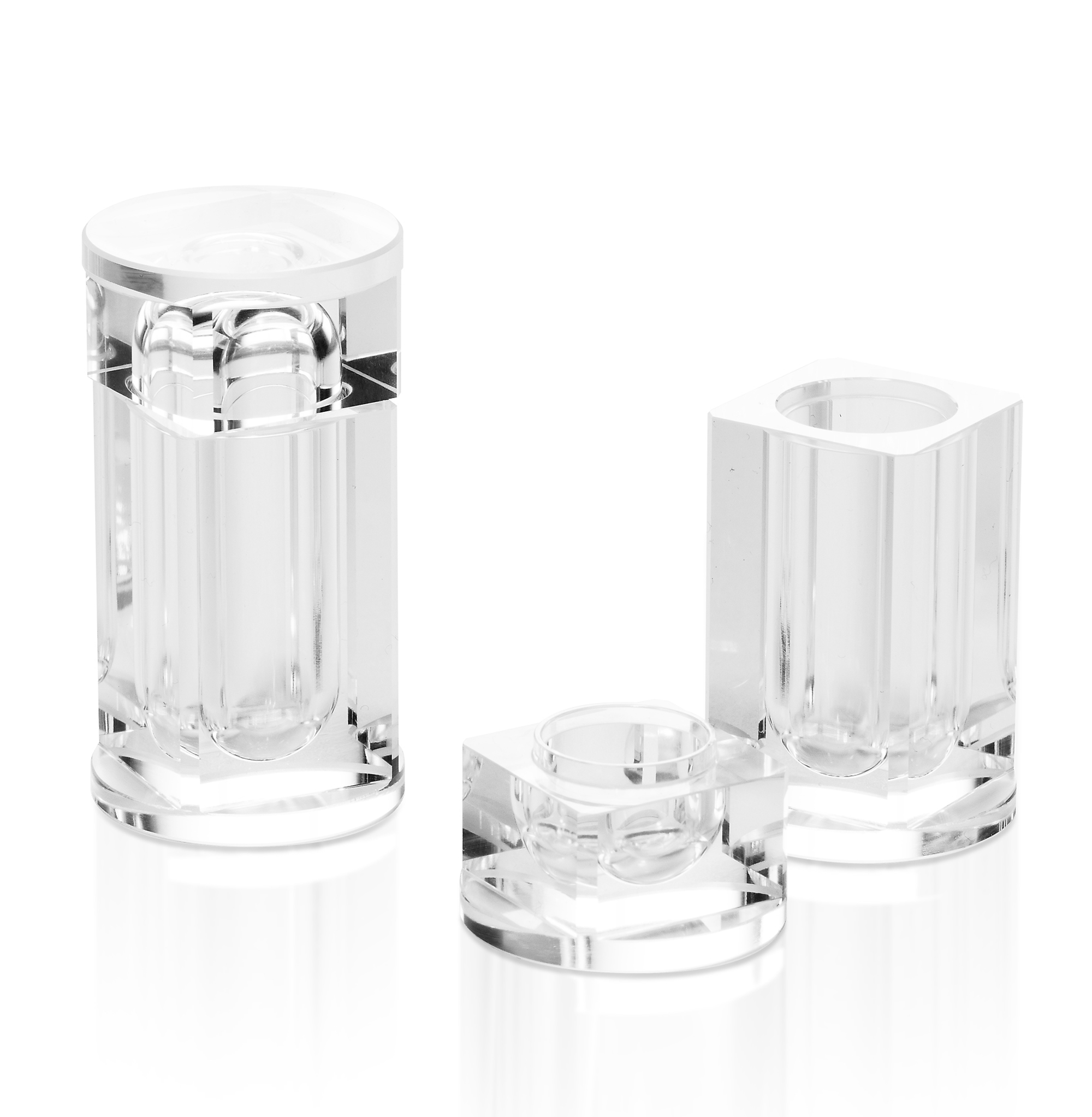

PMMA, transparent jars for mechanosyntheses
01.462.0539
10 ml, 10 pieces
02.462.0539
10 ml, 2 pieces
Accessories for aeration and increased pressure
01.462.0548
Jar set incl. aeration jar 28 ml stainless steel, filter 10 µm, sealings and fittings 2 x 1/8“ for hose diameter 3 mm and 0.65 mm wall thickness (2x3 m hose included)
22.050.0005
Conversion kit including 2 connectors for the hoses on grinding arm, bottom plate for leading hoses out of the housing, counterweight
Accessories for grinding jars MM 400
22.486.0005

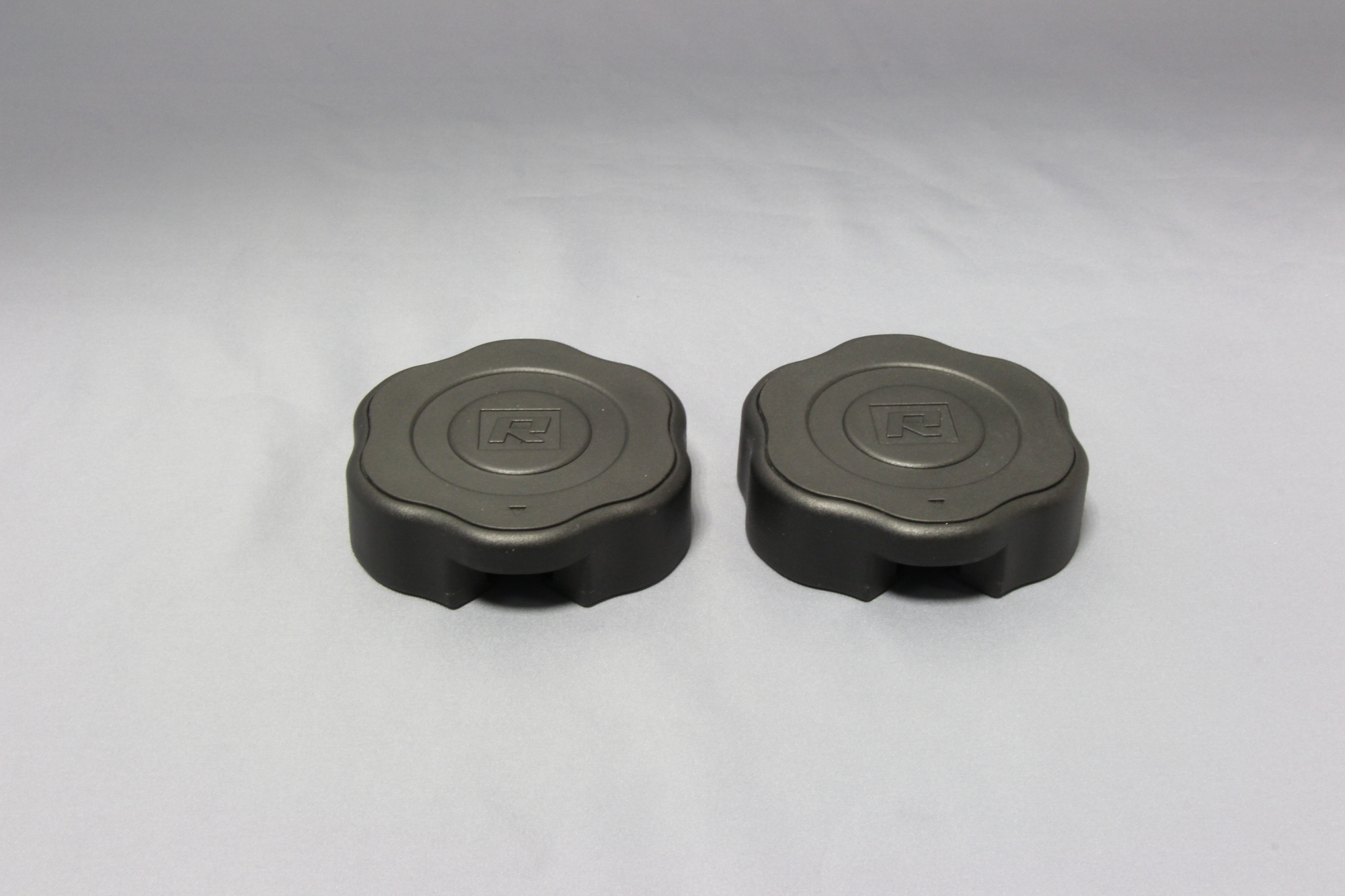

Opening aid for grinding jars, 2 pcs.

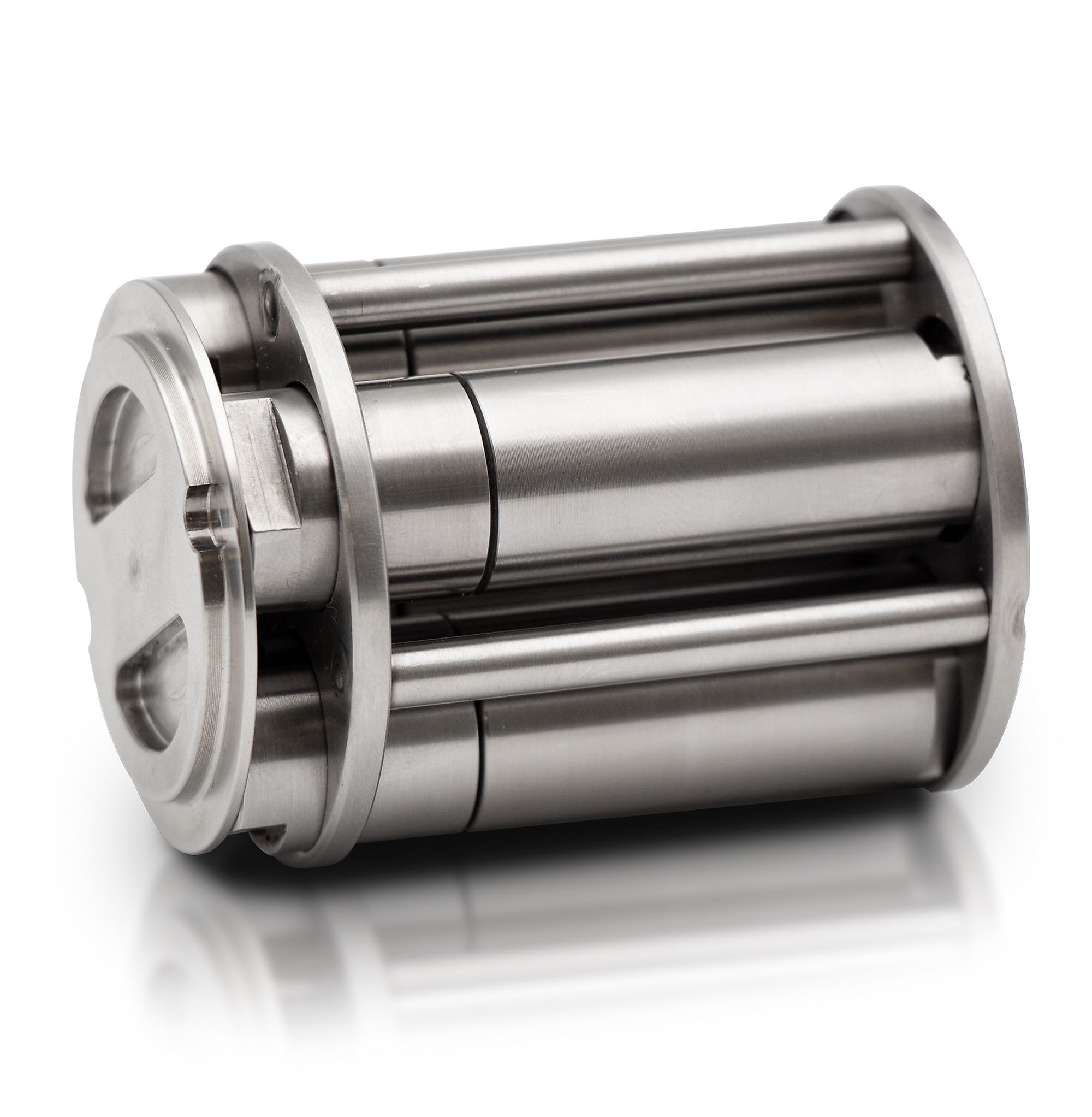

02.706.0351

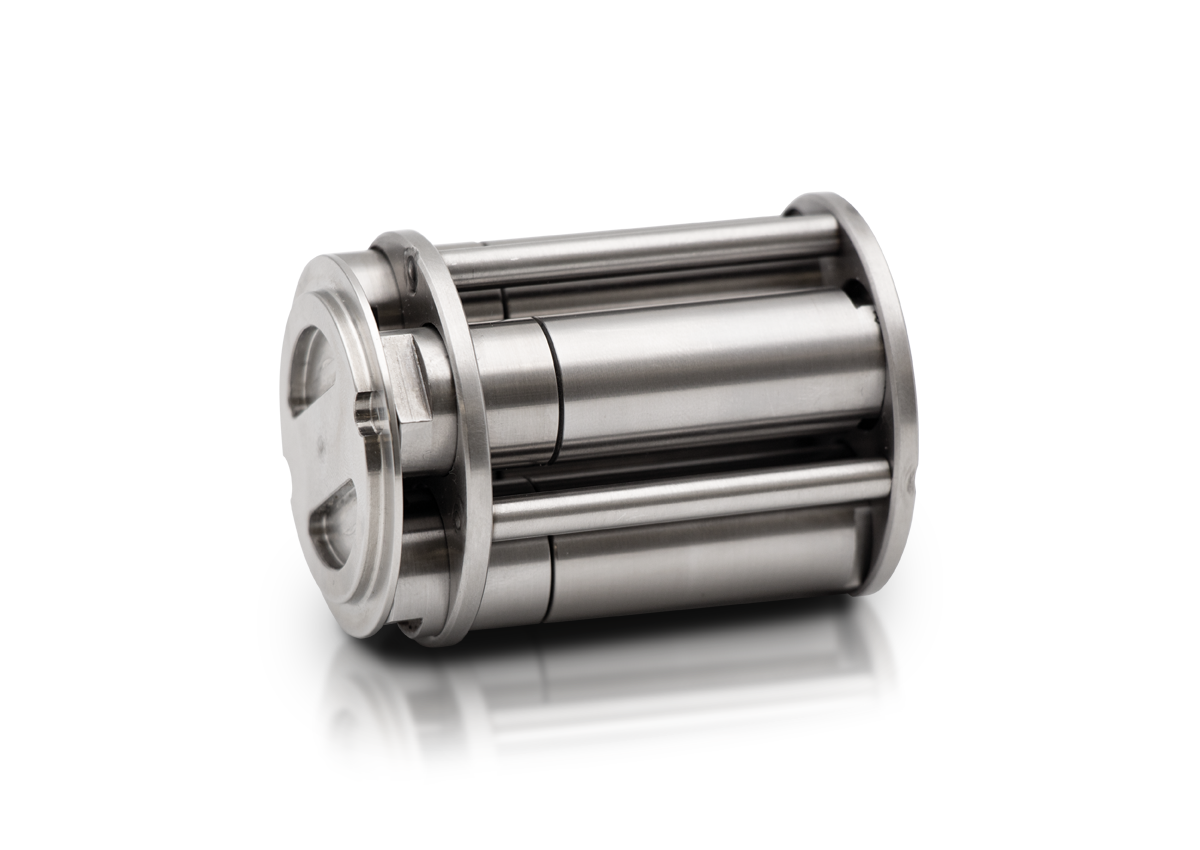

Adapter for use of 2/4 grinding jars 5 ml (01.462.0550)

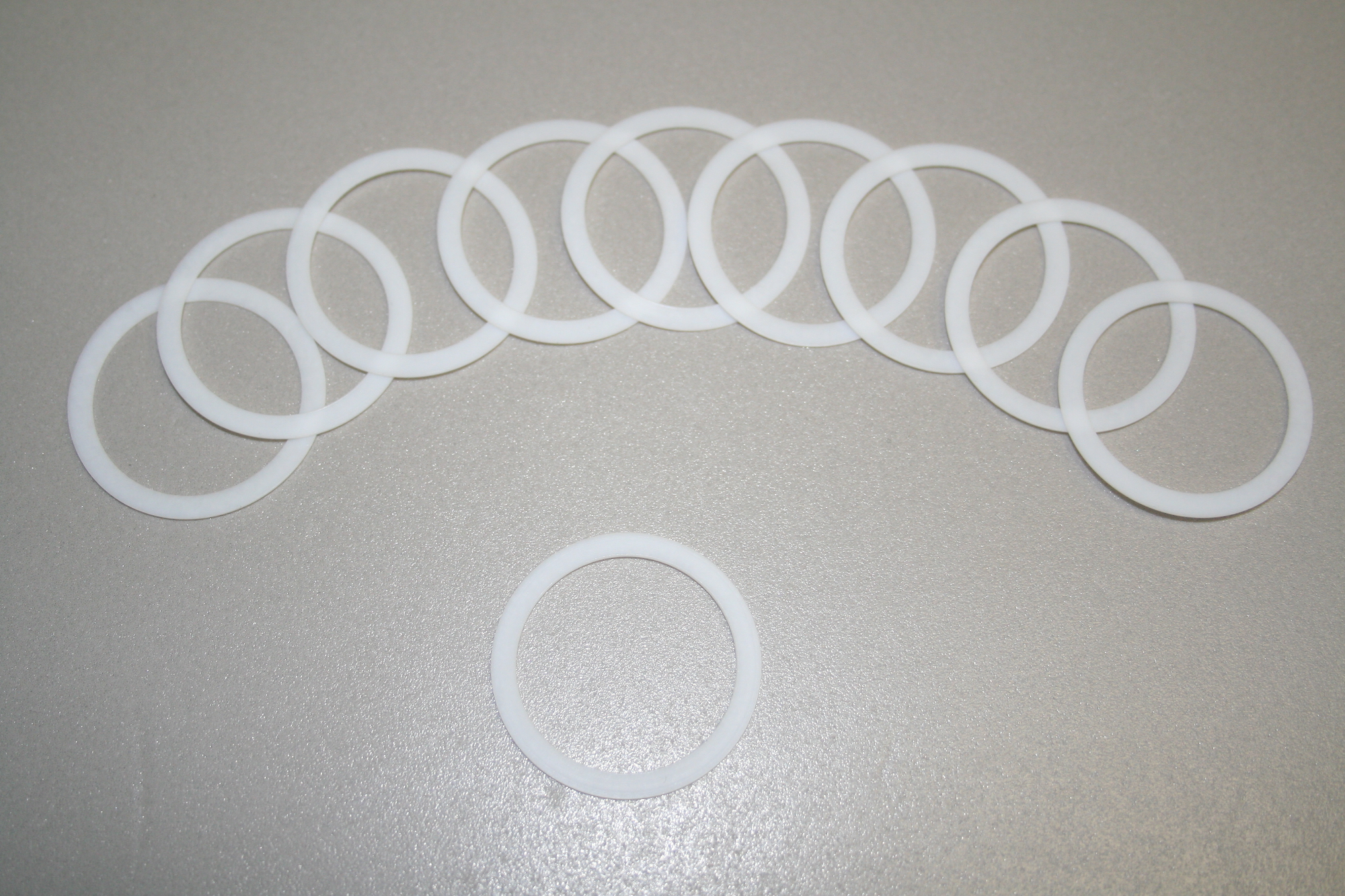

22.085.0007

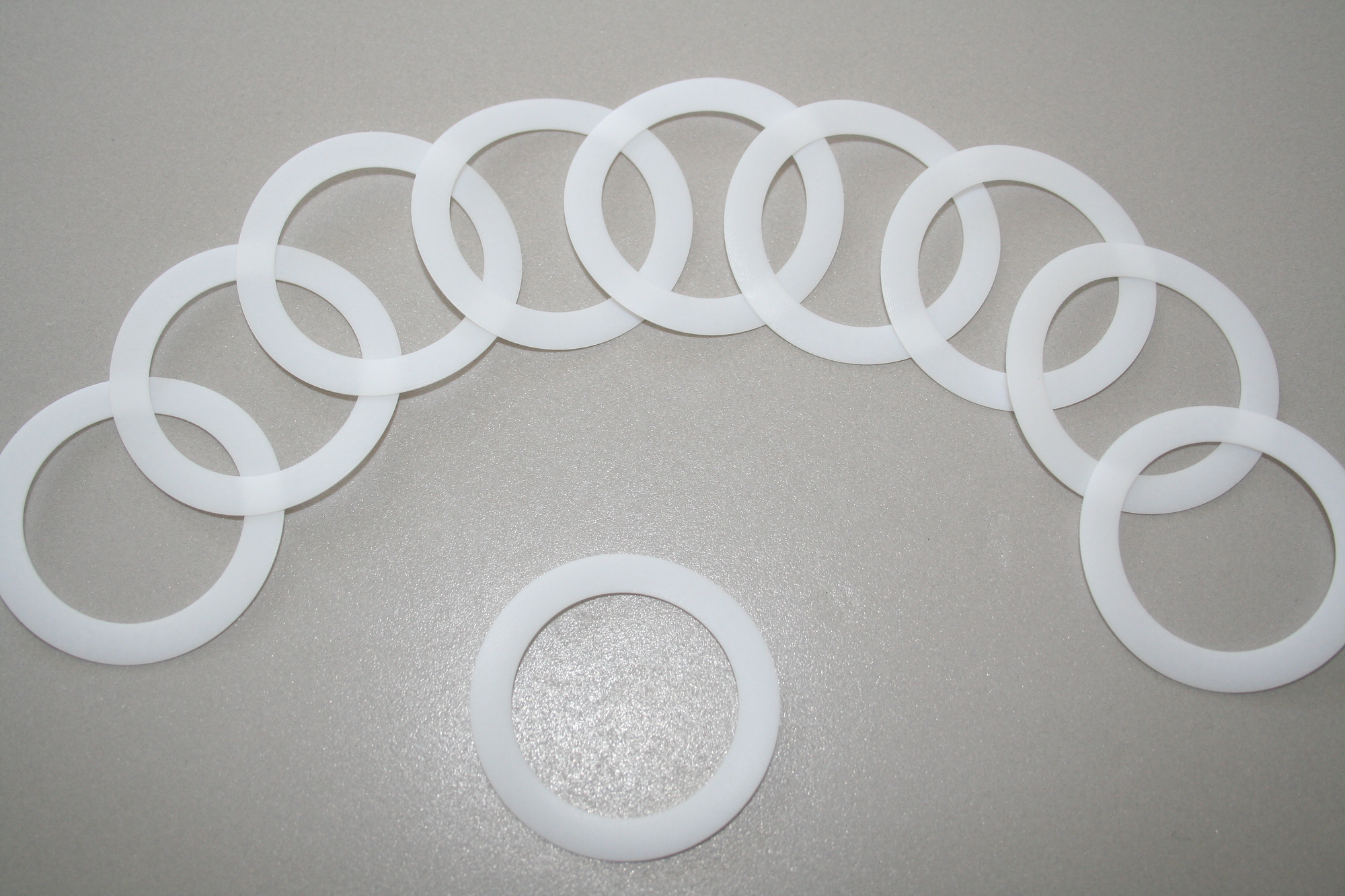

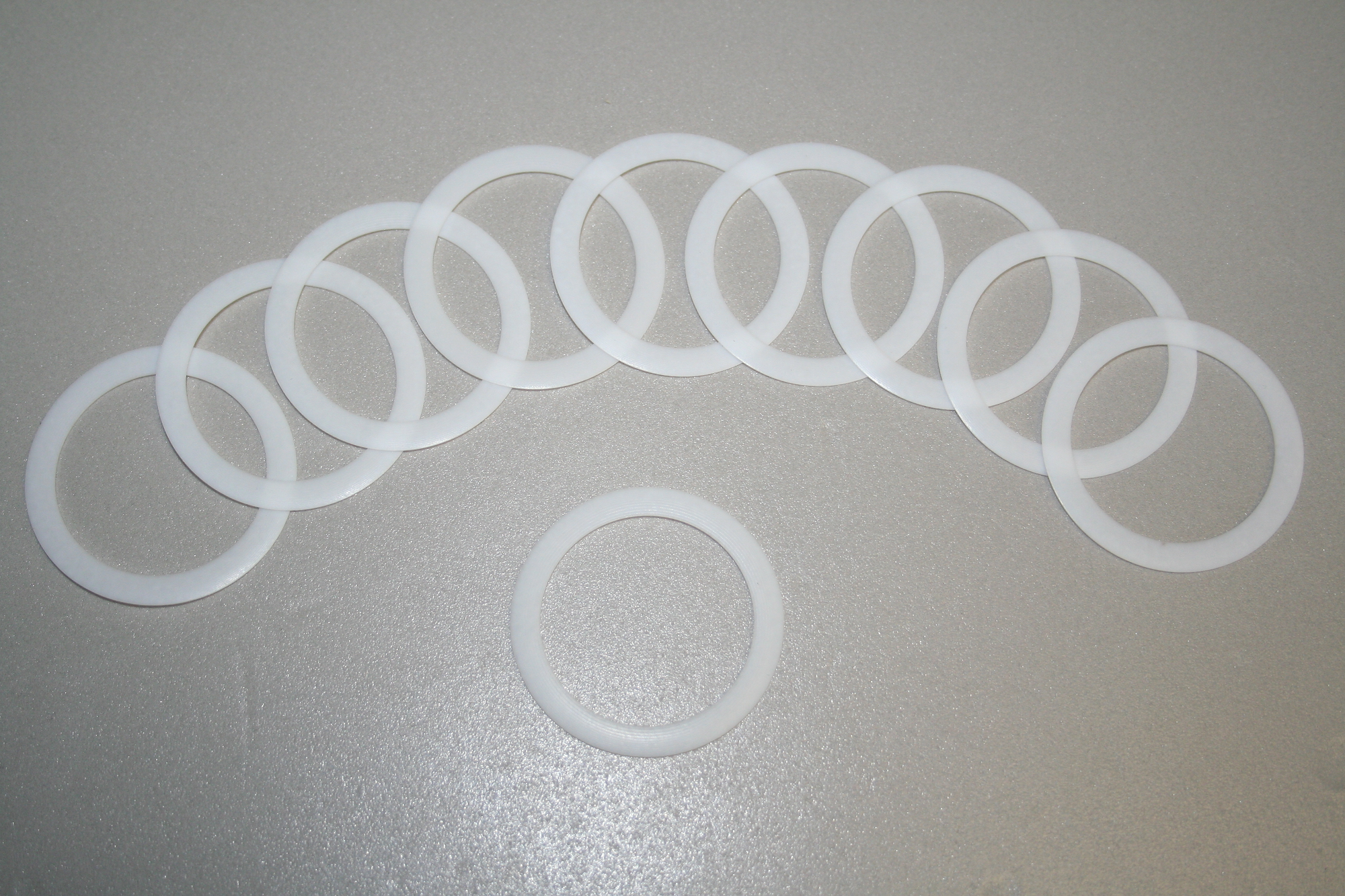

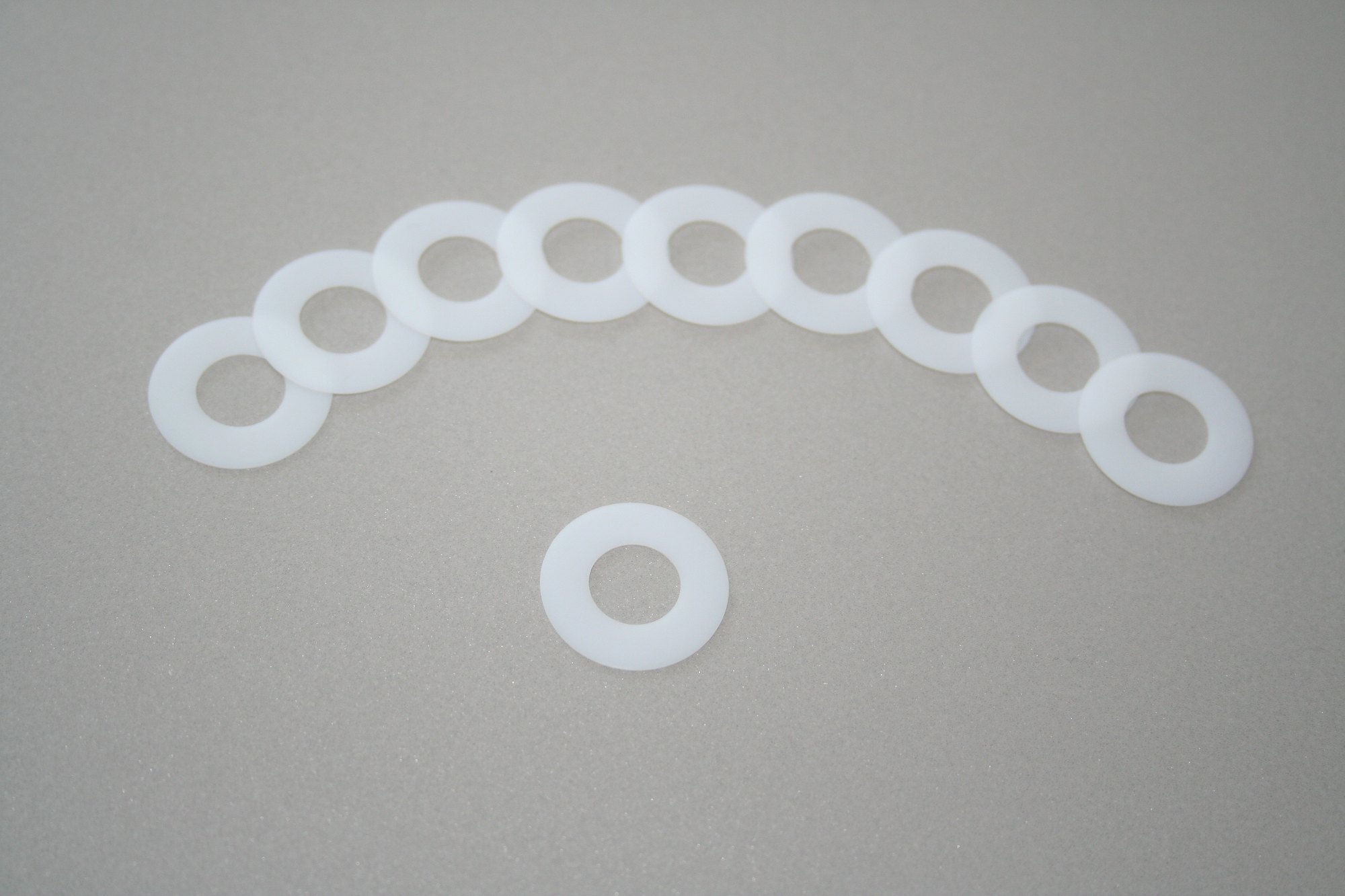

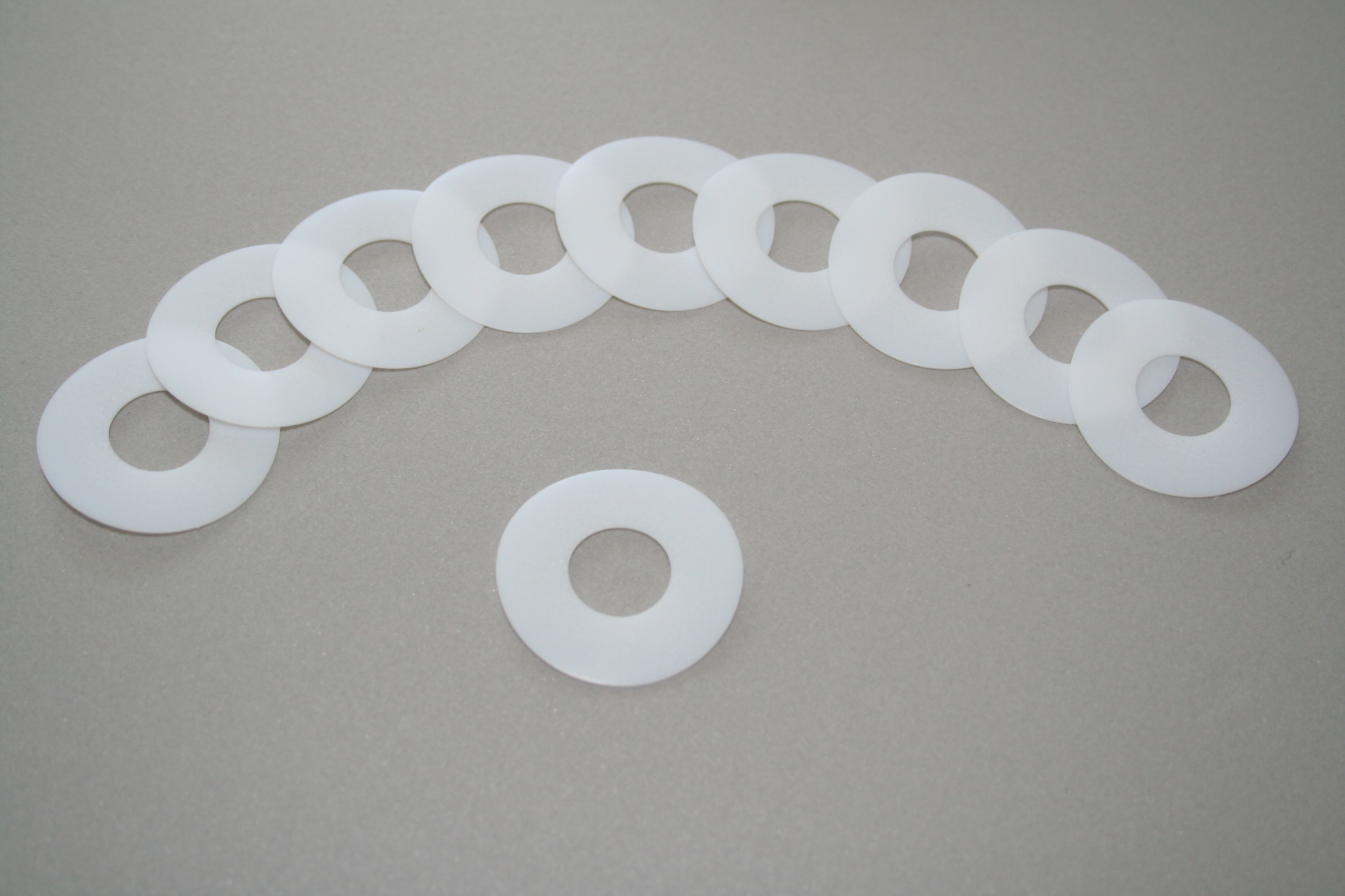

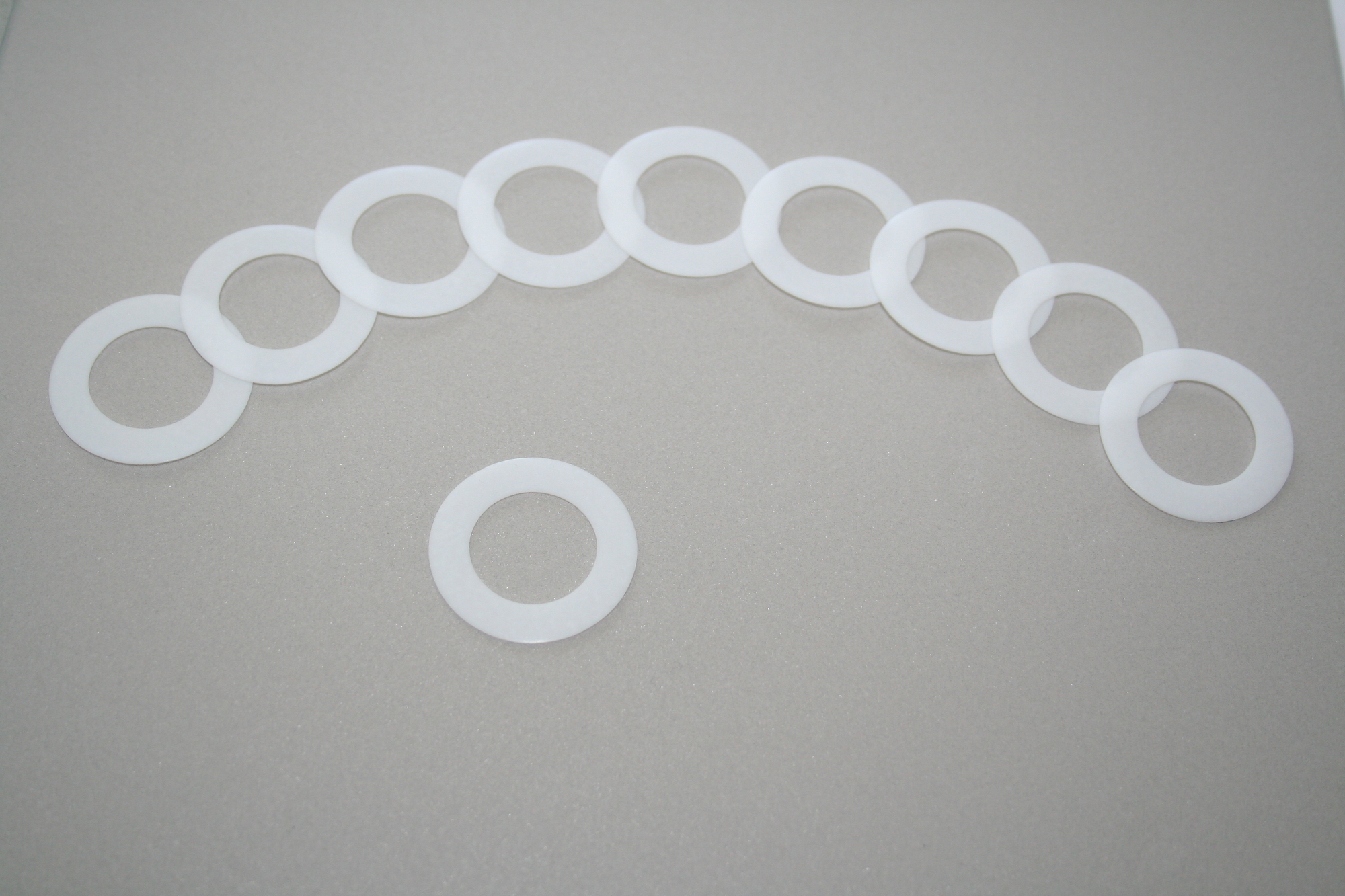

Gasket for grinding jar 1.5 ml, 10 pcs.
22.085.0008
Gasket for grinding jar 5 ml, 10 pcs. (for grinding jar 01.462.0231)
22.111.0001
Gasket for grinding jar 5 ml, 10 pcs. (for grinding jar 01.462.0550)
22.085.0009

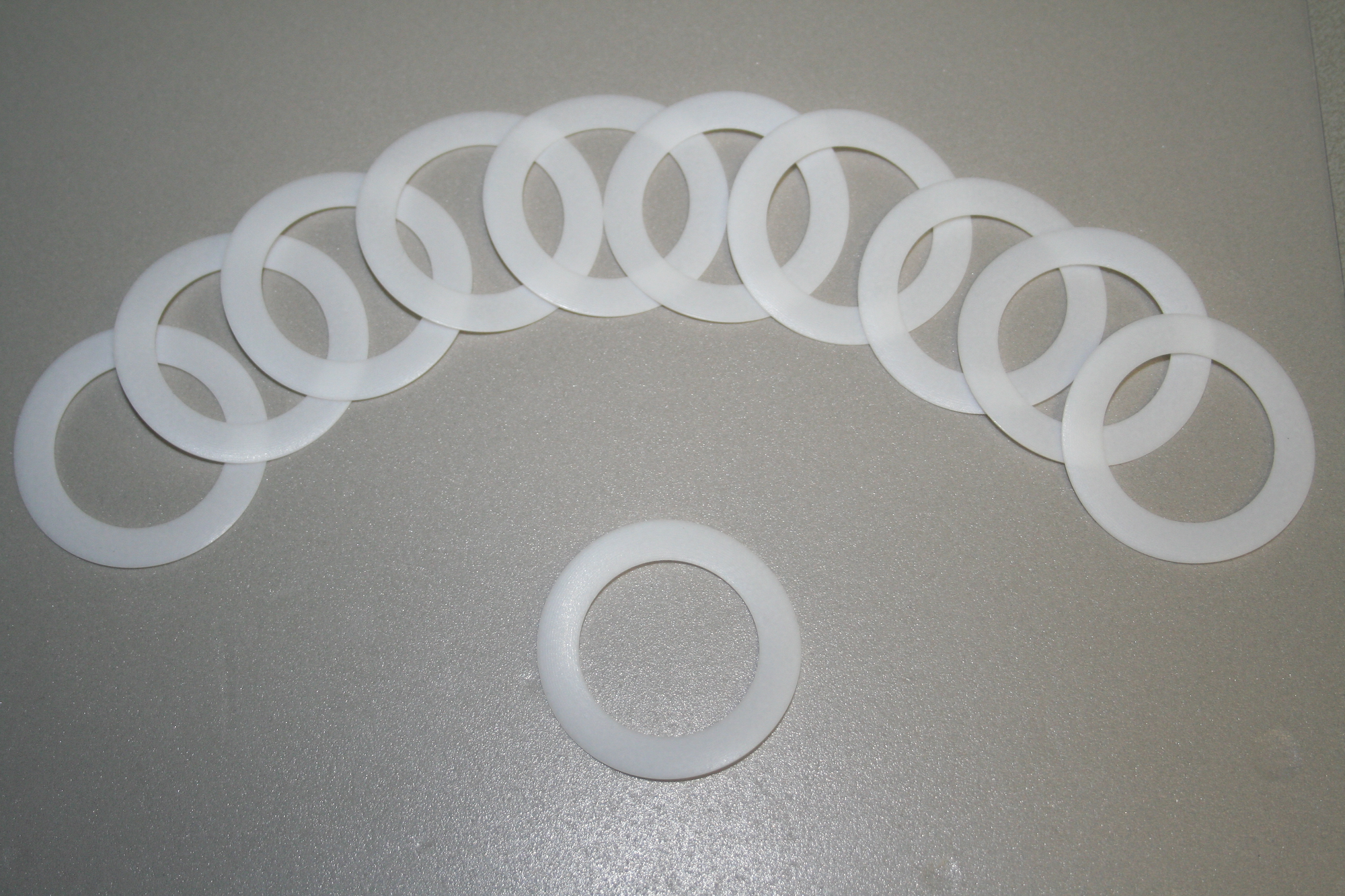

Gasket for grinding jar 10 ml, 10 pcs.
22.085.0006

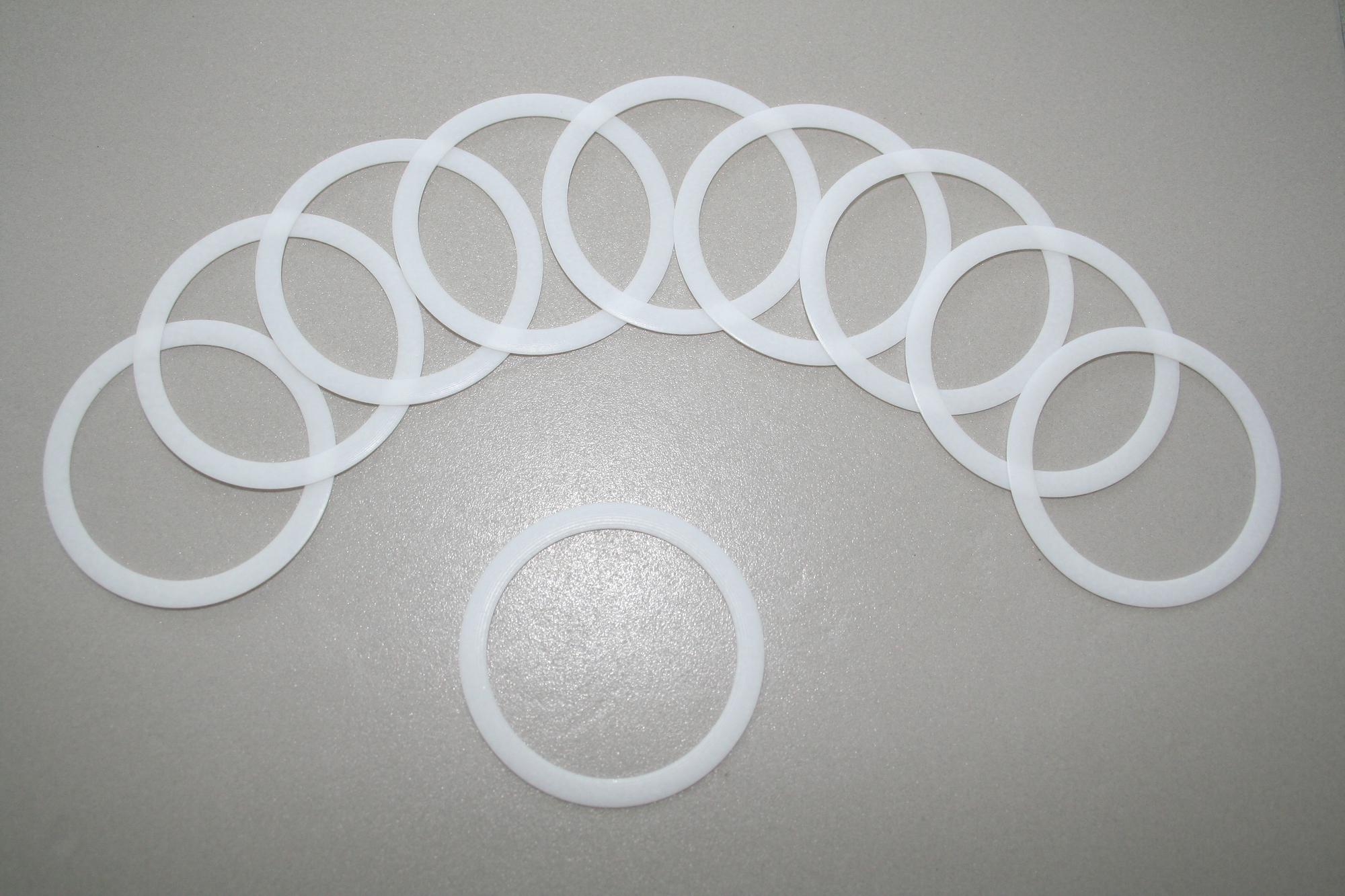

Gasket for grinding jar 25 ml hardened steel and stainless steel, 10 pcs.
22.085.0003
Gasket for grinding jar 25 ml zirconium oxide and tungsten carbide, 10 pcs.
22.085.0005
Gasket for grinding jar 35 ml stainless steel, 10 pcs.
22.085.0004
Gasket for grinding jar 35 ml zirconium oxide, 10 pcs.
22.085.0002
Gasket for grinding jar 50 ml stainless steel, 10 pcs.
Accessories for mixing and cell disruption MM 400
22.001.0020
Adapter for 4 conical centrifuge tubes (e.g. Falcon® Tubes), 2 pieces, incl. 20 tubes

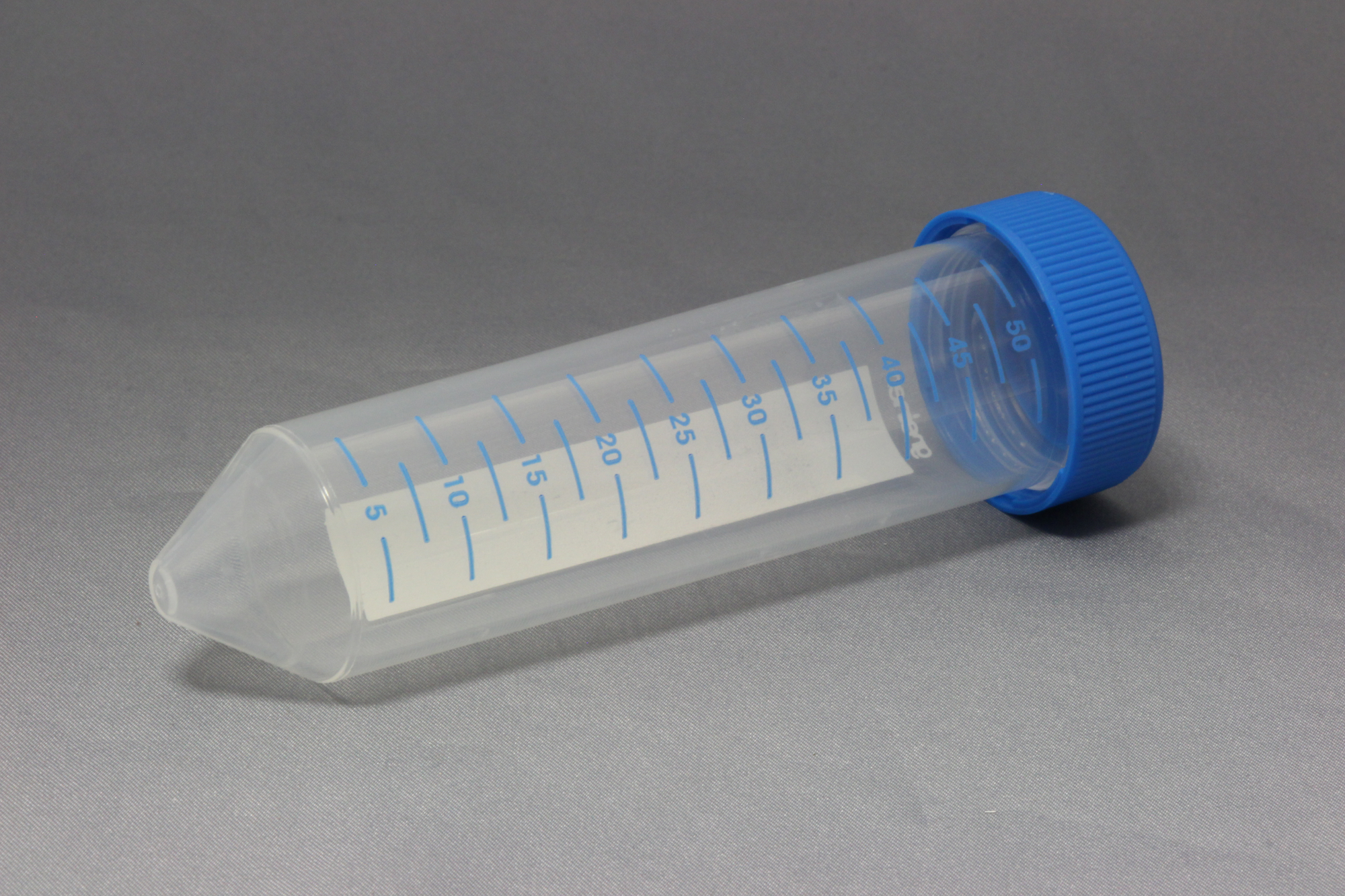

05.026.0001
Conical centrifuge tubes, 50 ml, 20 pieces
22.001.0021

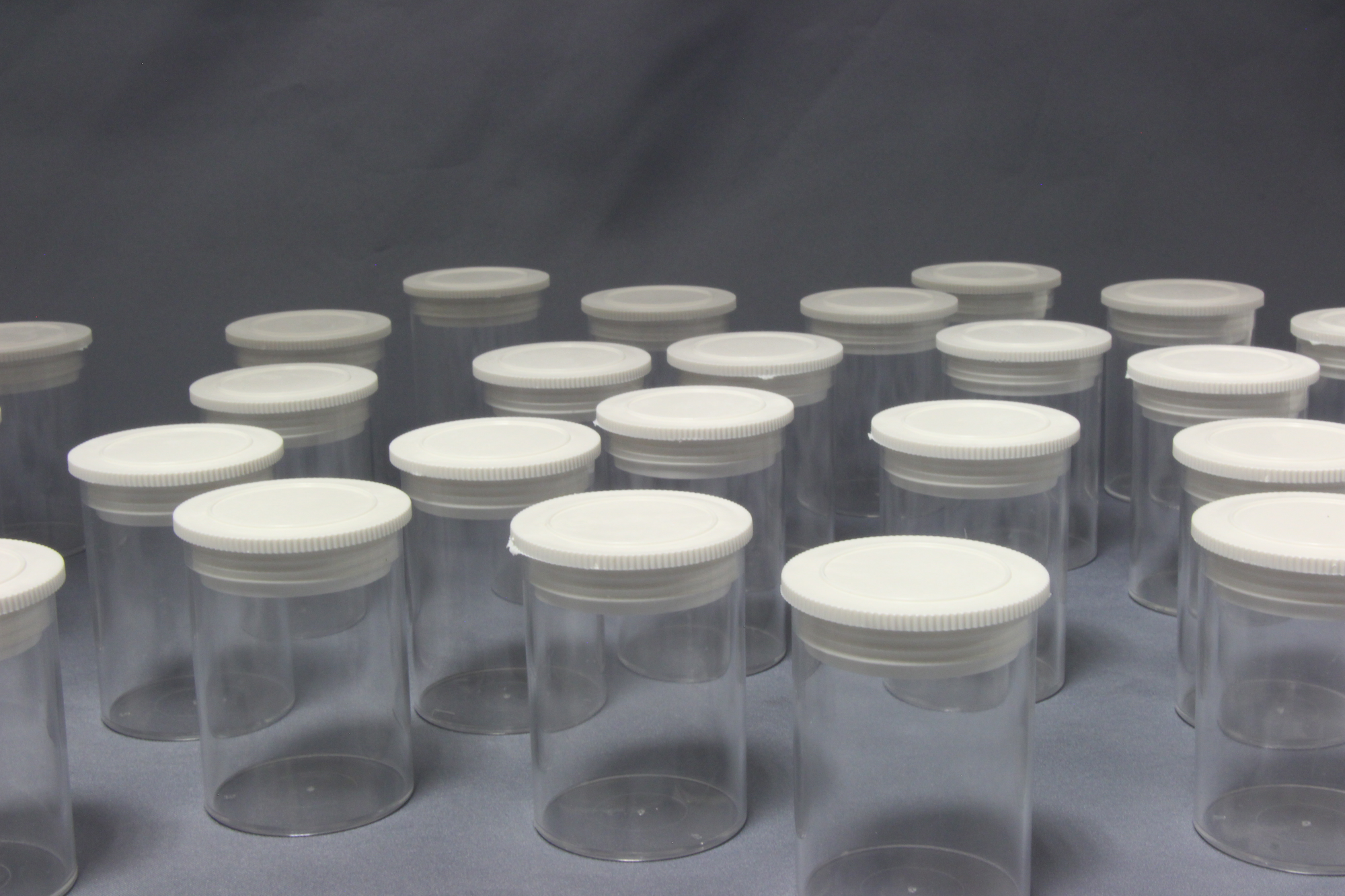

Adapter for 4 wide mouth bottles, 2 pieces, incl. 12 wide mouth bottles, 30 ml
Accessories for cold grinding MM 400
22.354.0001

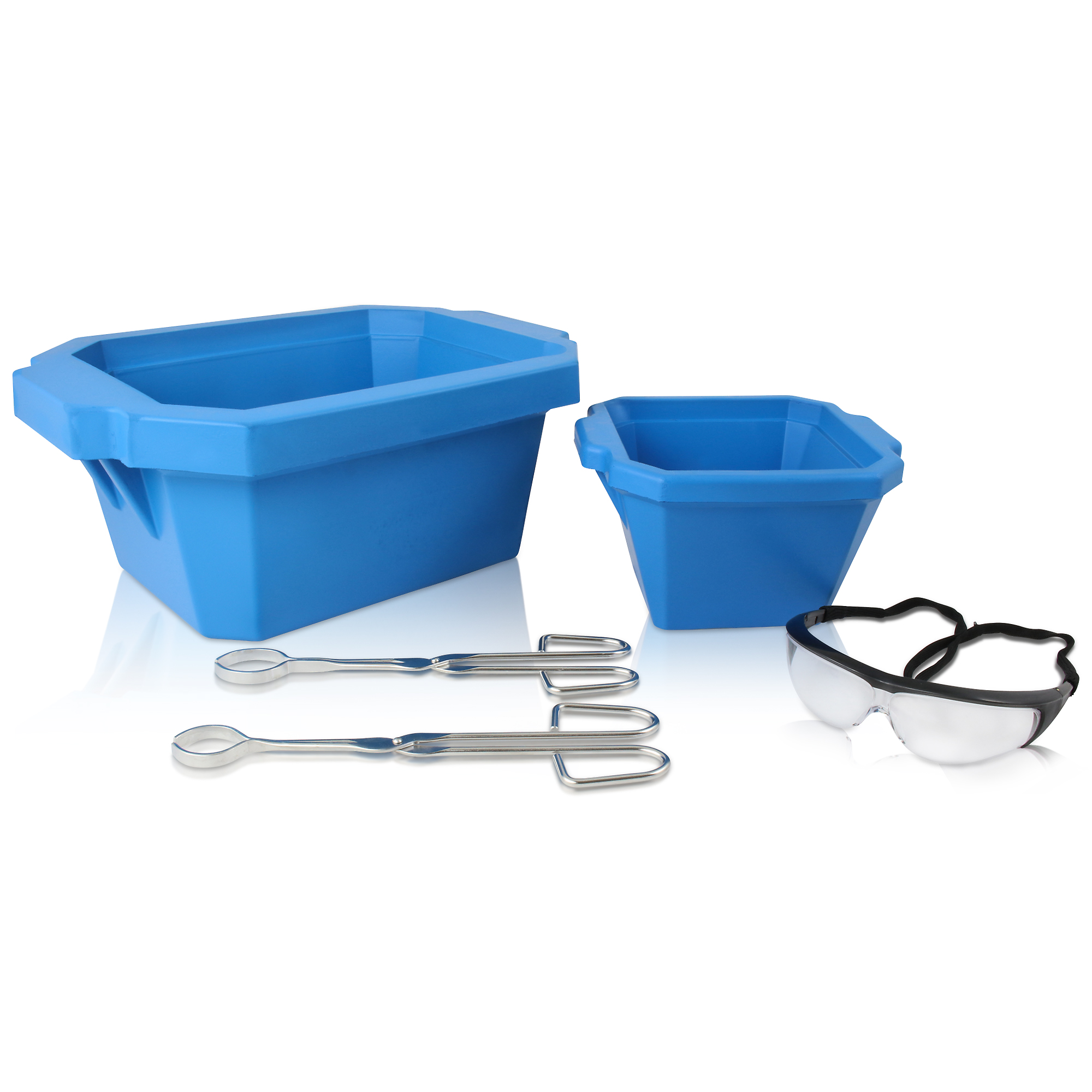

Cryo kit for cooling the grinding jars with liquid nitrogen (incl. 2 insulated containers (1 and 4 liter), 2 pairs of grinding jar tongs, 1 pair of safety glasses)
Accessories MM 400
99.200.0043
IQ/OQ Documentation for MM 400

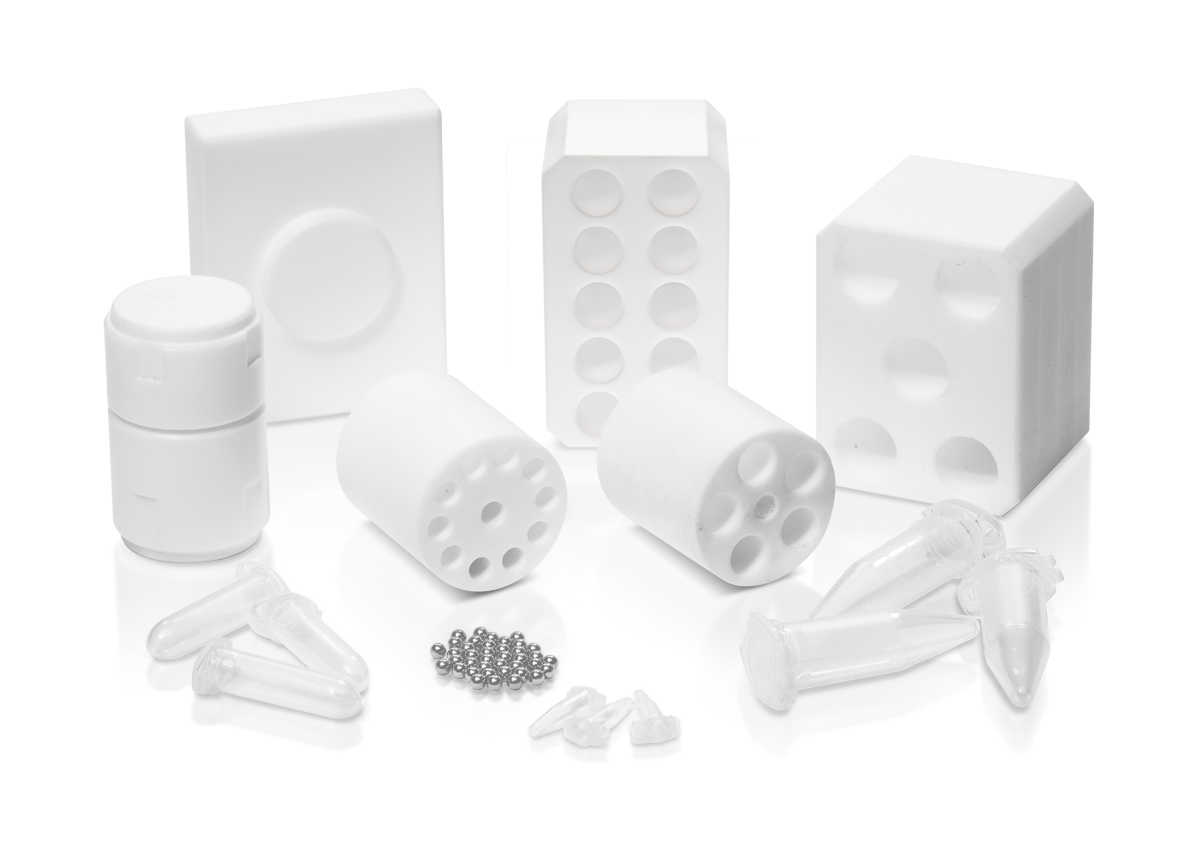

Accessories for cell and tissue disruption
22.008.0010

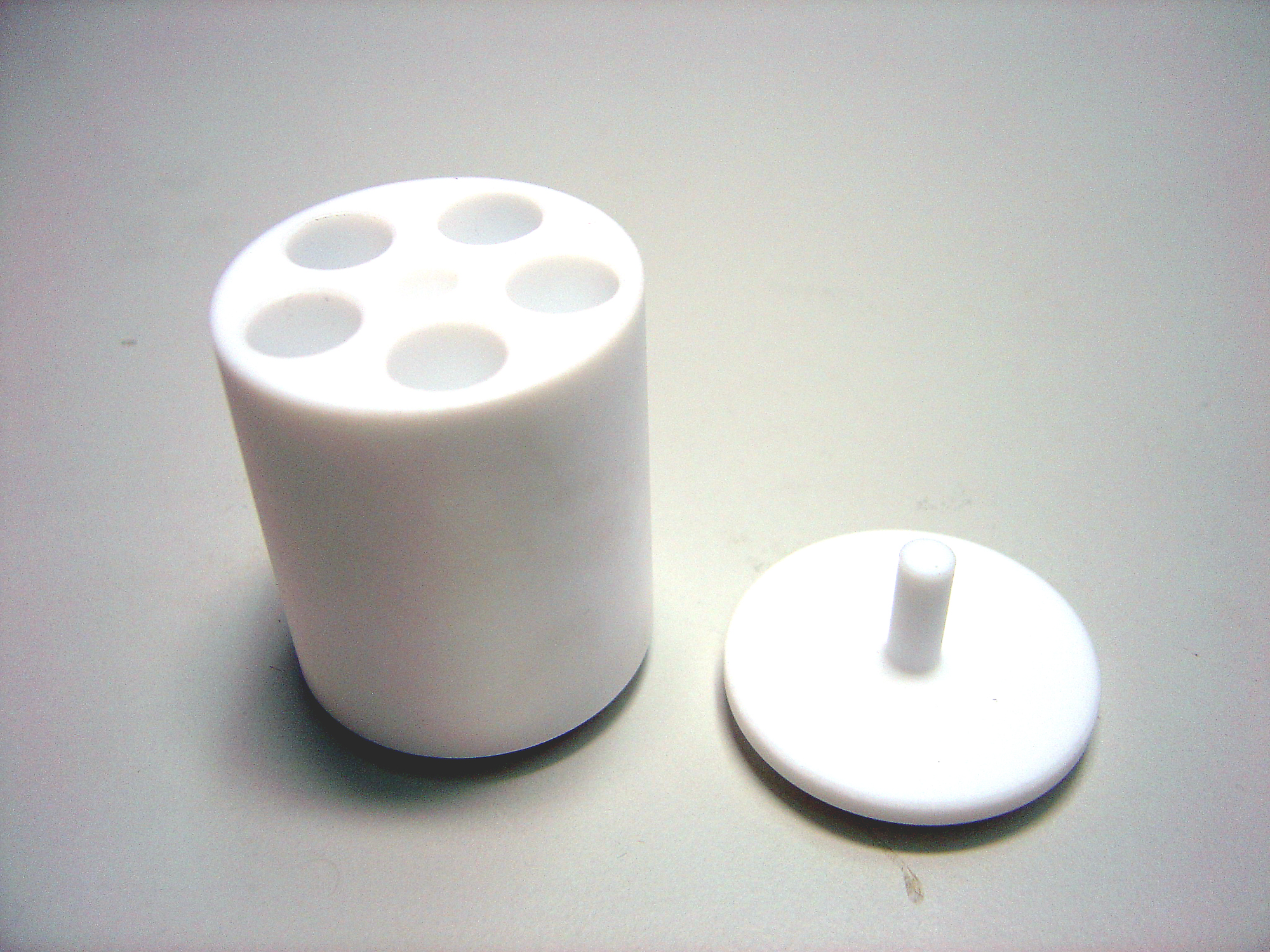

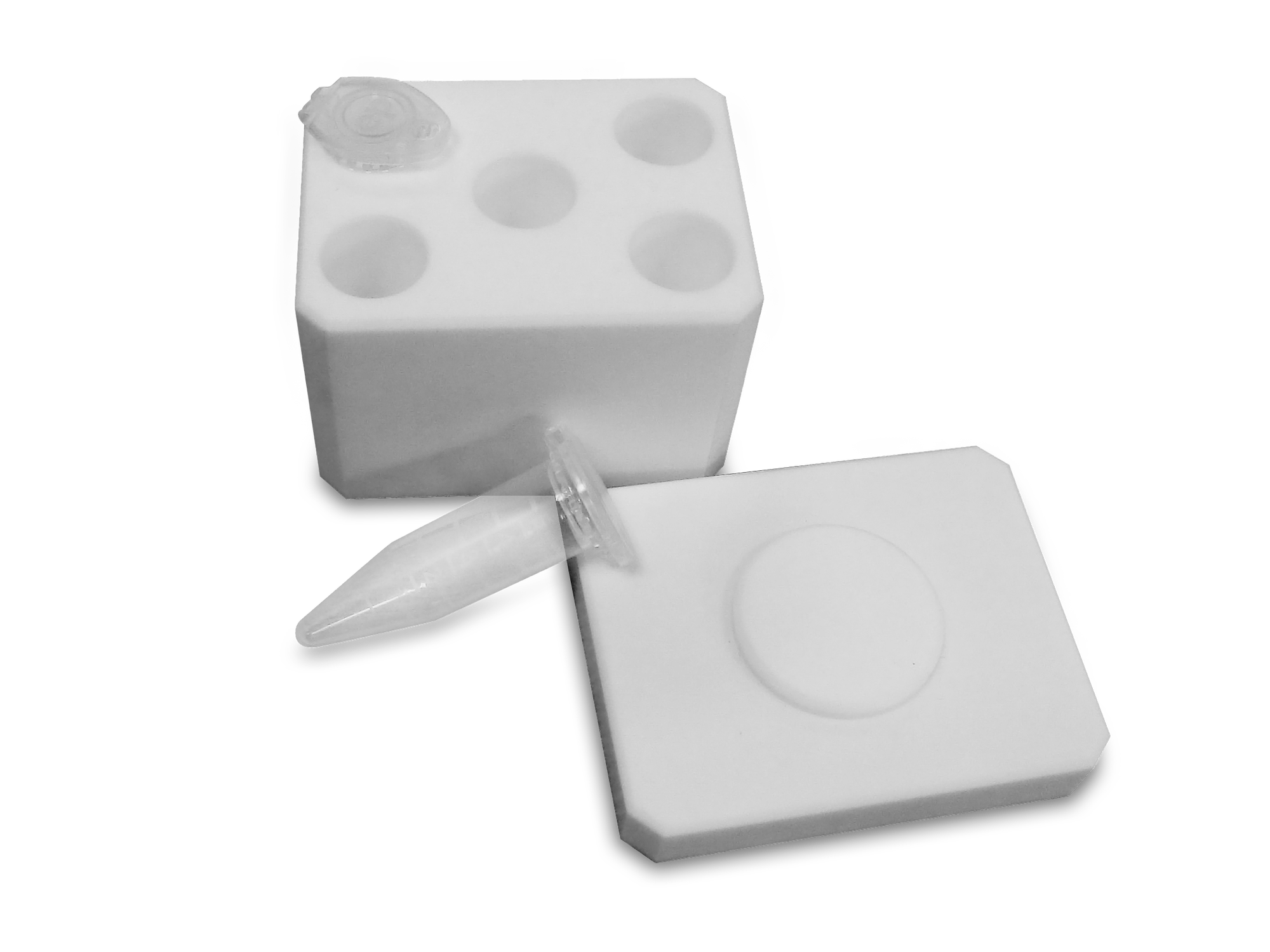

Adapter for 5 reaction vials 5.0 ml, made of PTFE
22.008.0014

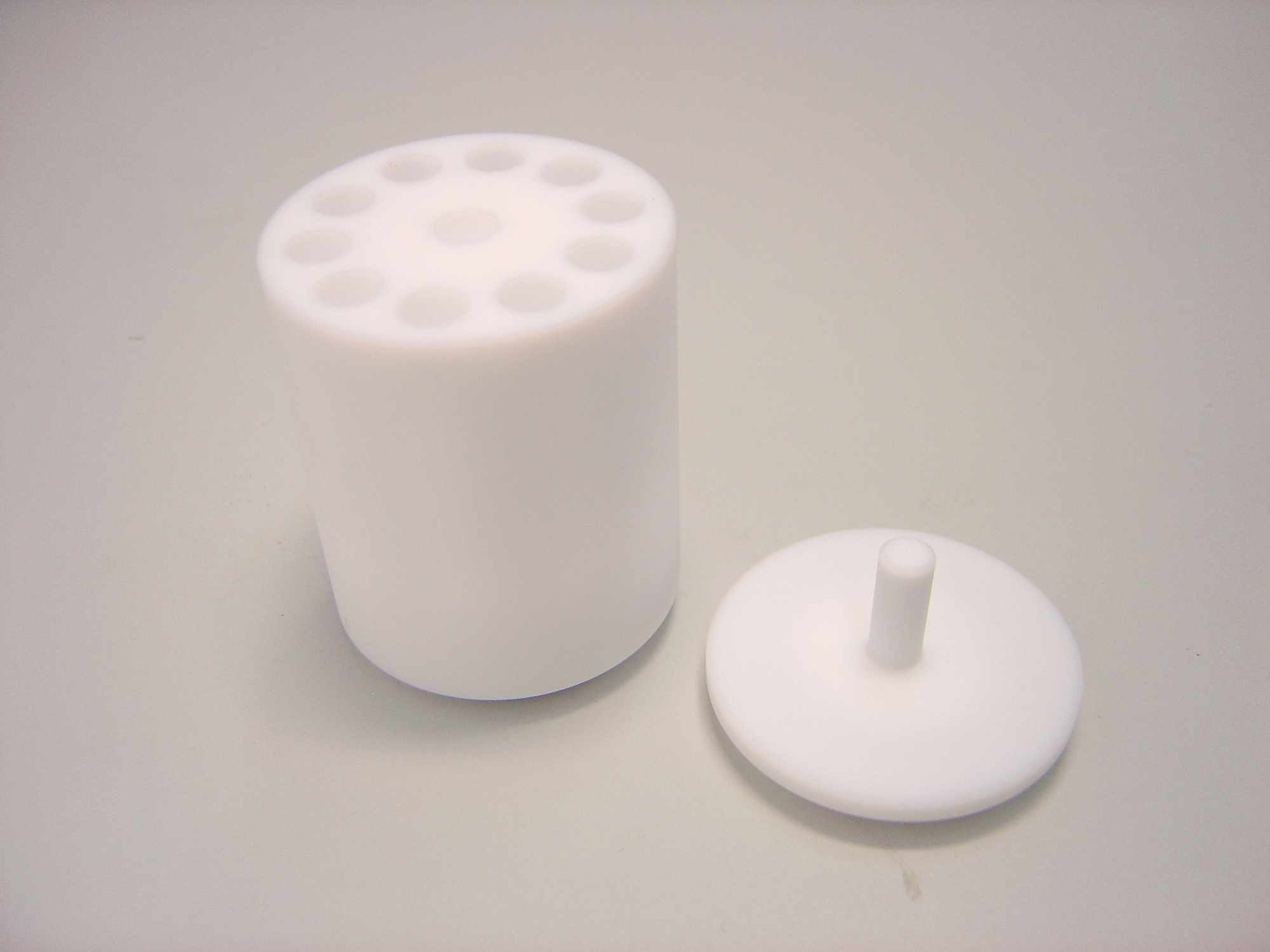

Adapter for 10 reaction vials 1.5 and 2.0 ml, made of PTFE or stainless steel
22.008.0005
Adapter for 5 reaction vials 1.5 and 2.0 ml, made of PTFE or stainless steel
22.008.0006
Adapter for 10 reaction vials 0.2 ml, made of PTFE
22.749.0006

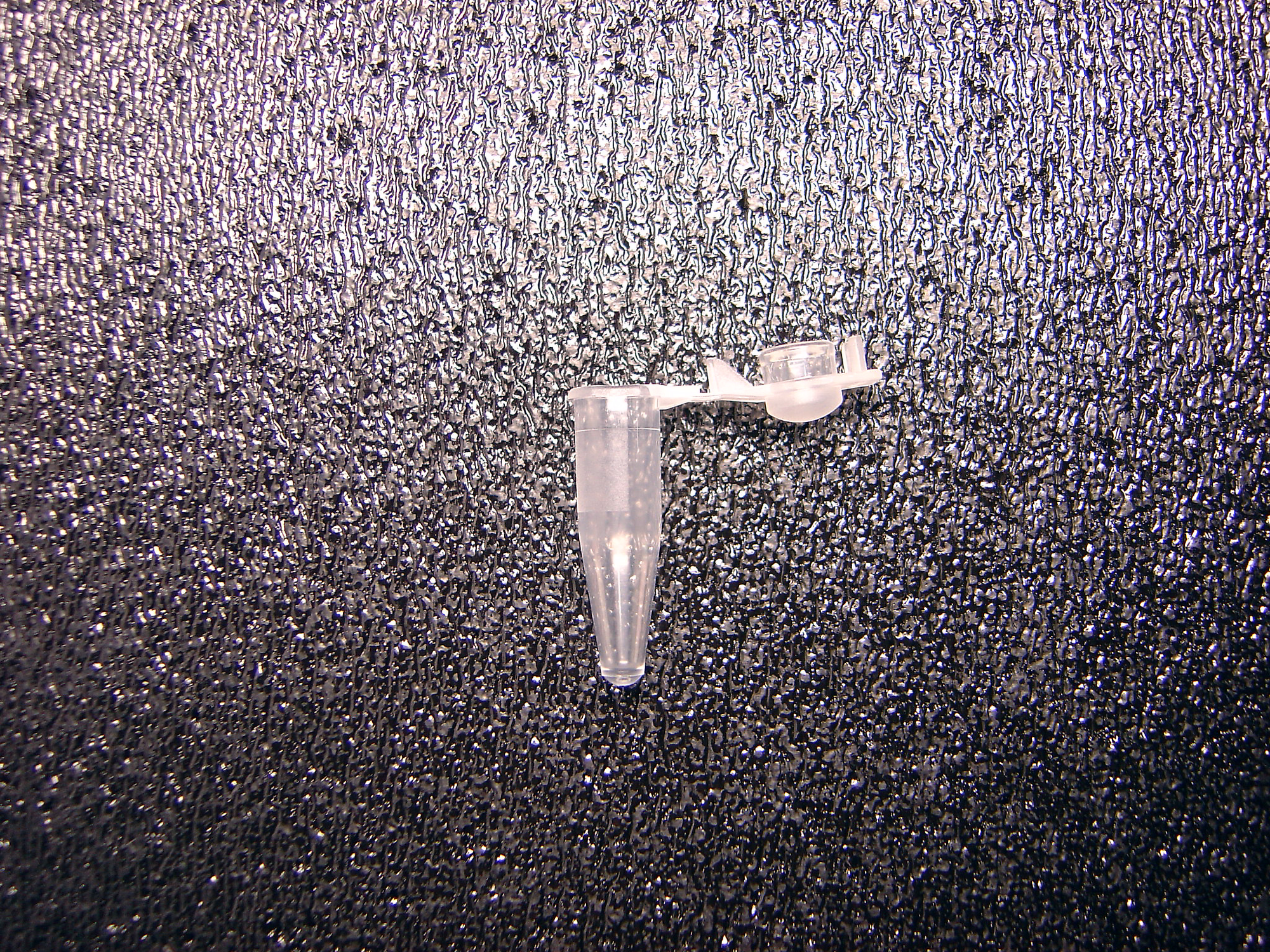

Safe-lock reaction vials 5.0 ml, 200 pcs.
22.749.0001
Safe-lock reaction vials 2.0 ml, 1000 pcs.
22.749.0002
Safe-lock reaction vials 1.5 ml, 1000 pcs.
22.749.0004
Safe-lock reaction vials 0.2 ml, 1000 pcs.
22.749.0008
Reaction vials made of stainless steel 316L, 2.0 ml, 10 pcs.
(for use with adapter 22.008.0014)

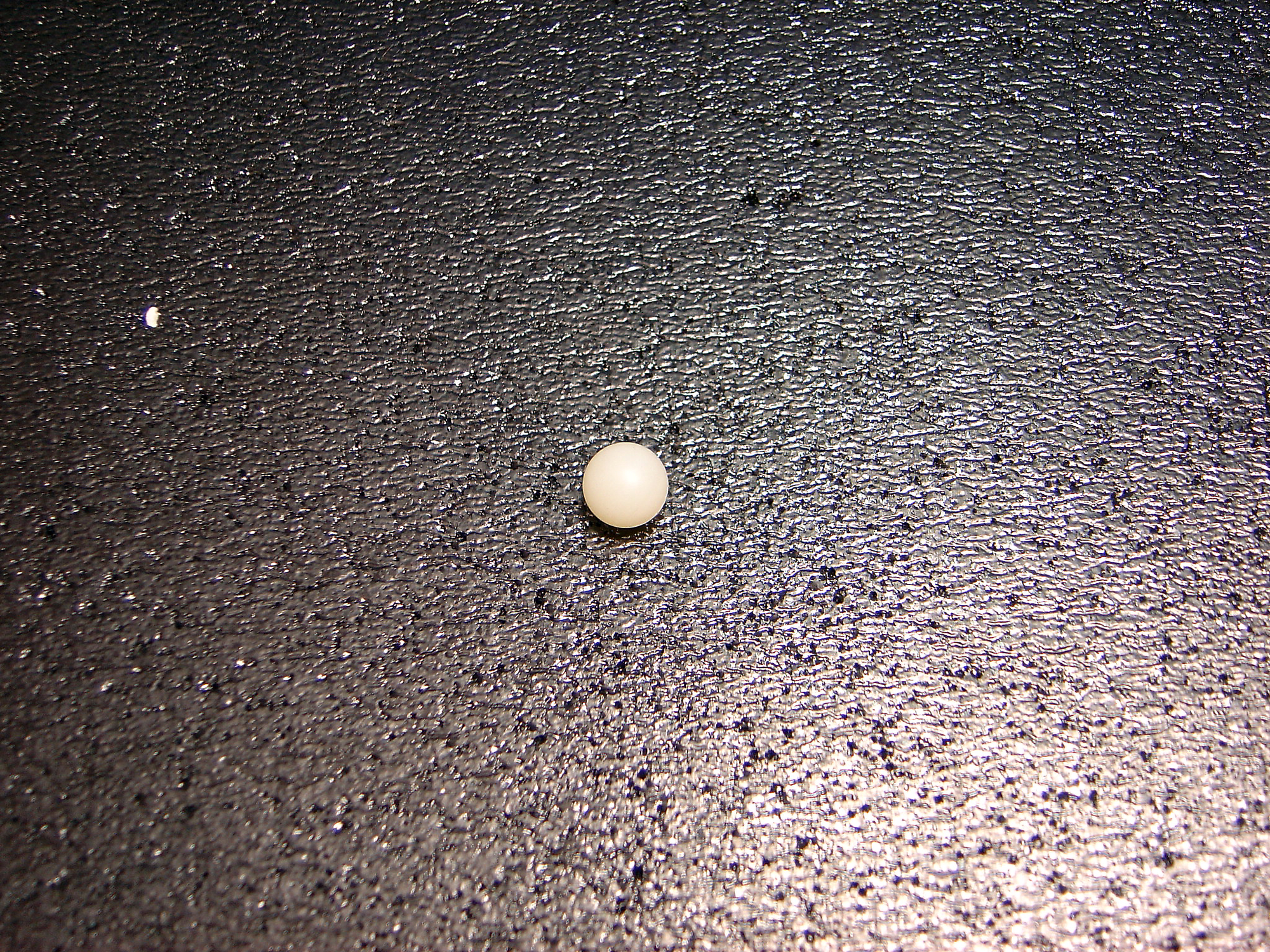

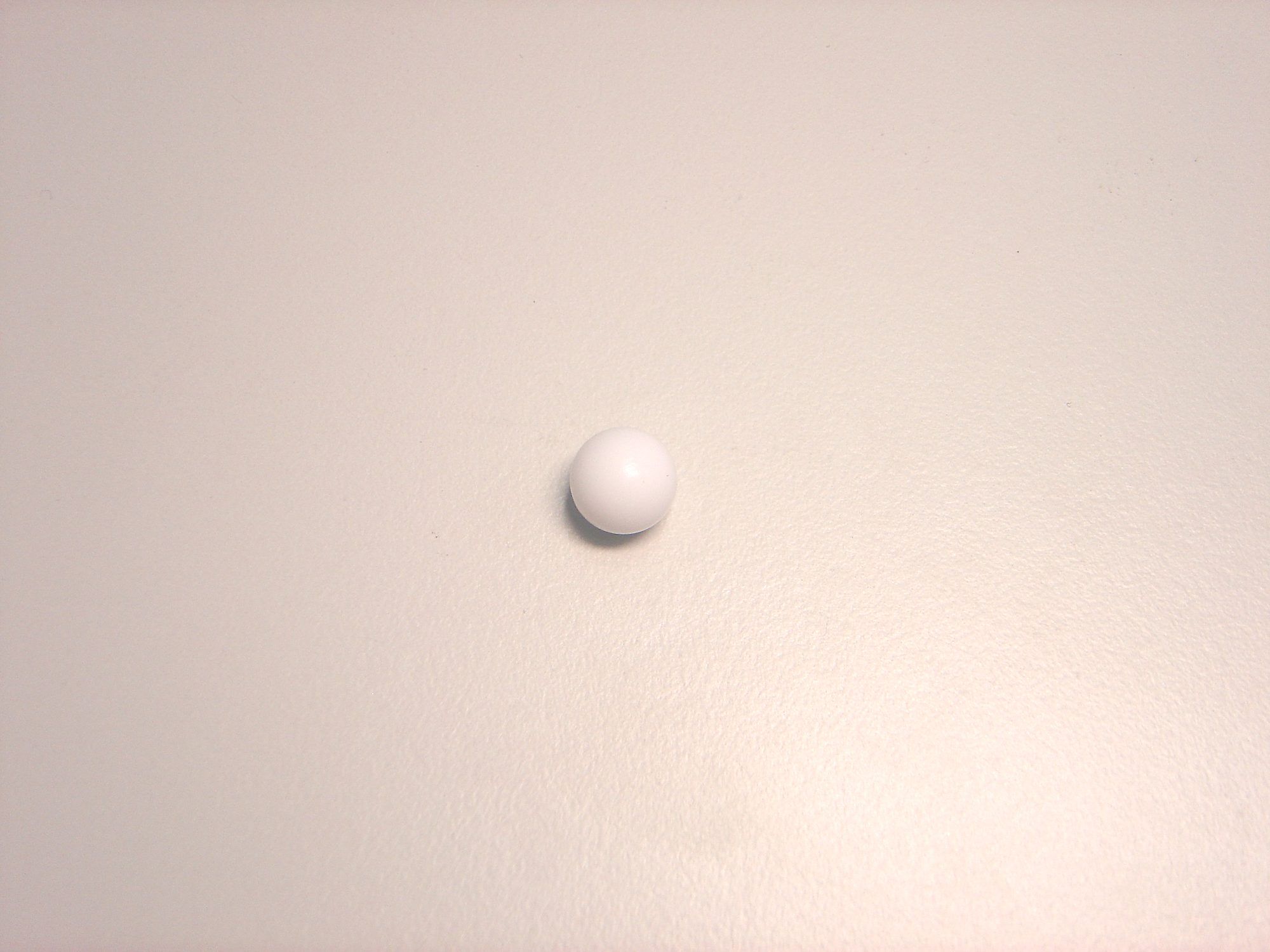

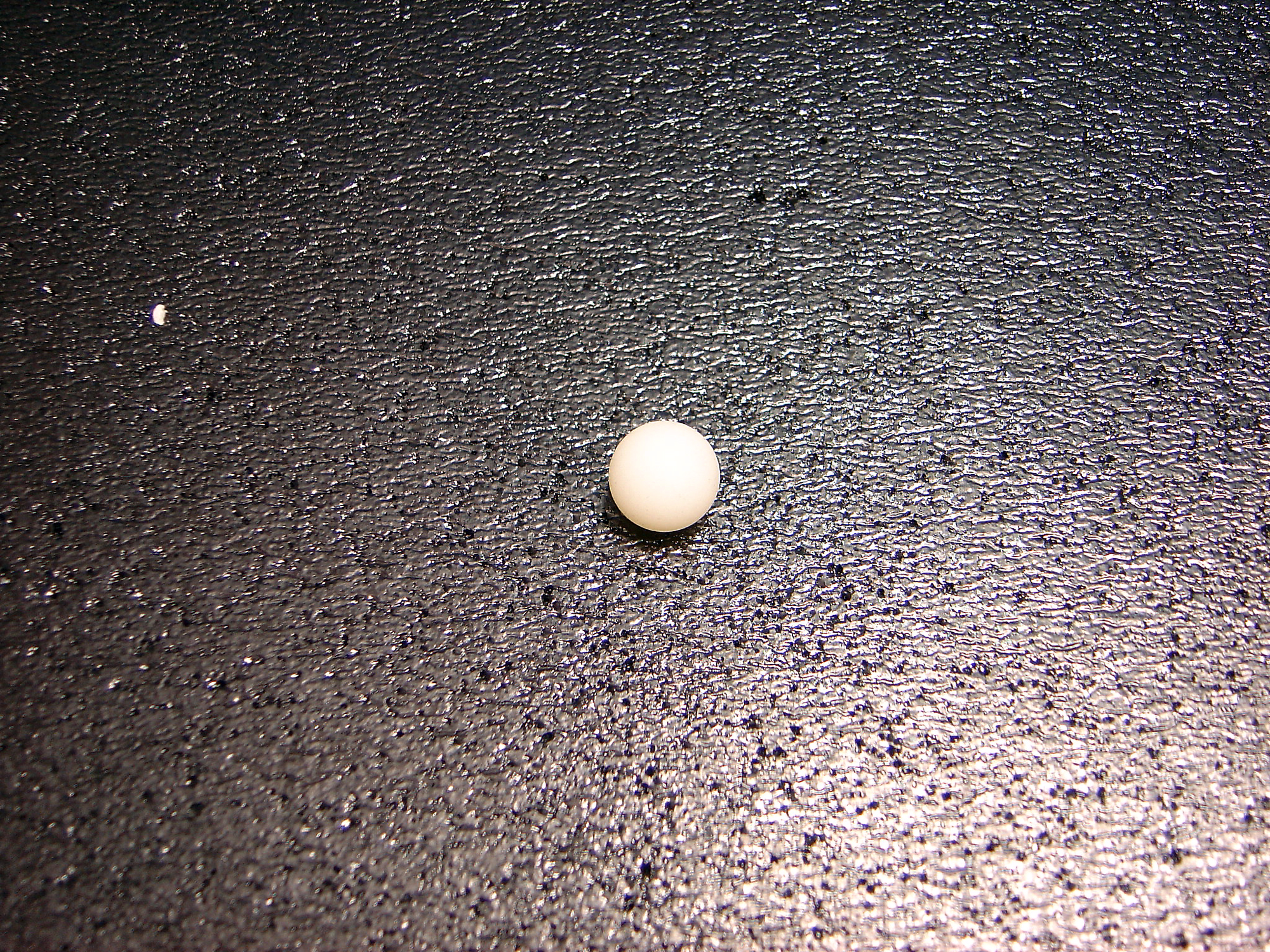

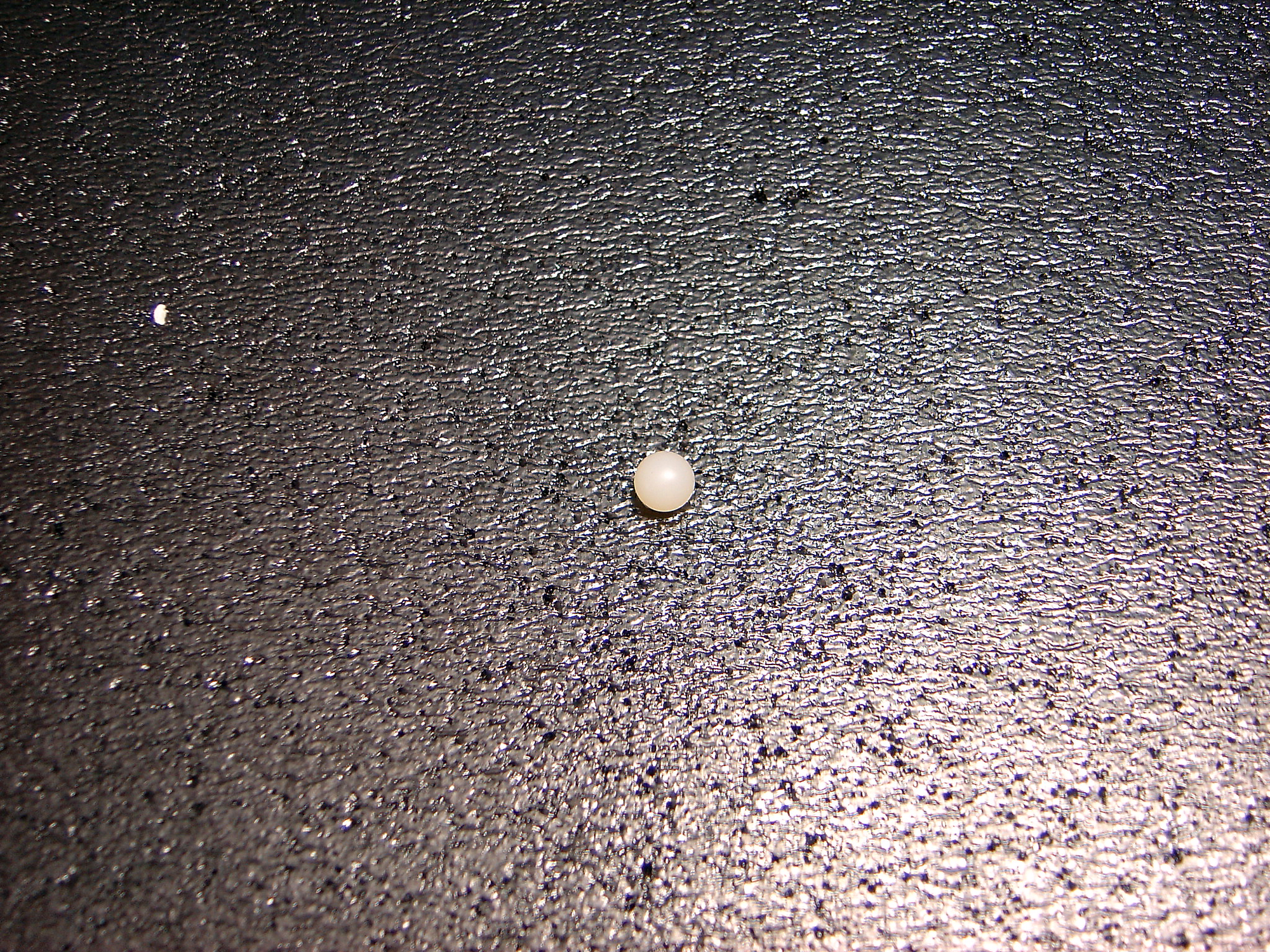

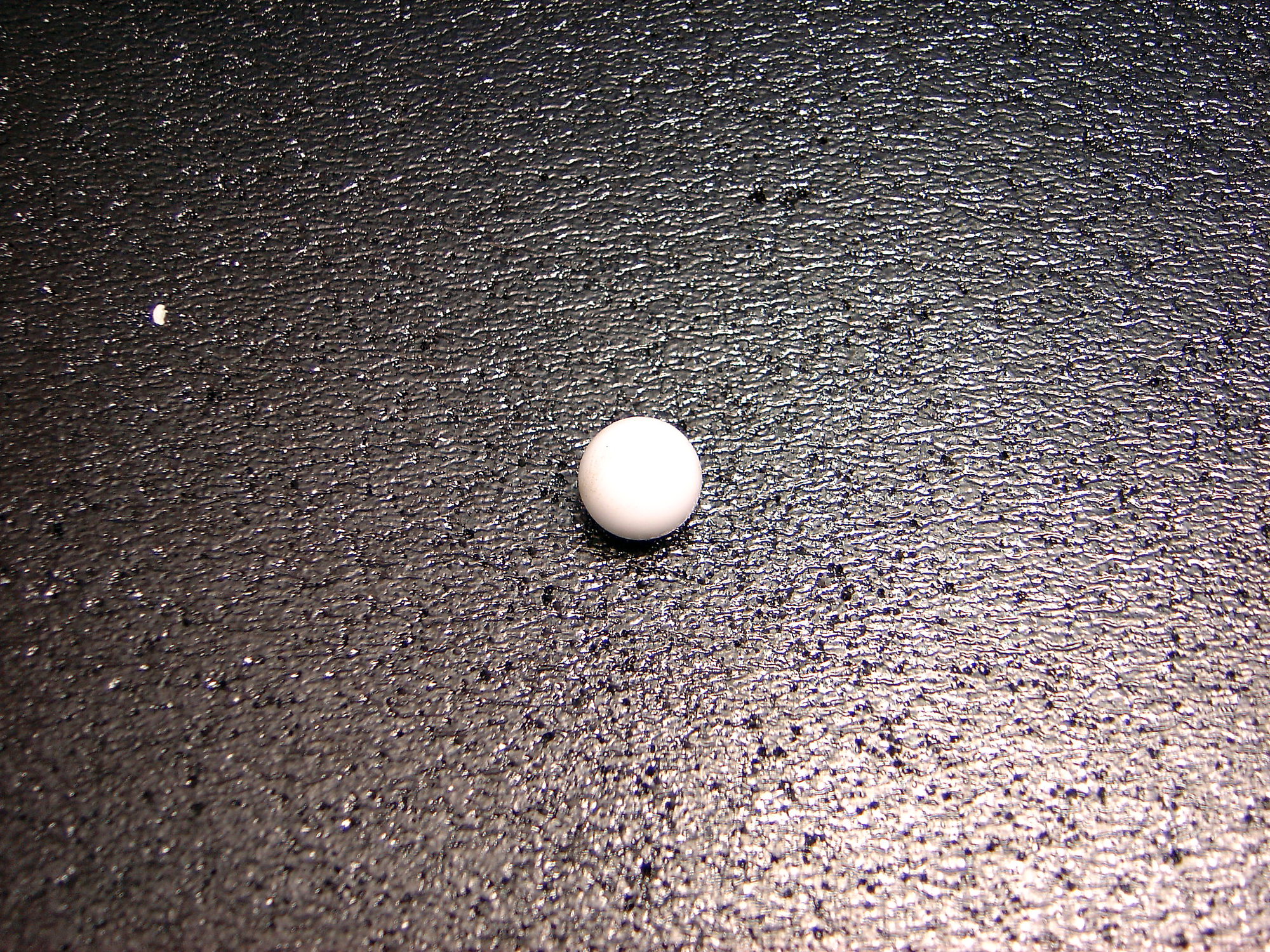

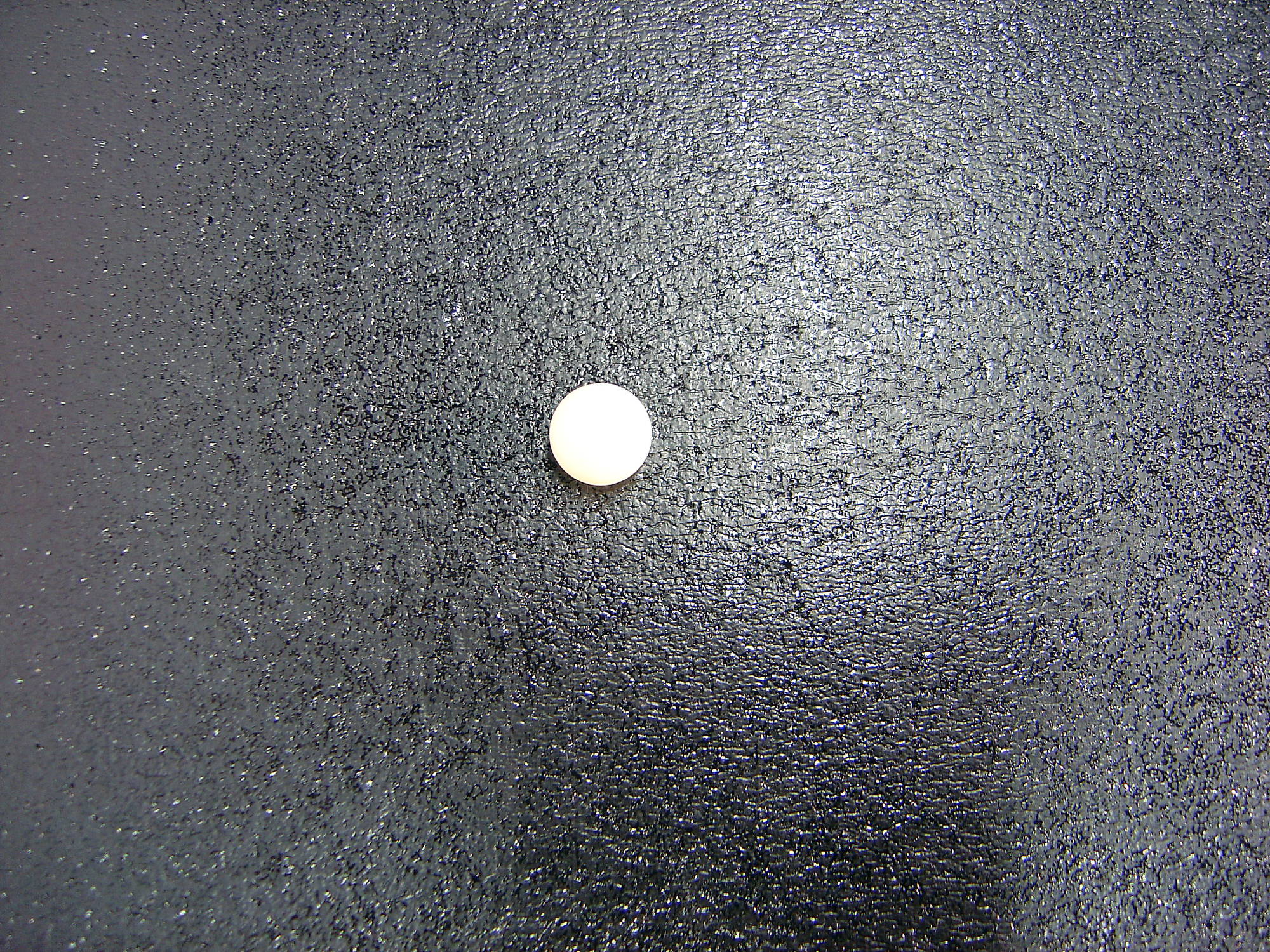

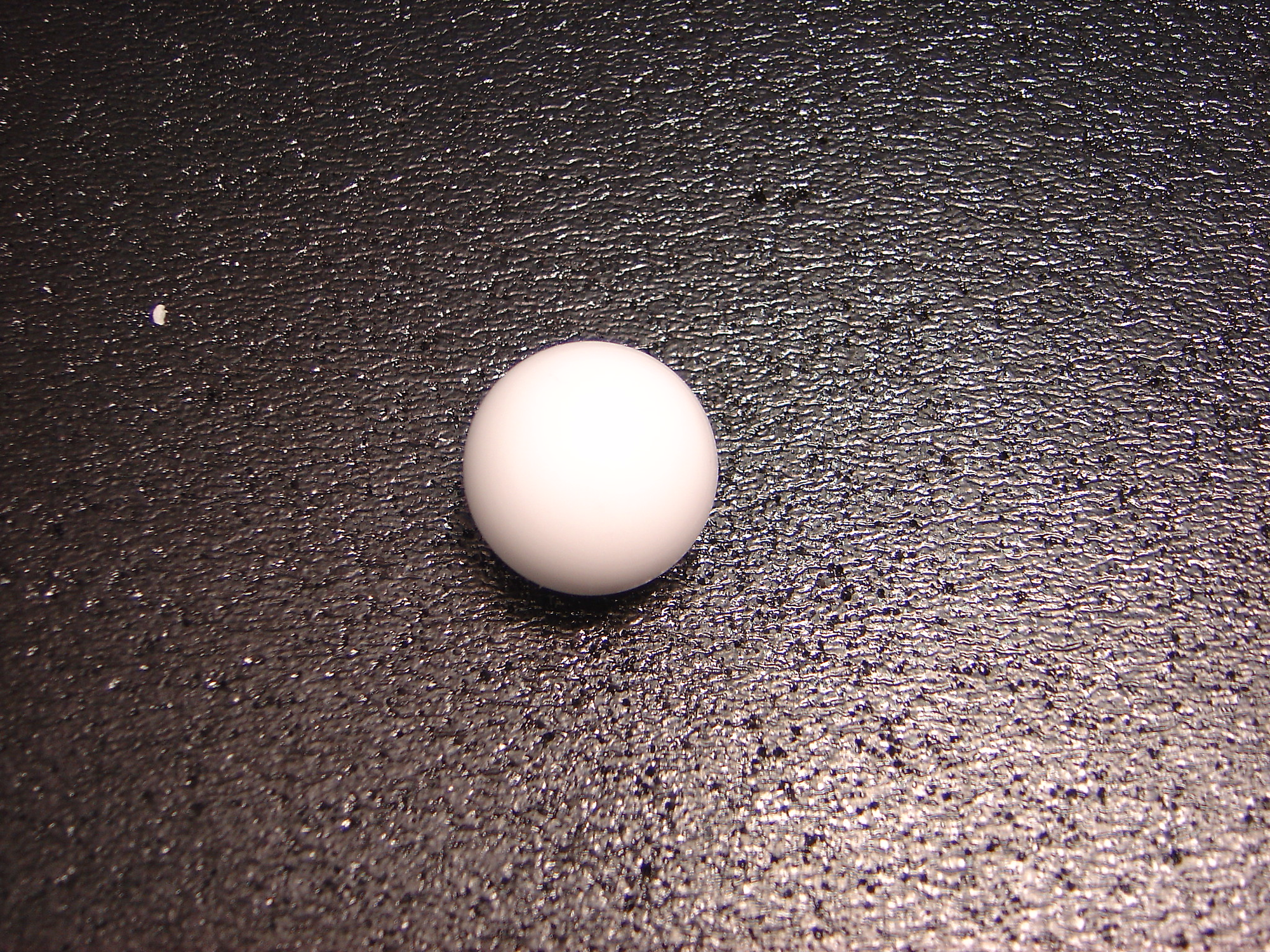

Grinding balls
研磨球和研磨罐的材质需要一致。
研磨球有多种尺寸可供选择。经验法则是：为了实现有效研磨，研磨球的尺寸应该至少是样品中最大颗粒尺寸的3倍。为了避免磨损，研磨球必须使用相同直径的研磨球。
研磨球的数量由研磨罐的体积决定。下载部分中的文件“研磨罐球料比”提供了有关研磨罐可用体积、最大进样尺寸、干磨和湿磨所使用研磨球的量以及尺寸的详细信息。有关更多信息，请查看下载部分的文件“设备和附件的材料分析”
可用材质:
- 硬质钢 (密度 7.8 g/cm2; 硬度 ≤ 235 HB, 中等耐磨)
特别适合粉碎中等硬度、硬脆性样品。 - 不锈钢 (密度 7.7 g/cm2; 硬度 ≤ 245 HB, 中等耐磨)
特别适合粉碎中等硬度、硬脆性样品。 - 碳化钨(密度 14.8 g/cm3; 硬度 93.6 HRA; 高耐磨性) 用于研磨非常硬、脆性样品。通过使用碳化钨材质，样品可免受铁元素污染。
- 玛瑙 (密度 2.6 g/cm3; 硬度 6.5 – 7 Mohs, 低耐磨性) 一种高纯度的天然材料，适用于粉碎软性至中硬性或纤维状样品。玛瑙密度低，适合于低能耗的轻磨工艺。
- 氧化锆 (密度 6.05 g/cm2; 硬度 1250 HV, 高耐磨性)
氧化锆陶瓷特别适合粉碎中等硬度、硬脆性样品。通常用于将样品研磨至超细粒度、无重金属污染的研磨工艺和应用。 - 玻璃珠适用于细胞组织破碎等应用，例如酵母、细菌或微藻。对于酵母来说，较大的玻璃珠更为适合，而微藻则需要小玻璃珠。玻璃珠也可用于清洗表面或组织样本上的细菌，以便后续诊断。
Hardened steel
05.368.0029
5 mm Ø
05.368.0030
7 mm Ø
05.368.0059
10 mm Ø
05.368.0032
12 mm Ø
05.368.0108
15 mm Ø
Stainless steel
22.455.0010
2 mm Ø, 500 g (approx. 110 ml)
22.455.0011
3 mm Ø, 500 g (approx. 120 ml)
22.455.0002
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0001
4 mm Ø, 200 pieces (approx. 14 ml)
22.455.0003
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0034
5 mm Ø
05.368.0035
7 mm Ø
05.368.0063
10 mm Ø
05.368.0037
12 mm Ø
05.368.0109
15 mm Ø
05.368.0062
20 mm Ø
05.368.0105
25 mm Ø
Tungsten carbide
22.455.0006
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0005
4 mm Ø, 200 pieces (approx. 14 ml)
22.455.0004
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0038
5 mm Ø
05.368.0039
7 mm Ø
05.368.0071
10 mm Ø
05.368.0041
12 mm Ø
05.368.0110
15 mm Ø
Agate
05.368.0024
5 mm Ø
05.368.0025
7 mm Ø
05.368.0067
10 mm Ø
05.368.0027
12 mm Ø
Zirconium oxide
05.368.0089
2 mm Ø, 0.5 kg (approx. 135 ml)
05.368.0090
3 mm Ø, 0.5 kg (approx. 140 ml)
22.455.0007
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0009
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0094
10 mm Ø
05.368.0096
12 mm Ø
05.368.0113
15 mm Ø
05.368.0093
20 mm Ø
05.368.0106
25 mm Ø
PTFE with steel core
05.368.0045
10 mm Ø
05.368.0046
12 mm Ø
05.368.0114
15 mm Ø
05.368.0047
20 mm Ø
Polyamide for mixing beakers
05.368.0042
5 mm Ø
05.368.0043
7 mm Ø
05.368.0044
9 mm Ø
05.368.0003
12 mm Ø

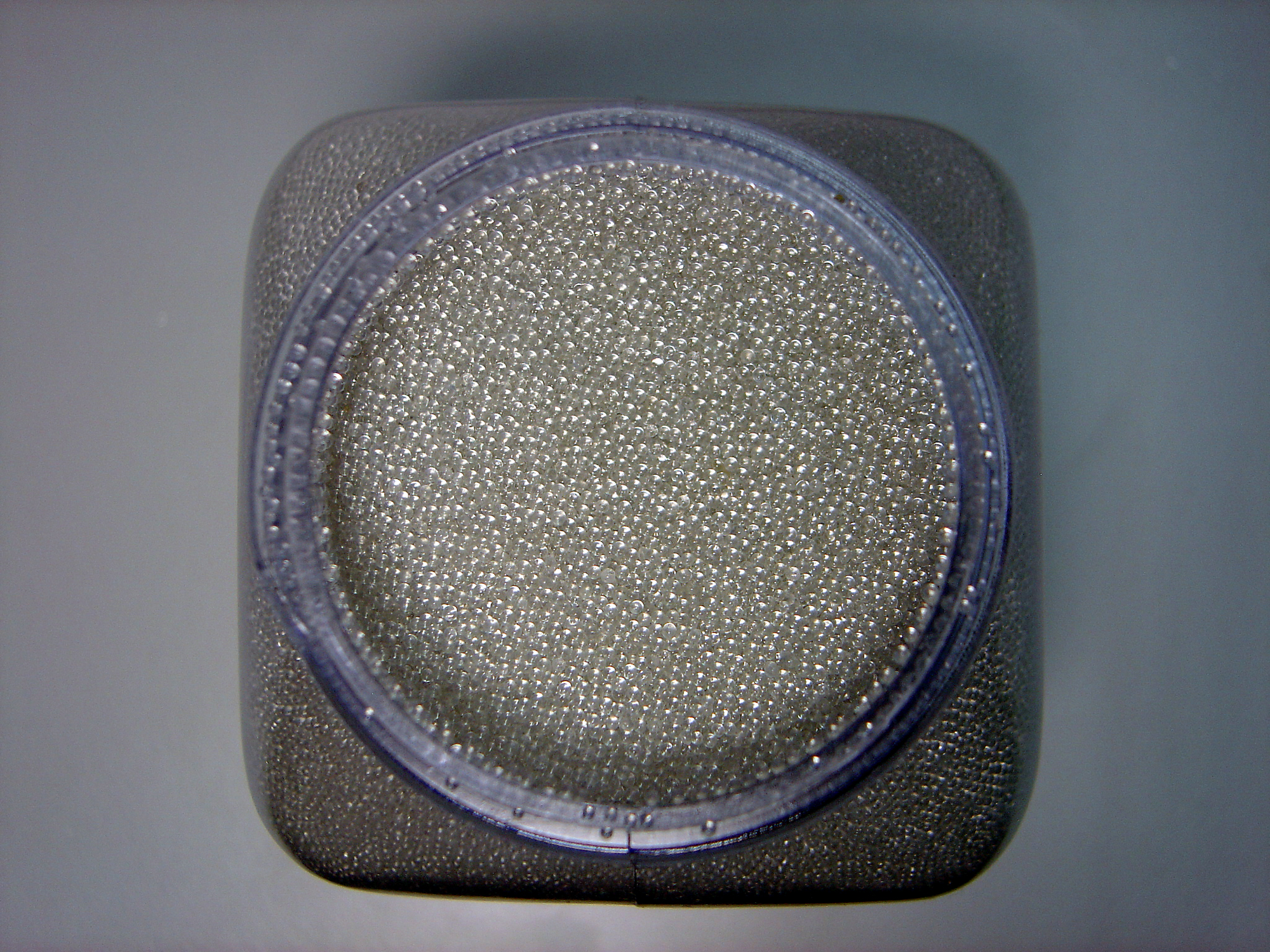

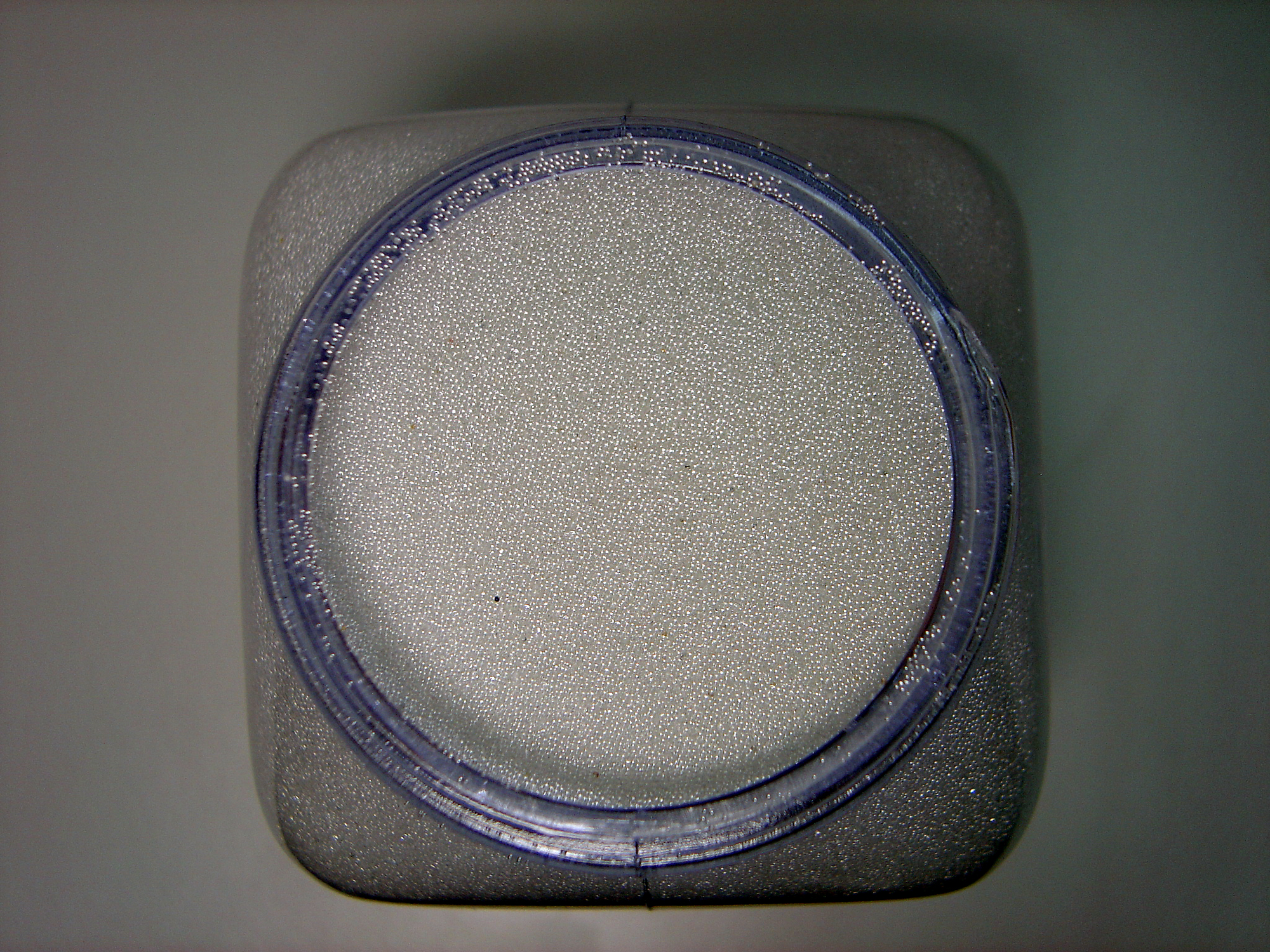

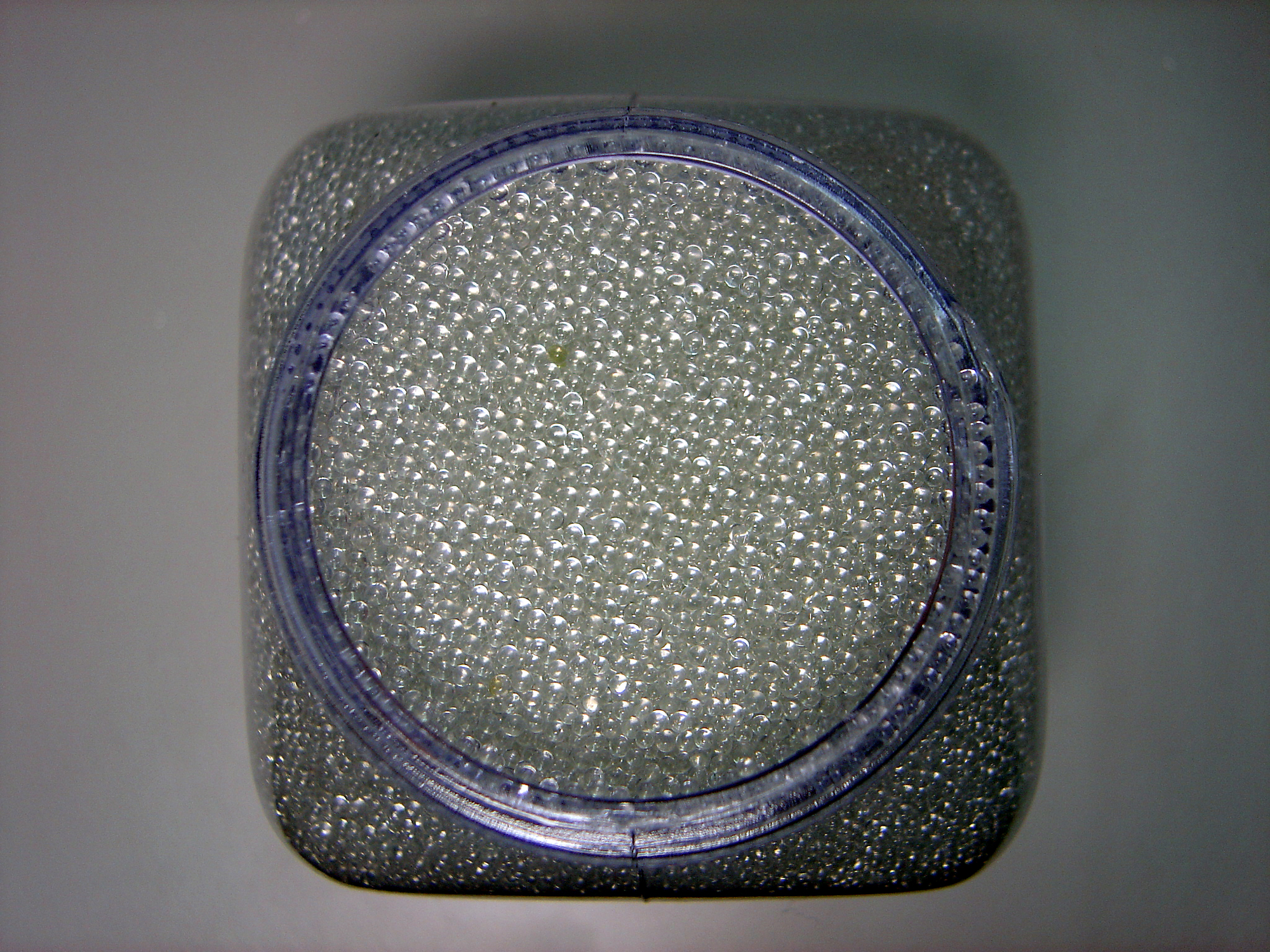

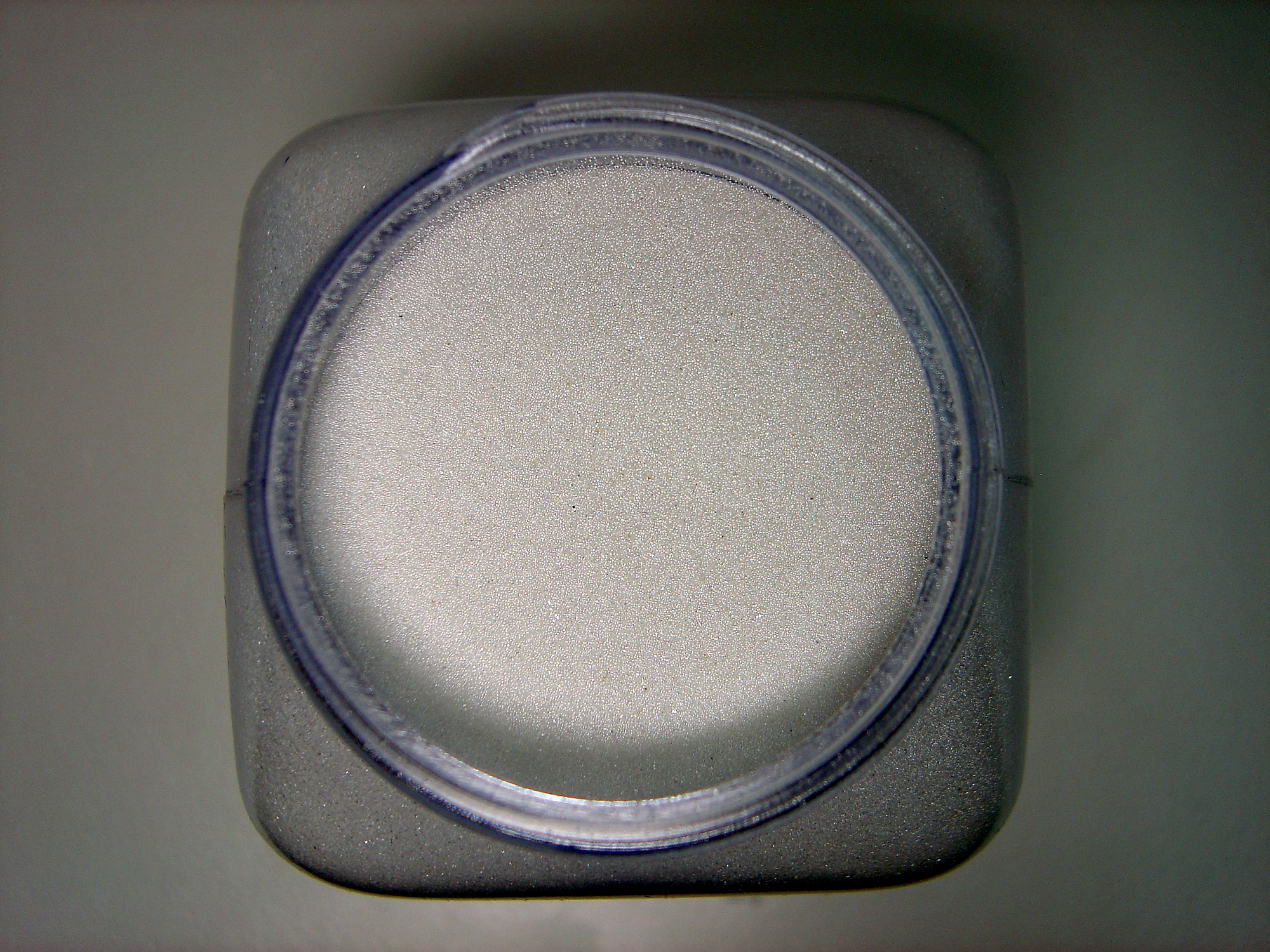

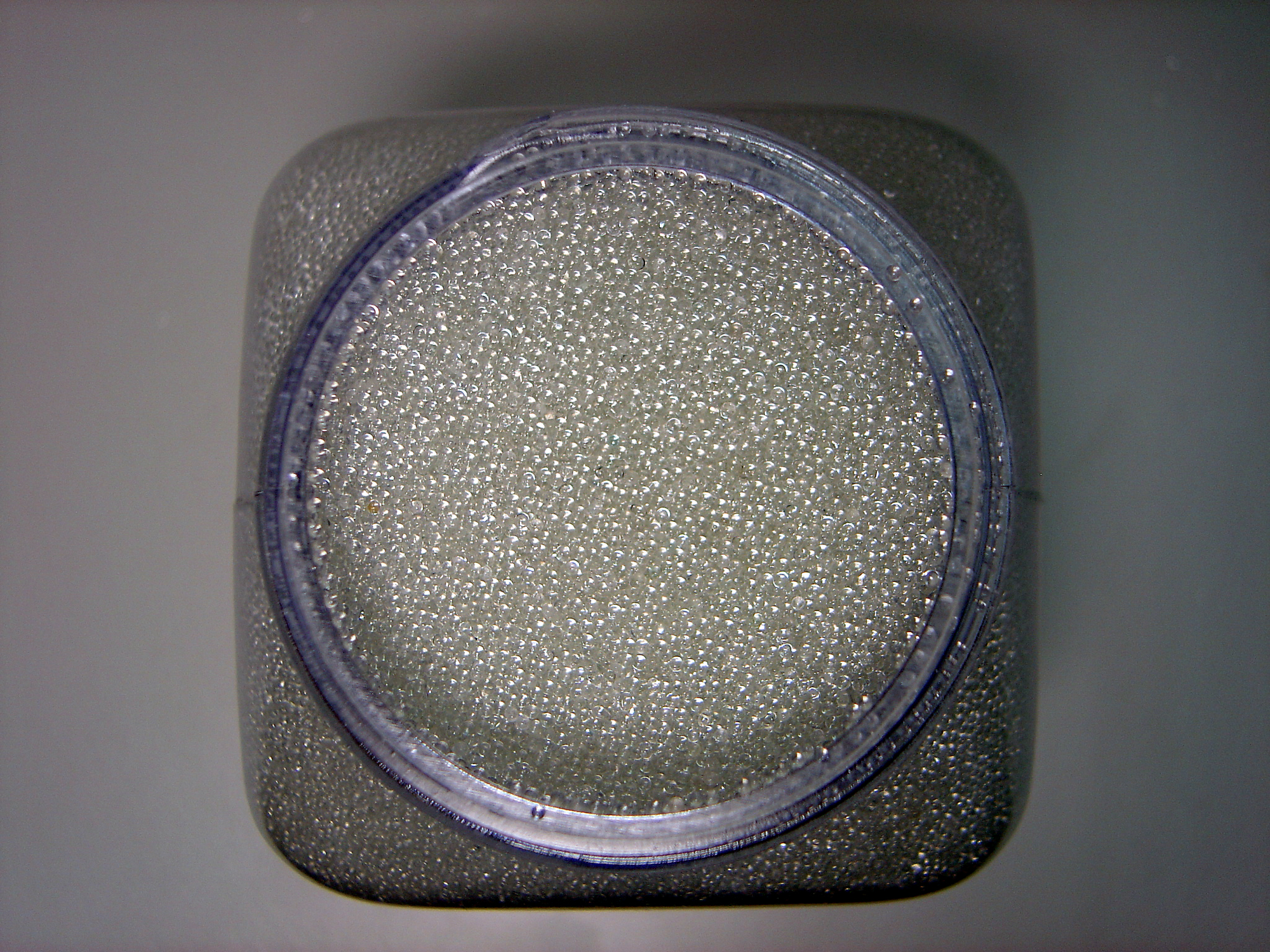

Glass beads
22.222.0001
0.10 – 0.25 mm Ø, 500 g (approx. 320 ml)
22.222.0002
0.25 – 0.50 mm Ø, 500 g (approx. 320 ml)
22.222.0003
0.50 – 0.75 mm Ø, 500 g (approx. 320 ml)
22.222.0004
0.75 – 1.00 mm Ø, 500 g (approx. 320 ml)
22.222.0005
1.00 – 1.50 mm Ø, 500 g (approx. 320 ml)
