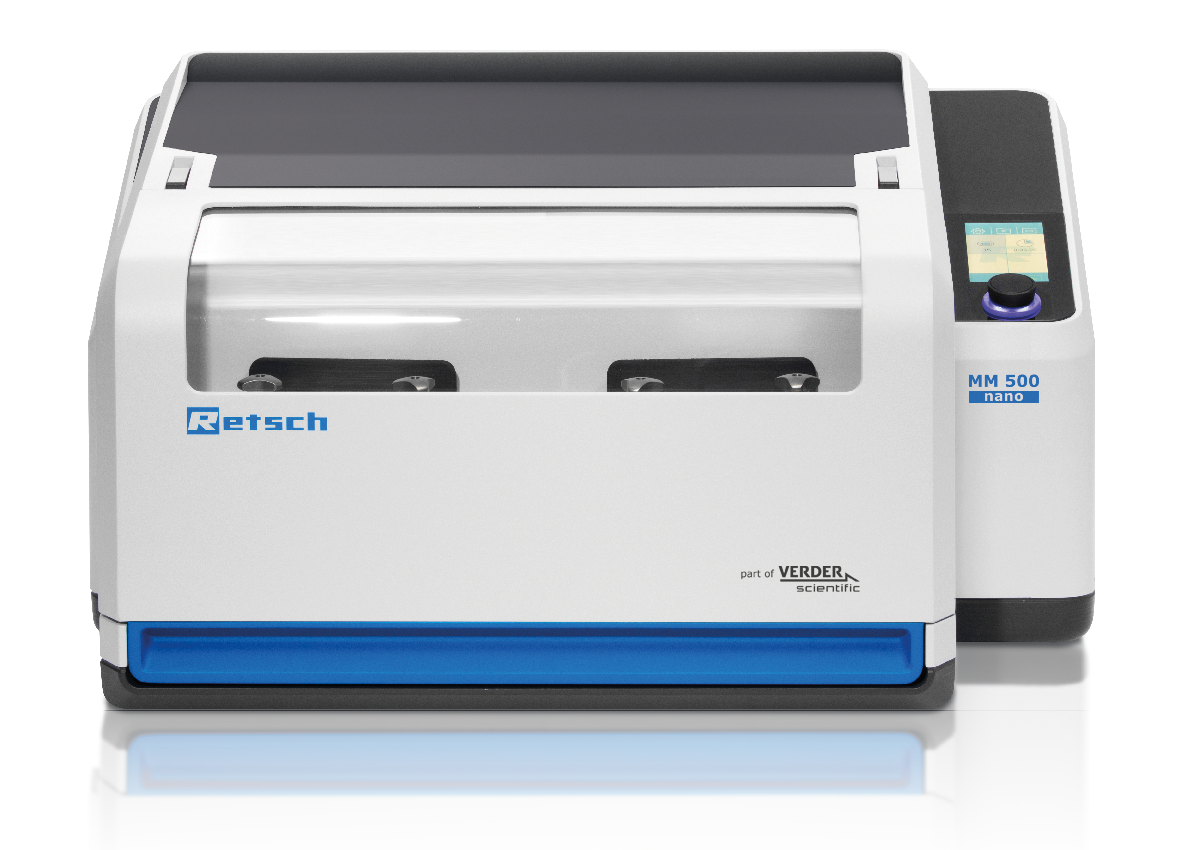

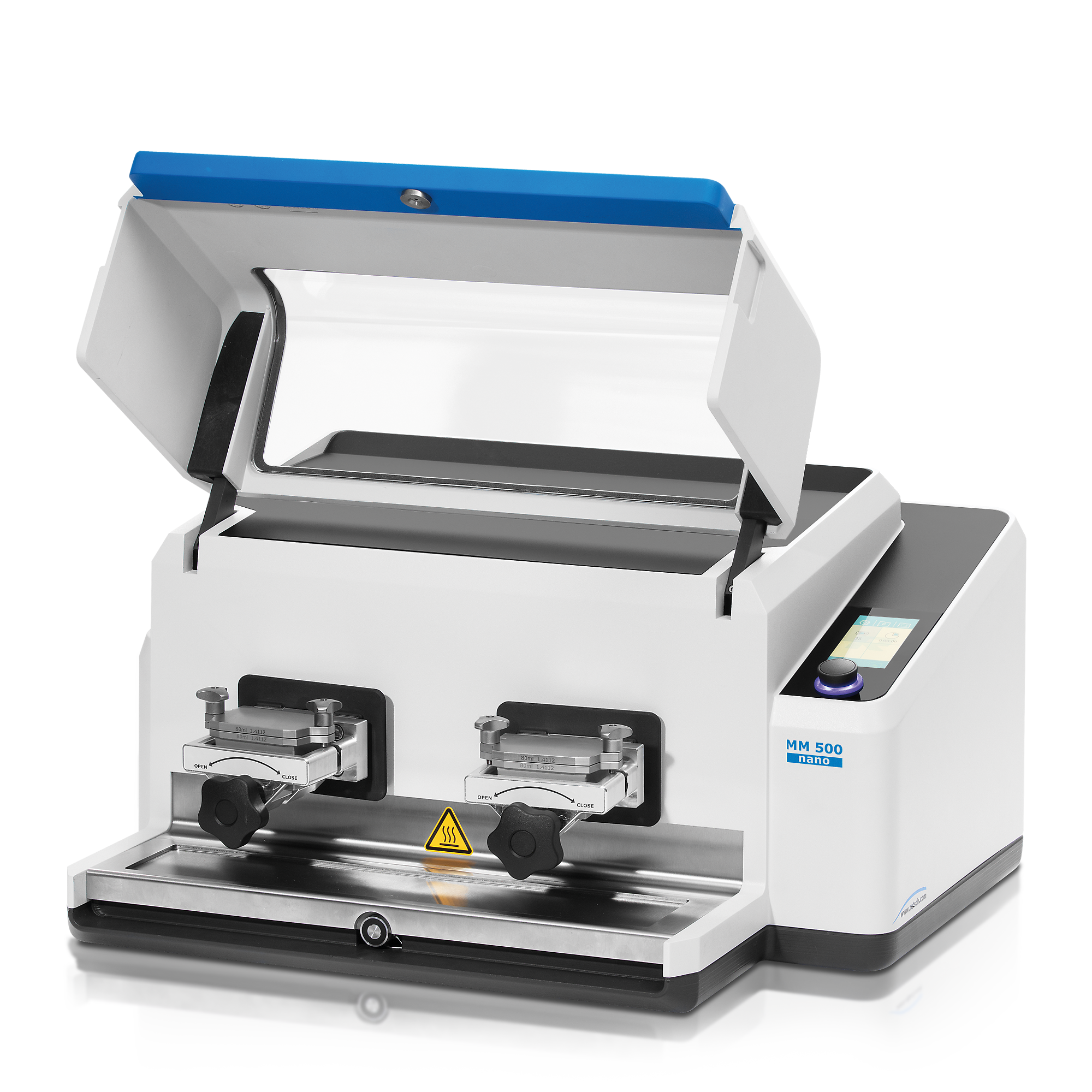

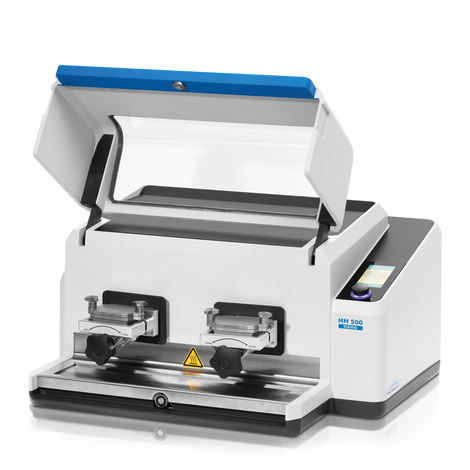

Mixer Mill MM 500 nano

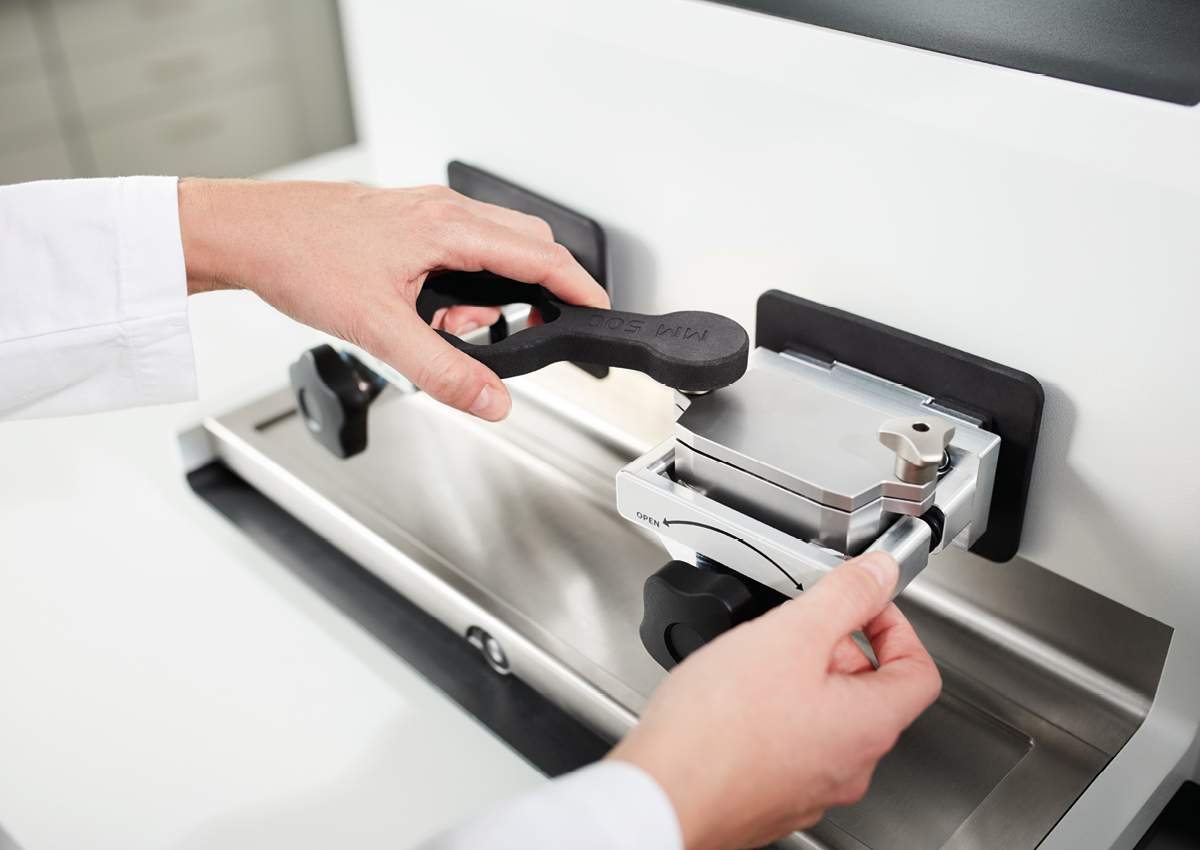

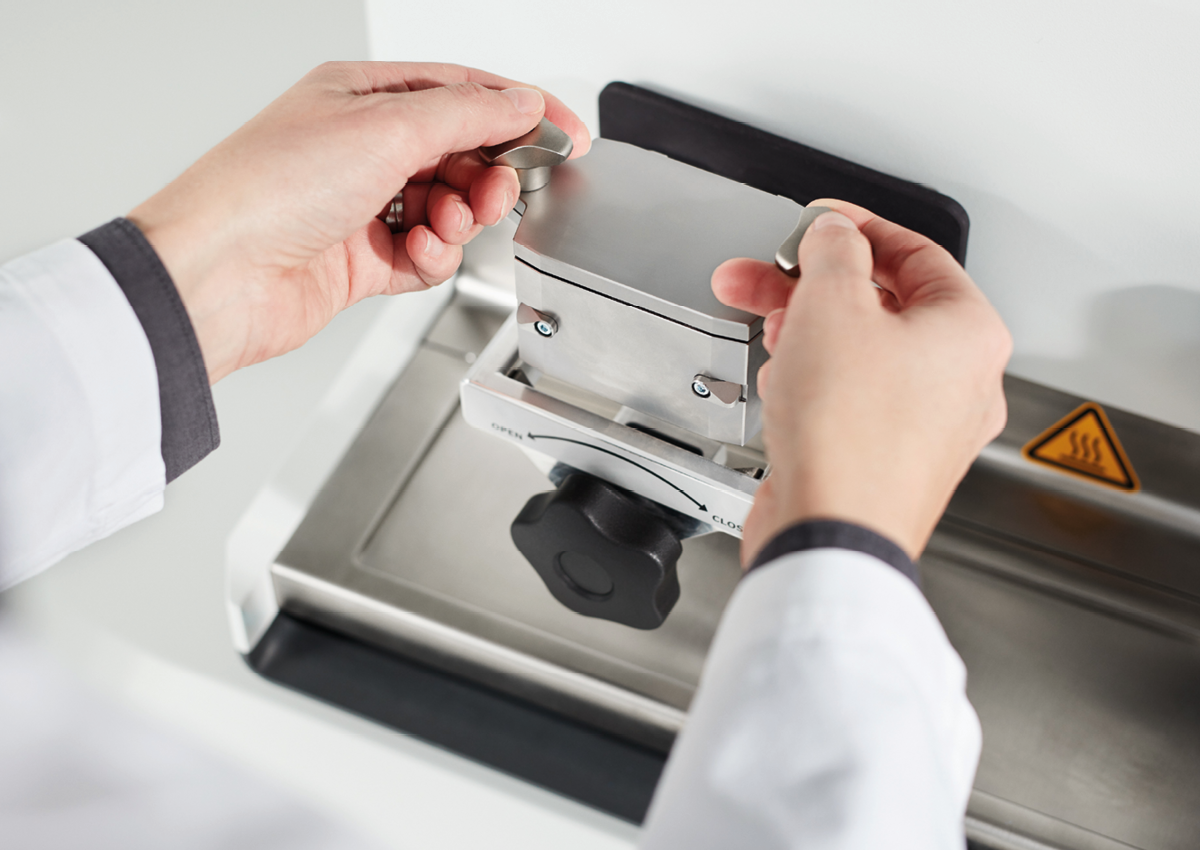

Mixer Mill MM 500 nano with quick release clamp
(please order grinding jars and balls separately)
20.765.0003
MM 500 nano
200–230 V, 50/60 Hz
20.765.0004
MM 500 nano
100–120 V, 50/60 Hz

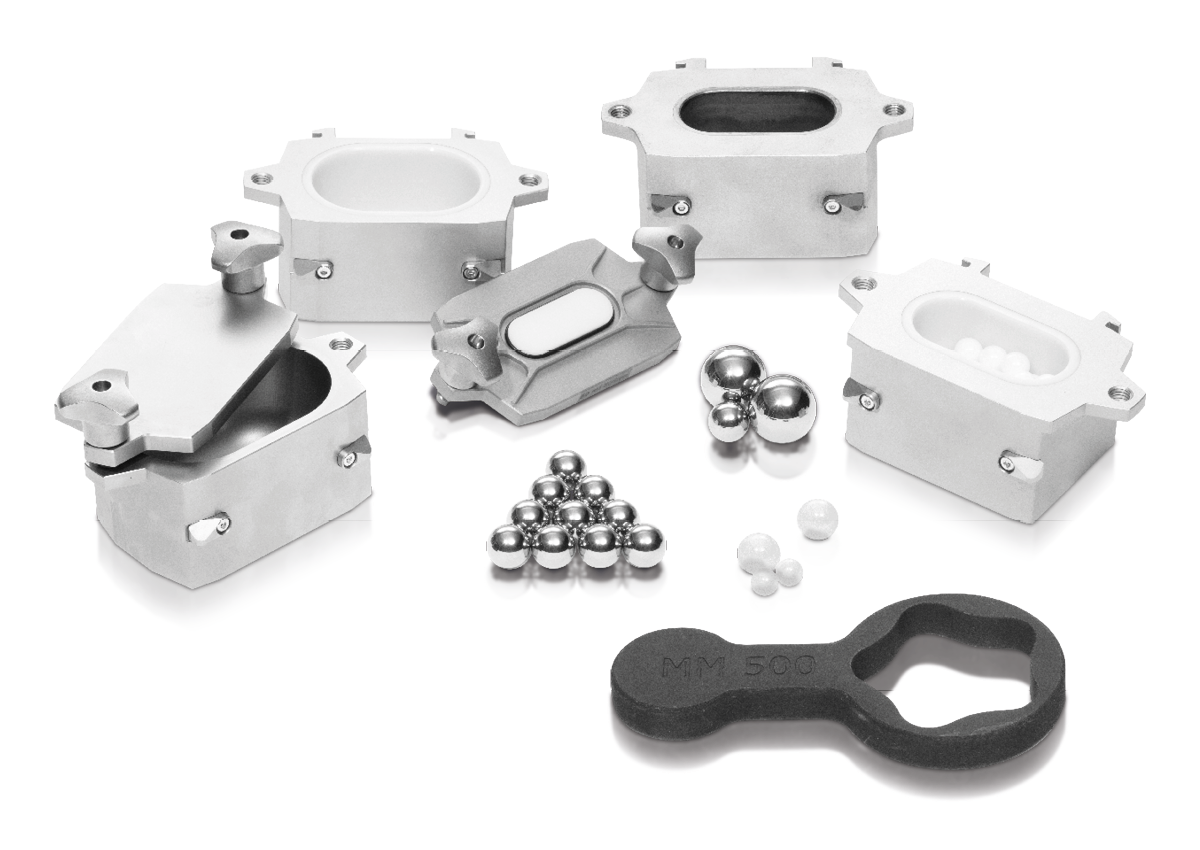

Screw-Lock grinding jars MM 500 control/nano
MM500螺旋研磨罐的压力可达5bar，适合干磨、湿磨以及低温研磨。由于采用了一体化的安全密封装置，例如在研磨罐内的空气通过通气盖与惰性气体交换后，研磨罐能够安全密封惰性气体。研磨罐特殊的几何形状使得研磨罐填充样品材料非常容易。
始终选择适合样品体积的研磨罐体积（大约30%的研磨罐装满样品材料）。研磨罐的尺寸从1.5毫升到25毫升不等（并非所有材料都有）。
“研磨罐球料比”文件详细说明了研磨罐的可用体积、最大进料尺寸、干磨和湿磨以及细胞破碎用研磨球的量和尺寸。
为了确保有效的研磨，研磨罐有4种不同的材料可用于无污染的研磨过程（无意外磨损）。
能量输入随着材料密度的增加而增加。对于粉碎软性样品，应使用低至中等密度的材料，而对于硬性样品，最好使用高密度材料。
可用材质:
- 硬质钢 (密度 7.8 g/cm2; 硬度 ≤ 235 HB, 中等耐磨)
特别适合粉碎中等硬度、硬脆性样品。 - 不锈钢 (密度 7.7 g/cm2; 硬度 ≤ 245 HB, 中等耐磨)
特别适合粉碎中等硬度、硬脆性样品。 - 碳化钨(密度 14.8 g/cm3; 硬度 93.6 HRA; 高耐磨性) 用于研磨非常硬、脆性样品。通过使用碳化钨材质，样品可免受铁元素污染。
- 氧化锆 (密度 6.05 g/cm2; 硬度 1250 HV, 高耐磨性)
氧化锆陶瓷特别适合粉碎中等硬度、硬脆性样品。通常用于将样品研磨至超细粒度、无重金属污染的研磨工艺和应用。
Hardened steel
01.462.0463
50 ml
01.462.0468
80 ml
01.462.0470
125 ml
Stainless steel
01.462.0447
50 ml
01.462.0467
80 ml
01.462.0420
125 ml
Tungsten carbide
01.462.0466
50 ml
01.462.0479
80 ml
Zirconium oxide
01.462.0464
50 ml
01.462.0417
80 ml
01.462.0471
125 ml
Multi cavity ginding jars MM 500 control/nano
01.462.0537
4 x 10 ml, 1.4112 stainless steel, incl. 3 pouring aids
22.462.0014
Pouring aid for 10 ml Multi cavity jar
01.462.0536
2 x 25 ml, 1.4112 stainless steel, incl. 1 pouring aid
22.462.0015
Pouring aid for 25 ml Multi cavity jar
Accessories for grinding in 1.5 or 2 ml vials
22.008.0012
Adapter made of aluminum for 18 x 2.0 ml / 1.5 ml Safe-lock reaction vials or
9 x 2.0 ml reaction vials made of stainless steel 316L
22.749.0001
Safe-lock reaction vials 2.0 ml, 1000 pcs.
22.749.0002
Safe-lock reaction vials 1.5 ml, 1000 pcs.
22.749.0008
Reaction vials made of stainless steel 316L, 2.0 ml, 10 pcs.

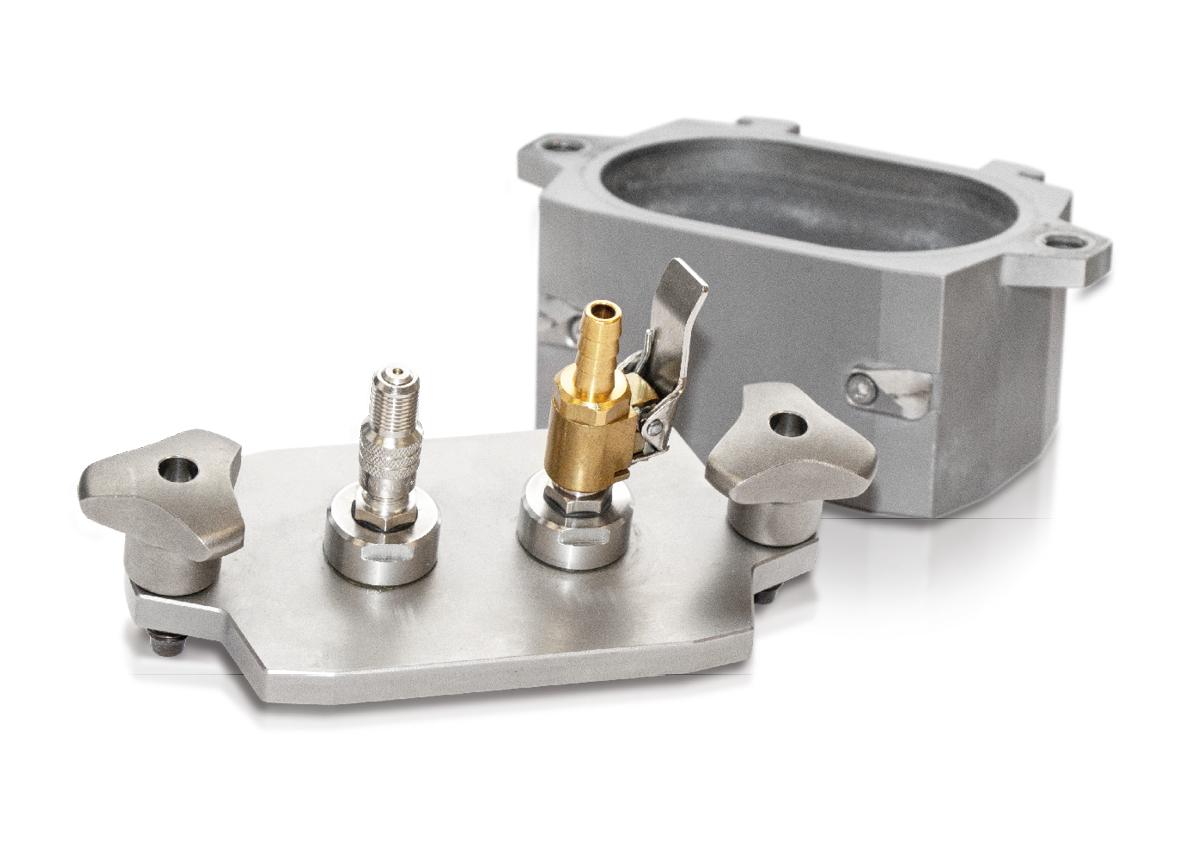

Accessories for grinding under inert atmosphere
Aeration lid for screw-lock grinding jars
incl. o-rings and sintered filter (please order lid insert and grinding jar separately)
22.107.0638
Aeration lid for screw-lock grinding jars 50ml
22.107.0639
Aeration lid for screw-lock grinding jars 80ml
22.107.0640
Aeration lid for screw-lock grinding jars 125ml
Lid insert for screw-lock grinding jars
03.474.0258
Aeration lid insert for screw-lock grinding jars 50ml, stainless steel
03.107.0570
Aeration lid insert for screw-lock grinding jars 50ml, zirconium oxide
03.474.0131
Aeration lid insert for screw-lock grinding jars 50ml, tungsten carbide
03.474.0259
Aeration lid insert for screw-lock grinding jars 80ml, stainless steel
03.474.0166
Aeration lid insert for screw-lock grinding jars 80ml, zirconium oxide
03.474.0167
Aeration lid insert for screw-lock grinding jars 80ml, tungsten carbide
03.474.0260
Aeration lid insert for screw-lock grinding jars 125ml, stainless steel
03.107.0565
Aeration lid insert for screw-lock grinding jars 125ml, zirconium oxide
Accessories for aeration lids for screw-lock grinding jars
05.114.0057
O-ring for screw-lock grinding jars 50 ml, 1 piece
05.114.0158
O-ring for screw-lock grinding jars 80 ml, 1 piece
05.114.0122
O-ring for screw-lock grinding jars 125 ml, 1 piece
22.186.0007
Sintered filter with O-ring, set of 10 pieces
22.864.0001
Valve set M8x1 for GrindControl and aeration lids
Accessories for grinding jars MM 500 control/nano
22.486.0006
Grinding jar stabilization pad
02.486.0050
Jar wrench for grinding jars
05.114.0057
O-ring for grinding jars 50 ml, 1 piece
05.114.0158
O-ring for grinding jars 80 ml, 1 piece
05.114.0122
O-ring for grinding jars 125 ml, 1 piece
Accessories for cold grinding MM 500 control/nano
22.354.0003
Cryo kit for cooling the grinding jars with liquid nitrogen (incl. insulated container 4-liter, 2 grinding jar holders, 1 pair of safety glasses)
Accessories MM 500 control/nano
05.114.0197
O-ring PTFE for grinding jars 50 ml, 1 piece, for cryogenic grinding
05.114.0196
O-ring PTFE for grinding jars 80 ml, 1 piece, for cryogenic grinding
05.114.0195
O-ring PTFE for grinding jars 125 ml, 1 piece, for cryogenic grinding
05.114.0207
O-ring for multi cavity jars, 4 x 10 ml, 1 piece
05.114.0208
O-ring for multi cavity jars, 2 x 25 ml, 1 piece
05.114.0212
O-ring for multi cavity jars, 4 x 10 ml, 1 piece, for cryogenic grinding
05.114.0213
O-ring for multi cavity jars, 2 x 25 ml, 1 piece, for cryogenic grinding
99.200.0034
IQ/OQ Documentation for MM 500 nano
Pressure and temperature measuring system GrindControl for Mixer Mills
incl. sensors and transmitter unit, case, opening aid and cleaning accessories for MM 500 control / nano / Emax
(please order lid insert and grinding jar separately)
22.782.0032
GrindControl for MM 500 control/nano/Emax grinding jar 125 ml
03.474.0242
GrindControl lid insert for MM 500 control/nano and Emax
grinding jar 125 ml, stainless steel
03.474.0245
GrindControl lid insert for MM 500 control/nano and Emax
grinding jar 125 ml, zirconium oxide
Accessories for MM 500 control/nano GrindControl
05.114.0122
O-ring for 125 ml grinding jars (MM 500 control/nano and Emax)
22.186.0007
Sintered filter with O-ring, set of 10 pieces
22.864.0001
Valve set M8x1 for GrindControl and aeration lids
Grinding balls
研磨球和研磨罐的材质需要一致。
研磨球有多种尺寸可供选择。经验法则是：为了实现有效研磨，研磨球的尺寸应该至少是样品中最大颗粒尺寸的3倍。为了避免磨损，研磨球必须使用相同直径的研磨球。
研磨球的数量由研磨罐的体积决定。下载部分中的文件“研磨罐球料比”提供了有关研磨罐可用体积、最大进样尺寸、干磨和湿磨以及细胞破碎所使用研磨球的量和尺寸的详细信息。有关更多信息，请查看下载部分的文件“设备和附件的材料分析”
可用材质:
- 硬质钢 (密度 7.8 g/cm2; 硬度 ≤ 235 HB, 中等耐磨)
特别适合粉碎中等硬度、硬脆性样品。 - 不锈钢 (密度 7.7 g/cm2; 硬度 ≤ 245 HB, 中等耐磨)
特别适合粉碎中等硬度、硬脆性样品。 - 碳化钨(密度 14.8 g/cm3; 硬度 93.6 HRA; 高耐磨性) 用于研磨非常硬、脆性样品。通过使用碳化钨材质，样品可免受铁元素污染。
- 氧化锆 (密度 6.05 g/cm2; 硬度 1250 HV, 高耐磨性)
氧化锆陶瓷特别适合粉碎中等硬度、硬脆性样品。通常用于将样品研磨至超细粒度、无重金属污染的研磨工艺和应用。
Hardened steel
05.368.0029
5 mm Ø
05.368.0030
7 mm Ø
05.368.0059
10 mm Ø
05.368.0032
12 mm Ø
05.368.0108
15 mm Ø
05.368.0033
20 mm Ø
Stainless steel
22.455.0010
2 mm Ø, 500 g (approx. 110 ml)
22.455.0011
3 mm Ø, 500 g (approx. 120 ml)
22.455.0002
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0003
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0034
5 mm Ø
05.368.0035
7 mm Ø
05.368.0063
10 mm Ø
05.368.0037
12 mm Ø
05.368.0109
15 mm Ø
05.368.0062
20 mm Ø
05.368.0105
25 mm Ø
Tungsten carbide
05.368.0038
5 mm Ø
05.368.0039
7 mm Ø
05.368.0071
10 mm Ø
05.368.0041
12 mm Ø
05.368.0110
15 mm Ø
05.368.0070
20 mm Ø
Zirconium oxide
32.368.0005
0.1 mm Ø, 0.5 kg (approx. 135 ml)
32.368.0003
0.5 mm Ø, 0.5 kg (approx. 135 ml)
32.368.0004
1 mm Ø, 0.5 kg (approx. 135 ml)
05.368.0089
2 mm Ø, 0.5 kg (approx. 135 ml)
05.368.0090
3 mm Ø, 0.5 kg (approx. 140 ml)
22.455.0007
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0009
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0094
10 mm Ø
05.368.0096
12 mm Ø
05.368.0113
15 mm Ø
