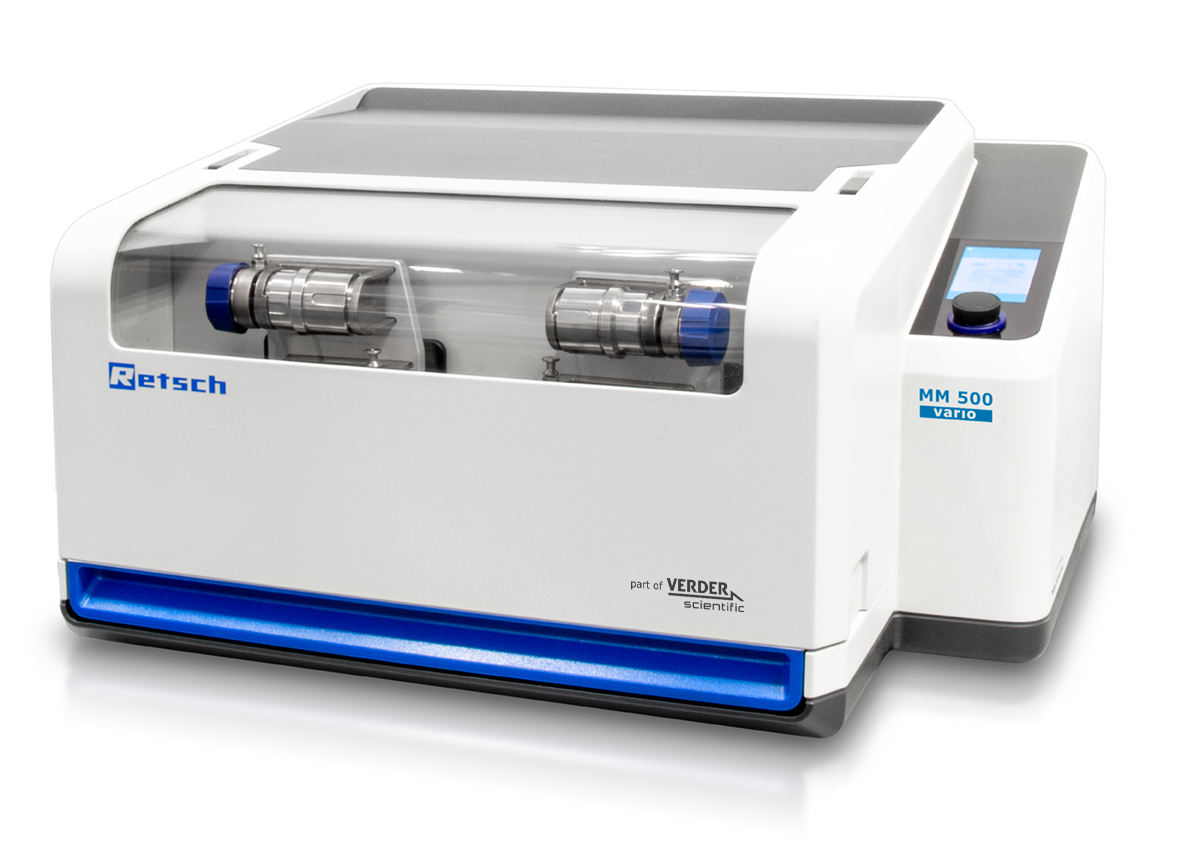

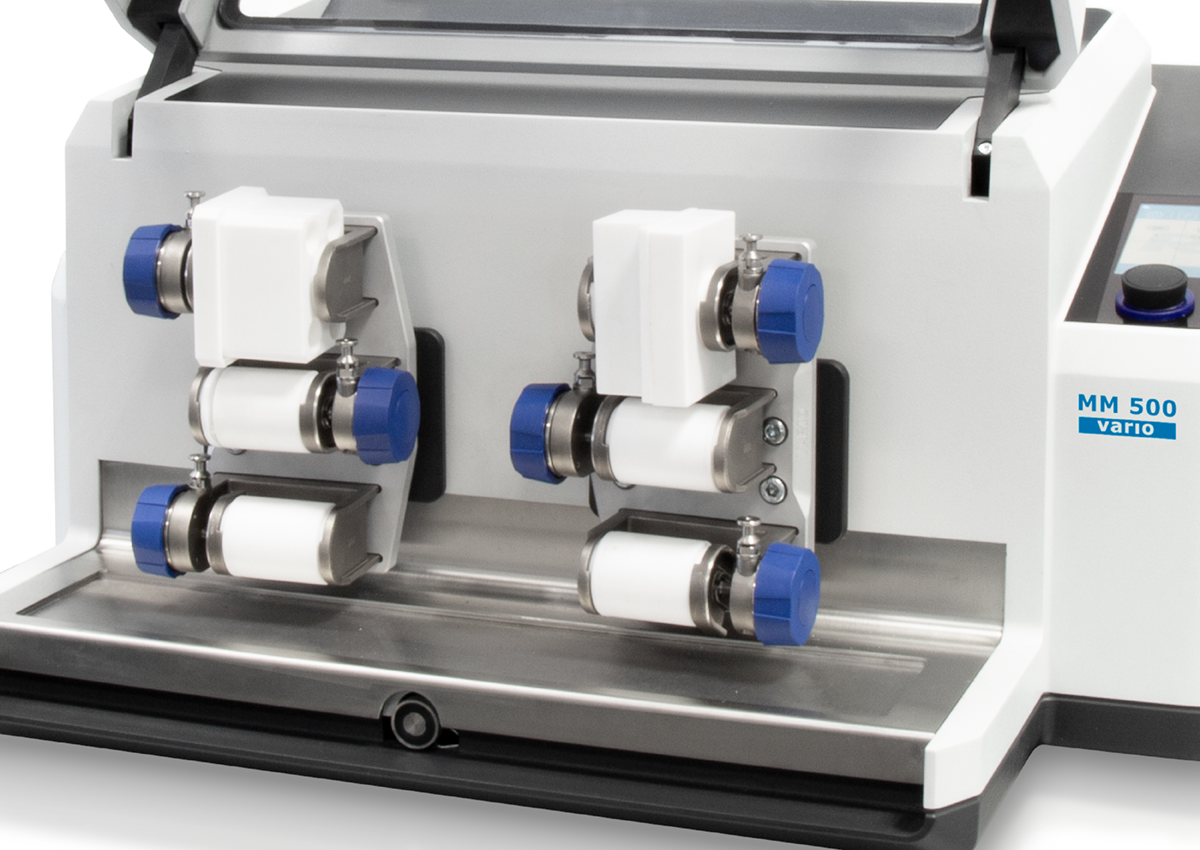

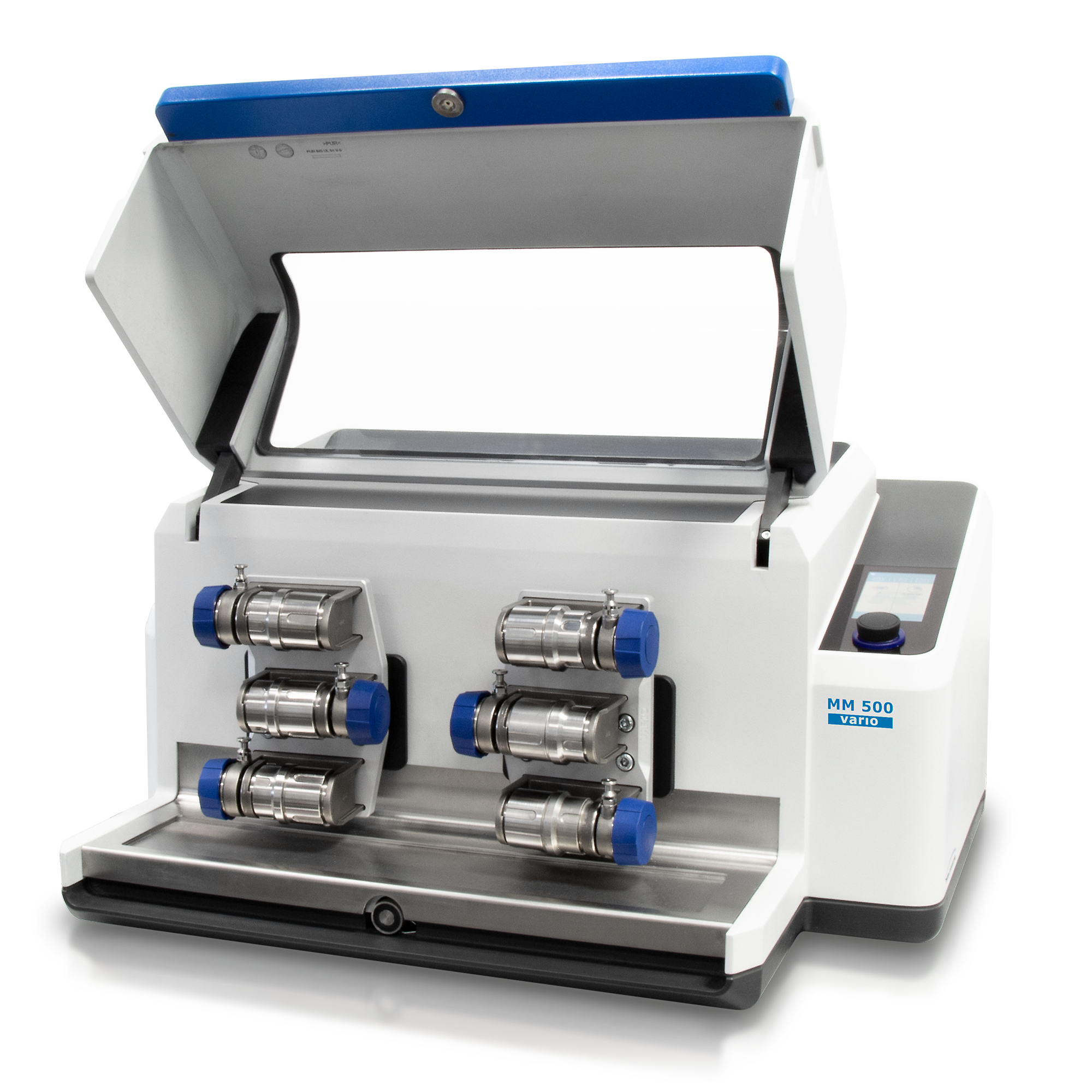

Mixer Mill MM 500 vario
Mixer Mill MM 500 vario with quick release clamp
(please order grinding jars and balls separately)
20.766.0001
MM 500 vario
200–230 V, 50/60 Hz
20.766.0002
MM 500 vario
100–120 V, 50/60 Hz

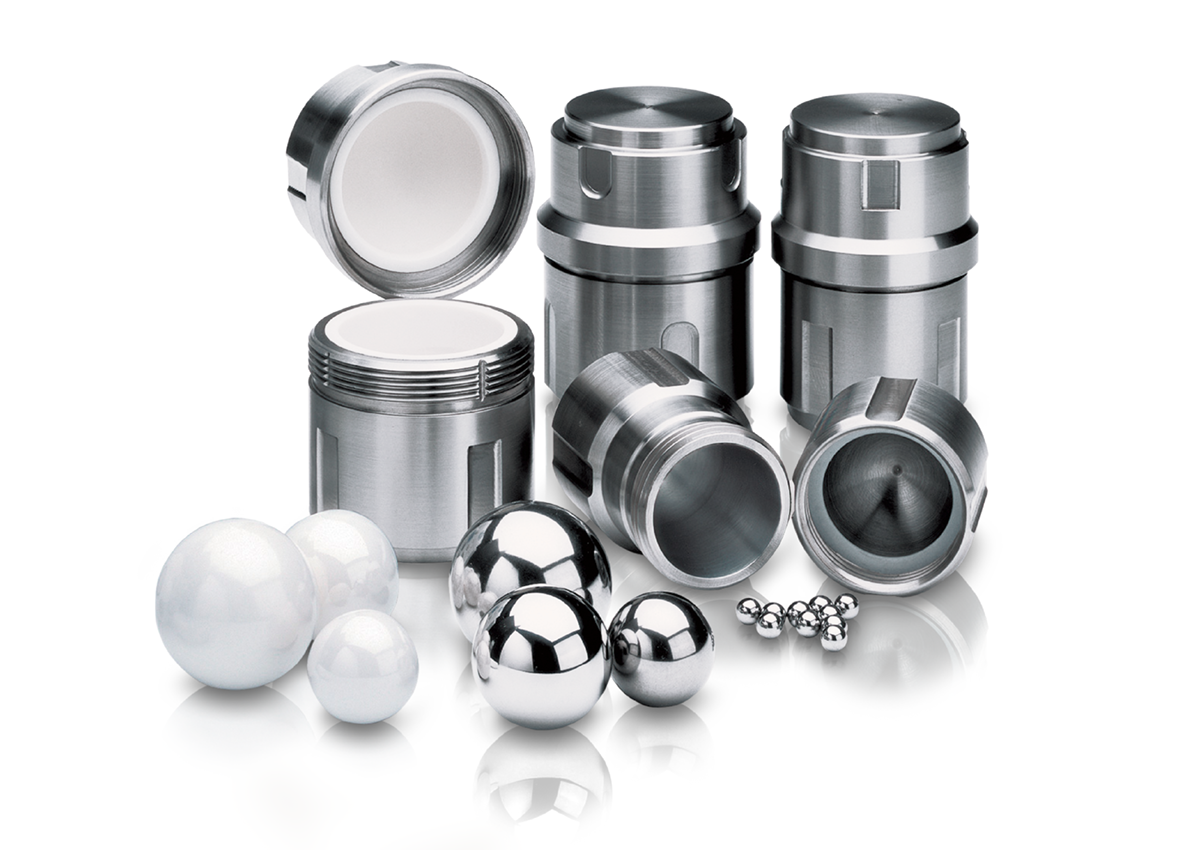

Grinding jars MM 500 vario, screw top design
MM500螺旋研磨罐的压力可达5bar，适合干磨、湿磨以及低温研磨。由于采用了一体化的安全密封装置，例如在研磨罐内的空气通过通气盖与惰性气体交换后，研磨罐能够安全密封惰性气体。研磨罐特殊的几何形状使得研磨罐填充样品材料非常容易。
始终选择适合样品体积的研磨罐体积（大约30%的研磨罐装满样品材料）。研磨罐的尺寸从1.5毫升到25毫升不等（并非所有材料都有）。
“研磨罐球料比”文件详细说明了研磨罐的可用体积、最大进料尺寸、干磨和湿磨以及细胞破碎用研磨球的量和尺寸。
为了确保有效的研磨，研磨罐有4种不同的材料可用于无污染的研磨过程（无意外磨损）。
能量输入随着材料密度的增加而增加。对于粉碎软性样品，应使用低至中等密度的材料，而对于硬性样品，最好使用高密度材料。
可用材质:
- 硬质钢 (密度 7.8 g/cm2; 硬度 ≤ 235 HB, 中等耐磨)
特别适合粉碎中等硬度、硬脆性样品。 - 不锈钢 (密度 7.7 g/cm2; 硬度 ≤ 245 HB, 中等耐磨)
特别适合粉碎中等硬度、硬脆性样品。 - 碳化钨(密度 14.8 g/cm3; 硬度 93.6 HRA; 高耐磨性) 用于研磨非常硬、脆性样品。通过使用碳化钨材质，样品可免受铁元素污染。
- 氧化锆 (密度 6.05 g/cm2; 硬度 1250 HV, 高耐磨性)
氧化锆陶瓷特别适合粉碎中等硬度、硬脆性样品。通常用于将样品研磨至超细粒度、无重金属污染的研磨工艺和应用。
Hardened steel
01.462.0237
25 ml
Stainless steel
01.462.0230
1.5 ml
01.462.0231
5 ml
01.462.0290
5 ml (for use with adapter 02.706.0351)
01.462.0236
10 ml
01.462.0213
25 ml
01.462.0214
35 ml
01.462.0216
50 ml
Tungsten carbide
01.462.0235
10 ml
01.462.0217
25 ml
Agate
01.462.0232
5 ml
01.462.0233
10 ml
Zirconium oxide
01.462.0234
10 ml
01.462.0201
25 ml
01.462.0215
35 ml
PTFE
01.462.0238
25 ml
01.462.0244
35 ml
22.041.0004
Mixing beakers of polystyrene, 56 ml, 100 pcs.
Accessories for grinding jars MM 500 vario
03.018.0155
Safety element for empty grinding station
22.486.0005
Opening aid for grinding jars, 2 pcs.
02.706.0351
Adapter for use of 2/4 grinding jars 5 ml (01.462.0550)
22.085.0007
Gasket for grinding jar 1.5 ml, 10 pcs.
22.085.0008
Gasket for grinding jar 5 ml, 10 pcs. (for grinding jar 01.462.0231)
22.111.0001
Gasket for grinding jar 5 ml, 10 pcs. (for grinding jar 01.462.0550)
22.085.0009
Gasket for grinding jar 10 ml, 10 pcs.
22.085.0006
Gasket for grinding jar 25 ml hardened steel and stainless steel, 10 pcs.
22.085.0003
Gasket for grinding jar 25 ml zirconium oxide and tungsten carbide, 10 pcs.
22.085.0005
Gasket for grinding jar 35 ml stainless steel, 10 pcs.
22.085.0004
Gasket for grinding jar 35 ml zirconium oxide, 10 pcs.
22.085.0002
Gasket for grinding jar 50 ml stainless steel, 10 pcs.
Accessories for cold grinding MM 500 vario
22.354.0001
Cryo kit for cooling the grinding jars with liquid nitrogen (incl. 2 insulated containers (1 and 4 liter), 2 pairs of grinding jar tongs, 1 pair of safety glasses)

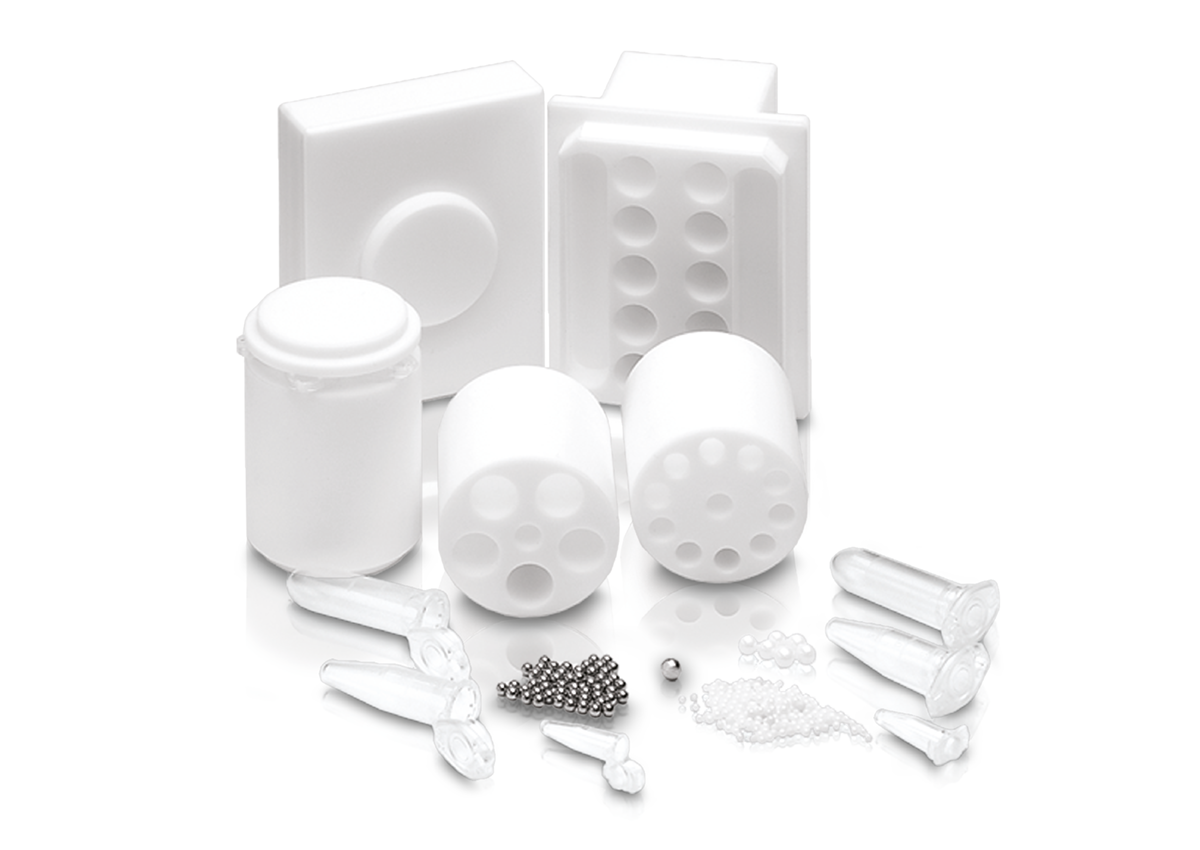

Accessories for cell and tissue disruption
22.008.0010
Adapter for 5 reaction vials 5.0 ml, made of PTFE
22.008.0014
Adapter for 10 reaction vials 1.5 and 2.0 ml, made of PTFE or stainless steel
22.008.0005
Adapter for 5 reaction vials 1.5 and 2.0 ml, made of PTFE or stainless steel
22.008.0006
Adapter for 10 reaction vials 0.2 ml, made of PTFE
22.749.0006
Safe-lock reaction vials 5.0 ml, 200 pcs.
22.749.0001
Safe-lock reaction vials 2.0 ml, 1000 pcs.
22.749.0002
Safe-lock reaction vials 1.5 ml, 1000 pcs.
22.749.0004
Safe-lock reaction vials 0.2 ml, 1000 pcs.
22.749.0008
Reaction vials made of stainless steel 316L, 2.0 ml, 10 pcs.
Accessories MM 500 vario
99.200.0038
IQ/OQ Documentation for MM 500 vario
Grinding balls
Hardened steel
05.368.0029
5 mm Ø
05.368.0030
7 mm Ø
05.368.0059
10 mm Ø
05.368.0032
12 mm Ø
05.368.0108
15 mm Ø
Stainless steel
22.455.0010
2 mm Ø, 500 g (approx. 110 ml)
22.455.0011
3 mm Ø, 500 g (approx. 120 ml)
22.455.0002
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0001
4 mm Ø, 200 pieces (approx. 14 ml)
22.455.0003
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0034
5 mm Ø
05.368.0035
7 mm Ø
05.368.0063
10 mm Ø
05.368.0037
12 mm Ø
05.368.0109
15 mm Ø
05.368.0062
20 mm Ø
05.368.0105
25 mm Ø
Tungsten carbide
22.455.0006
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0005
4 mm Ø, 200 pieces (approx. 14 ml)
22.455.0004
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0038
5 mm Ø
05.368.0039
7 mm Ø
05.368.0071
10 mm Ø
05.368.0041
12 mm Ø
05.368.0110
15 mm Ø
Agate
05.368.0024
5 mm Ø
05.368.0025
7 mm Ø
05.368.0067
10 mm Ø
05.368.0027
12 mm Ø
Zirconium oxide
05.368.0089
2 mm Ø, 0.5 kg (approx. 135 ml)
05.368.0090
3 mm Ø, 0.5 kg (approx. 140 ml)
22.455.0007
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0009
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0094
10 mm Ø
05.368.0096
12 mm Ø
05.368.0113
15 mm Ø
05.368.0093
20 mm Ø
05.368.0106
25 mm Ø
PTFE with steel core
05.368.0045
10 mm Ø
05.368.0046
12 mm Ø
05.368.0114
15 mm Ø
05.368.0047
20 mm Ø
Polyamide for mixing beakers
05.368.0042
5 mm Ø
05.368.0043
7 mm Ø
05.368.0044
9 mm Ø
05.368.0003
12 mm Ø
Glass beads
22.222.0001
0.10 – 0.25 mm Ø, 500 g (approx. 320 ml)
22.222.0002
0.25 – 0.50 mm Ø, 500 g (approx. 320 ml)
22.222.0003
0.50 – 0.75 mm Ø, 500 g (approx. 320 ml)
22.222.0004
0.75 – 1.00 mm Ø, 500 g (approx. 320 ml)
22.222.0005
1.00 – 1.50 mm Ø, 500 g (approx. 320 ml)
