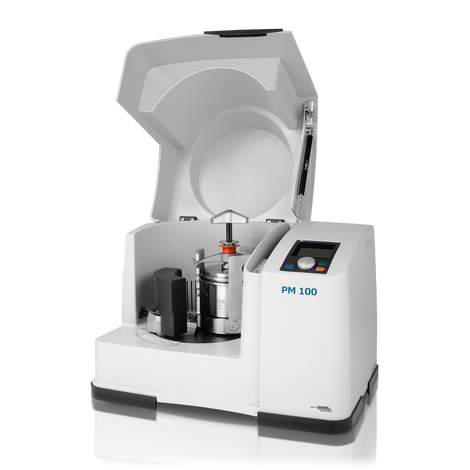

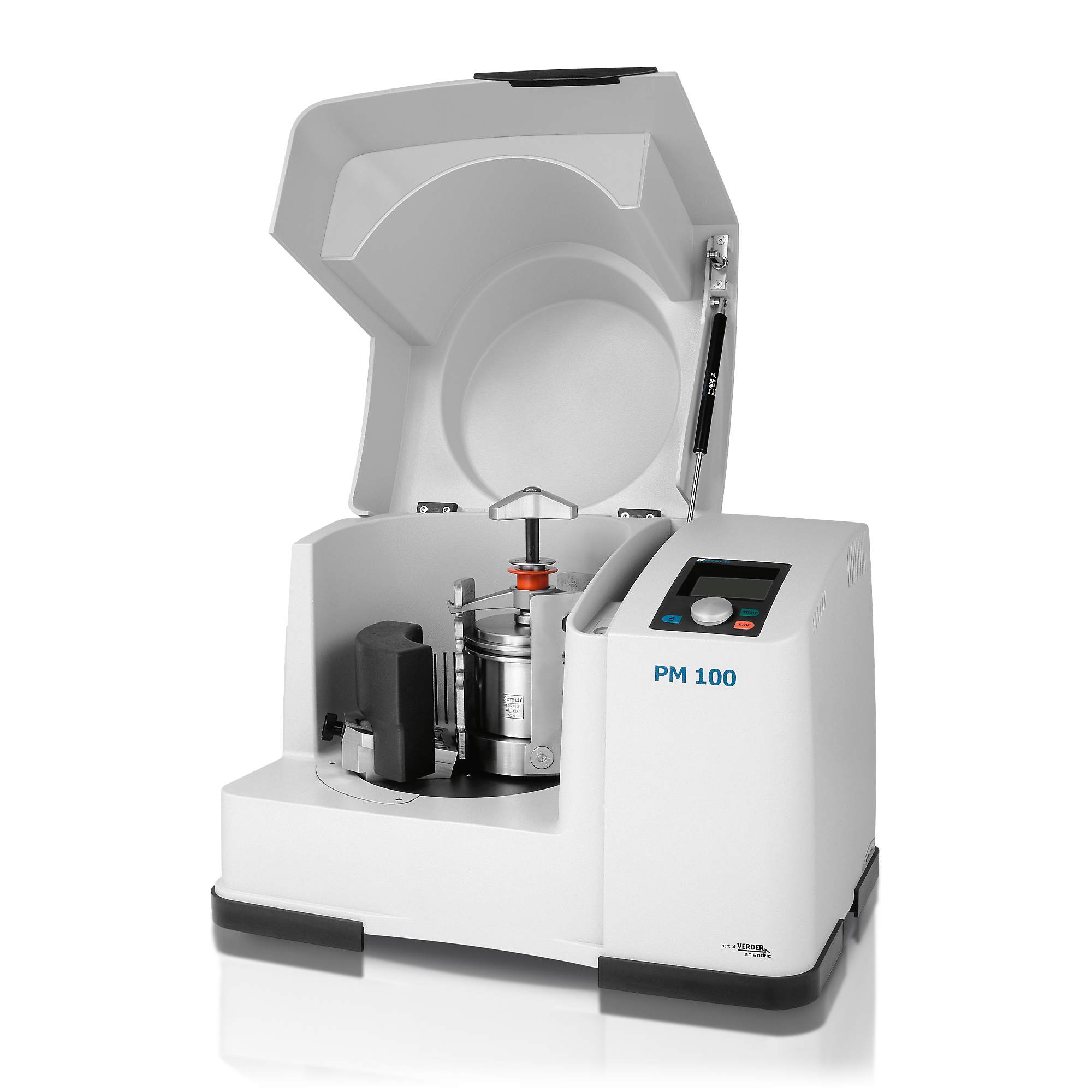

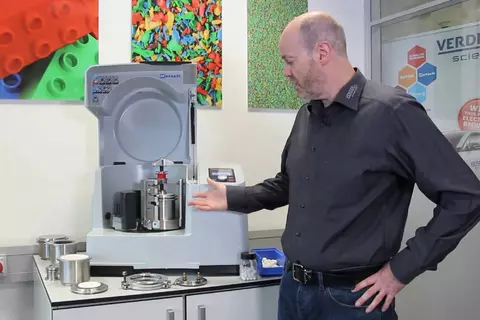

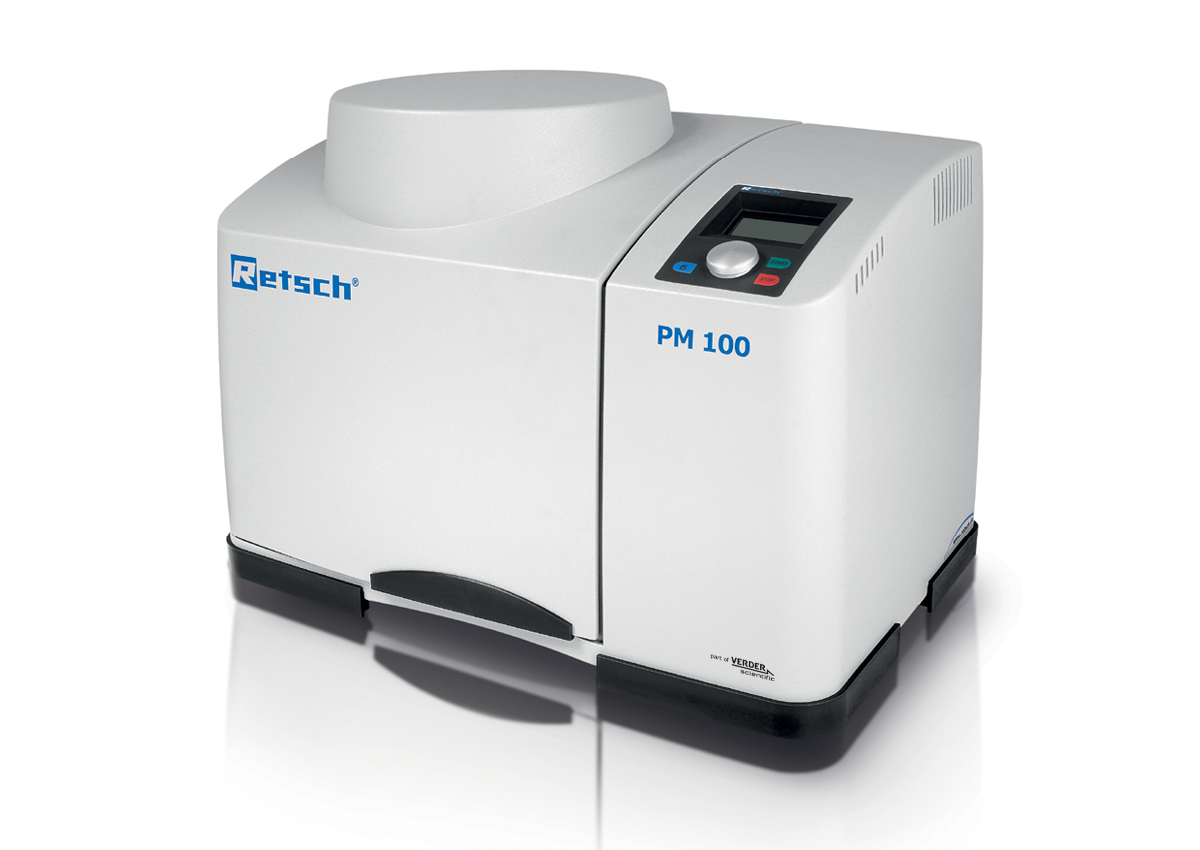

Planetary Ball Mill PM 100
(please order grinding jars and balls separately)
20.540.0001
PM 100
with 1 grinding station, speed ratio 1 : -2
other electrical versions available for the same price
Accessories Planetary Ball Mills
22.661.0002

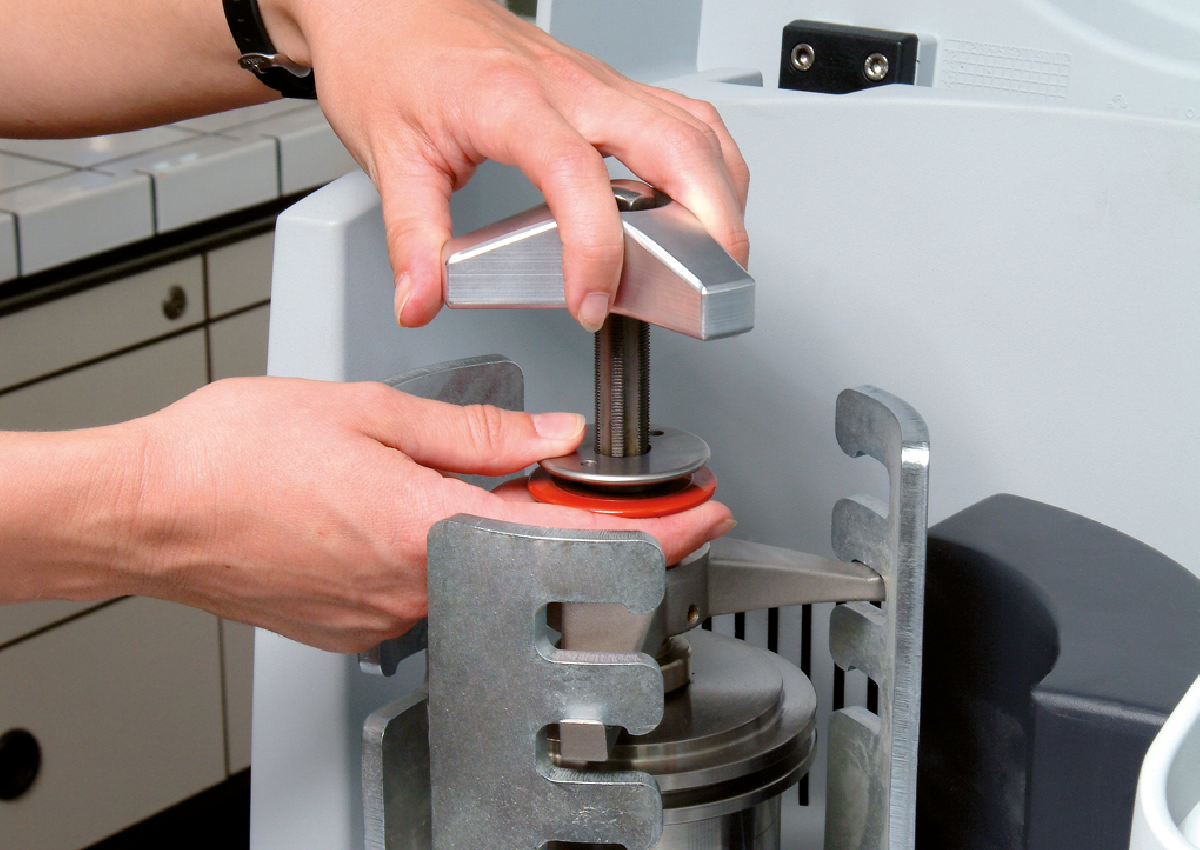

Clamping unit for PM 100 / PM 400
03.025.0178
Adapter for stacking grinding jars 50 ml - 80 ml
22.221.0002

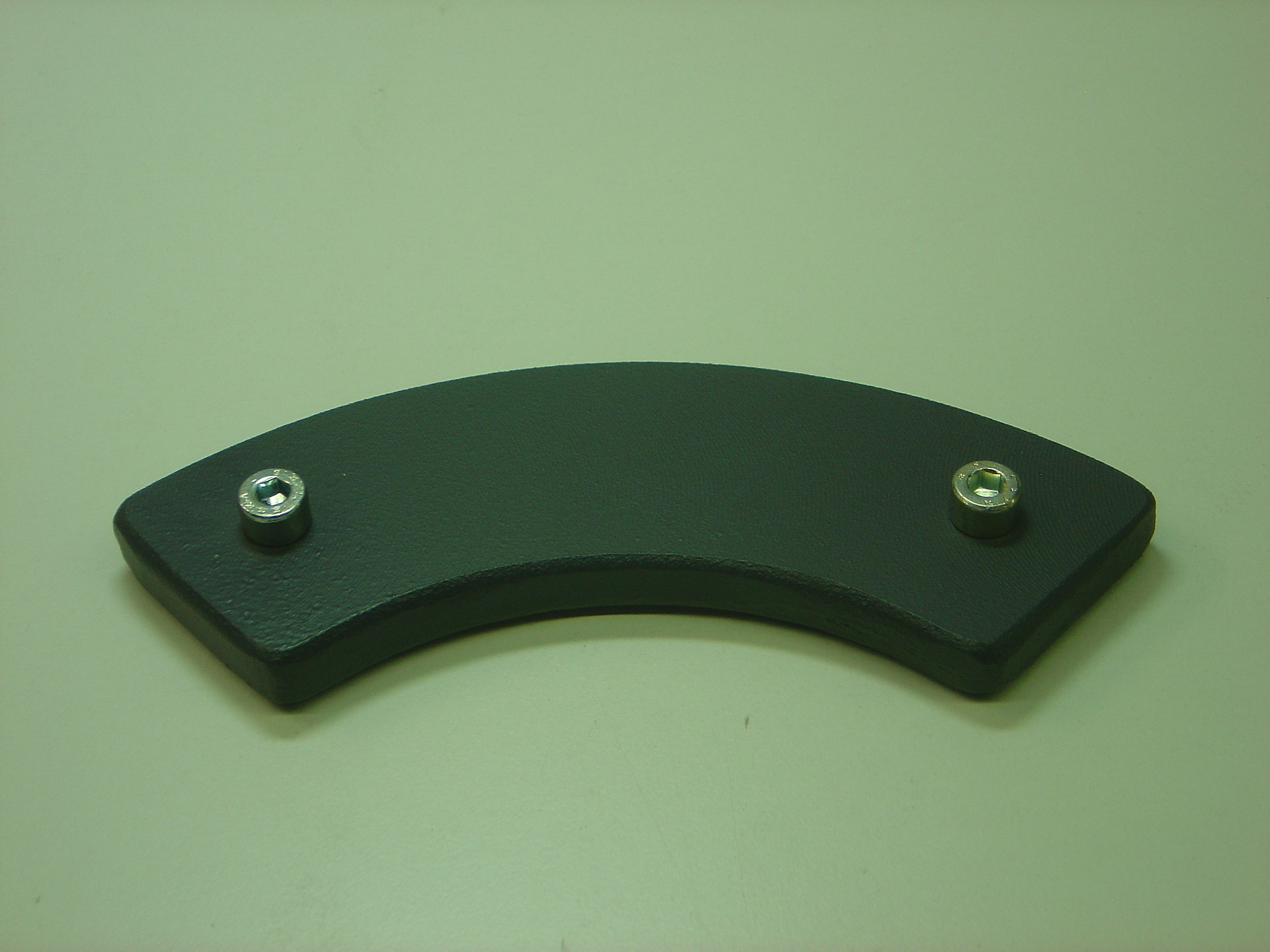

Add-on weight for PM 100
02.728.0048
Counter aid for sun wheel PM 100, PM 200 and PM 400
03.486.0062

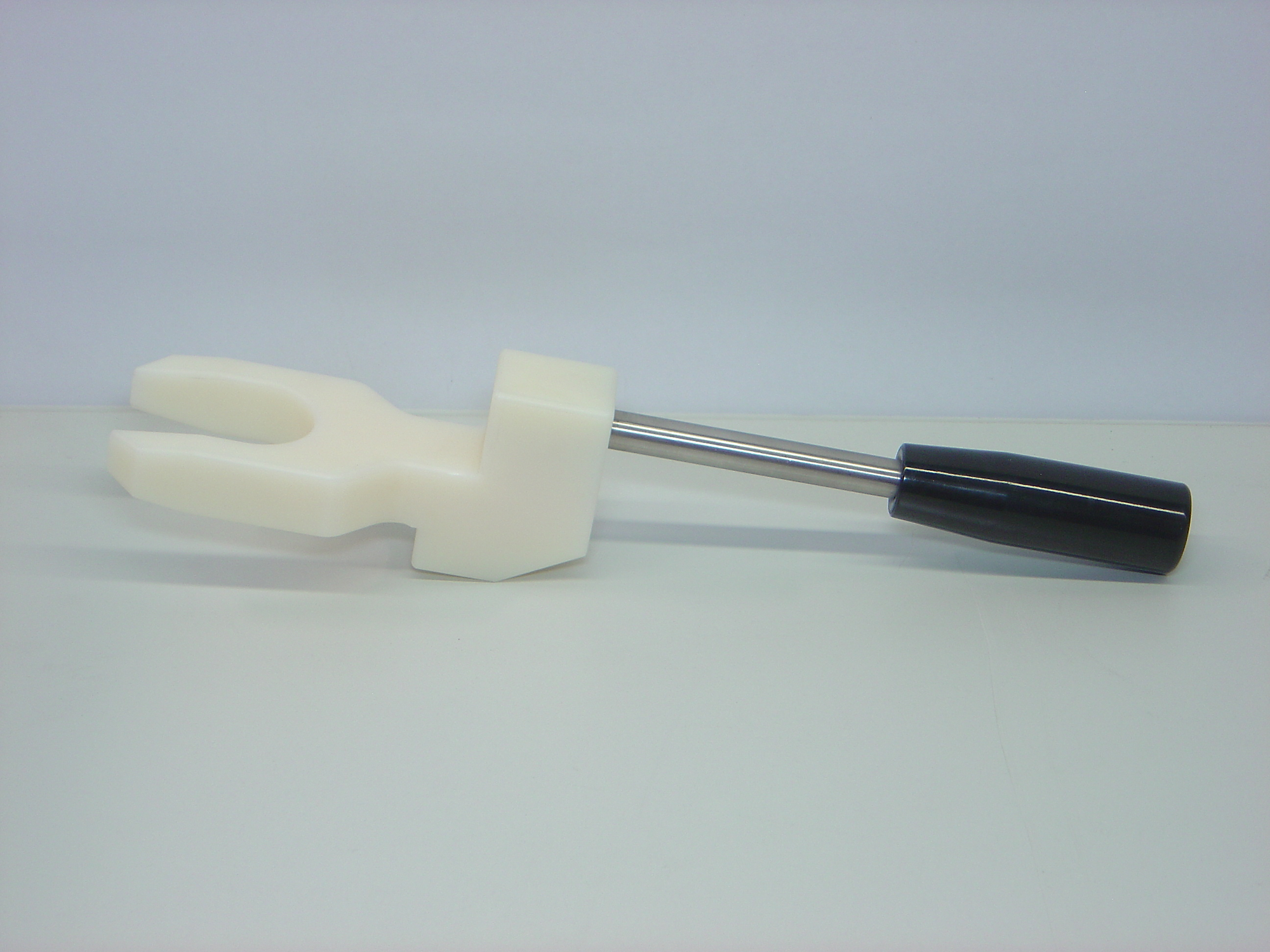

Opening aid for clamping unit of planetary ball mills
99.200.0006
IQ/OQ Documentation for PM 100

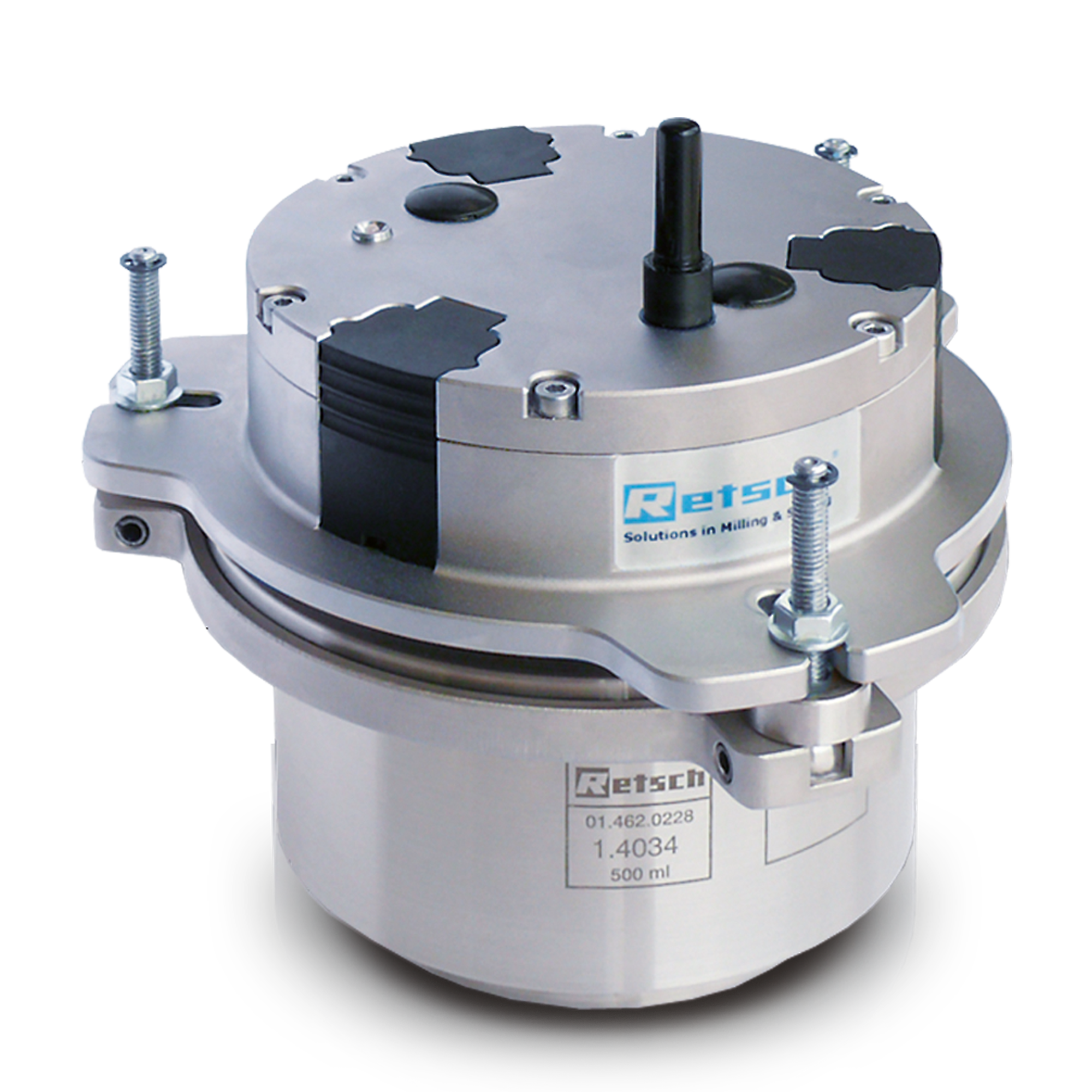

Pressure and temperature measuring system GrindControl for Planetary Ball Mills
incl. sensors and transmitter unit, inseert of lid, software, case, opening aid and cleaning accessories for PM (please order grinding jars separately)
22.782.0033
GrindControl for PM grinding jar EasyFit 50 - 125 ml
22.782.0034
GrindControl for PM grinding jar EasyFit 250 - 500 ml
GrindControl lid inserts
03.474.0243
GrindControl lid insert for 50, 80, 125 ml, stainless steel
03.474.0246
GrindControl lid insert for 50, 80, 125 ml, zirconium oxide
03.474.0244
GrindControl lid insert for 250 or 500 ml, stainless steel
03.474.0247
GrindControl lid insert for 250 or 500 ml, zirconium oxide
Accessories for PM GrindControl with grinding jars EasyFit
05.114.0056
O-ring for 50, 80 or 125 ml
05.114.0054
O-ring for 250 ml - 500 ml grinding jars EasyFit (PM)
03.111.0438
Flat gasket for 50 ml, 80 ml or 125 ml
03.111.0439
Flat gasket for 250 ml - 500 ml
22.186.0007
Sintered filter with O-ring, set of 10 pieces
22.864.0001

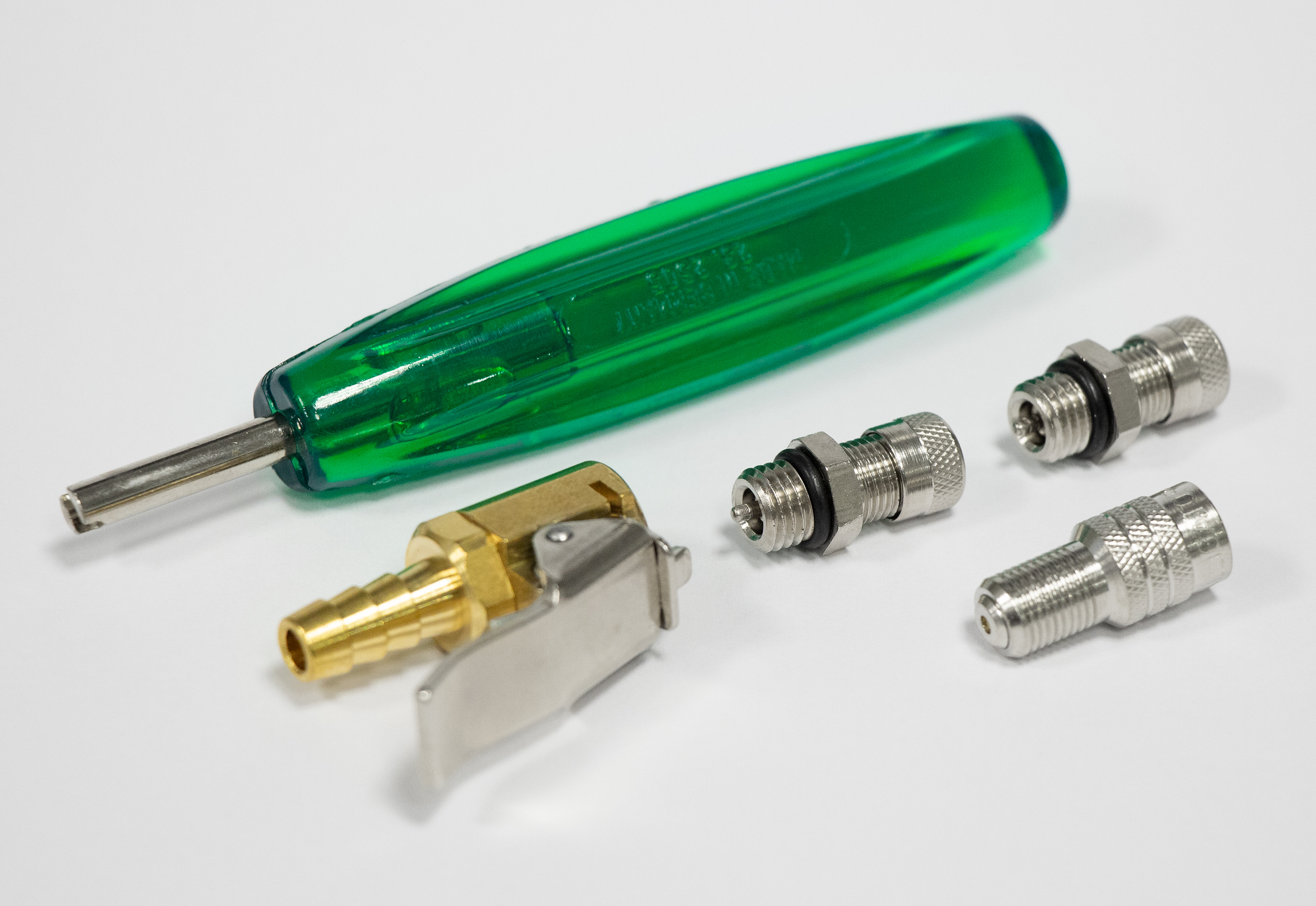

Valve set M8x1 for GrindControl and aeration lids

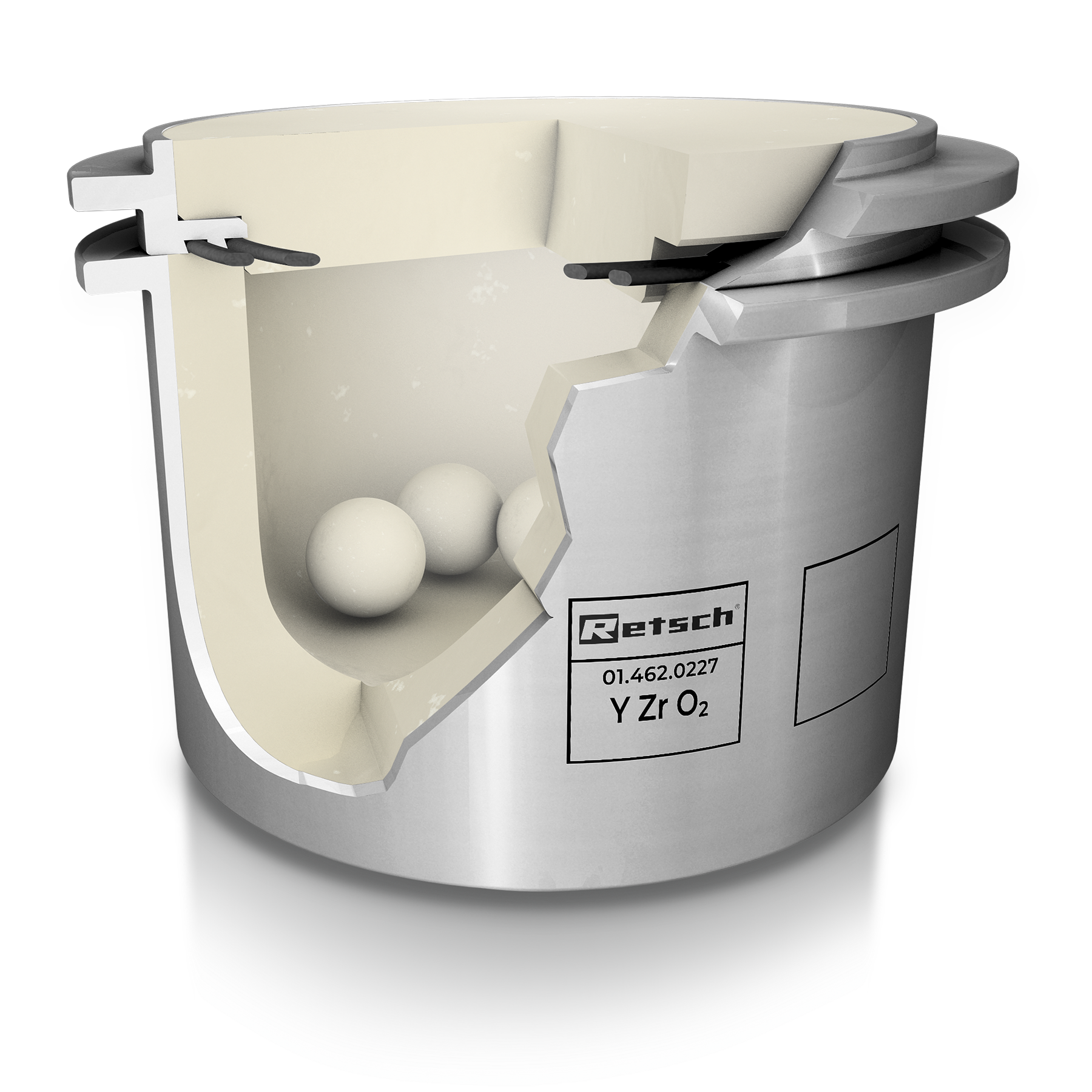

Grinding jars EasyFit
(grinding jars EasyFit are suitable for all planetary ball mills)

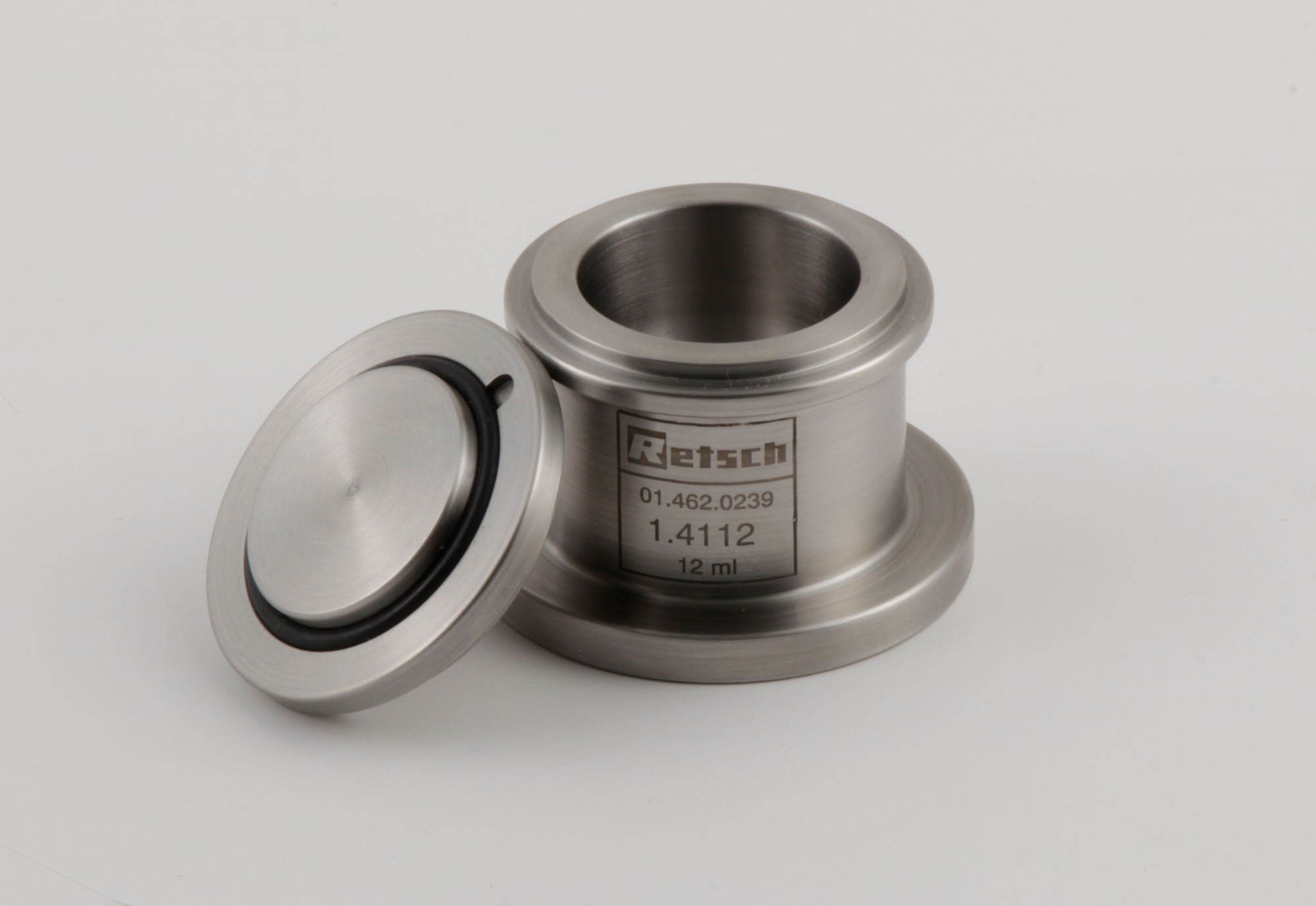

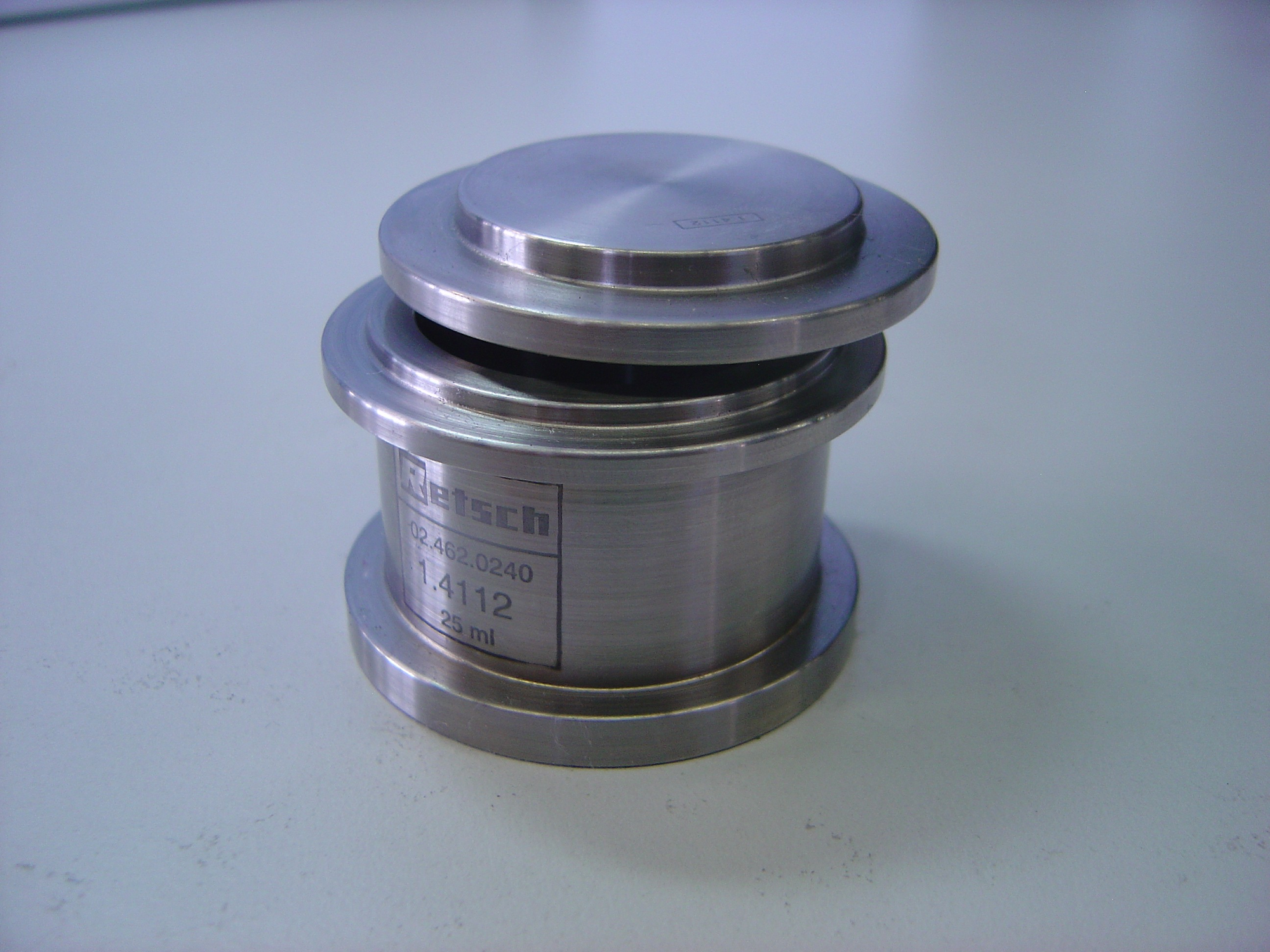

Hardened stainless steel
01.462.0239
12 ml
01.462.0240
25 ml
Tungsten carbide
Agate
Sintered aluminum oxide
Zirconium oxide
Adapter for glass vials
01.462.0540

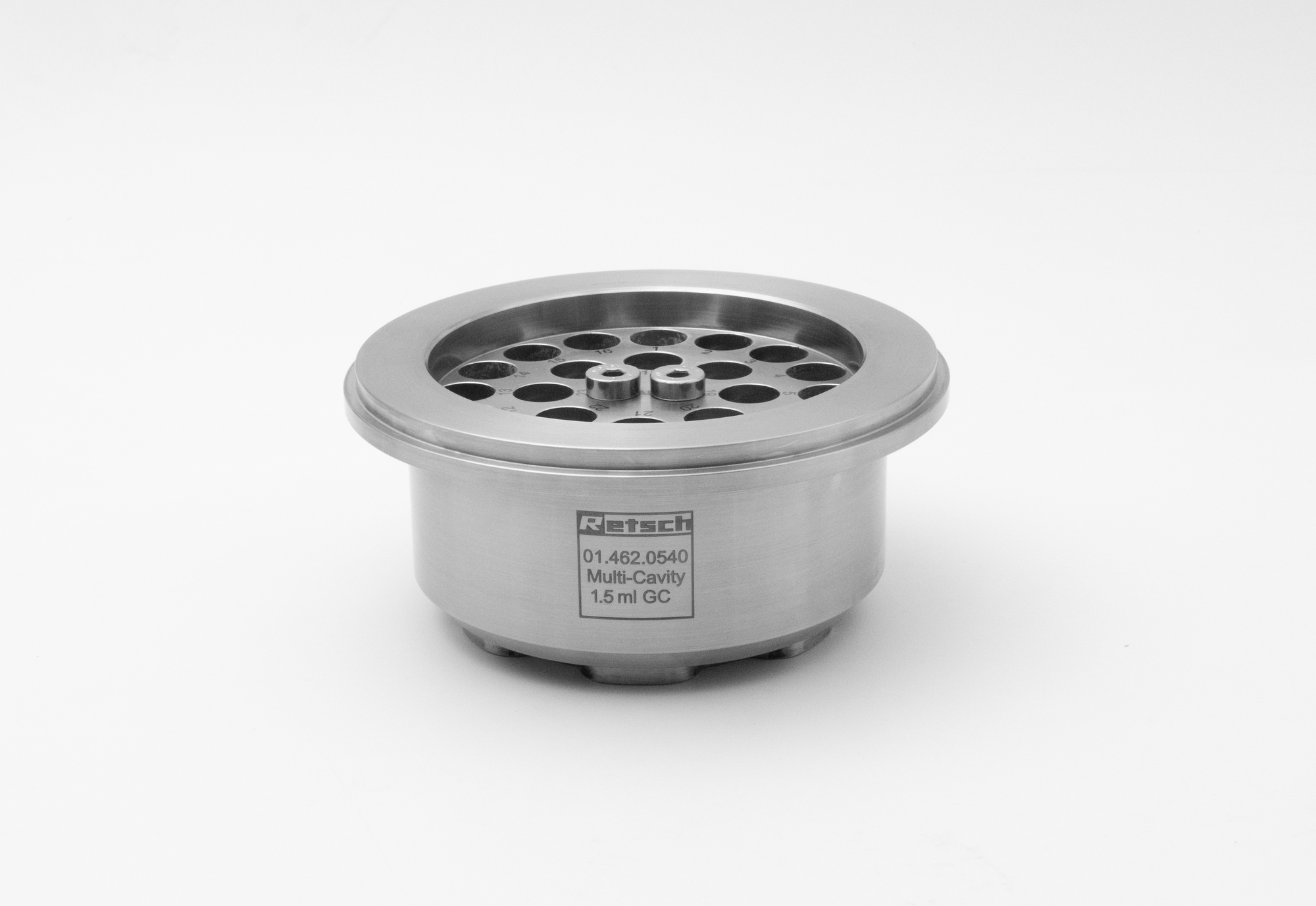

Adapter for 24 x 1.5 ml glass vials, stainless, hardened steel
22.749.0009

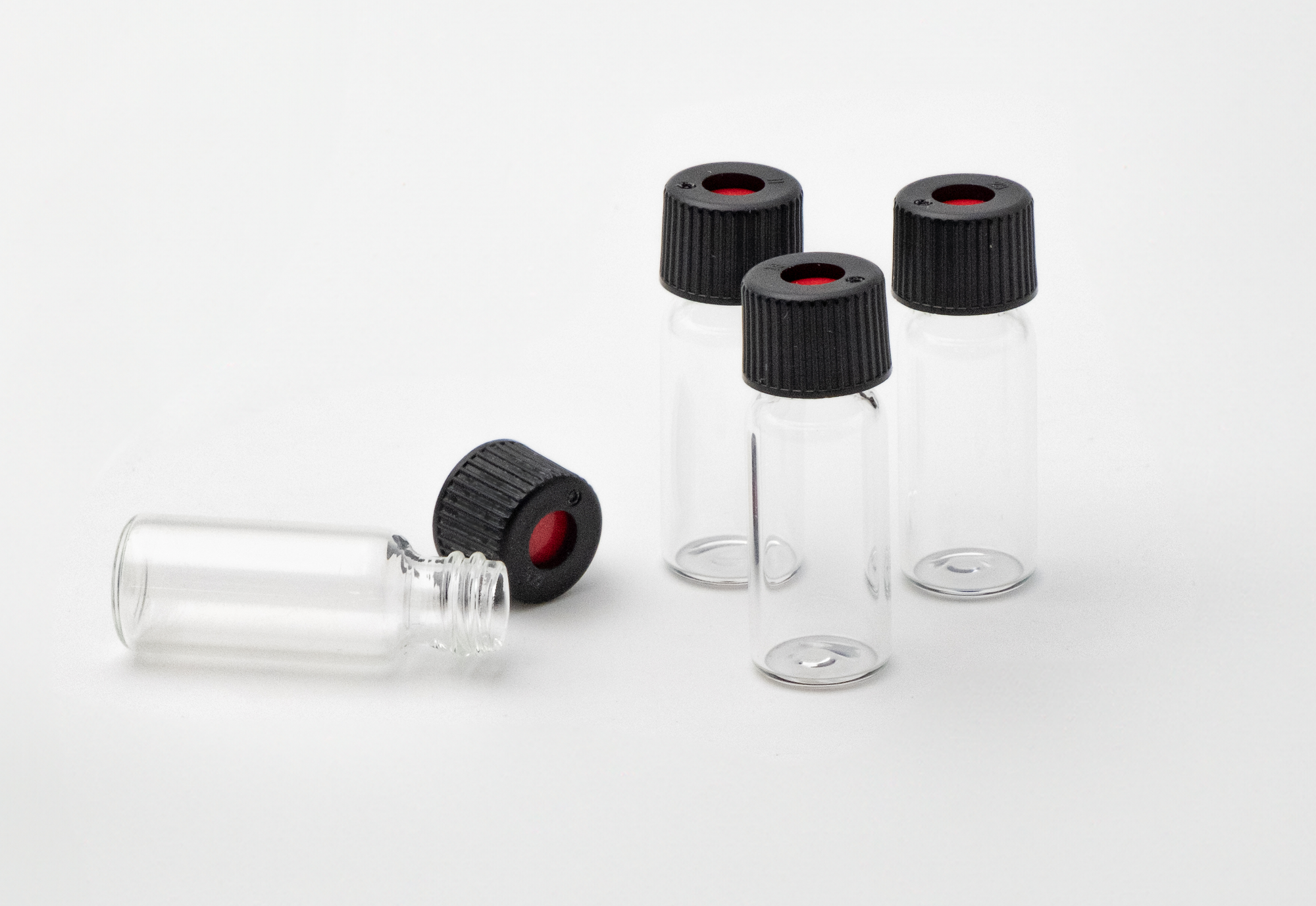

Glass vial 1.5 ml incl. septum cap, 100 pieces
05.181.0112
Replacement pressure spring for adapter for 24 x 1.5 ml glass vials, 1 piece
01.462.0541
Adapter for 7 x 20 ml glass vials, stainless, hardened steel
22.749.0010
Glass vial 20 ml incl. septum cap, 100 pieces
05.181.0044
Replacement pressure spring for adapter for 7 x 20 ml glass vials, 1 piece
Accessories for grinding jars EasyFit for wet grinding, grinding with inert atmosphere and Mechanical Alloying (MA)
Aeration lids (incl. inlay)
22.107.0613
for grinding jars EasyFit 50 ml - 125 ml, hardened stainless steel
22.107.0616
for grinding jars EasyFit 50 ml - 125 ml, tungsten carbide
22.107.0617
for grinding jars EasyFit 50 ml - 125 ml, agate
22.107.0615
for grinding jars EasyFit 50 ml - 125 ml, zirconium oxide
22.107.0618
for grinding jars EasyFit 250 ml - 500 ml, hardened stainless steel
22.107.0621
for grinding jars EasyFit 250 ml - 500 ml, tungsten carbide
22.107.0622
for grinding jars EasyFit 250 ml - 500 ml, agate
22.107.0620
for grinding jars EasyFit 250 ml - 500 ml, zirconium oxide
22.107.0619
for grinding jars EasyFit 250 ml - 500 ml, aluminum oxide
22.864.0001
Spare valve set for aeration lids M8x1
Inlay for aeration lid
03.474.0225
for grinding jars EasyFit 50 ml - 125 ml, hardened stainless steel
03.474.0207
for grinding jars EasyFit 50 ml - 125 ml, tungsten carbide
03.474.0208
for grinding jars EasyFit 50 ml - 125 ml, agate
03.474.0206
for grinding jars EasyFit 50 ml - 125 ml, zirconium oxide
03.474.0226
for grinding jars EasyFit 250 ml - 500 ml, hardened stainless steel
03.474.0210
for grinding jars EasyFit 250 ml - 500 ml, tungsten carbide
03.474.0211
for grinding jars EasyFit 250 ml - 500 ml, agate
03.474.0209
for grinding jars EasyFit 250 ml - 500 ml, zirconium oxide
03.474.0215
for grinding jars EasyFit 250 ml - 500 ml, aluminum oxide

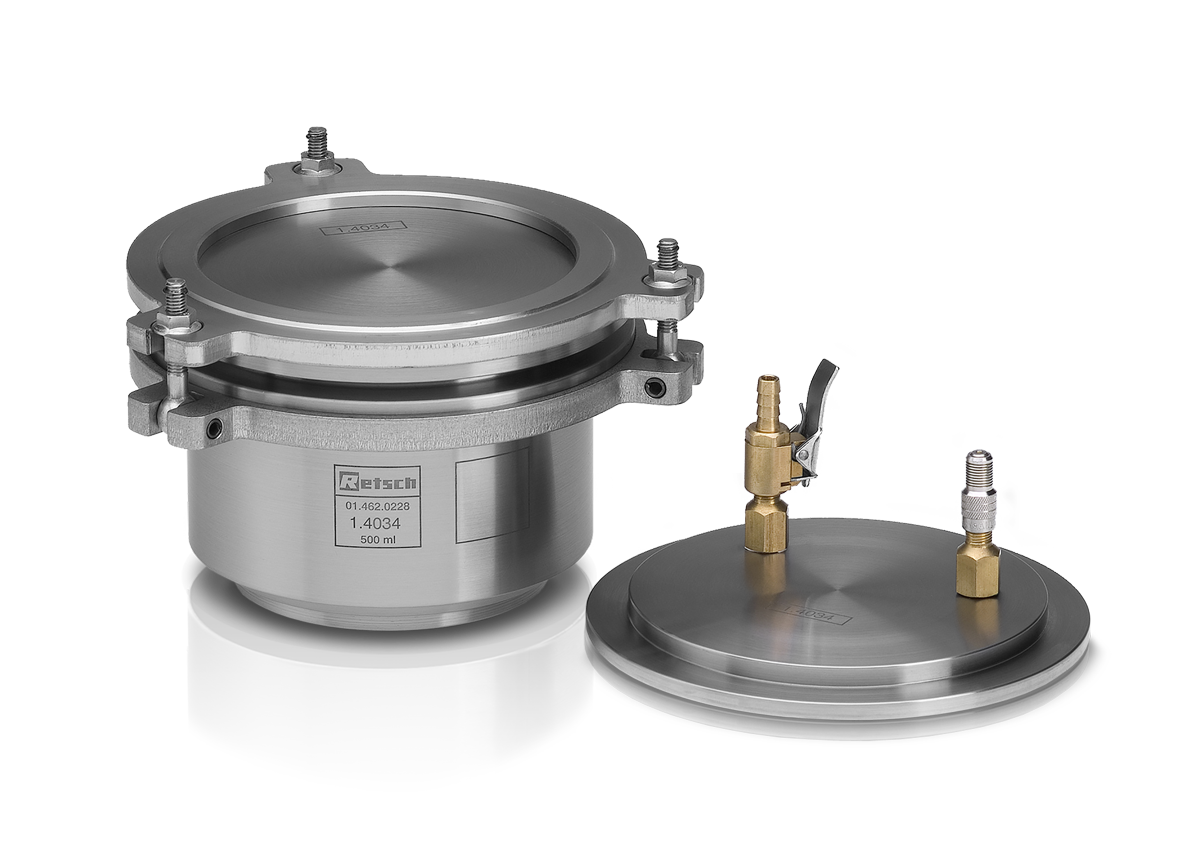

Aeration lids for grinding jars EasyFit
incl. o-rings and sintered filter (please order lid insert and grinding jar separately)
22.107.0636
Aeration lid for grinding jar EasyFit 50 ml - 125 ml
22.107.0637
Aeration lid for grinding jar EasyFit 250 ml - 500 ml
Insert for grinding jar EasyFit
03.474.0261
Aeration lid insert for grinding jar EasyFit 50, 80 oder 125 ml, stainless steel
03.474.0262
Aeration lid insert for grinding jar EasyFit 50, 80 oder 125 ml, zirconium oxide
03.474.0263
Aeration lid insert for grinding jar EasyFit 50, 80 oder 125 ml, tungsten carbide
03.474.0268
Aeration lid insert for grinding jar EasyFit 50, 80 oder 125 ml, agate
03.474.0264
Aeration lid insert for grinding jar EasyFit 250 oder 500 ml, stainless steel
03.474.0265
Aeration lid insert for grinding jar EasyFit 250 oder 500 ml, zirconium oxide
03.474.0266
Aeration lid insert for grinding jar EasyFit 250 oder 500 ml, tungsten carbide
03.474.0267
Aeration lid insert for grinding jar EasyFit 250 oder 500 ml, aluminum oxide
03.474.0269
Aeration lid insert for grinding jar EasyFit 250 oder 500 ml, agate
22.186.0007
Sintered filter with O-ring, set of 10 pieces
22.864.0001
Valve set M8x1 for GrindControl and aeration lids
Safety closure devices
22.867.0011
for grinding jars EasyFit 50 ml - 125 ml
22.867.0012
for grinding jars EasyFit 250 ml - 500 ml
02.486.0055
Opening aid for safety closure device
Gaskets for grinding jars EasyFit

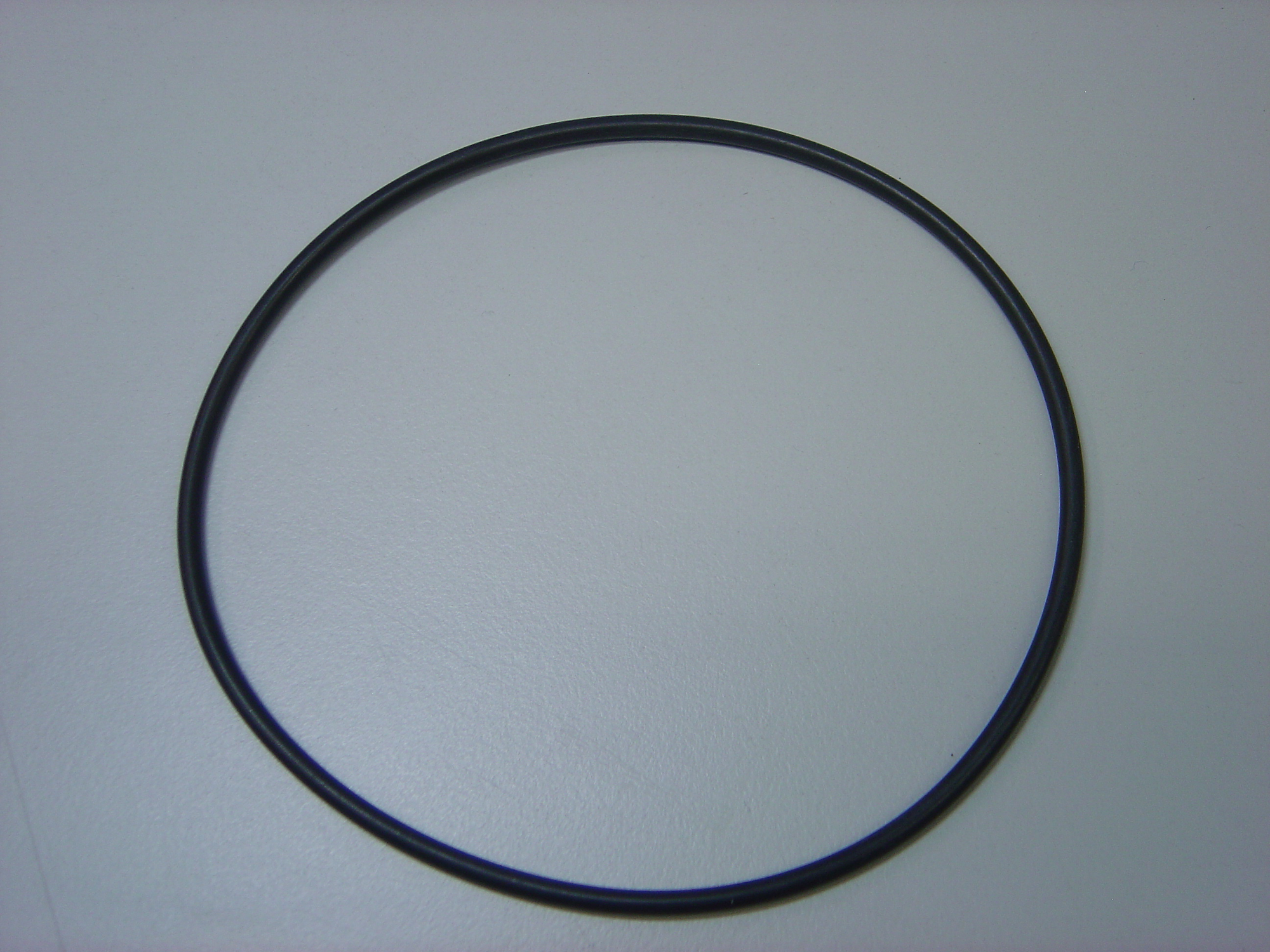

O-rings
05.114.0086
O-ring for 12 ml grinding jar EasyFit
05.114.0085
O-ring for 25 ml grinding jar EasyFit

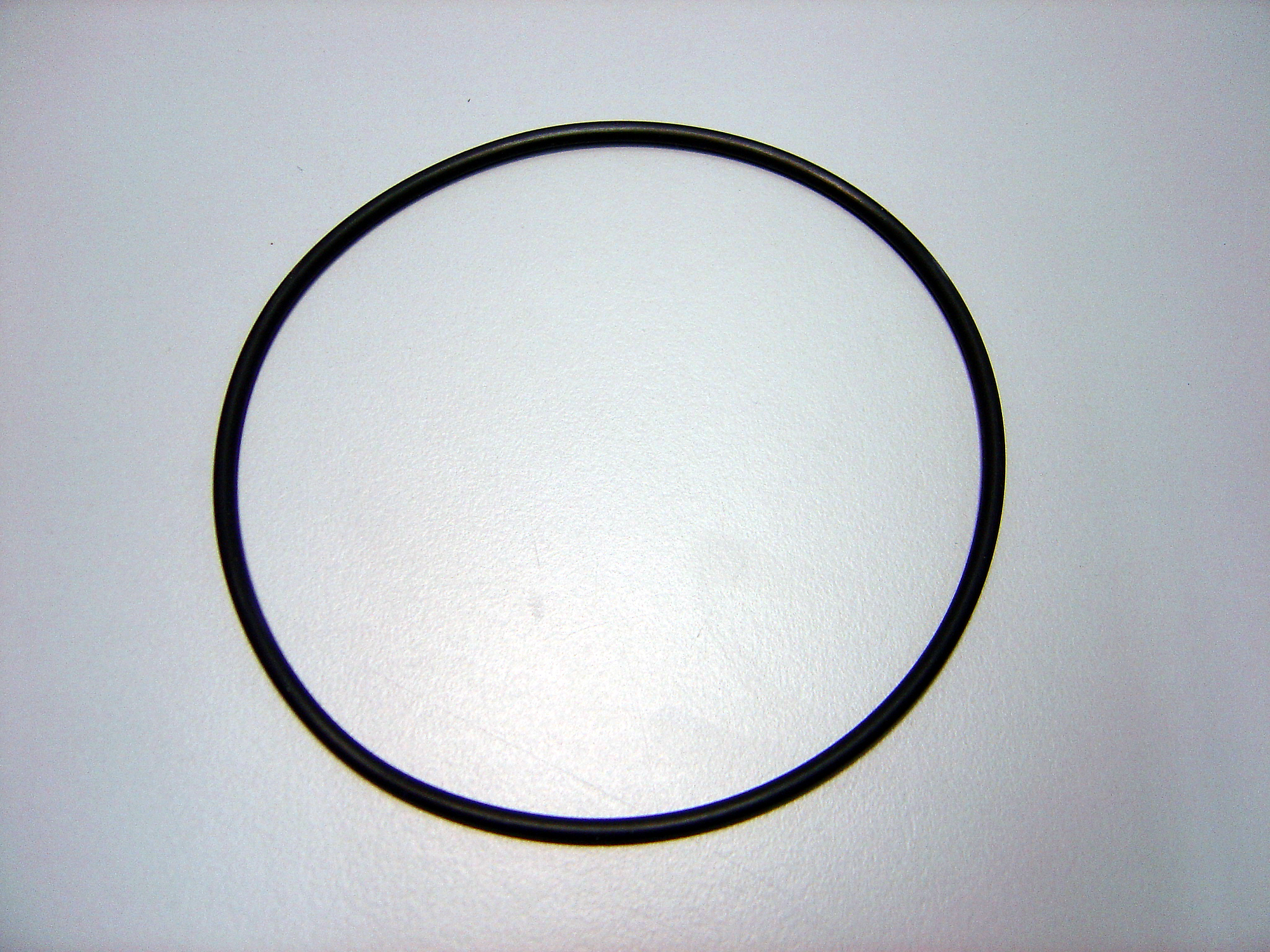

05.114.0054
O-ring for 250 ml - 500 ml grinding jars EasyFit

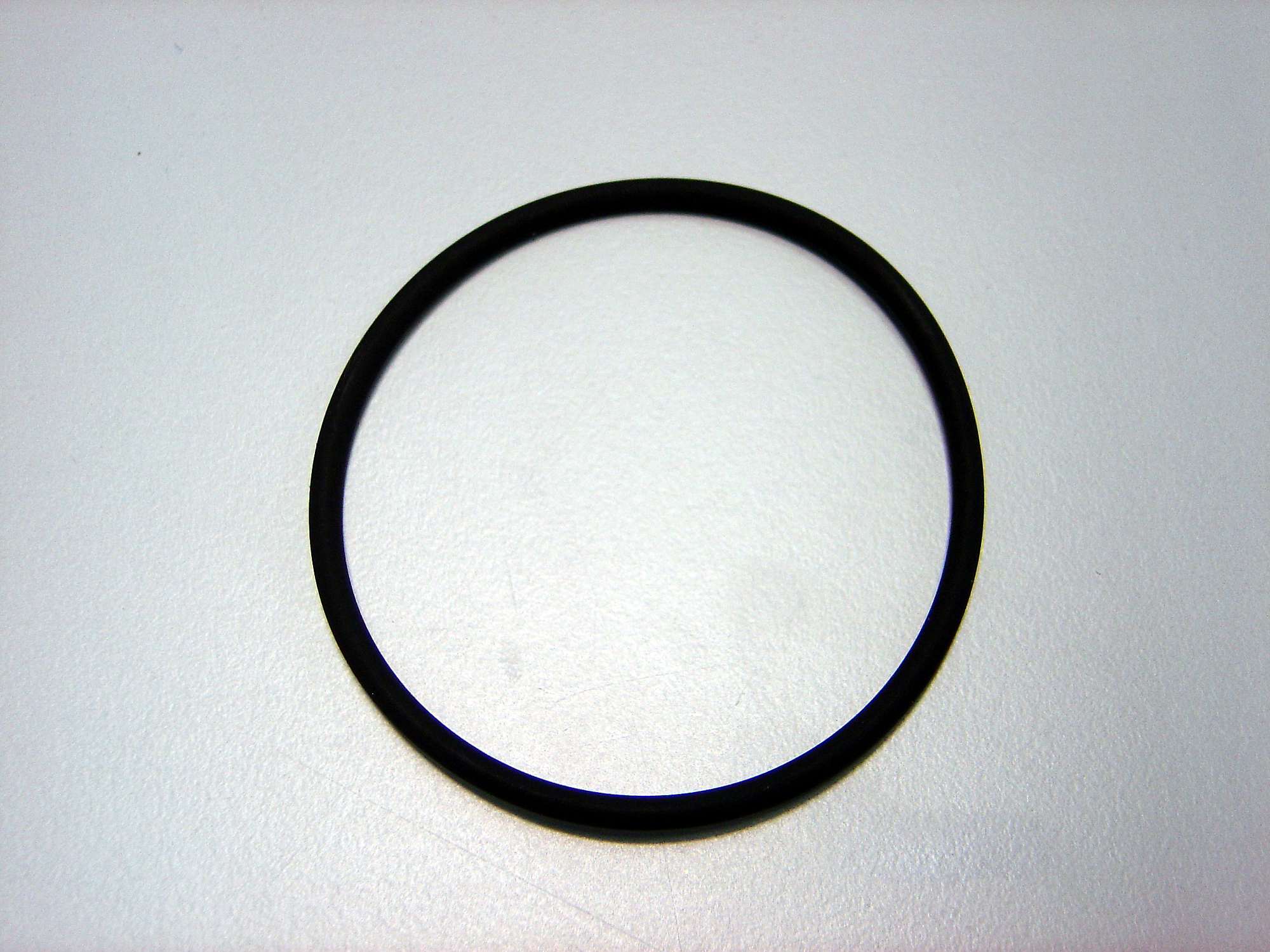

05.114.0056
O-ring for 50 ml - 125 ml grinding jars EasyFit
05.114.0063
O-ring for 250 ml - 500 ml grinding jars EasyFit, agate
03.111.0438
Flat gasket for 50 ml, 80 ml or 125 ml
03.111.0439
Flat gasket for 250 ml - 500 ml

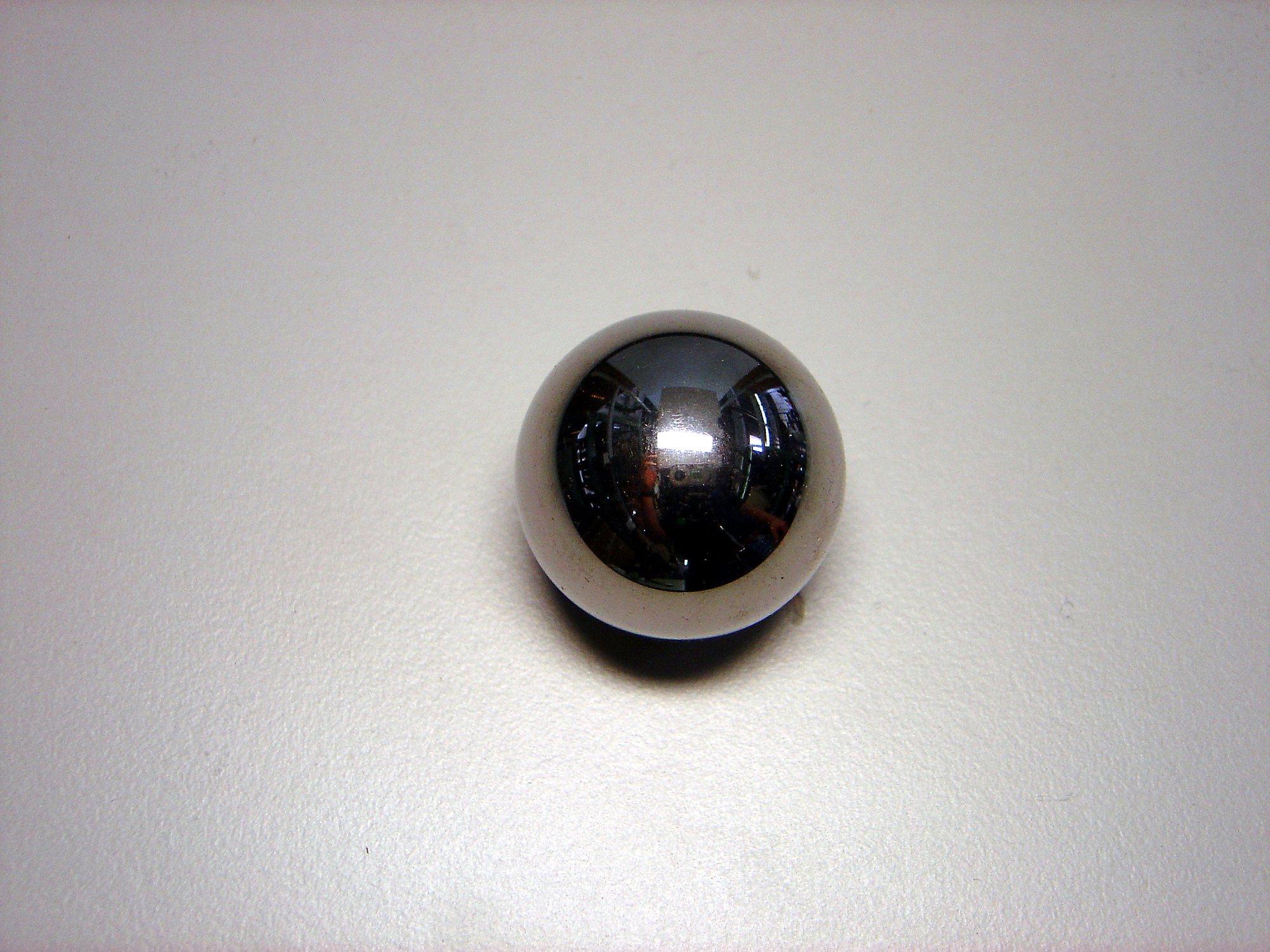

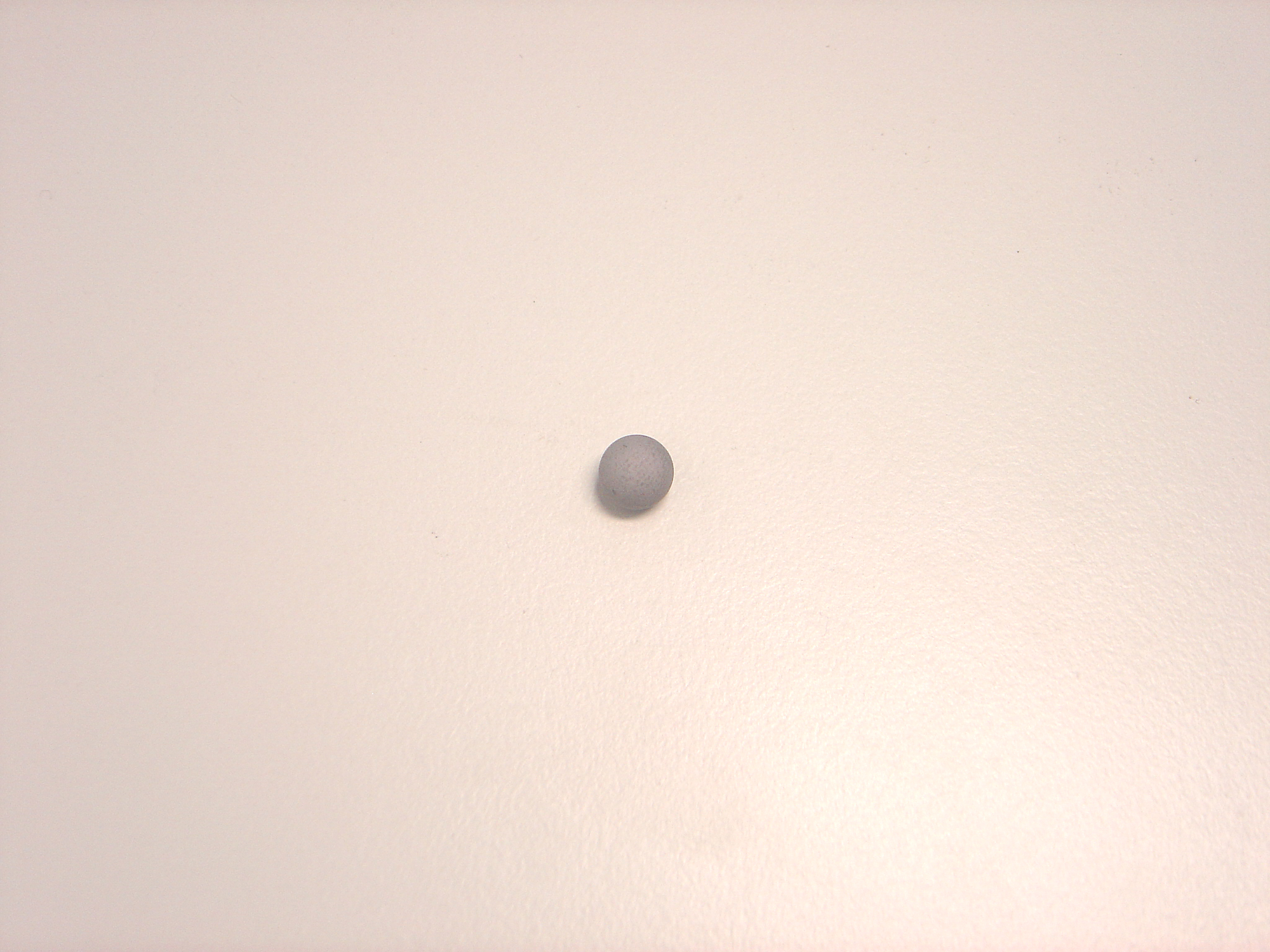

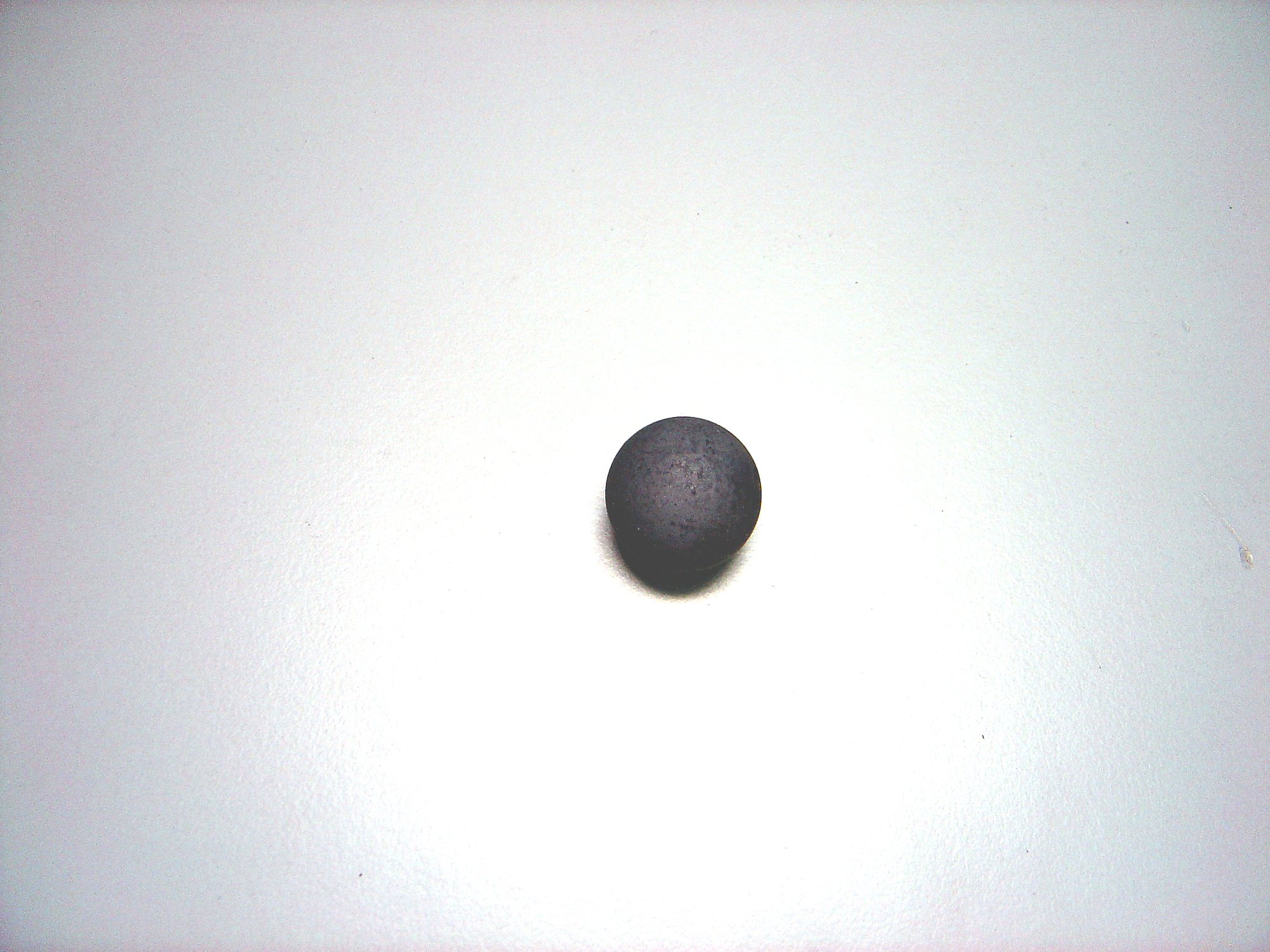

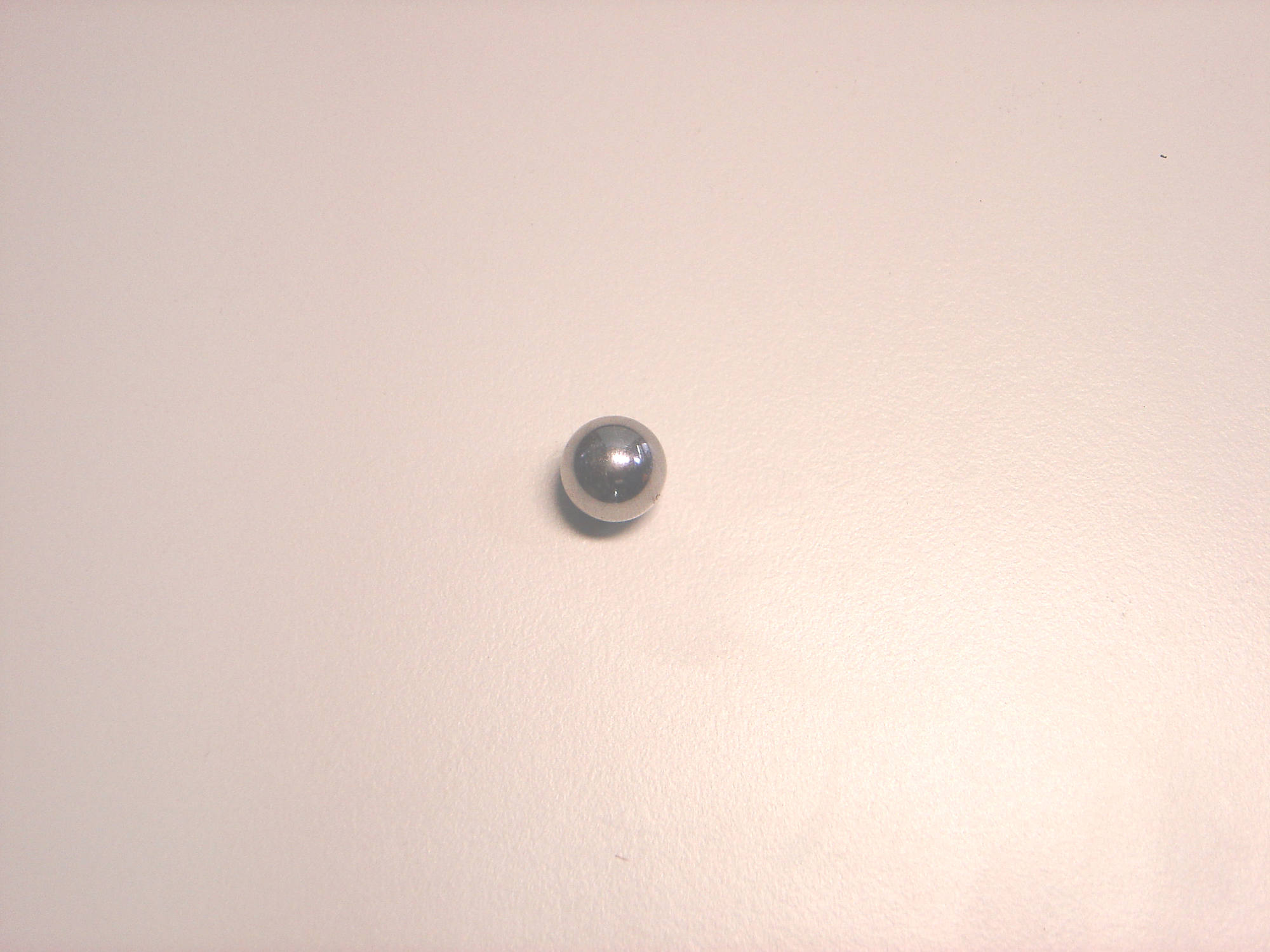

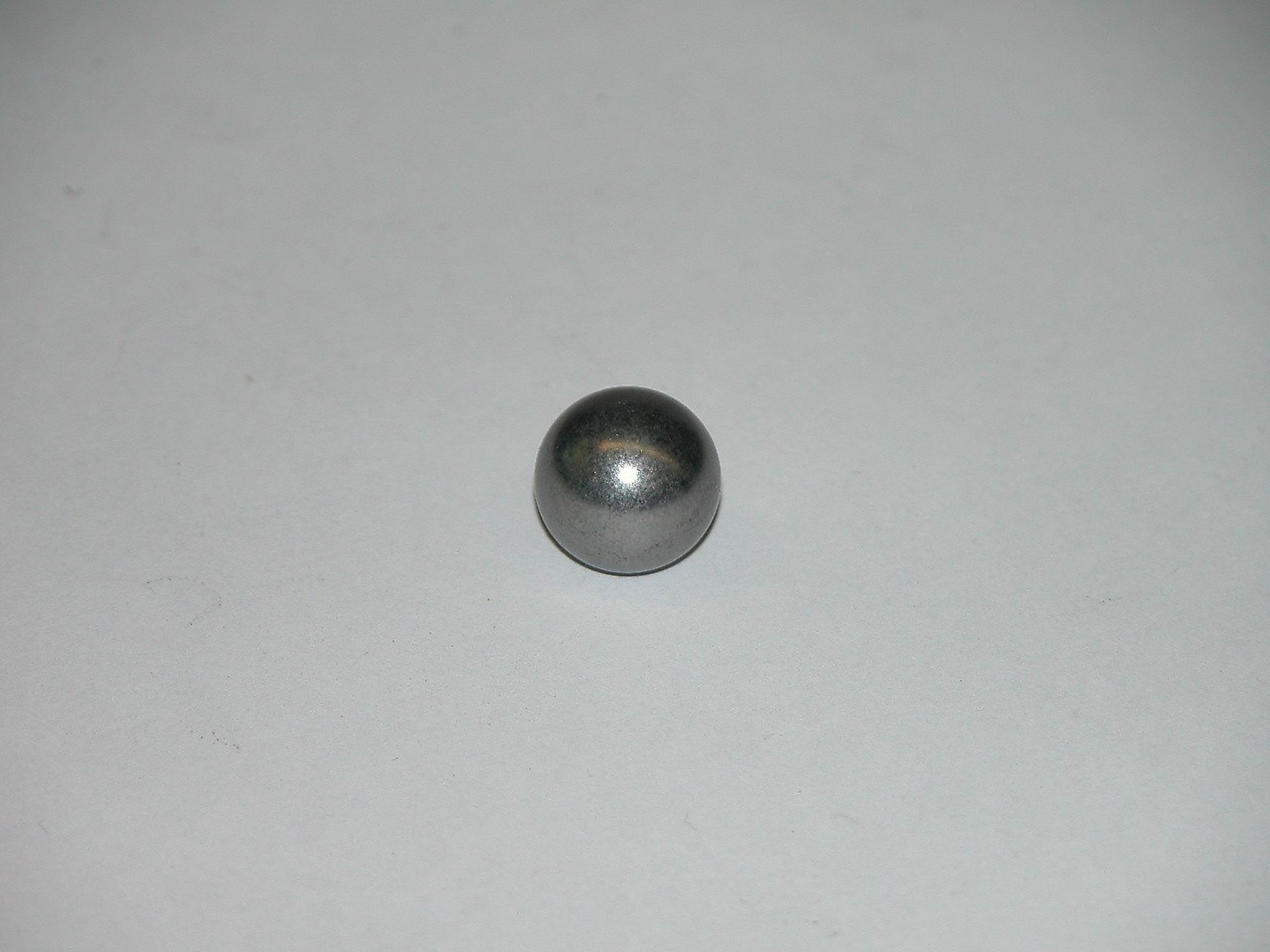

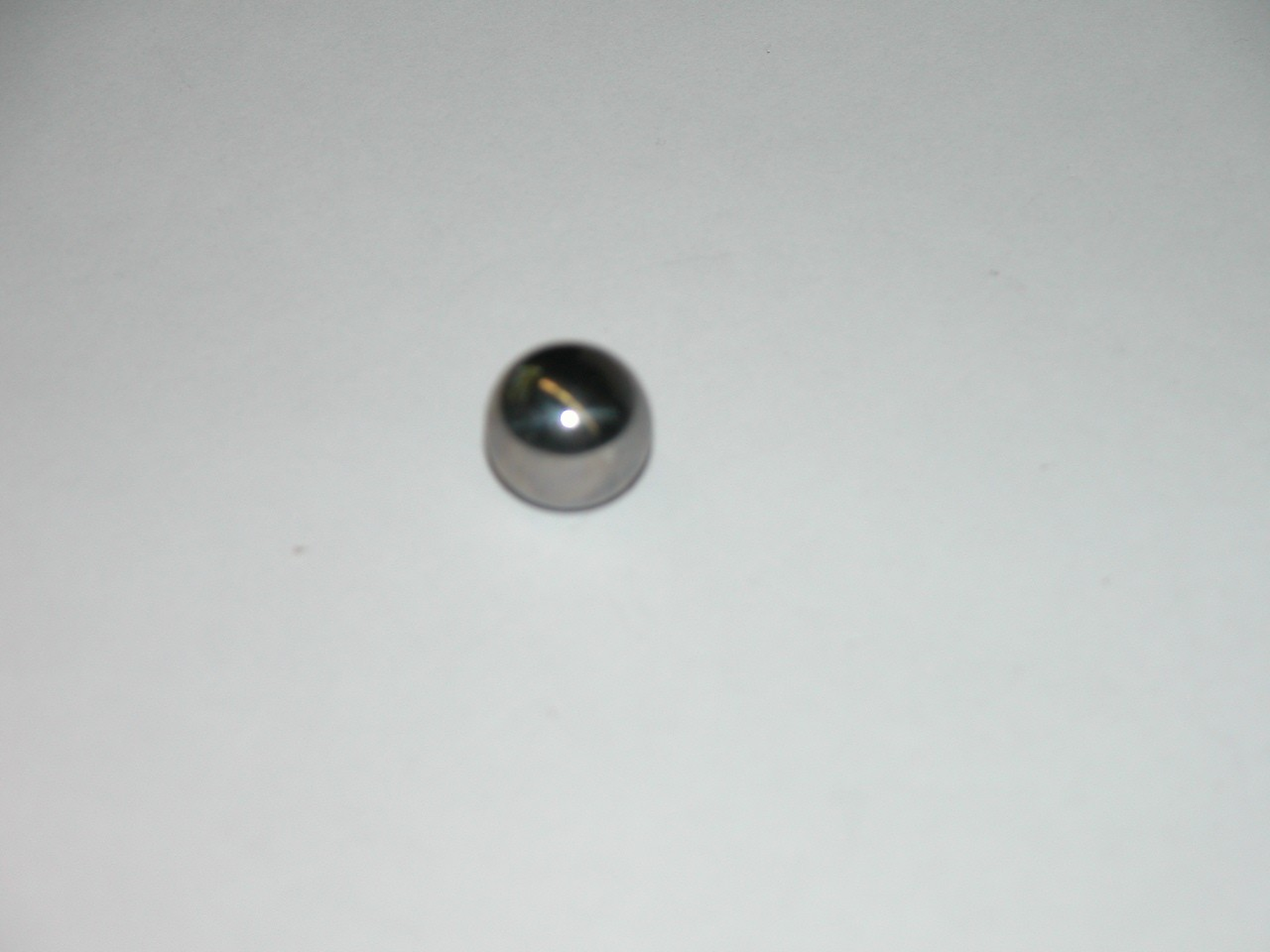

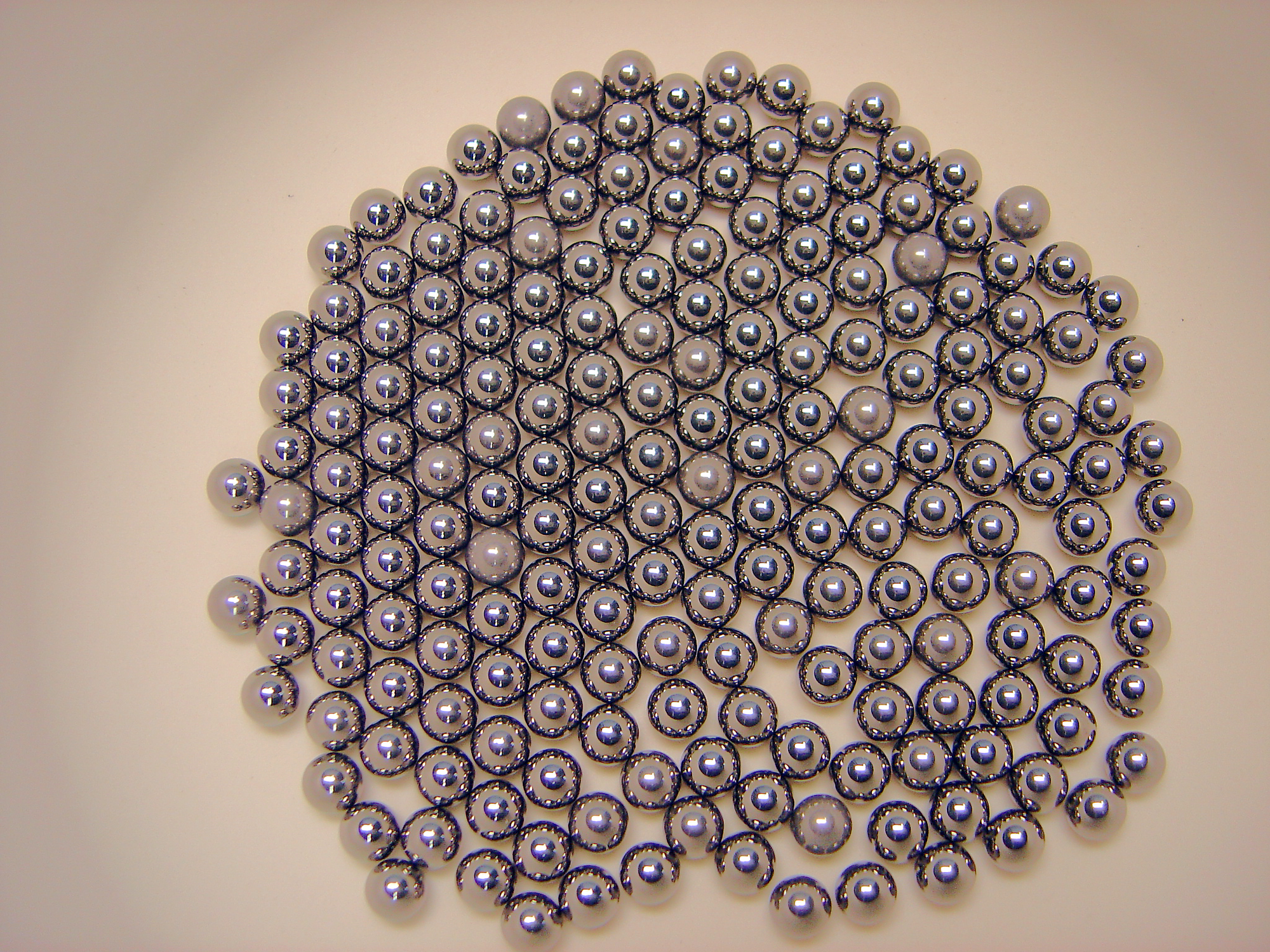

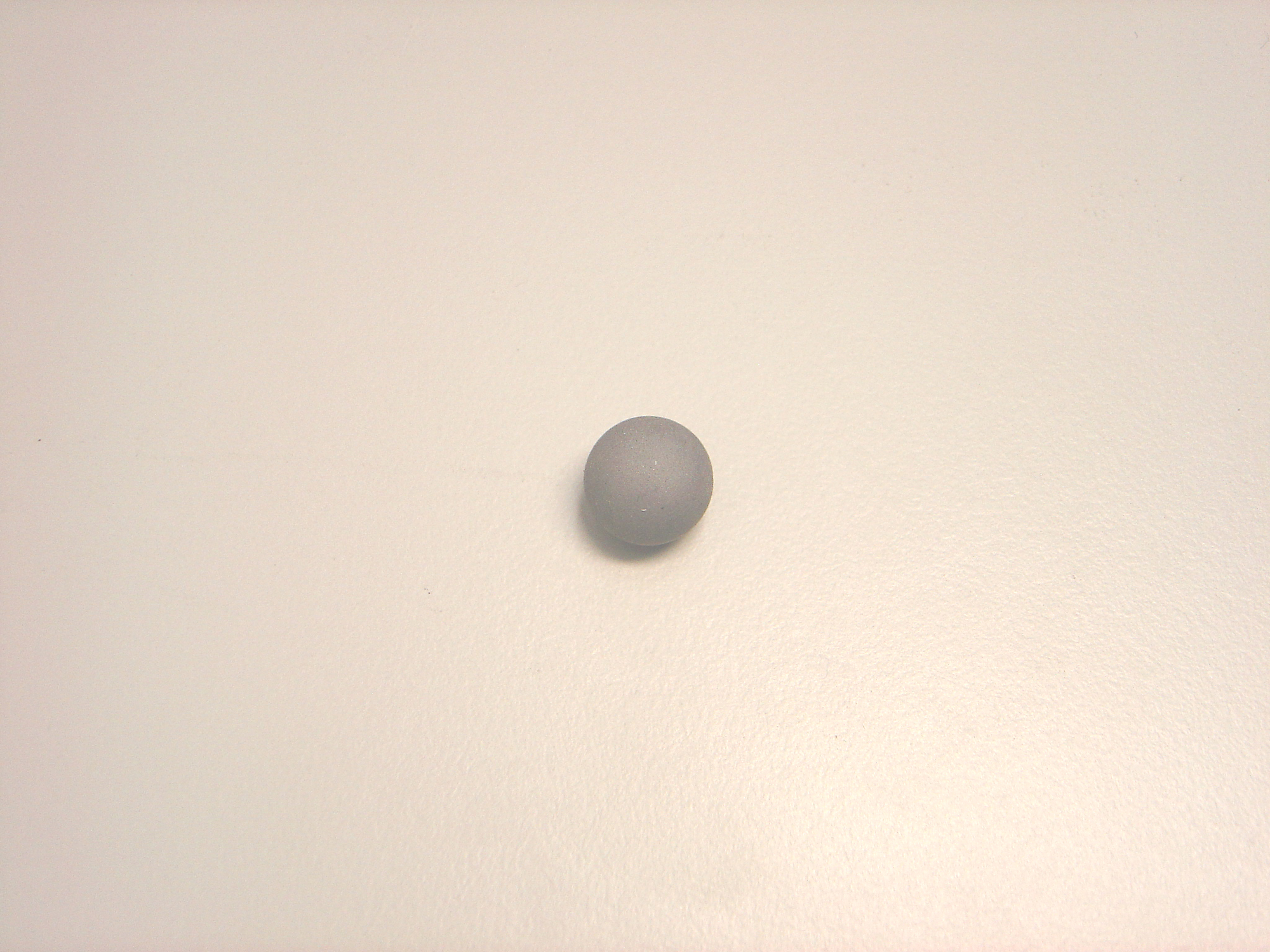

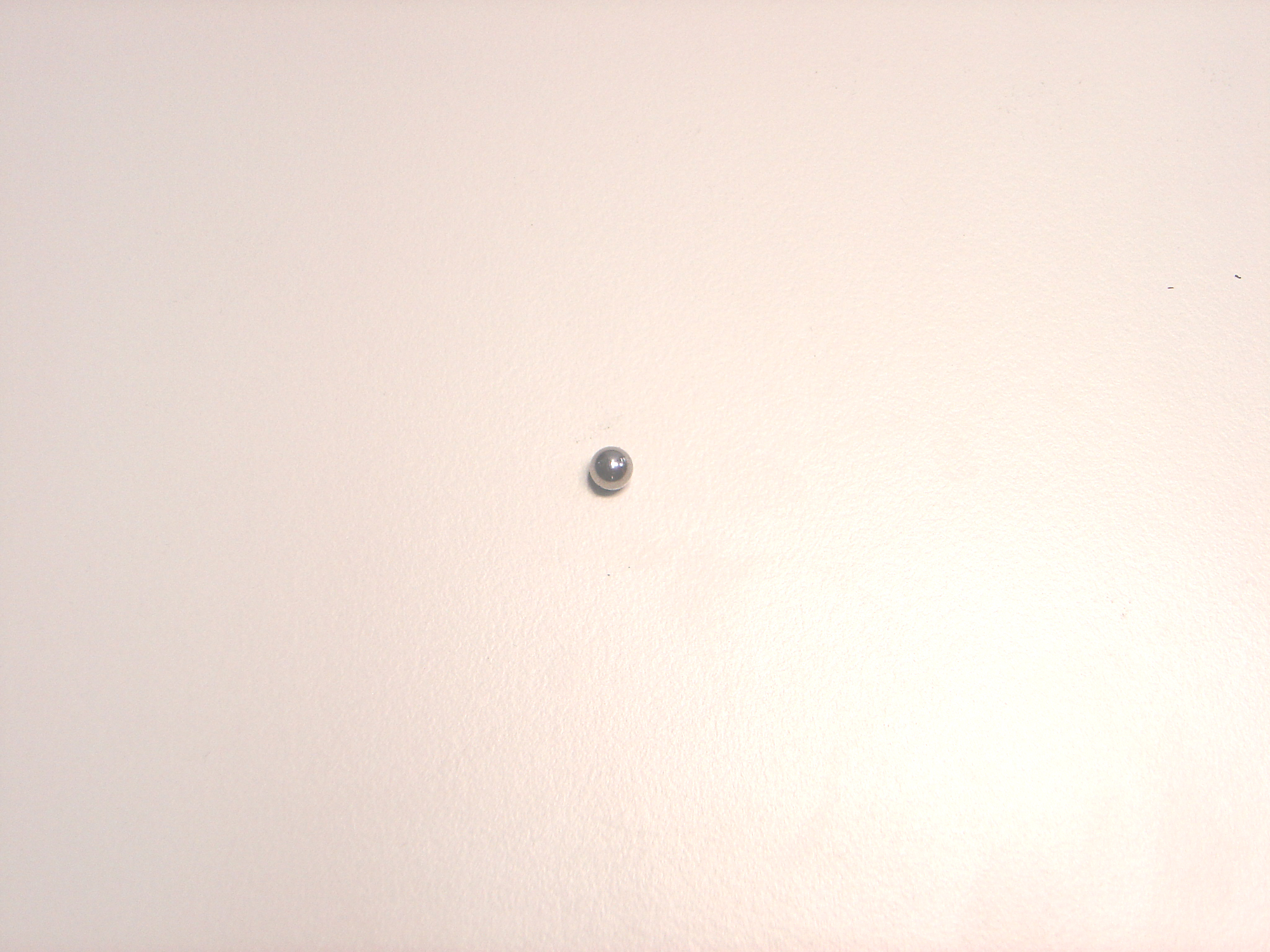

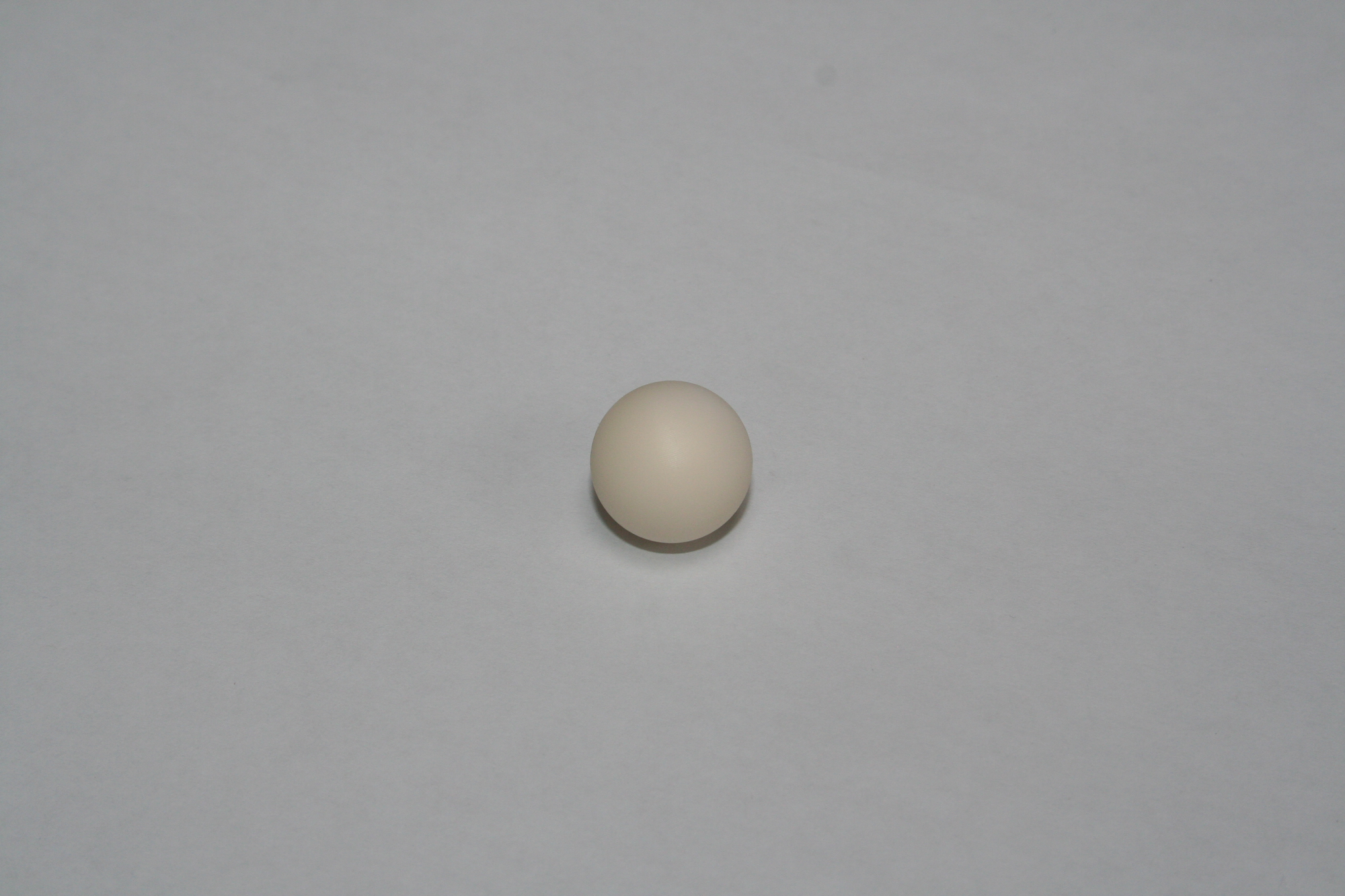

Grinding balls
研磨球有不同的直径。经验法则是：为了有效地研磨，研磨球应该至少比样品中最大的颗粒大3倍。为避免磨损，必须仅使用直径相同的球。
磨磨球的数量取决于所用的研磨罐容积。下载部分中的文档“研磨罐球配比”提供了有关可用体积、最大进料尺寸以及干法和湿法研磨以及细胞破碎用研磨罐研磨球正确填充的详细信息。
研磨罐和研磨球应始终由相同的材料制成。
可用材质：
l 硬质钢（密度7.8 g/cm3；硬度≤235 HB，中等耐磨性）通常用于粉碎中等硬度至硬脆性样品。
l 不锈钢（密度7.7 g/cm3；硬度≤245 HB，中等耐磨性）通常用于粉碎中等硬度至硬脆性样品。
l 碳化钨（密度14.8 g/cm3；硬度93.6 HRA；高耐磨性）用于研磨非常坚硬、易碎的样品材料。通过使用碳化钨，防止样品被铁污染。
l 玛瑙（密度2.6 g/cm3；硬度6.5–7 Mohs，耐磨性低）一种高纯度的天然材料，适用于粉碎软性至中硬或纤维状样品。由于玛瑙密度低，适合于低能量输入的温和研磨工艺。
l 烧结氧化铝（密度3.8 g/cm3；硬度1600 HV 0.5，中等耐磨性）是一种陶瓷材料，适用于研磨软性至中硬或纤维样品。主要用于不含重金属的研磨加工。
l 氮化硅（密度3.6g/cm3；硬度1600hv，高耐磨性）是一种陶瓷材料，适用于研磨中等硬度至硬质样品。由于它的低密度氮化硅用于低能量输入的温和研磨过程。由于材料的高耐磨性，它也非常适合超细研磨。
l 氧化锆（密度6.05 g/cm3；硬度1250 HV，高耐磨性）适用于粉碎中硬性至硬性和纤维状样品的陶瓷材料。它通常用于无重金属污染研磨工艺或以超细颗粒为目标的应用。
请注意：
磨具材料应比样品硬。有关更多信息，请查看下载部分的“设备和附件的材料分析”文档。

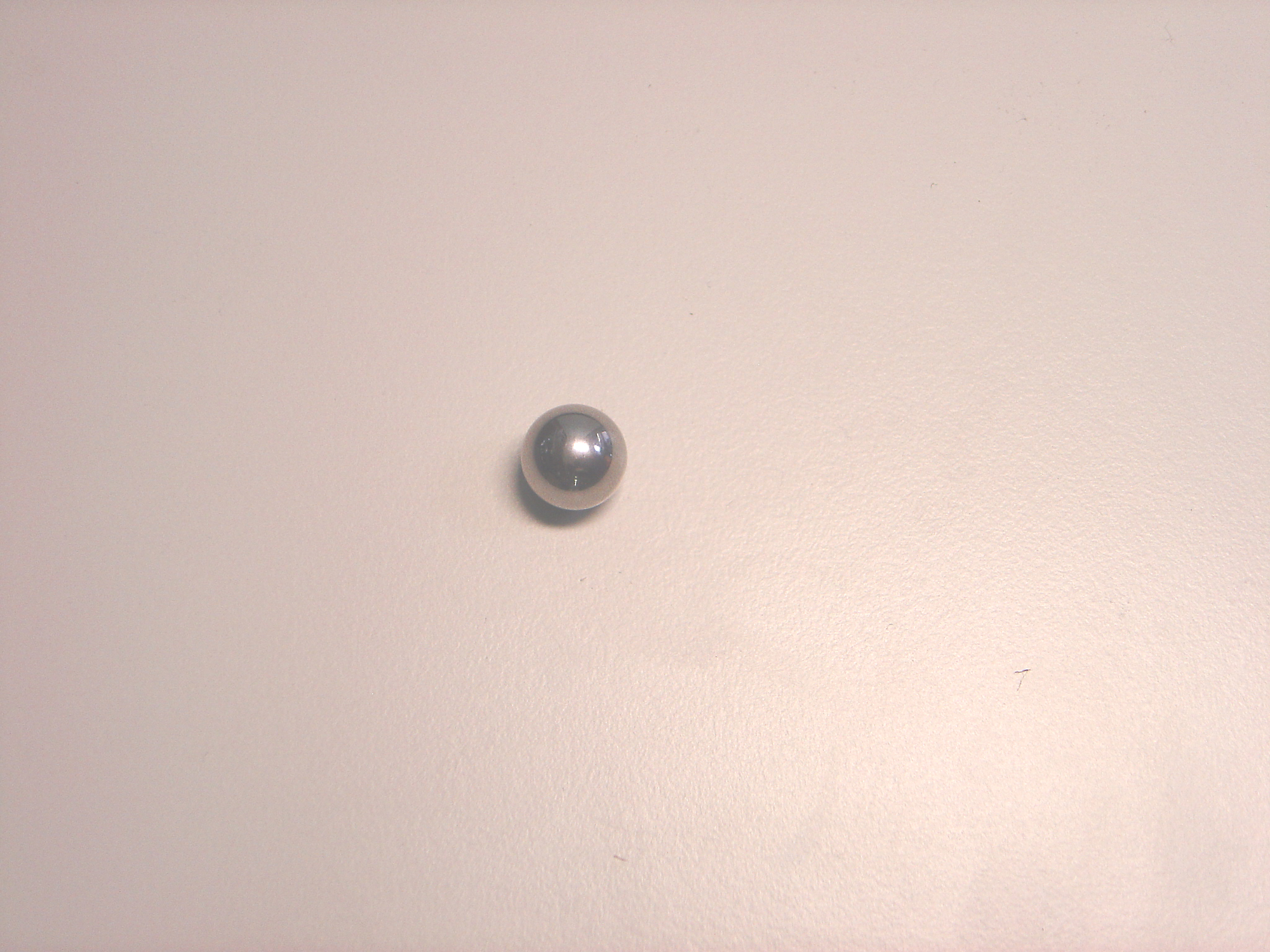

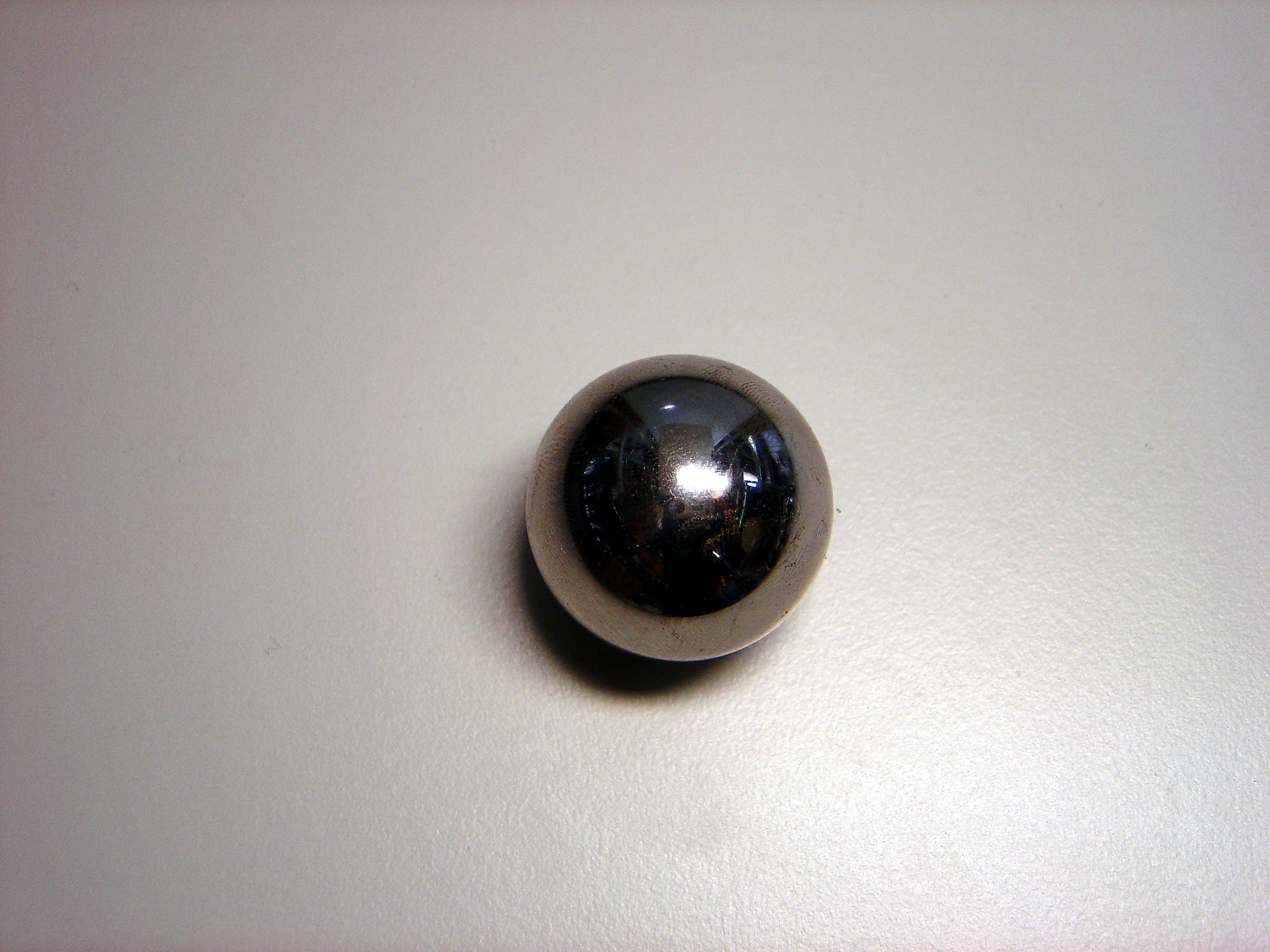

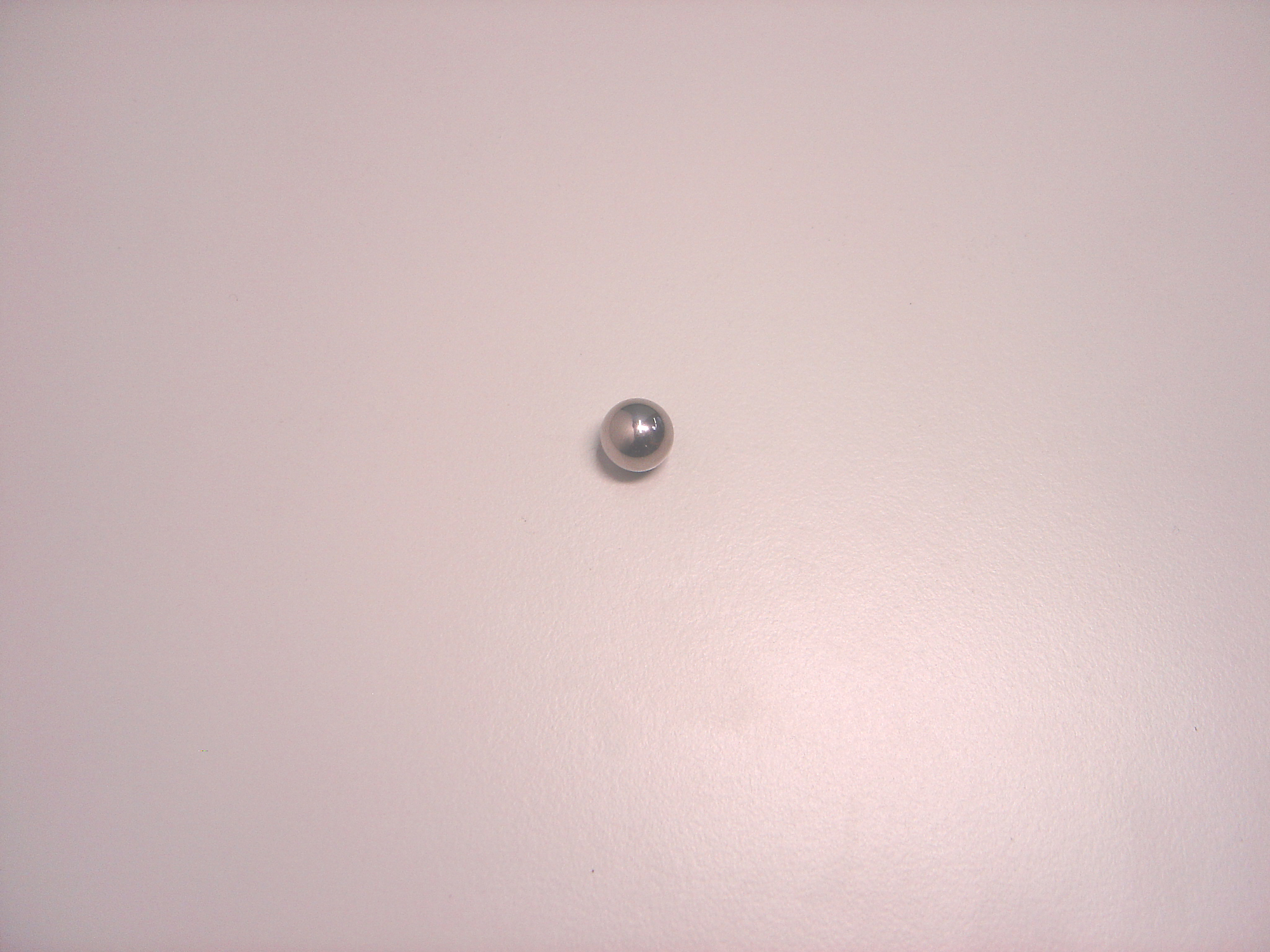

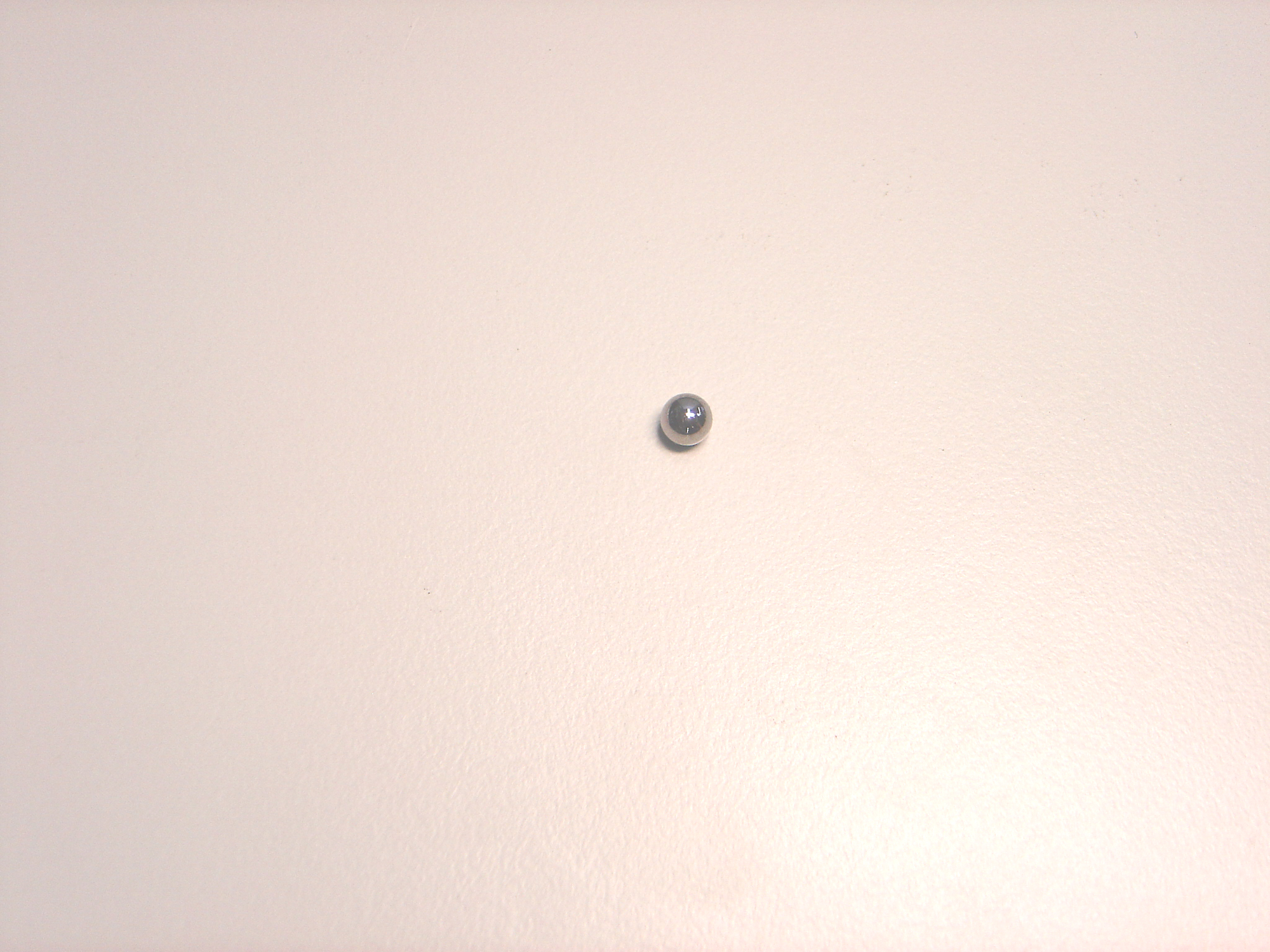

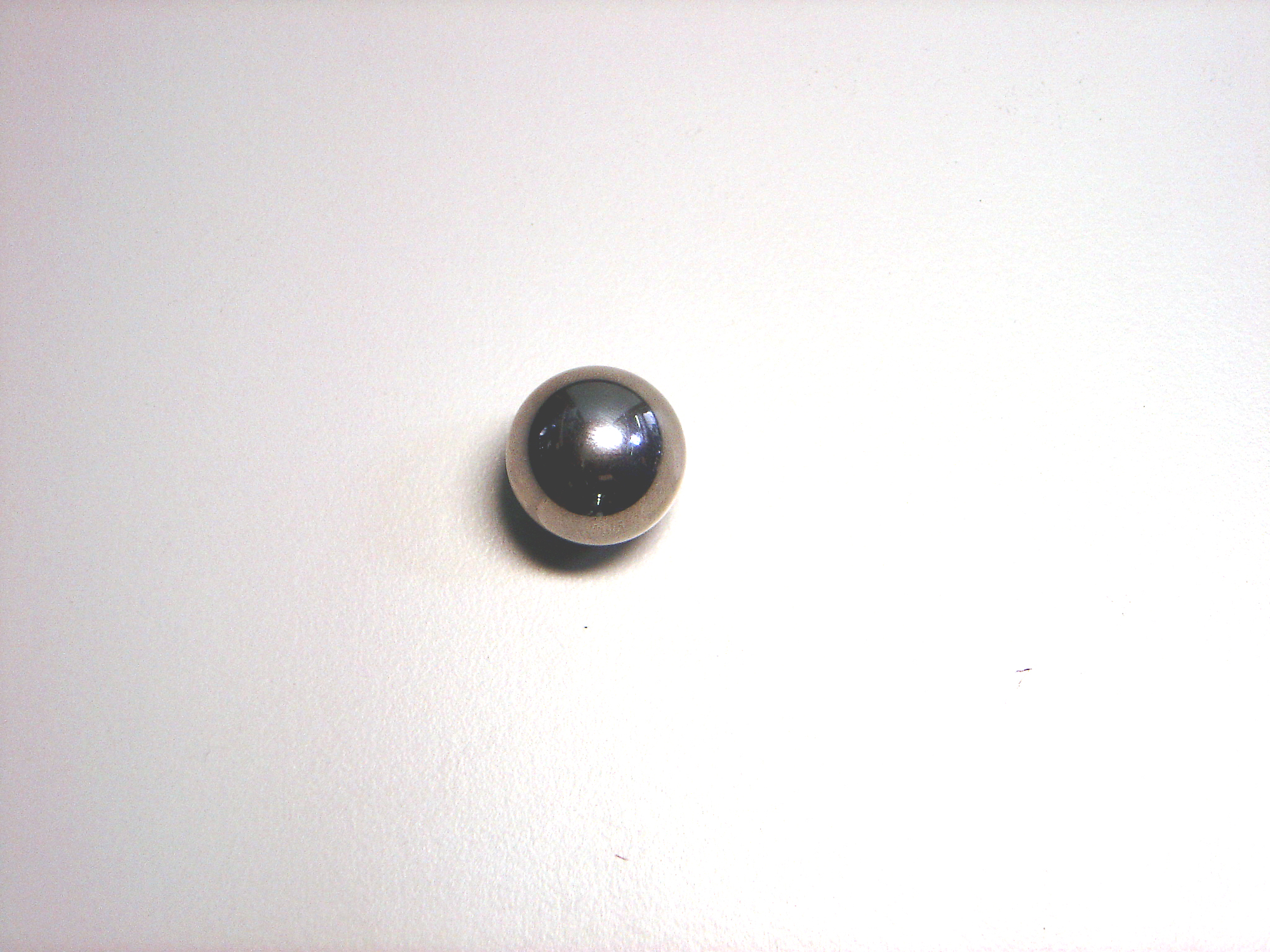

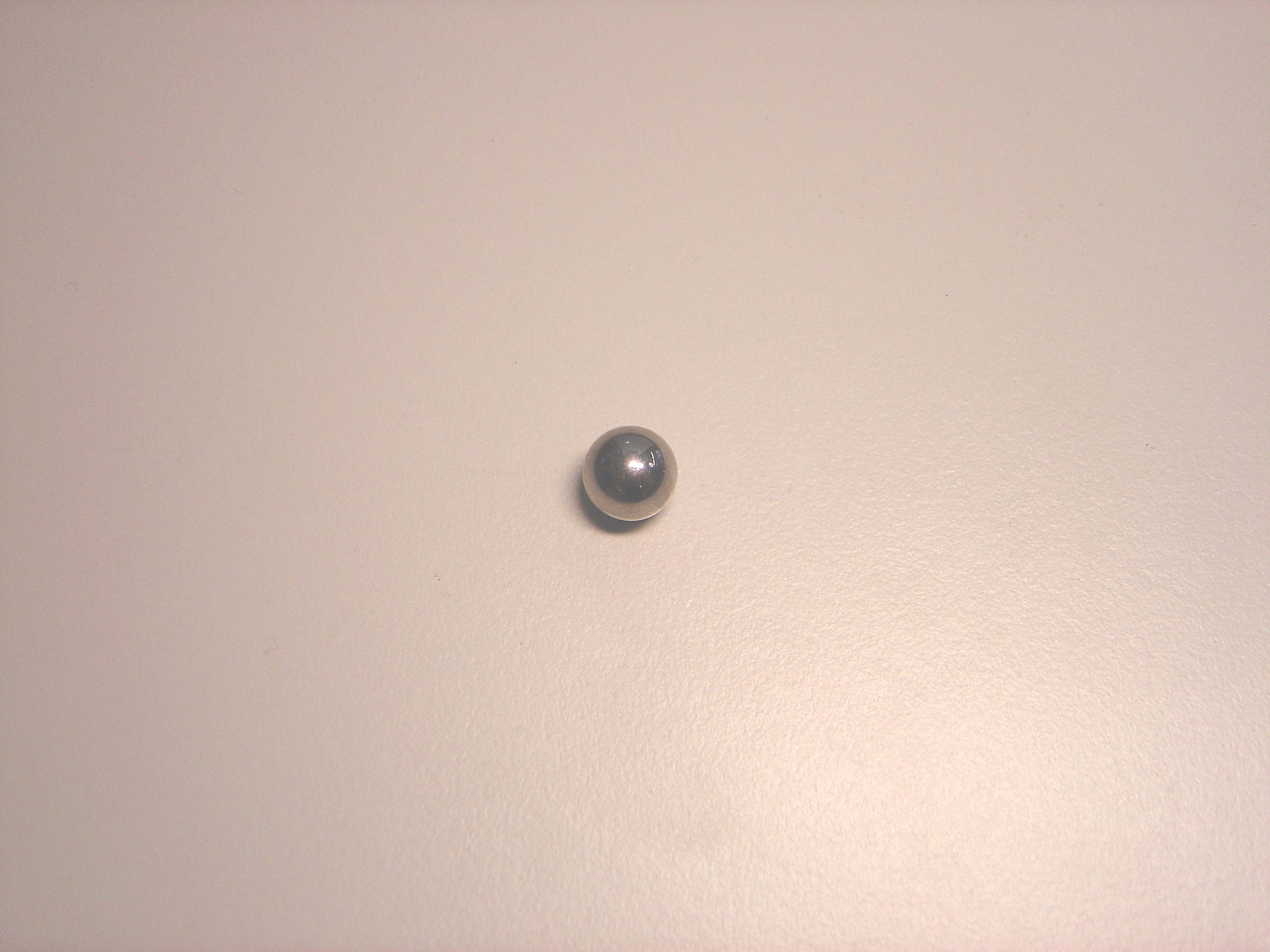

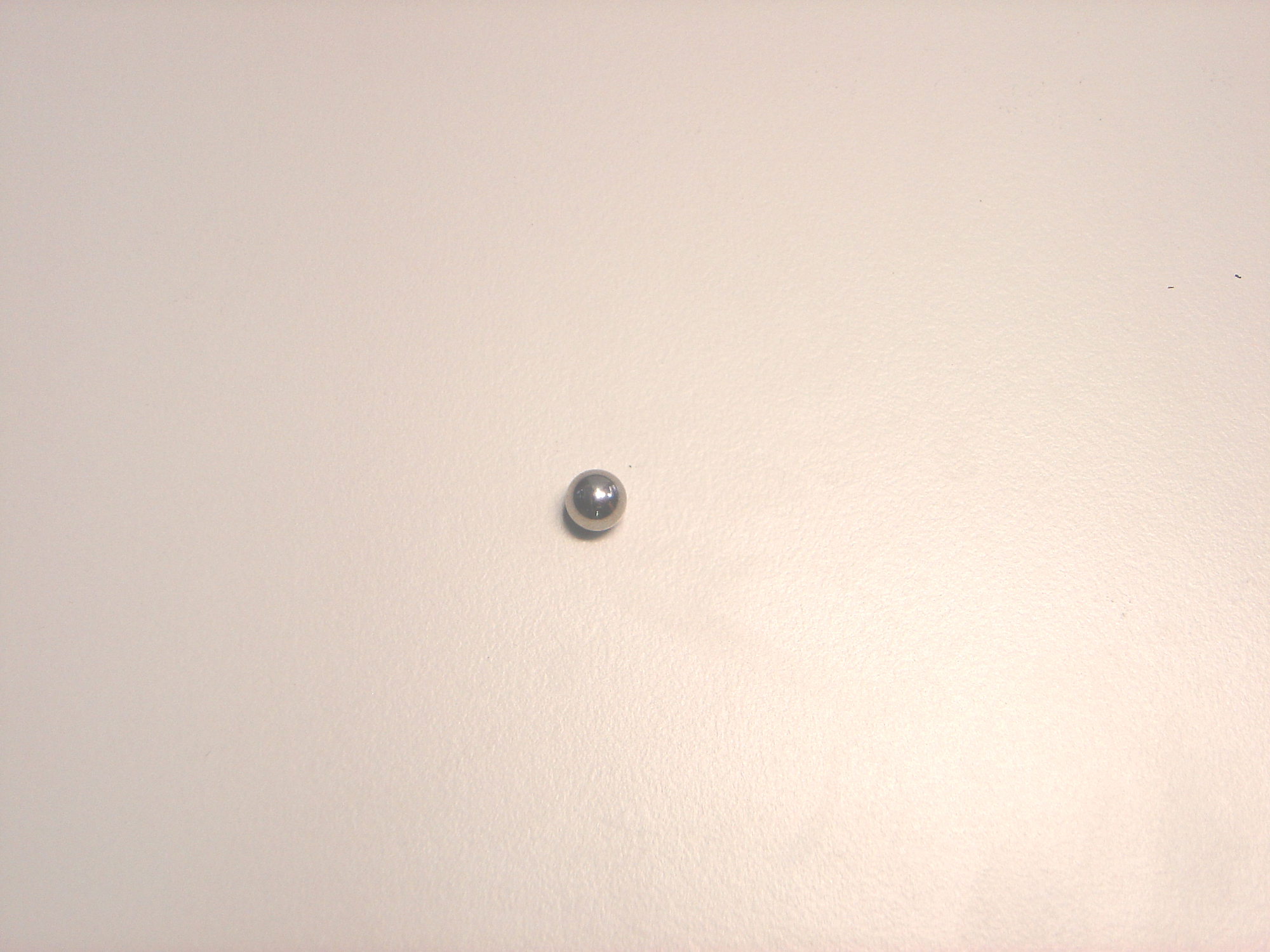

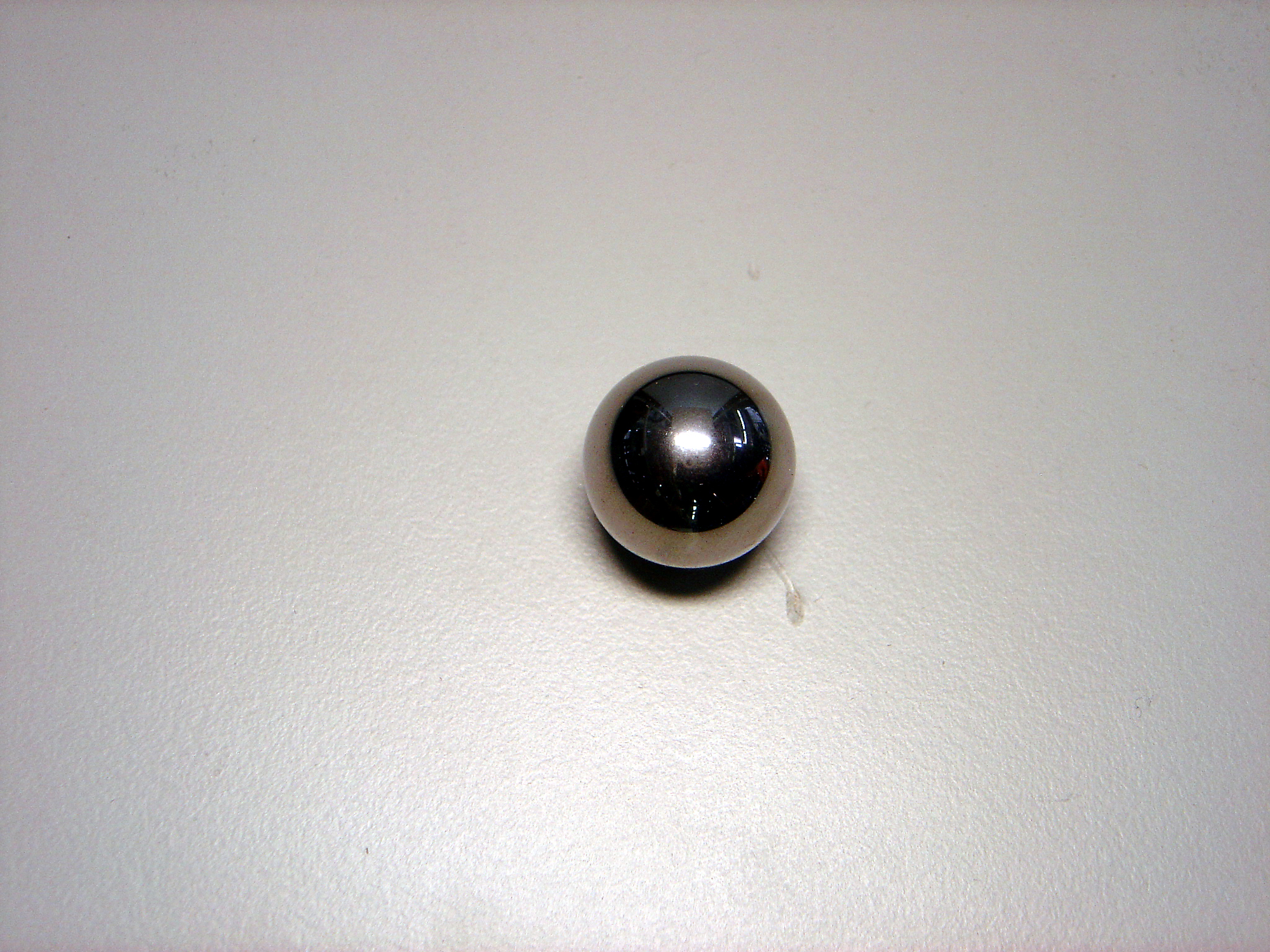

Hardened steel
05.368.0029
5 mm Ø
05.368.0030
7 mm Ø
05.368.0059
10 mm Ø
05.368.0032
12 mm Ø
05.368.0108
15 mm Ø
05.368.0033
20 mm Ø
05.368.0057
30 mm Ø

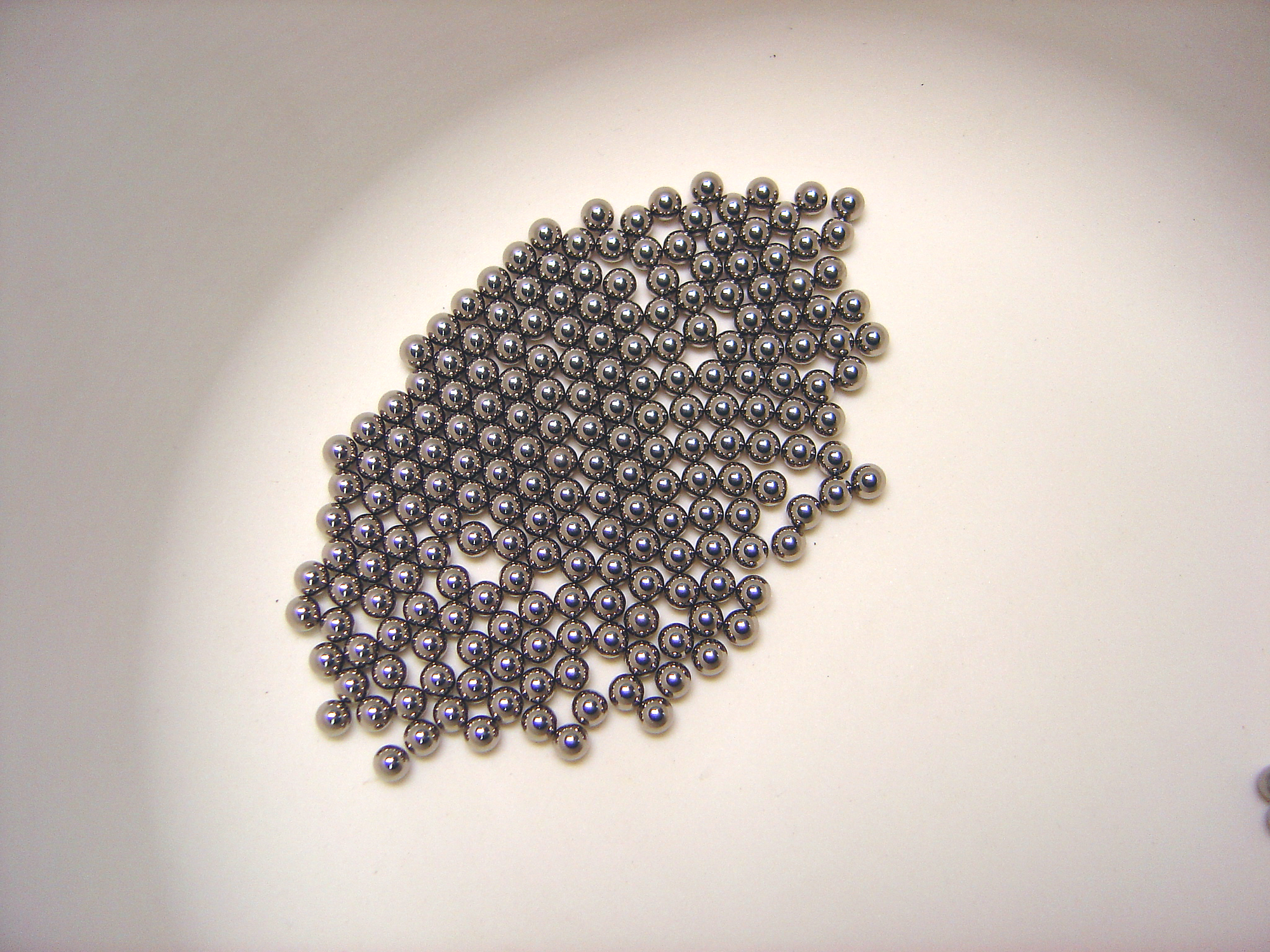

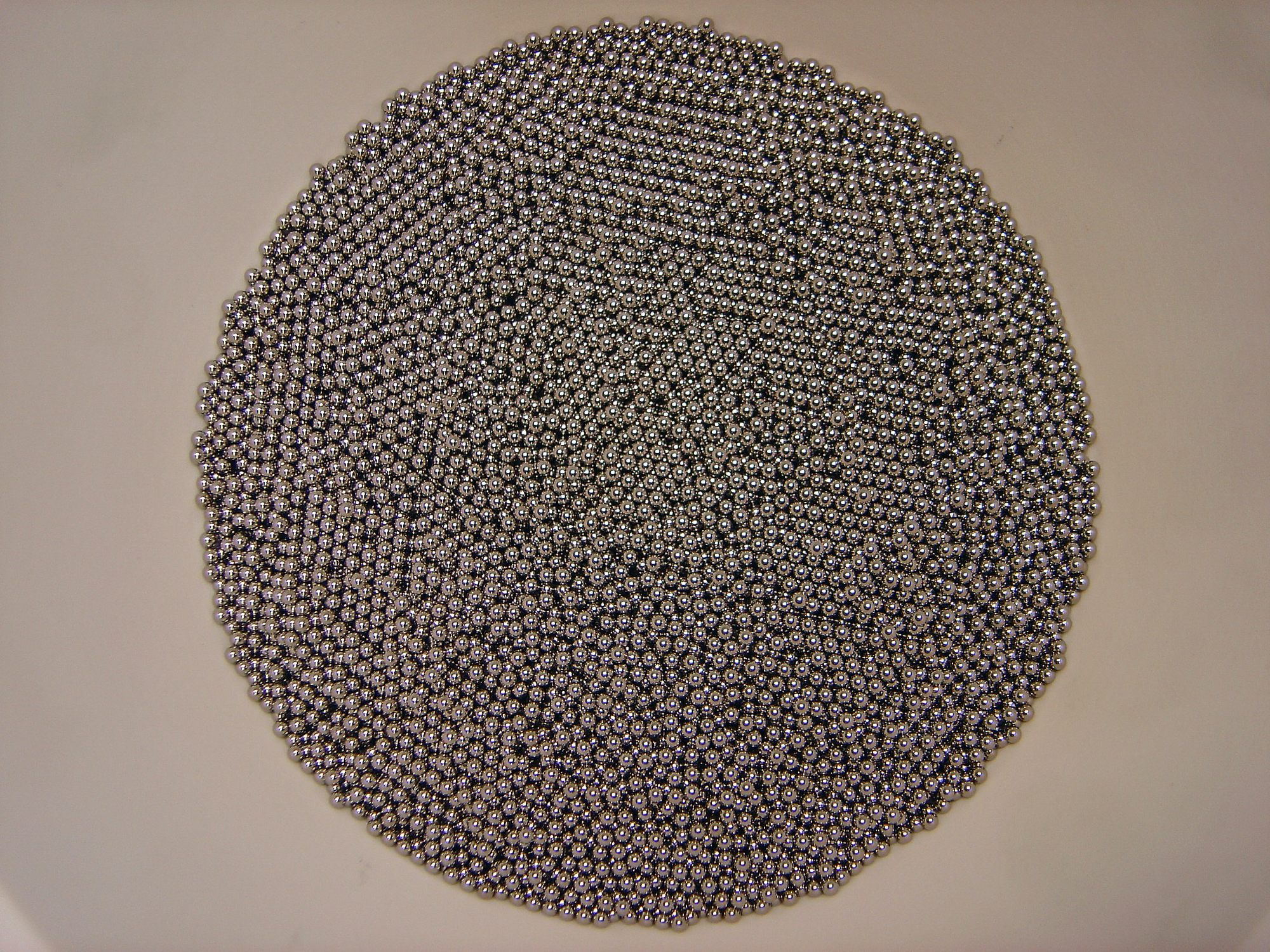

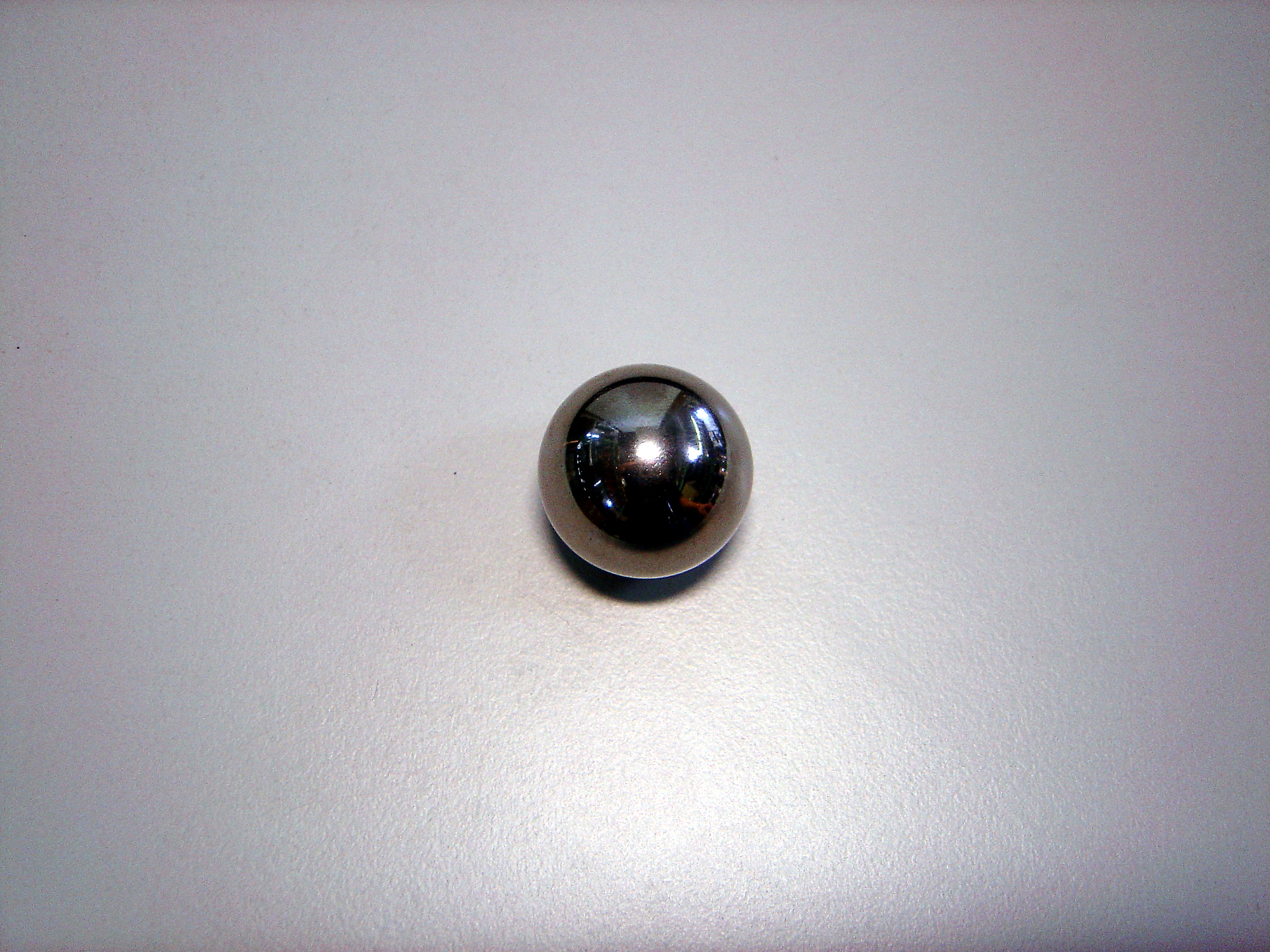

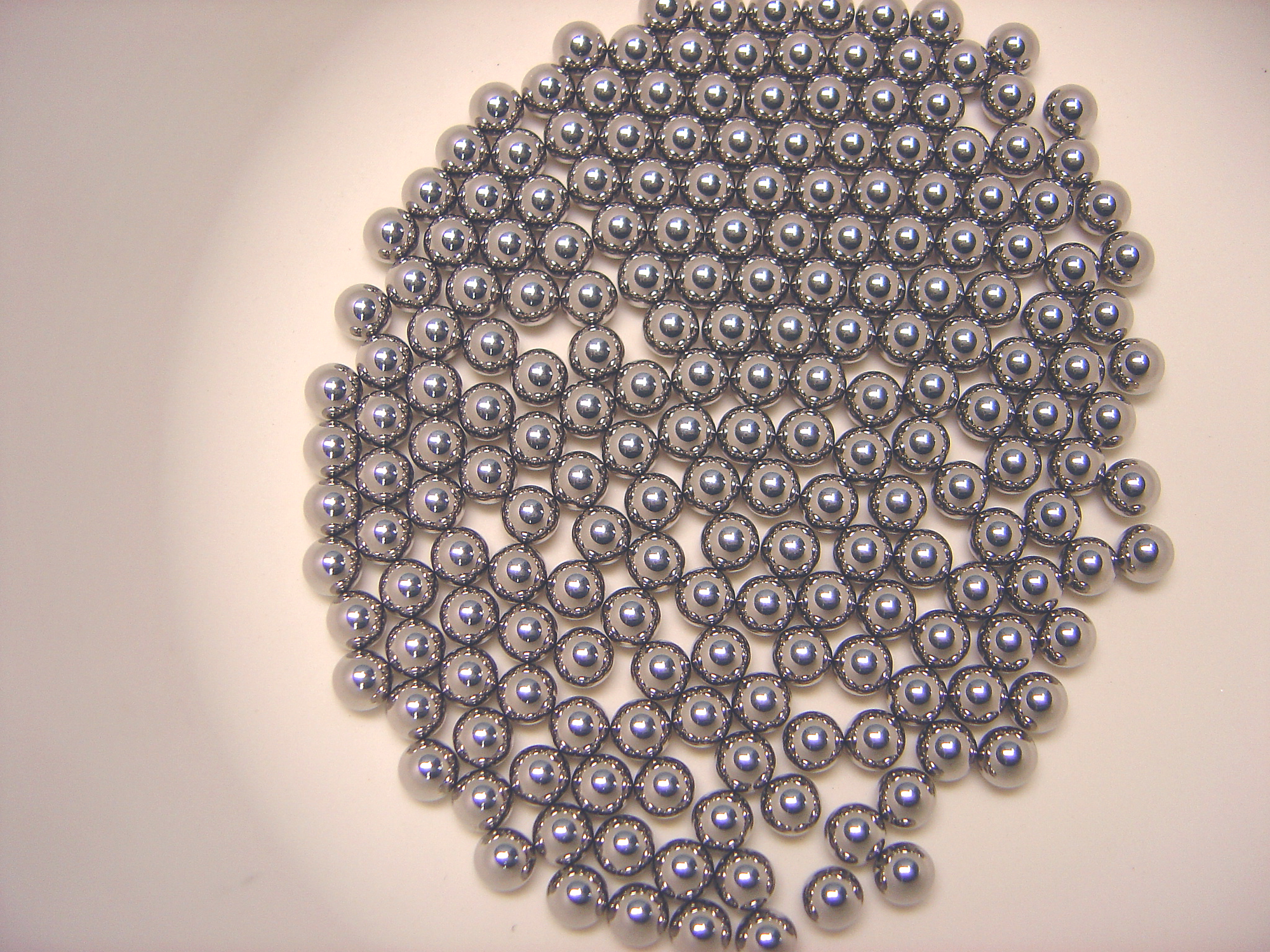

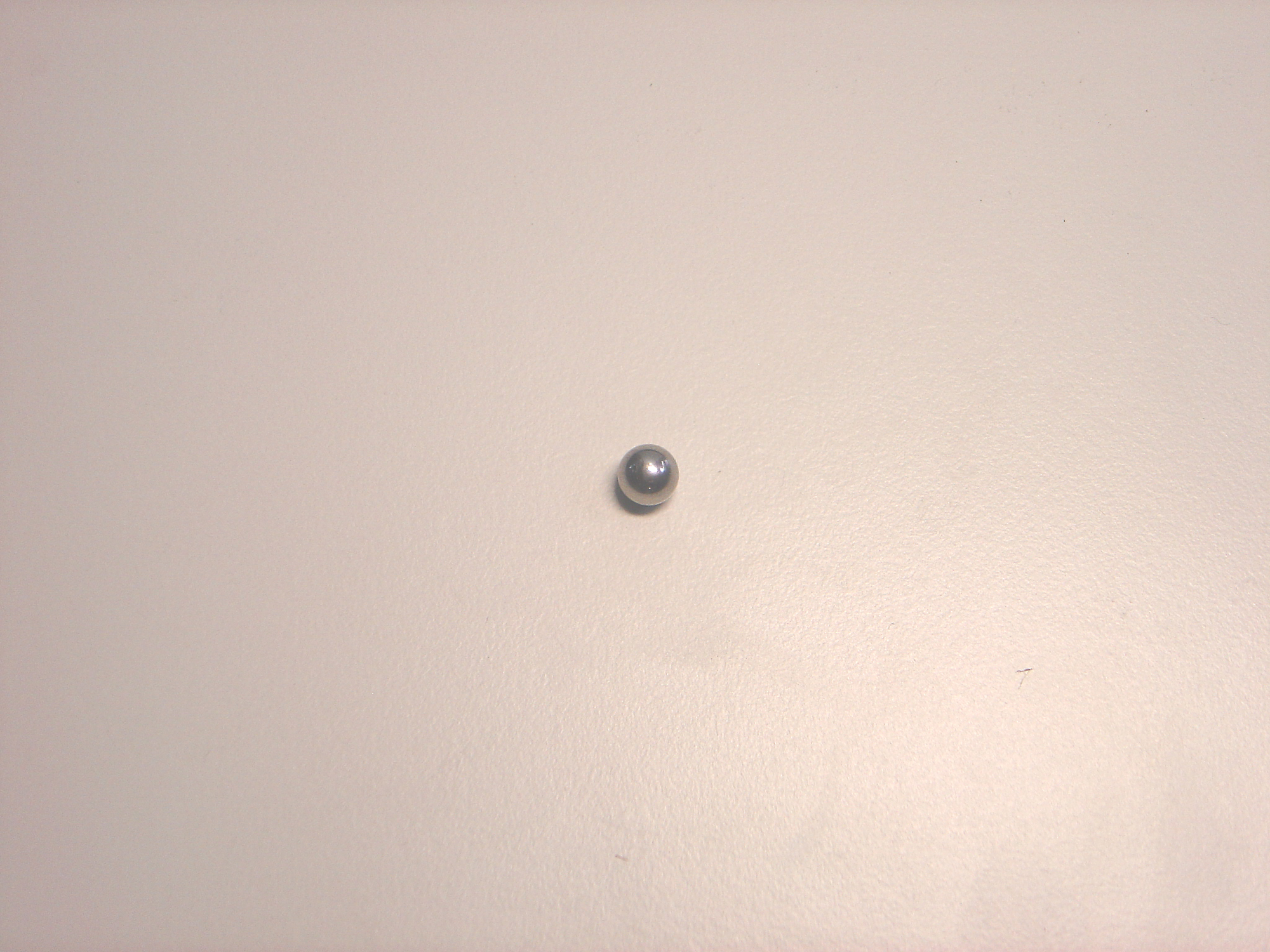

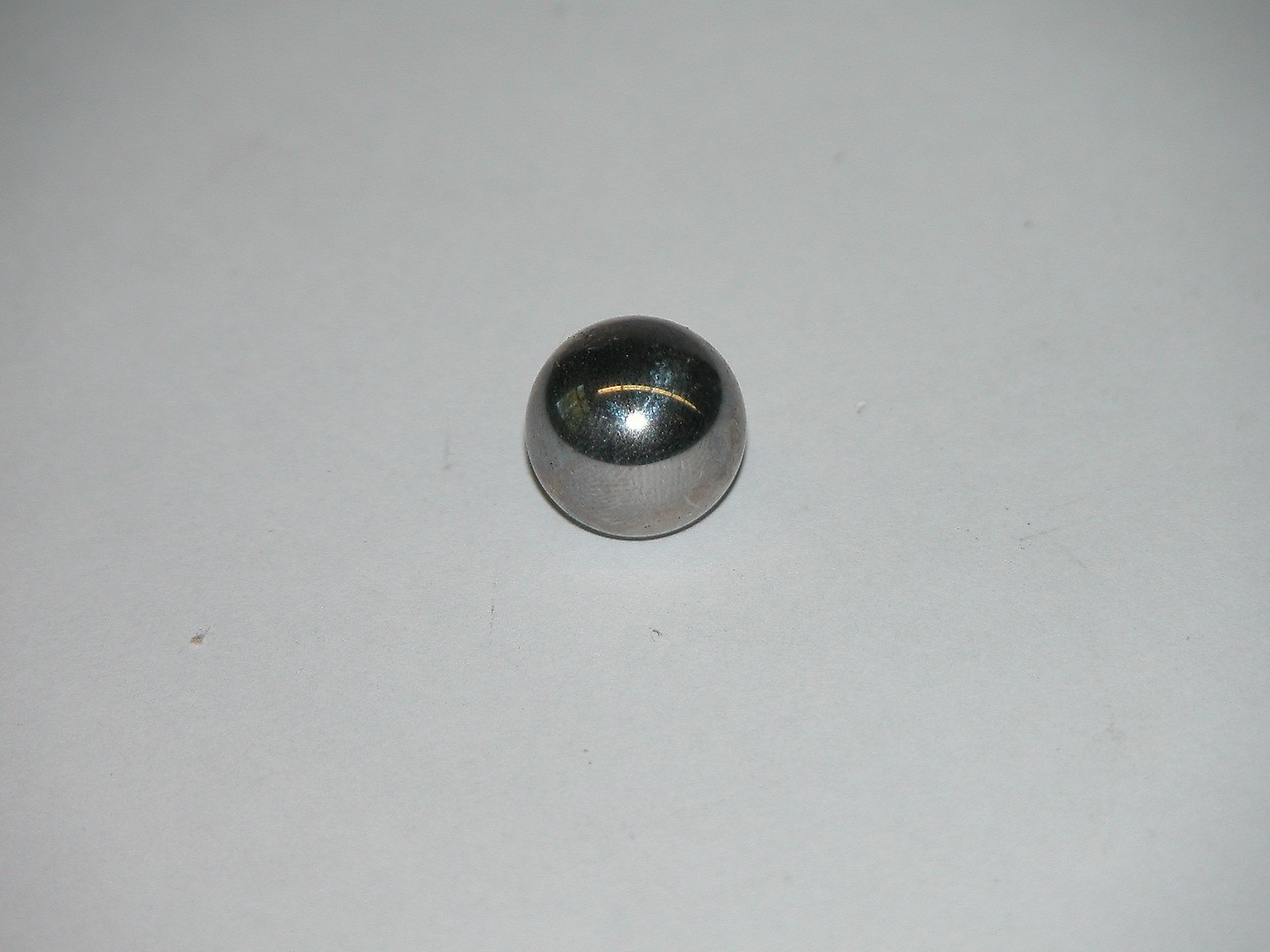

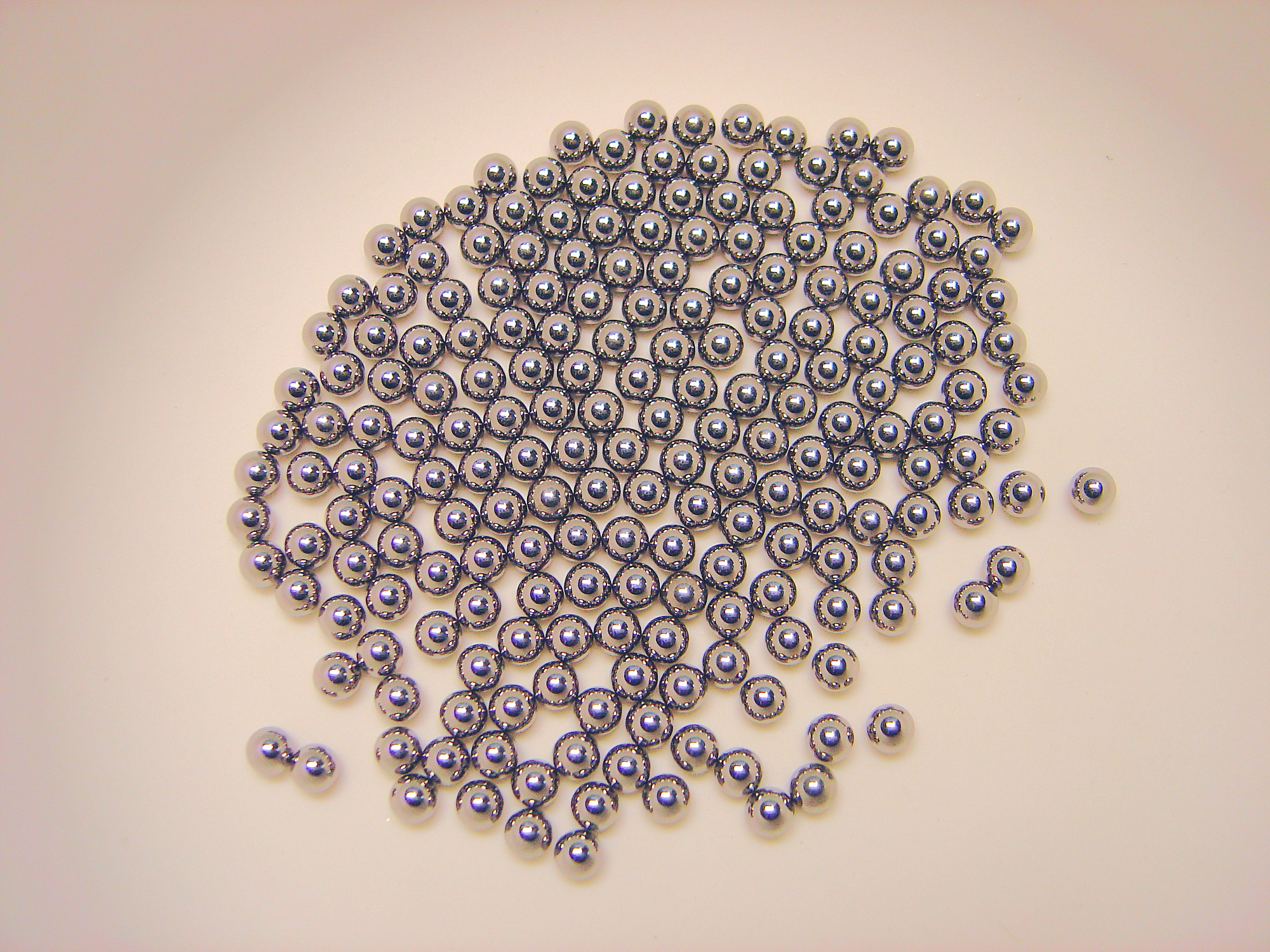

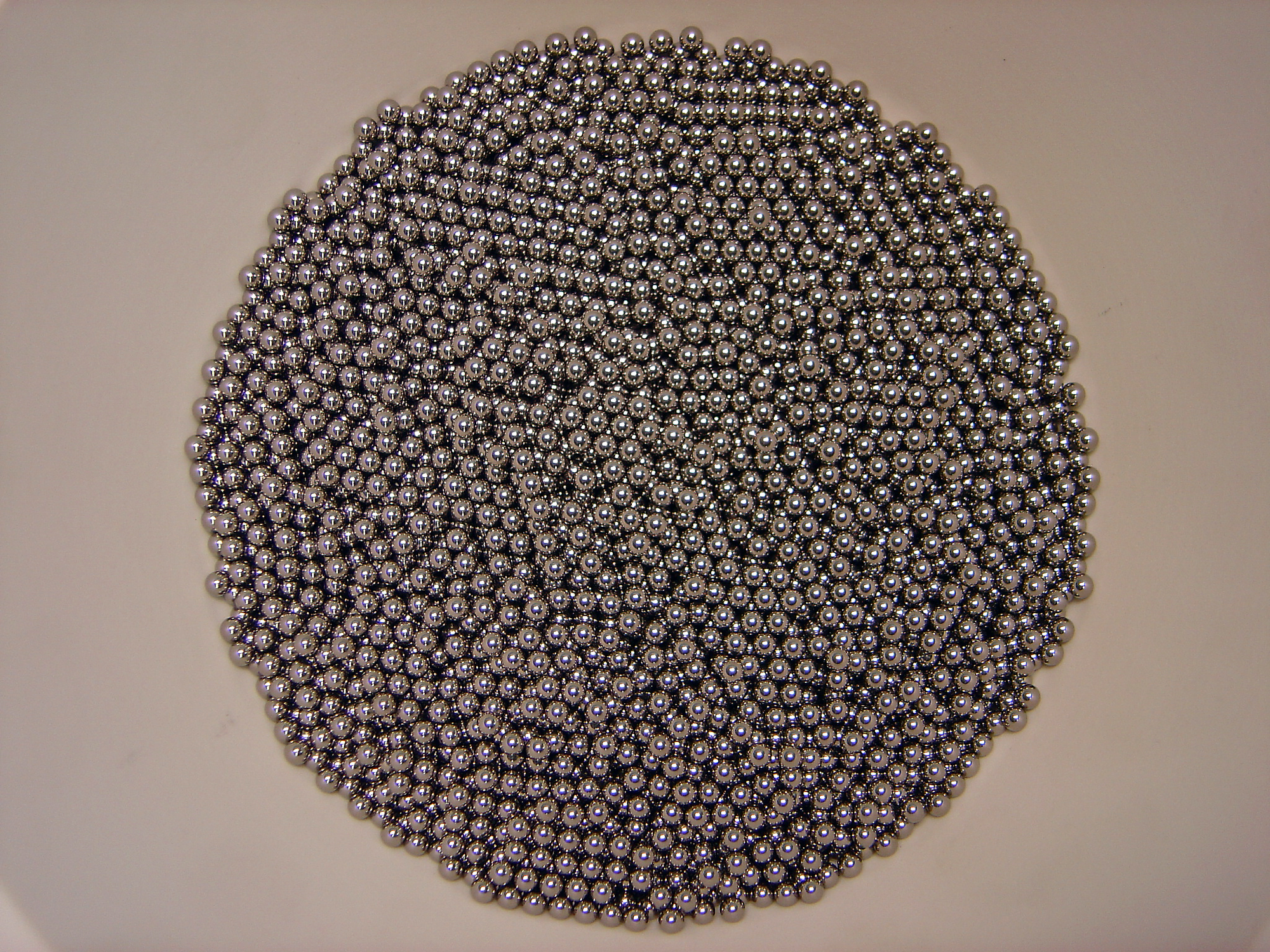

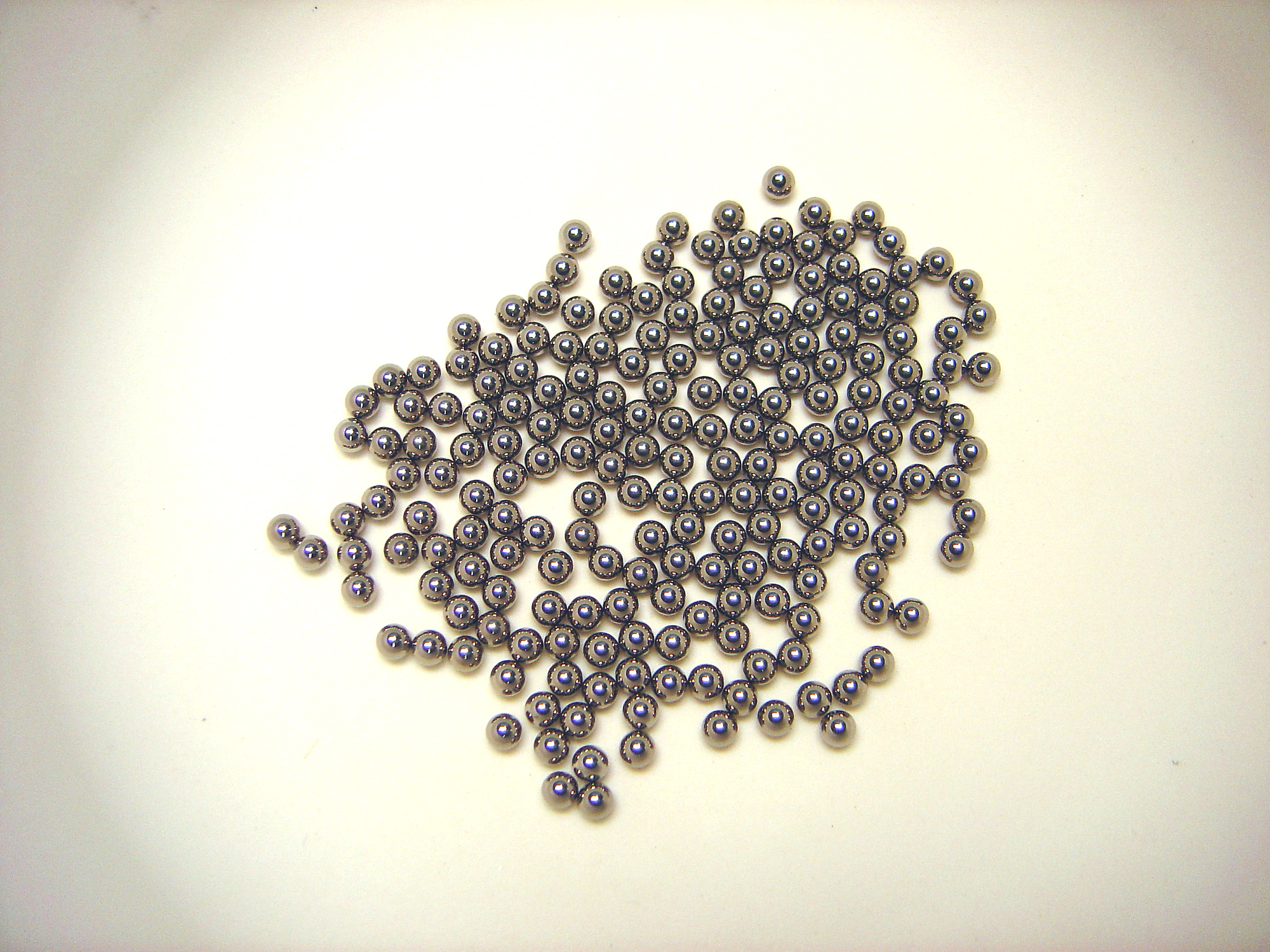

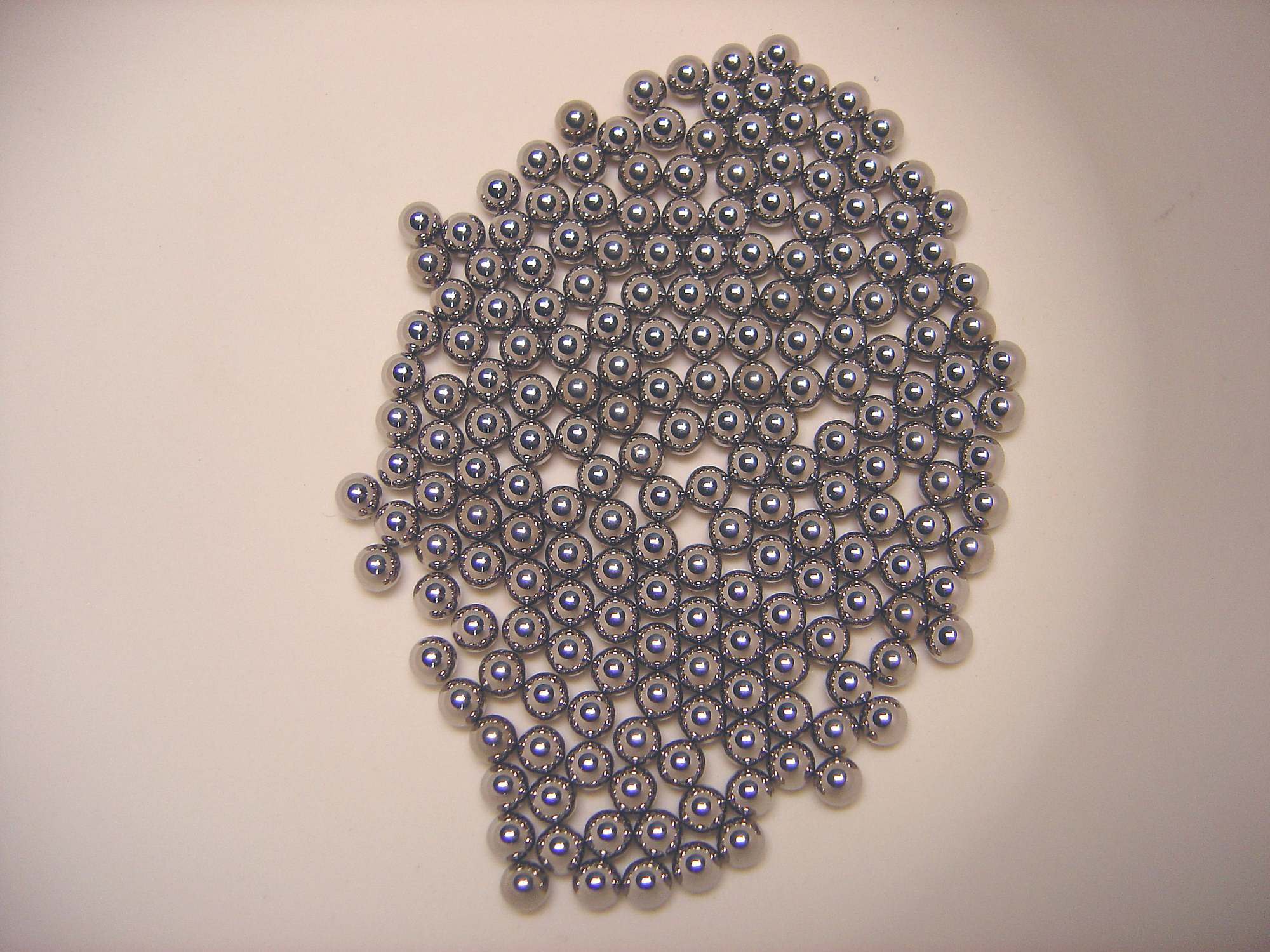

Stainless steel
22.455.0010
2 mm Ø, 500 g (approx. 110 ml)
22.455.0011
3 mm Ø, 500 g (approx. 120 ml)
22.455.0002
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0001
4 mm Ø, 200 pieces (approx. 14 ml)
22.455.0003
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0034
5 mm Ø
05.368.0035
7 mm Ø
05.368.0063
10 mm Ø
05.368.0037
12 mm Ø
05.368.0109
15 mm Ø
05.368.0062
20 mm Ø
05.368.0105
25 mm Ø
05.368.0061
30 mm Ø

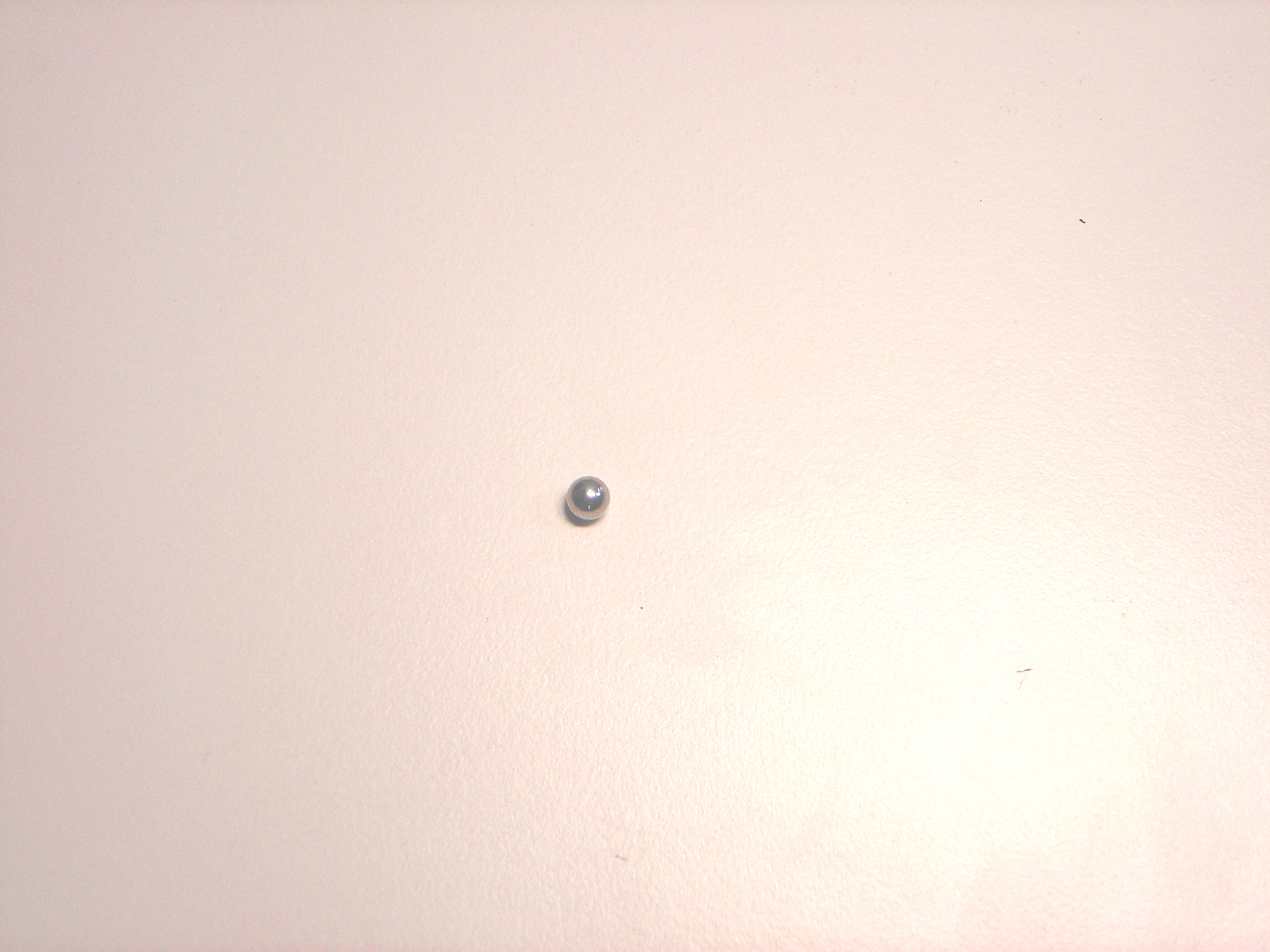

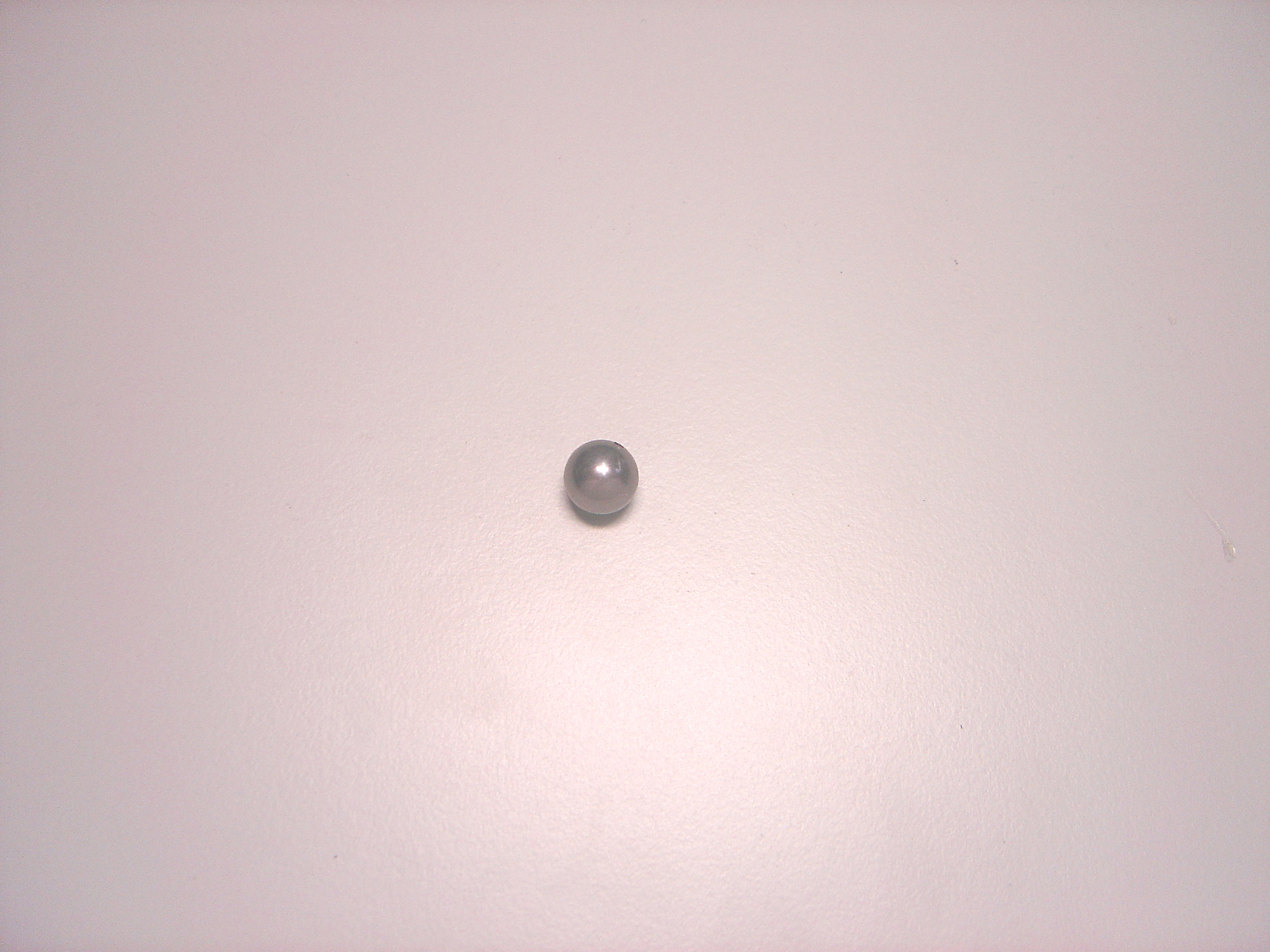

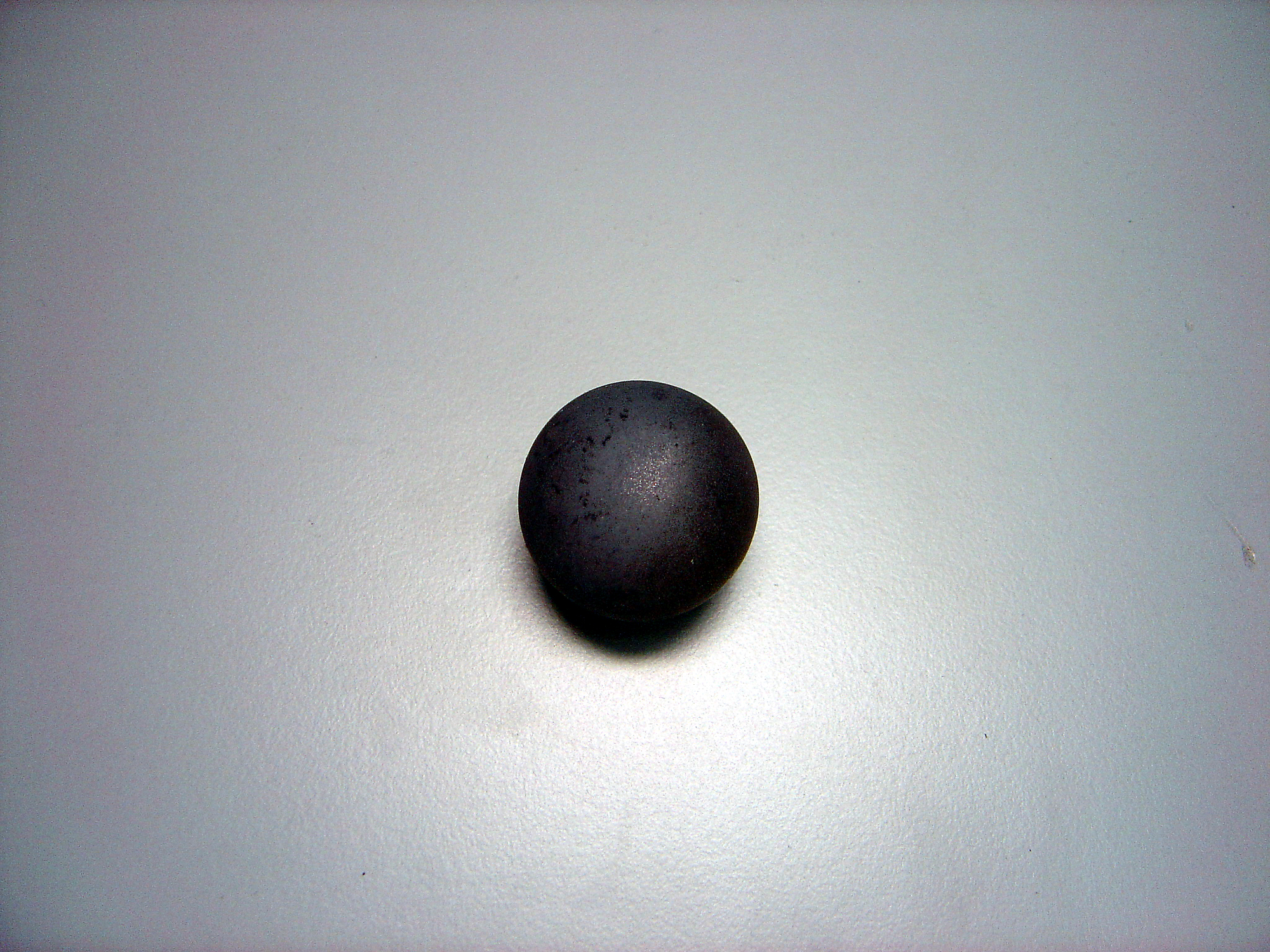

Tungsten carbide
22.455.0006
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0005
4 mm Ø, 200 pieces (approx. 14 ml)
22.455.0004
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0038
5 mm Ø
05.368.0039
7 mm Ø
05.368.0071
10 mm Ø
05.368.0041
12 mm Ø
05.368.0110
15 mm Ø
05.368.0070
20 mm Ø
05.368.0069
30 mm Ø

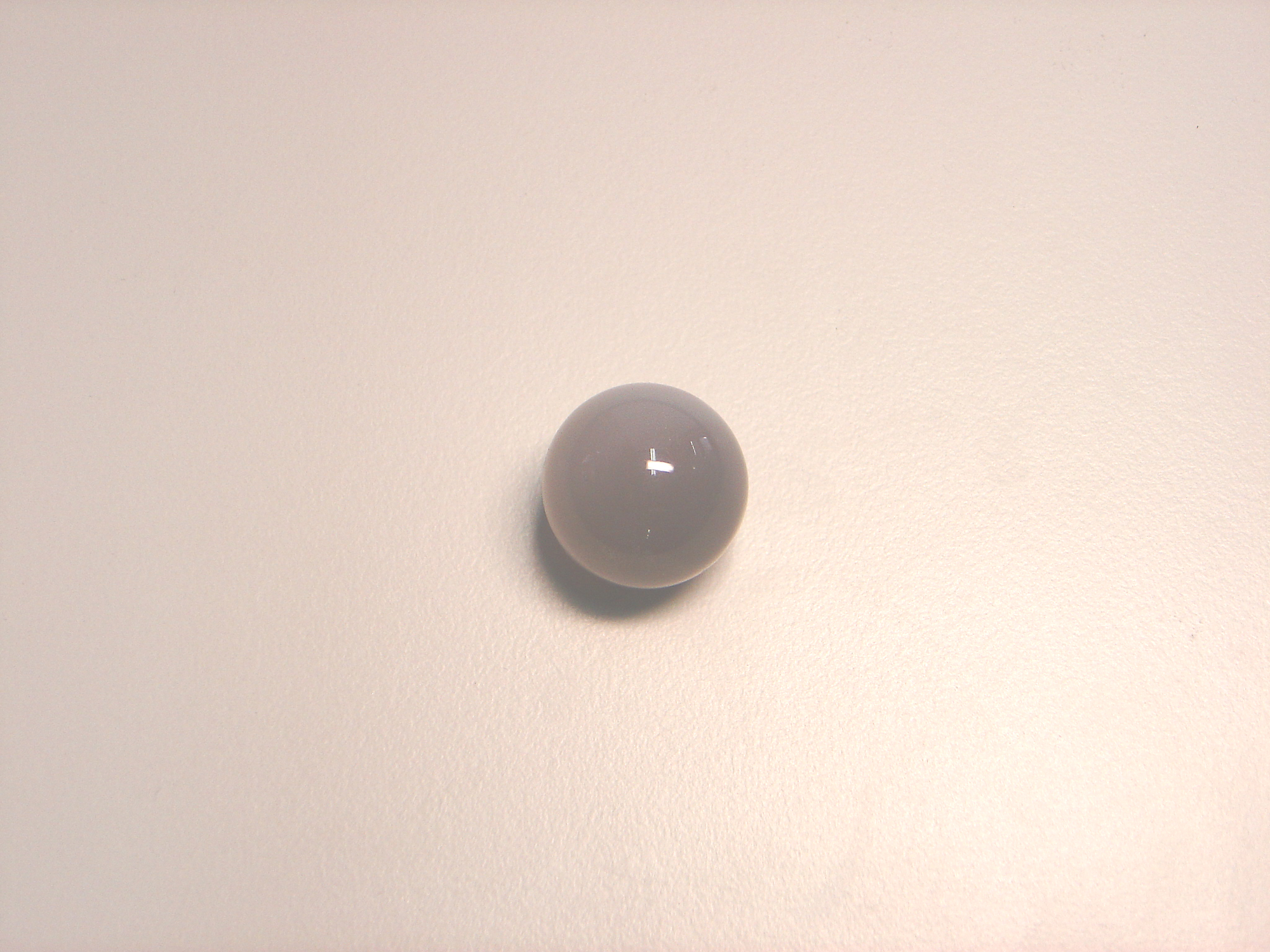

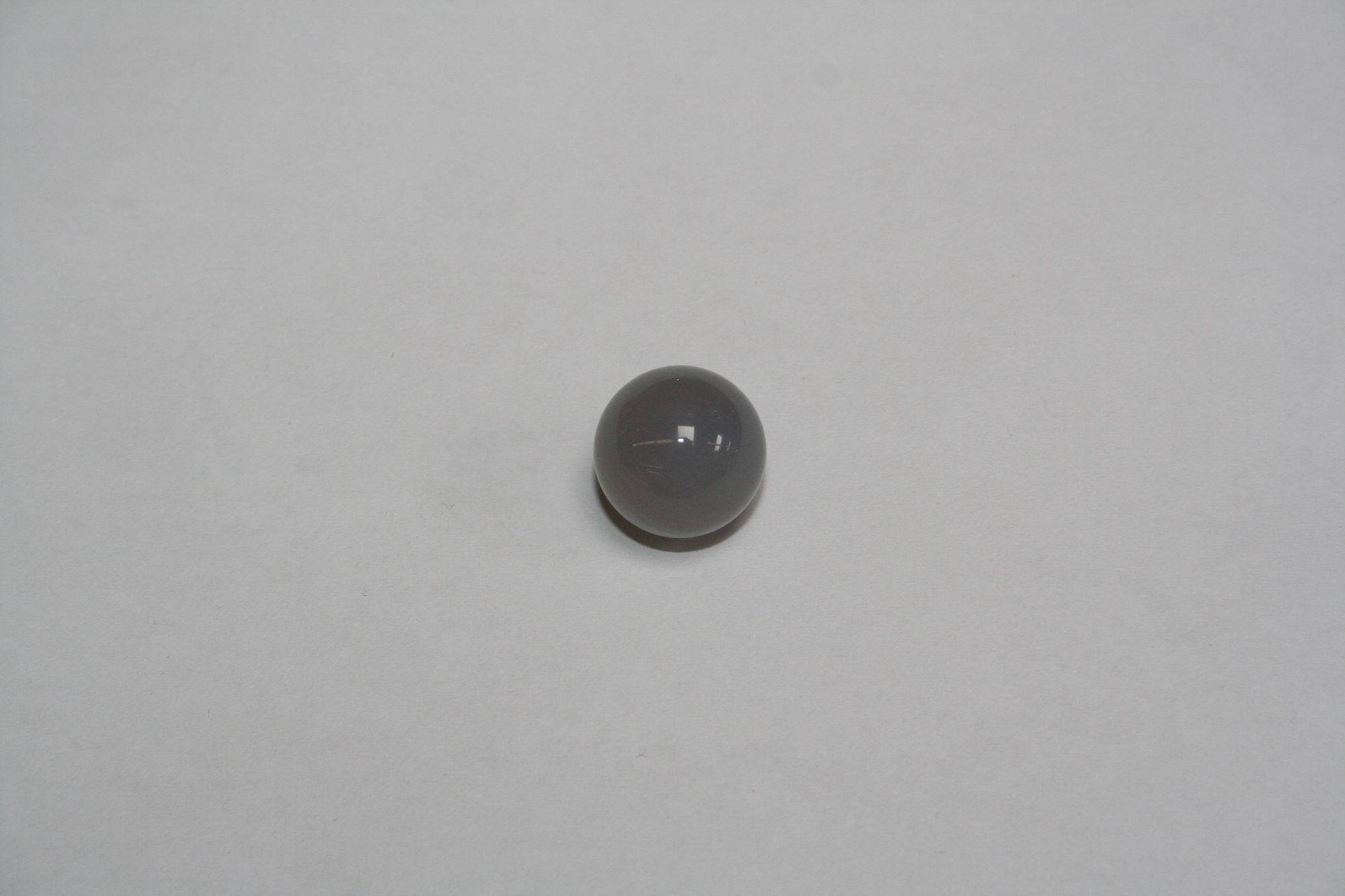

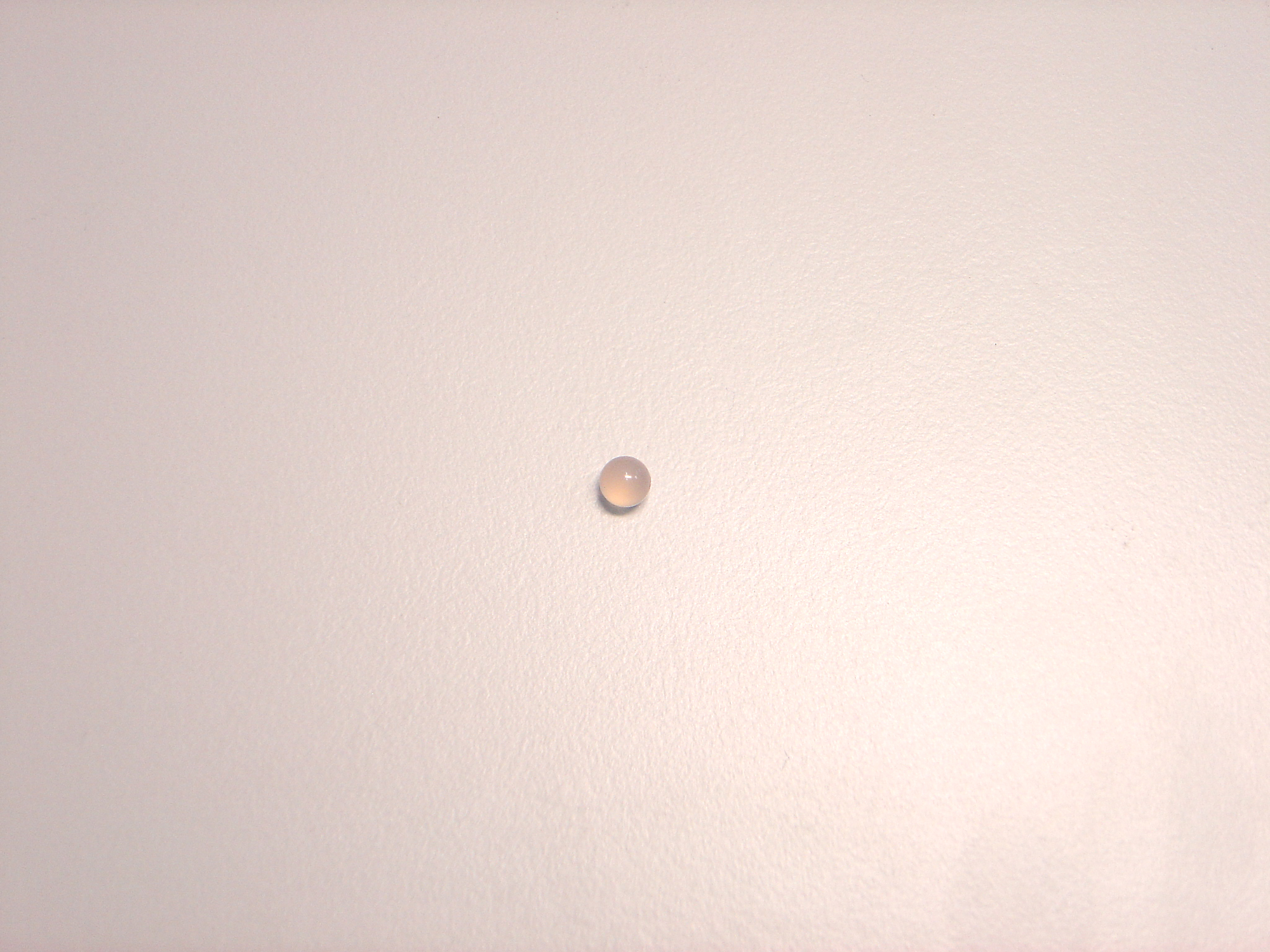

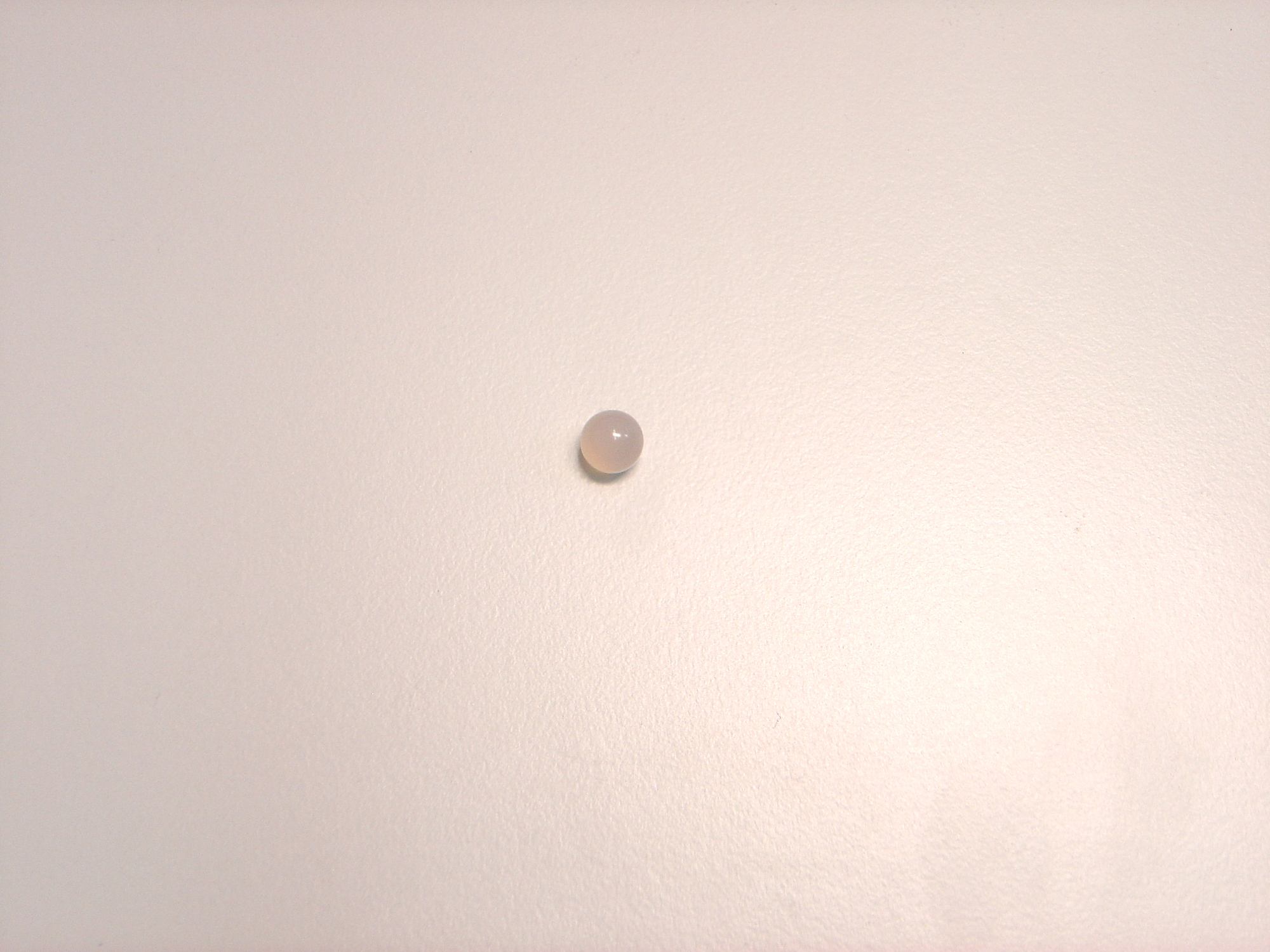

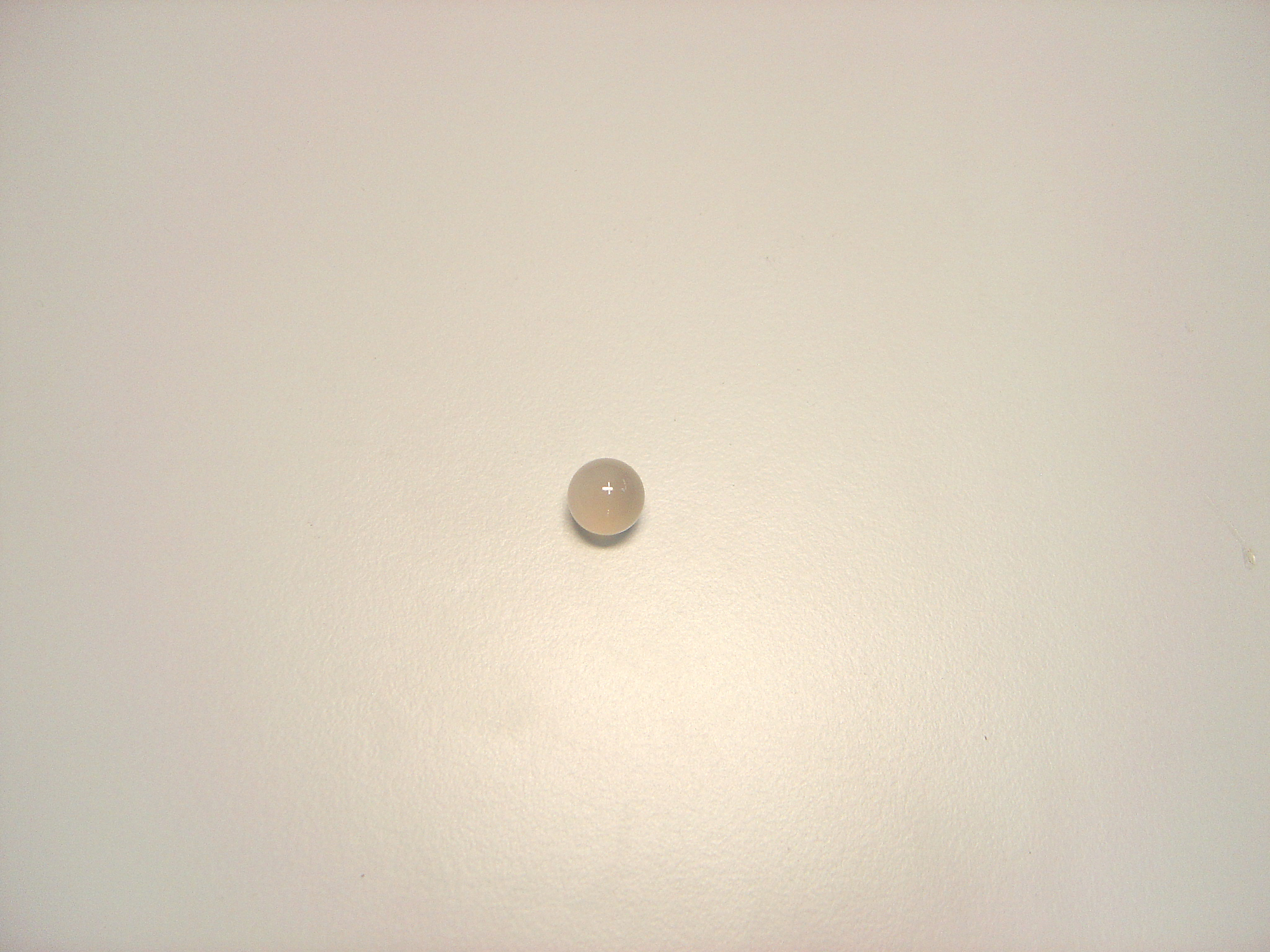

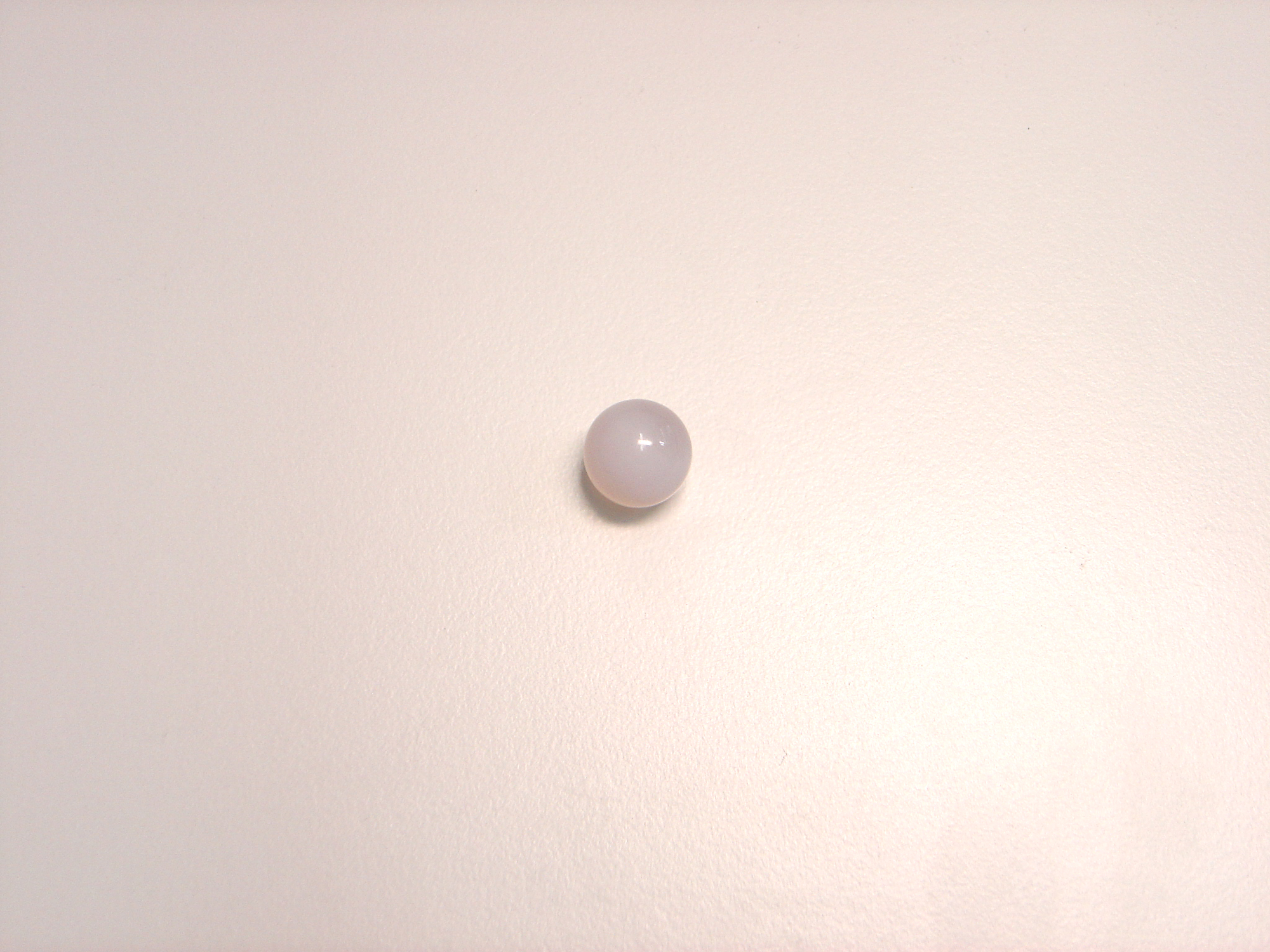

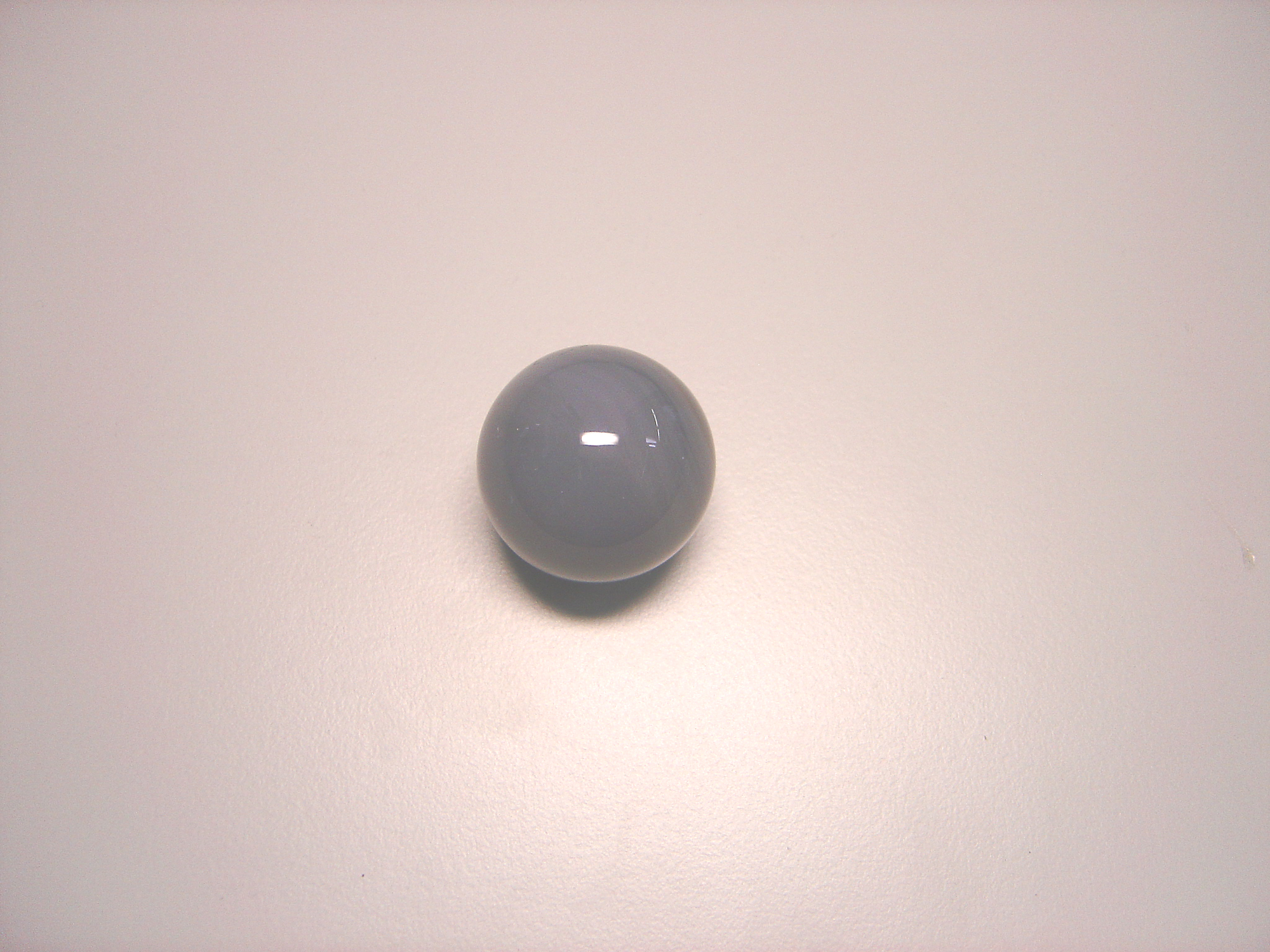

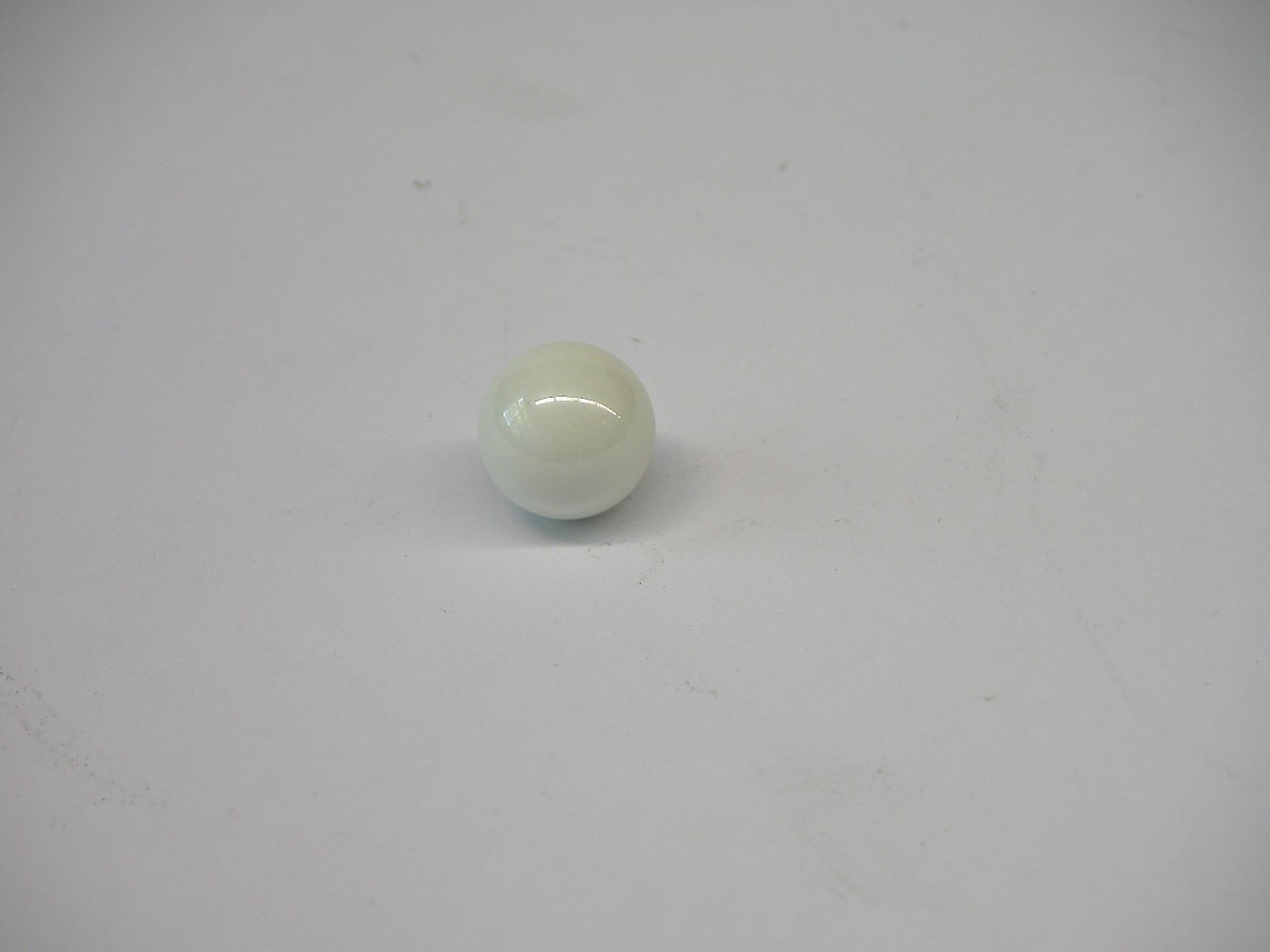

Agate
05.368.0024
5 mm Ø
05.368.0025
7 mm Ø
05.368.0067
10 mm Ø
05.368.0027
12 mm Ø
05.368.0111
15 mm Ø
05.368.0028
20 mm Ø
05.368.0065
30 mm Ø

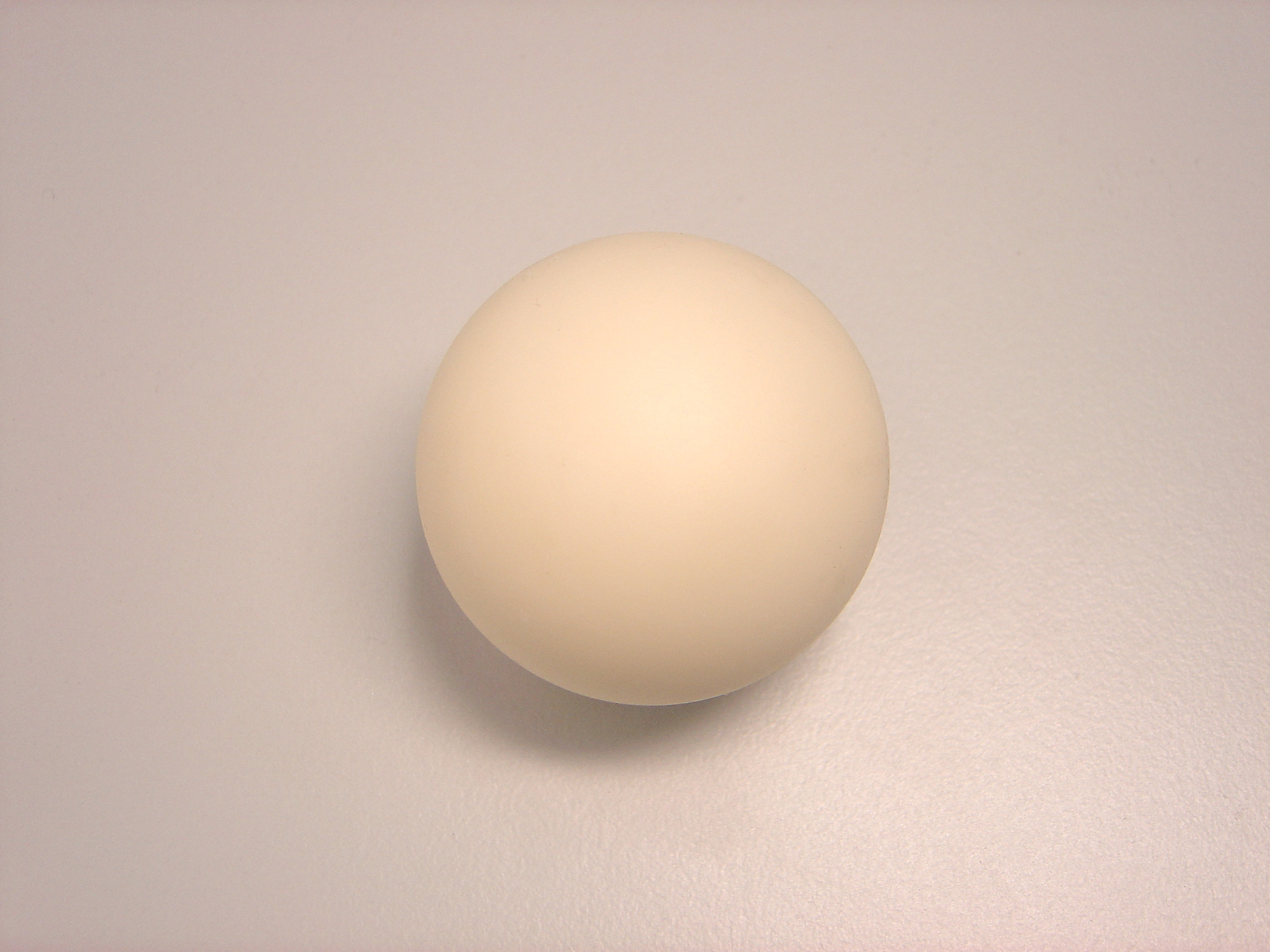

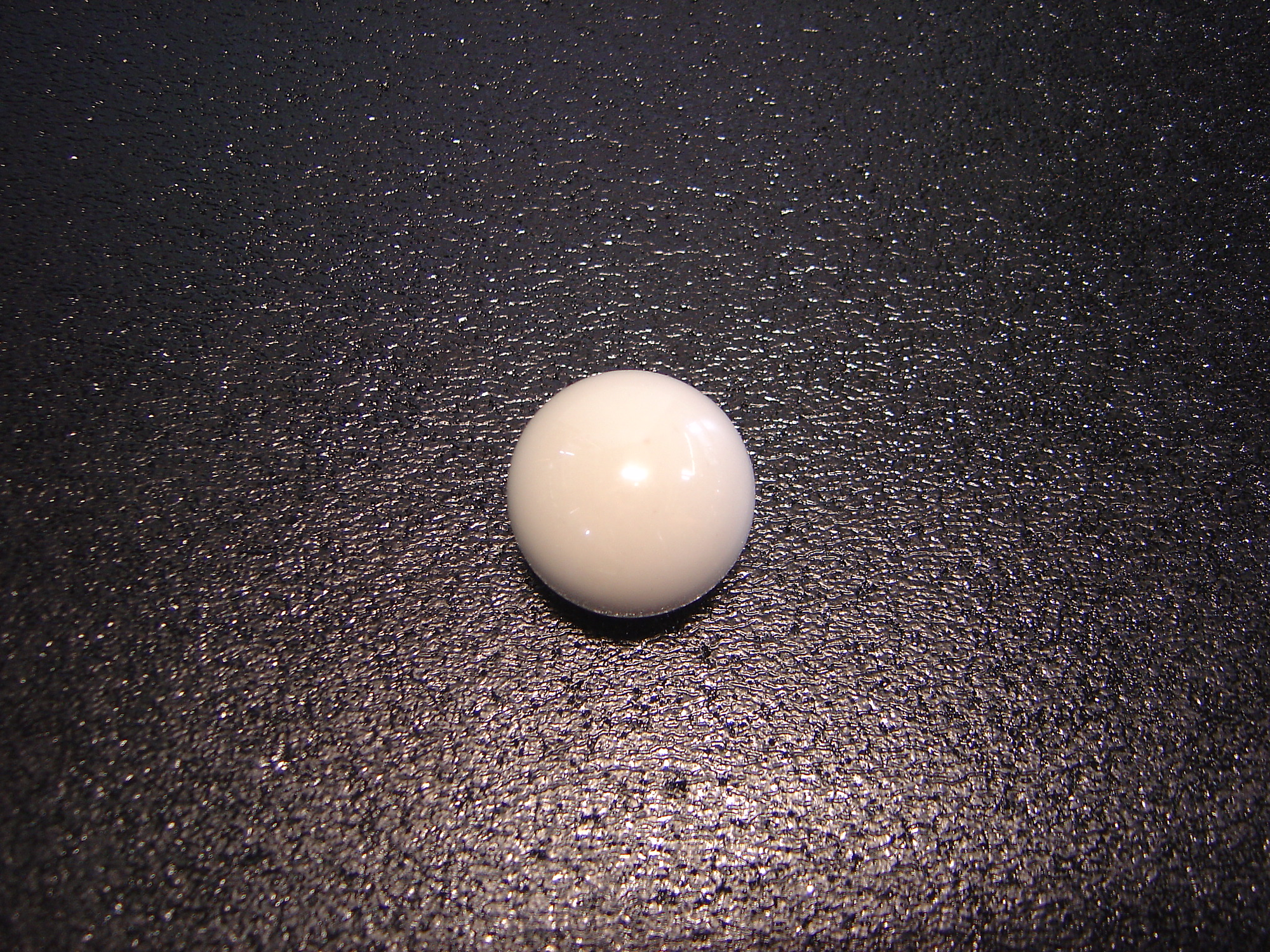

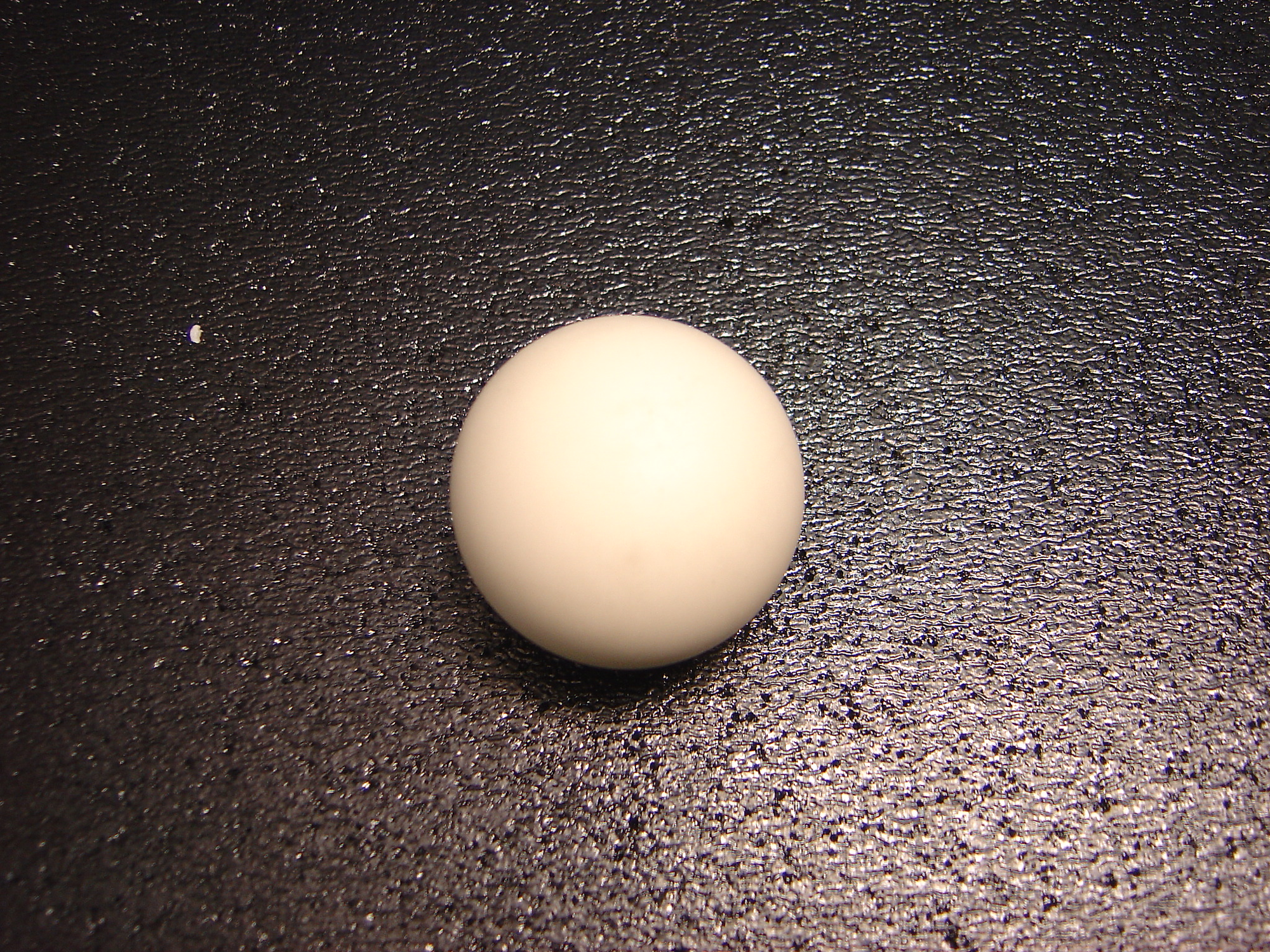

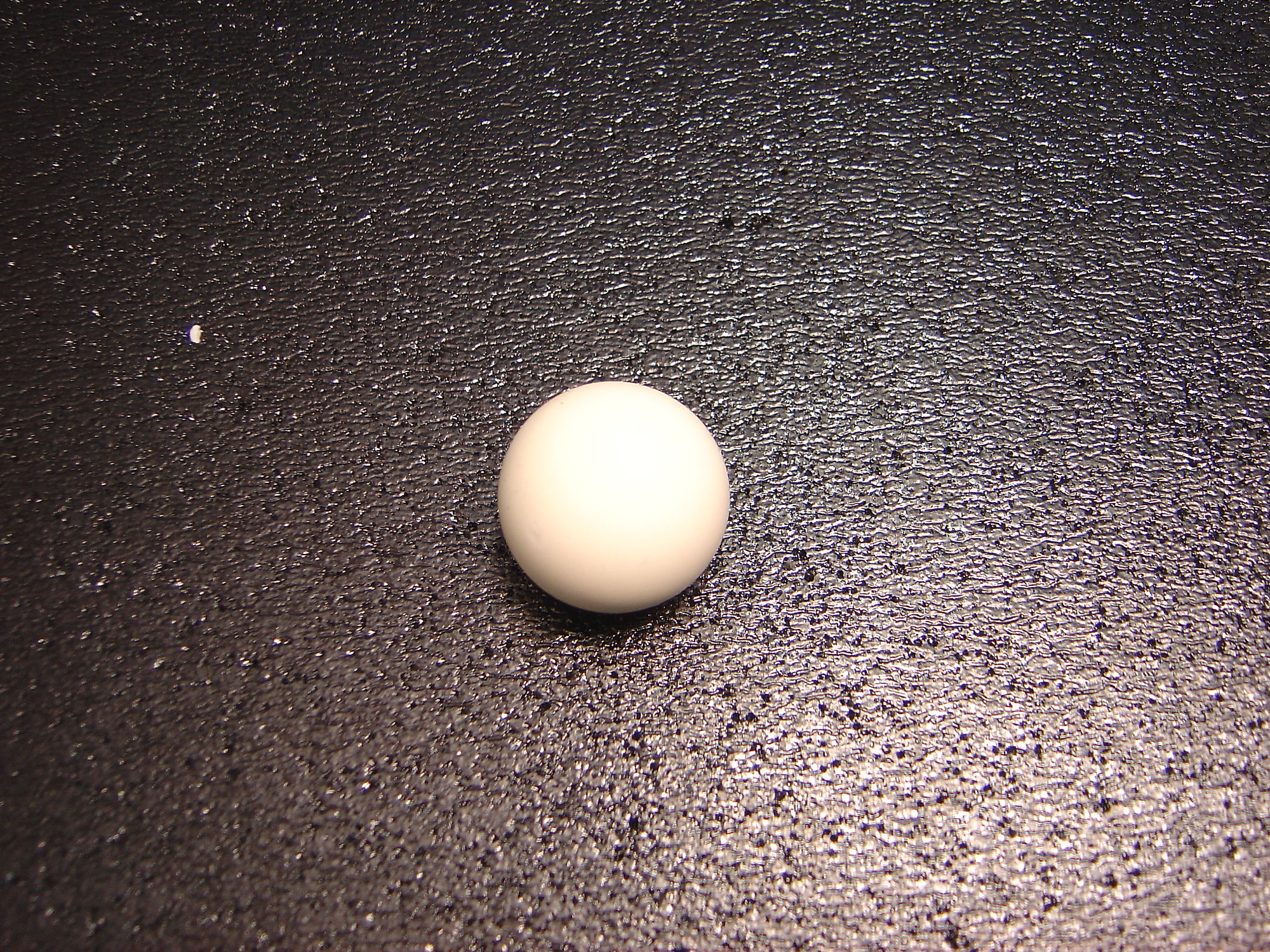

Sintered aluminum oxide
05.368.0021
10 mm Ø
05.368.0112
15 mm Ø
05.368.0054
20 mm Ø
05.368.0053
30 mm Ø
05.368.0052
40 mm Ø

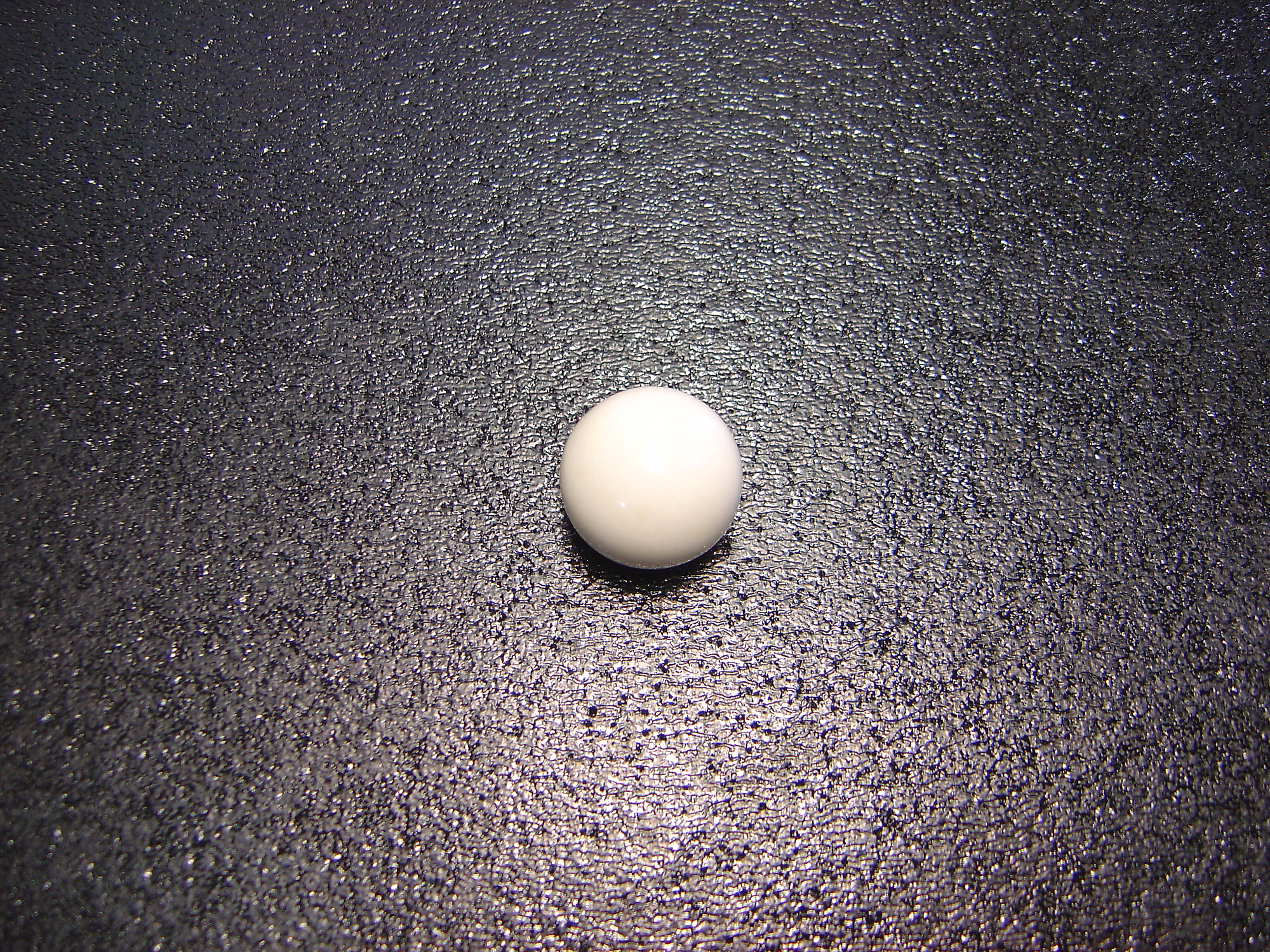

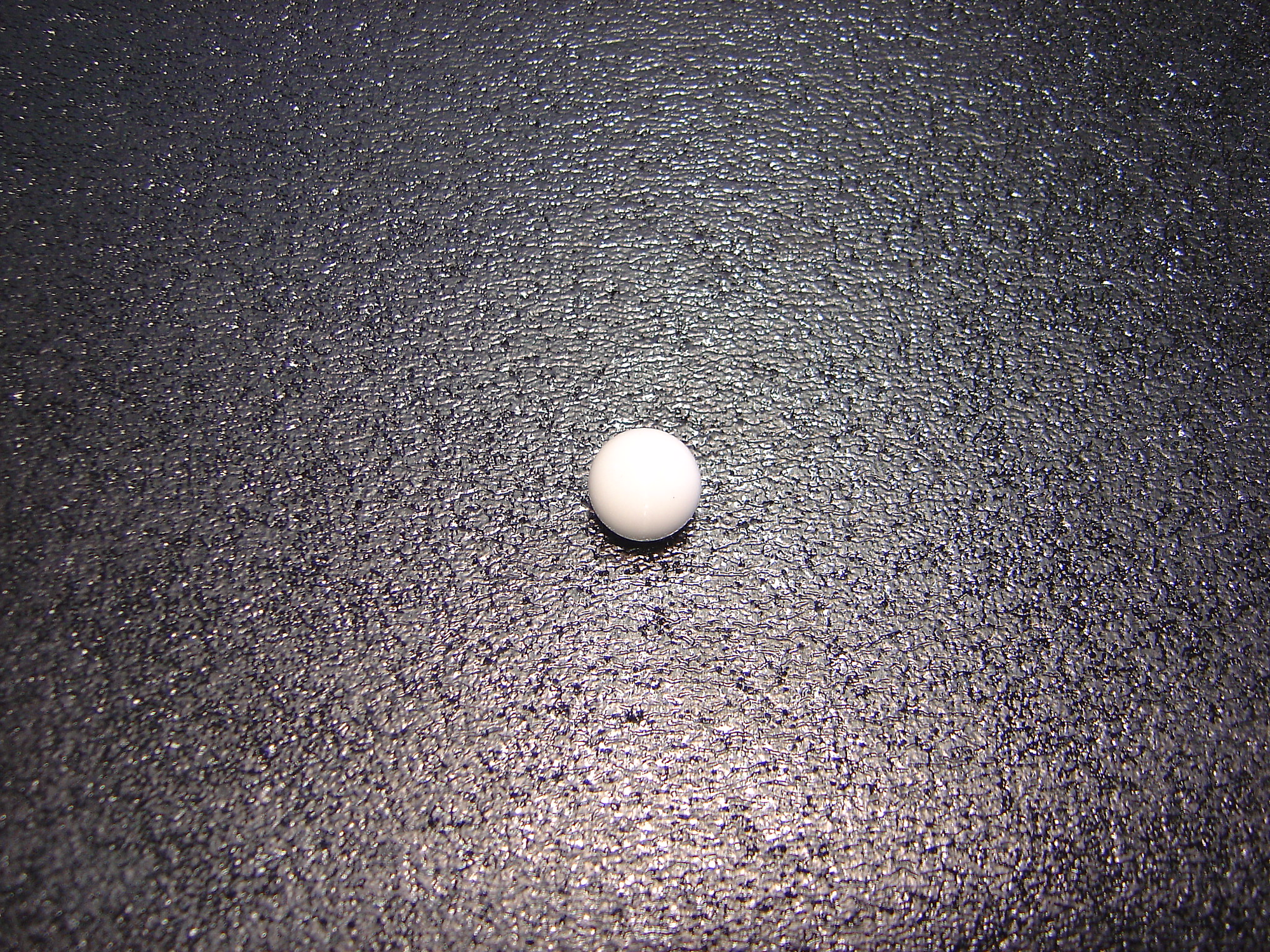

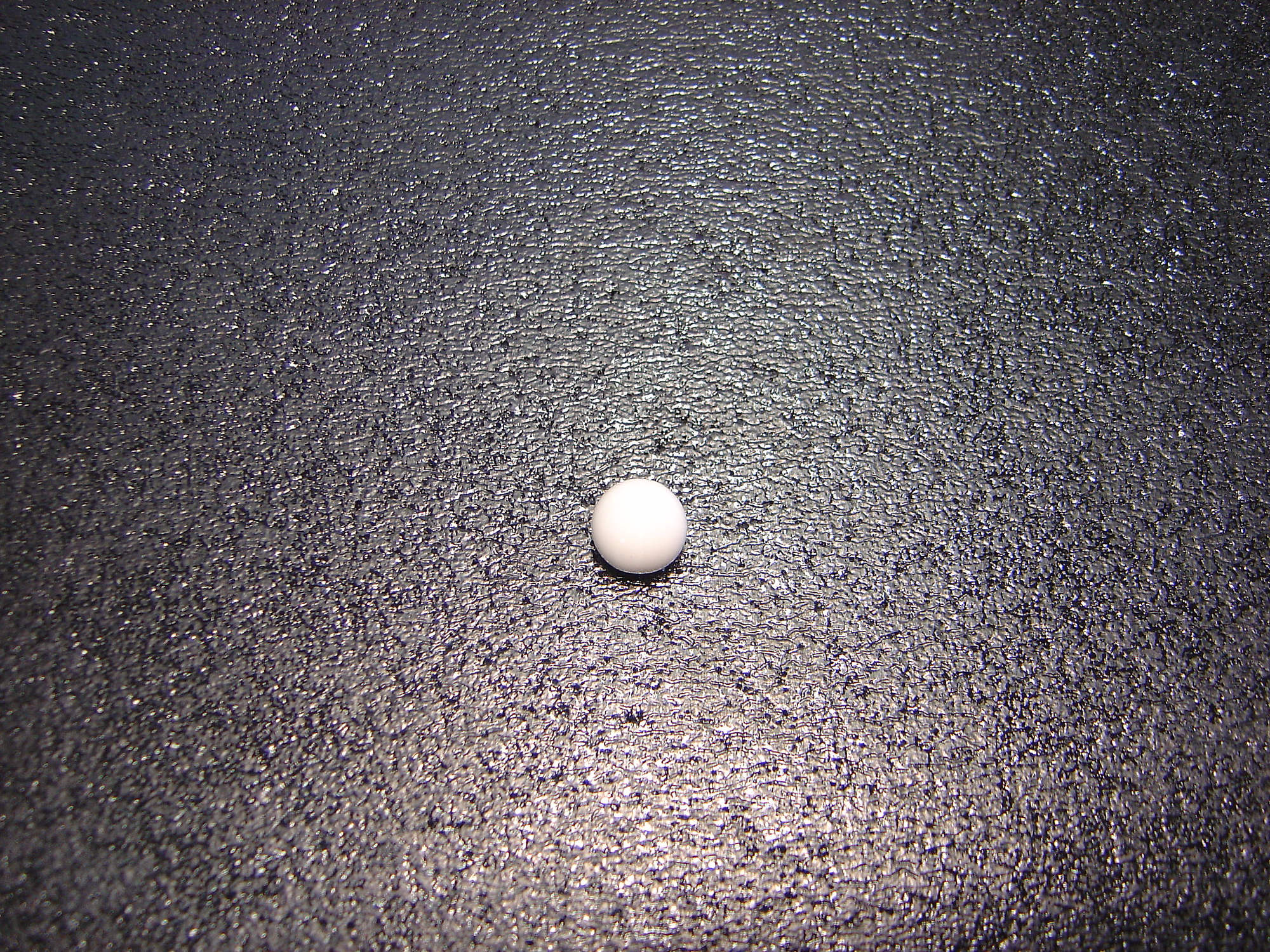

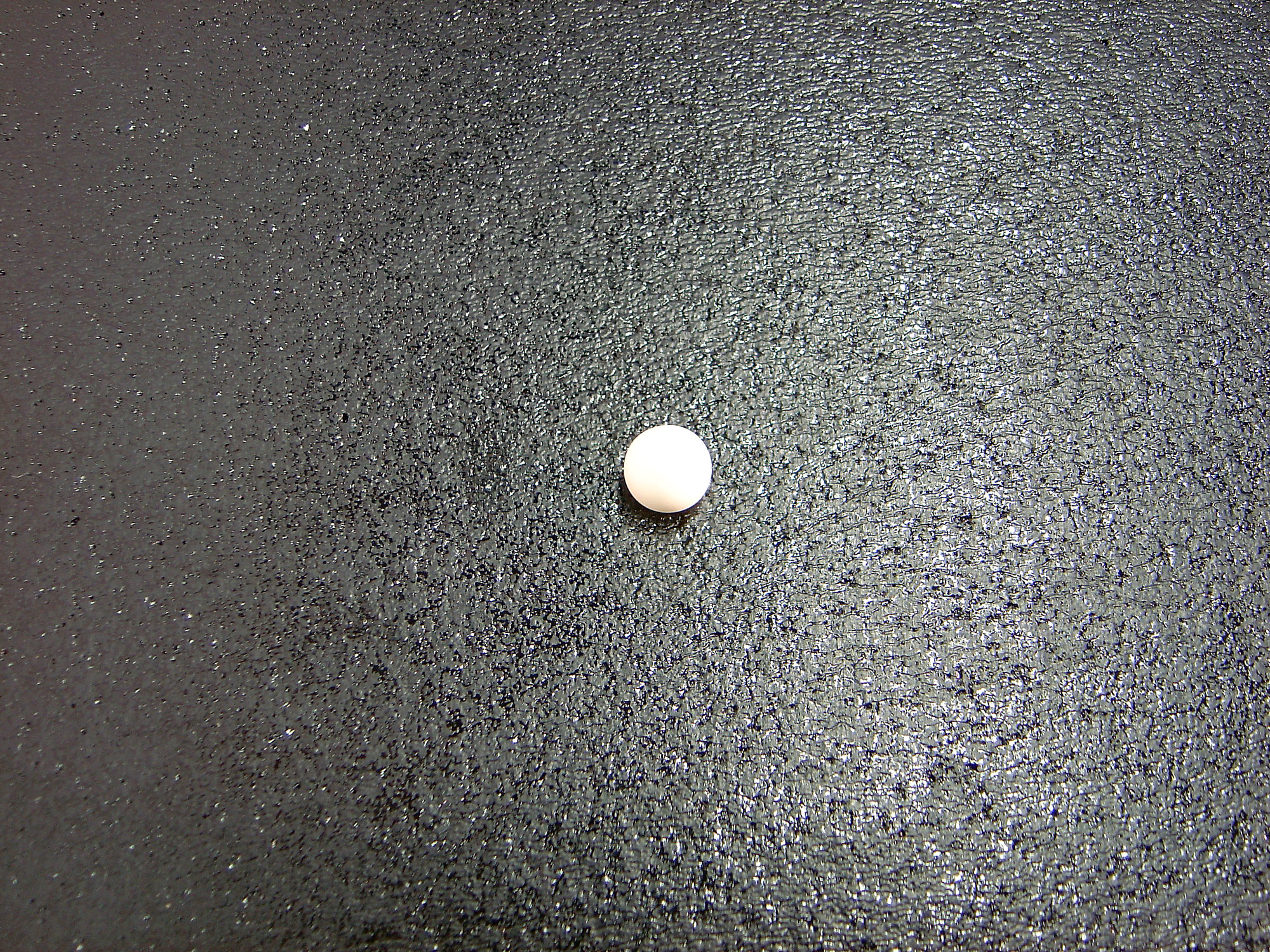

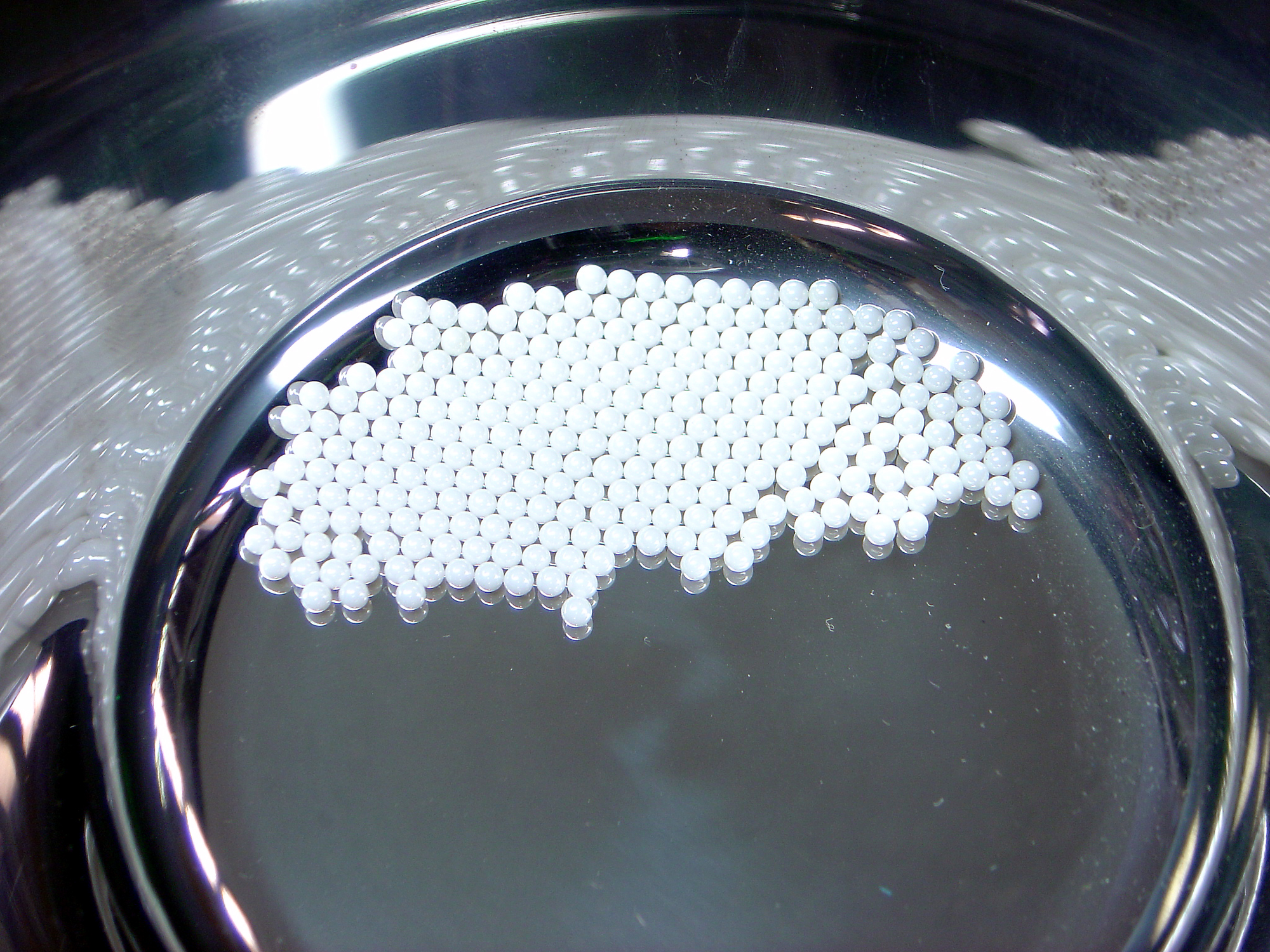

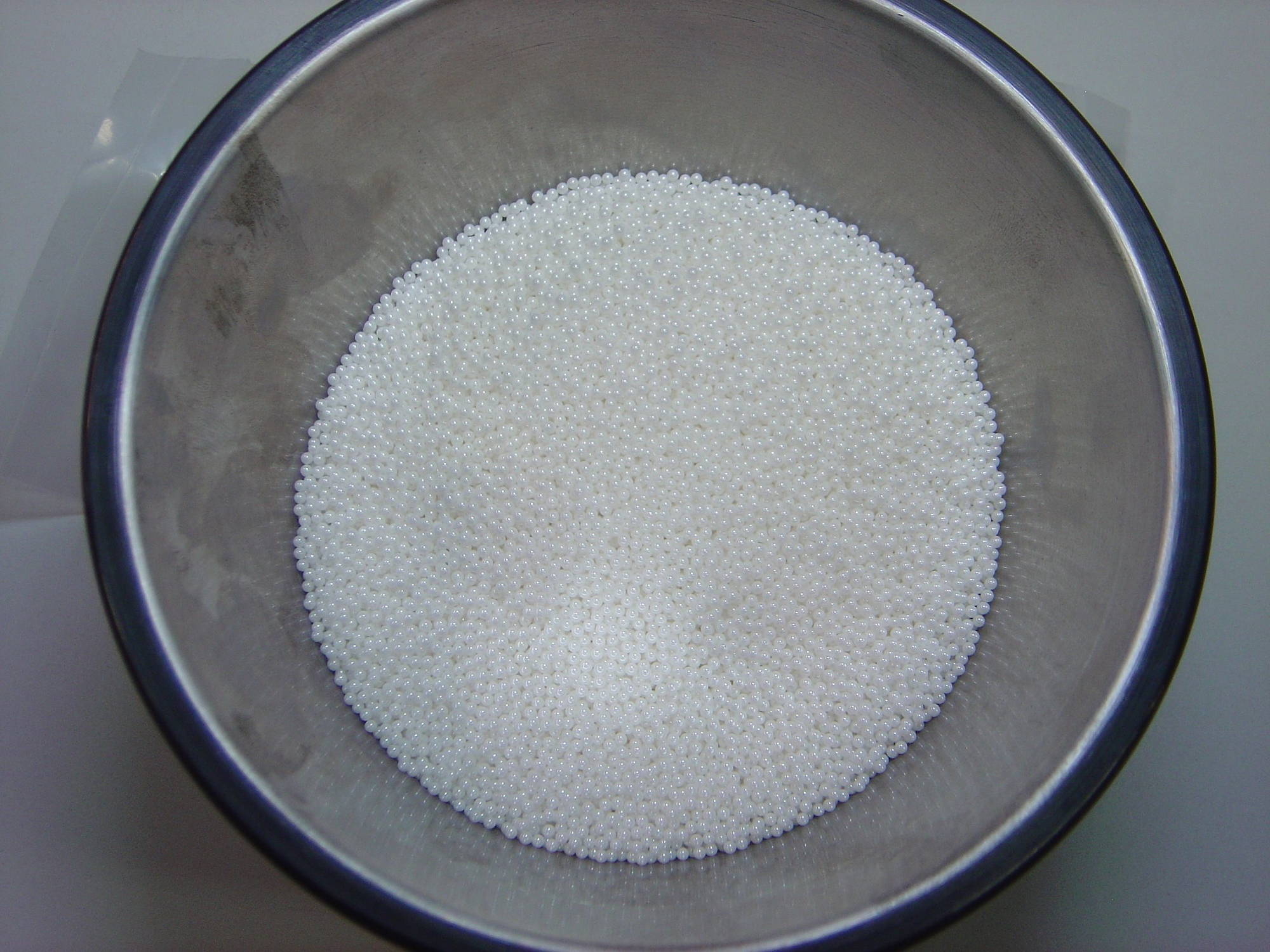

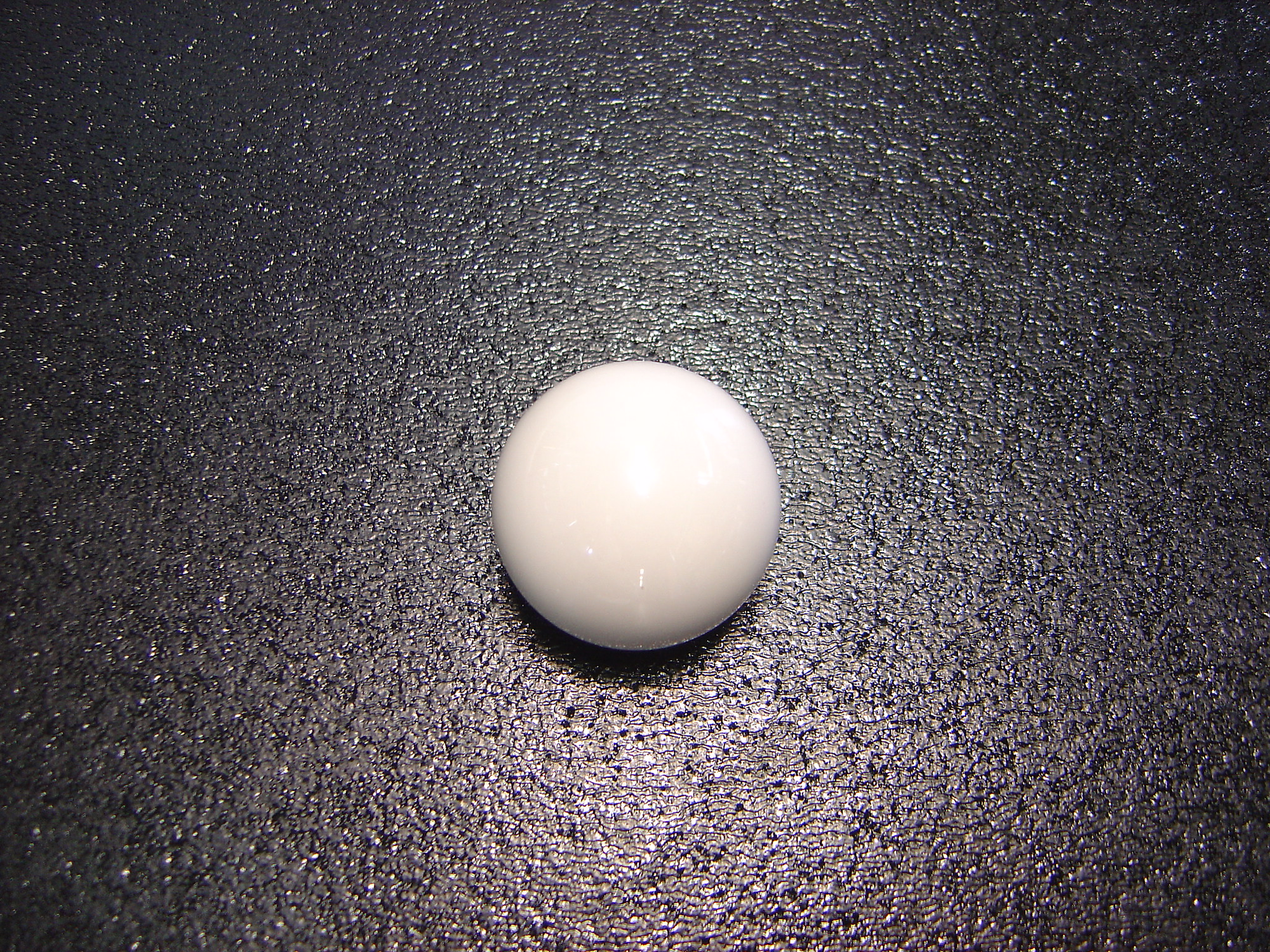

Zirconium oxide
32.368.0005
0.1 mm Ø, 0.5 kg (approx. 135 ml)

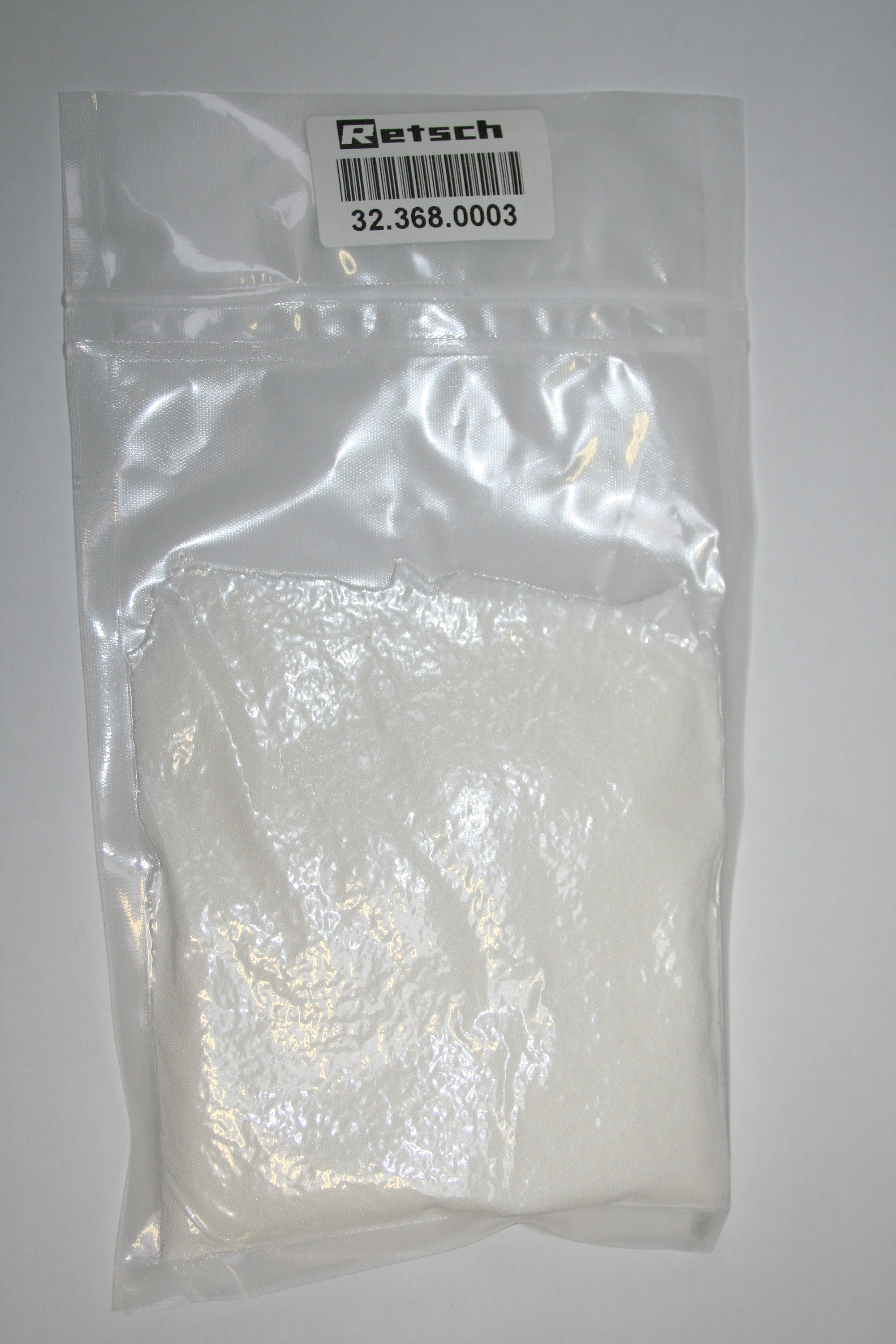

32.368.0003
0.5 mm Ø, 0.5 kg (approx. 135 ml)

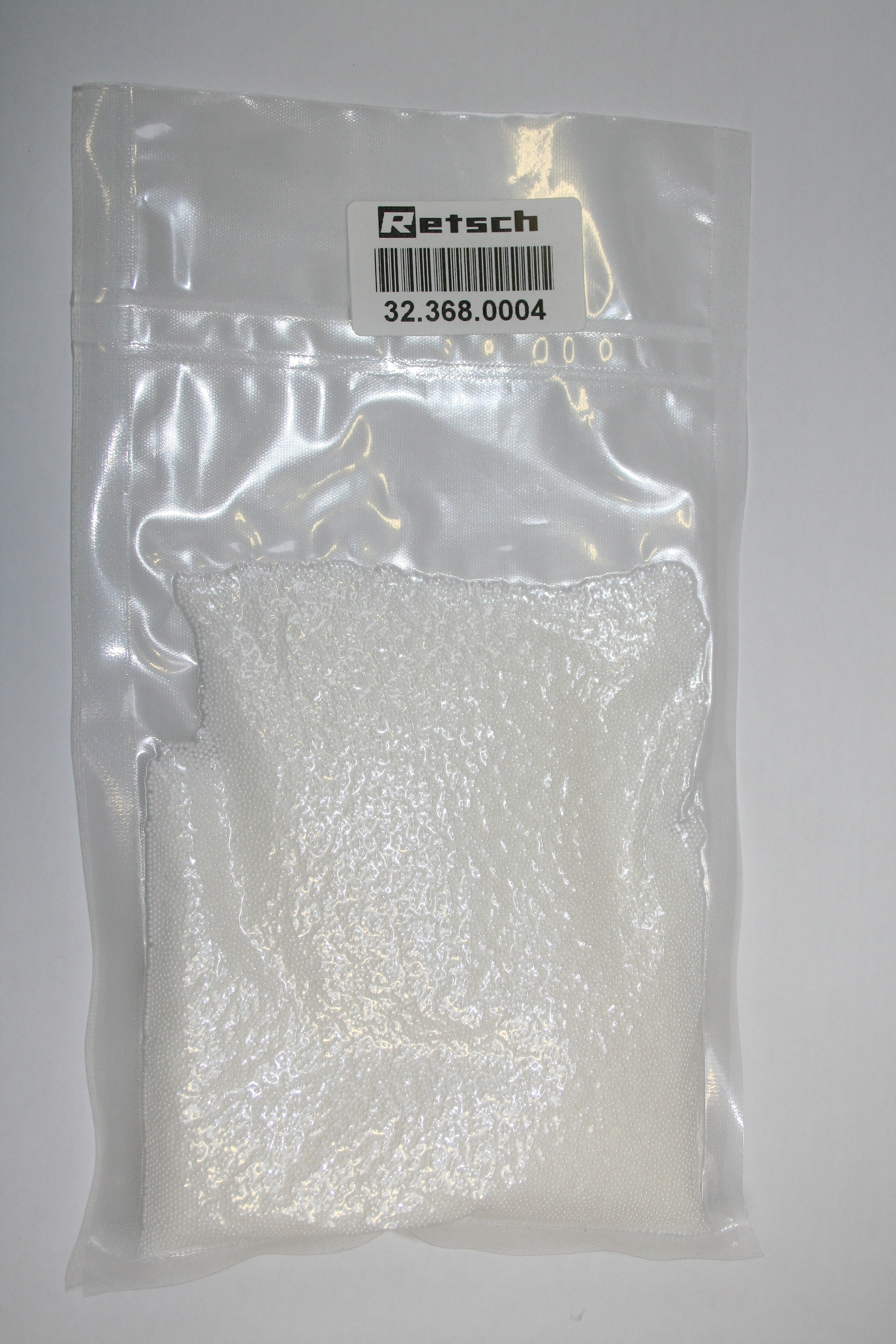

32.368.0004
1 mm Ø, 0.5 kg (approx. 135 ml)
05.368.0089
2 mm Ø, 0.5 kg (approx. 135 ml)
05.368.0090
3 mm Ø, 0.5 kg (approx. 140 ml)

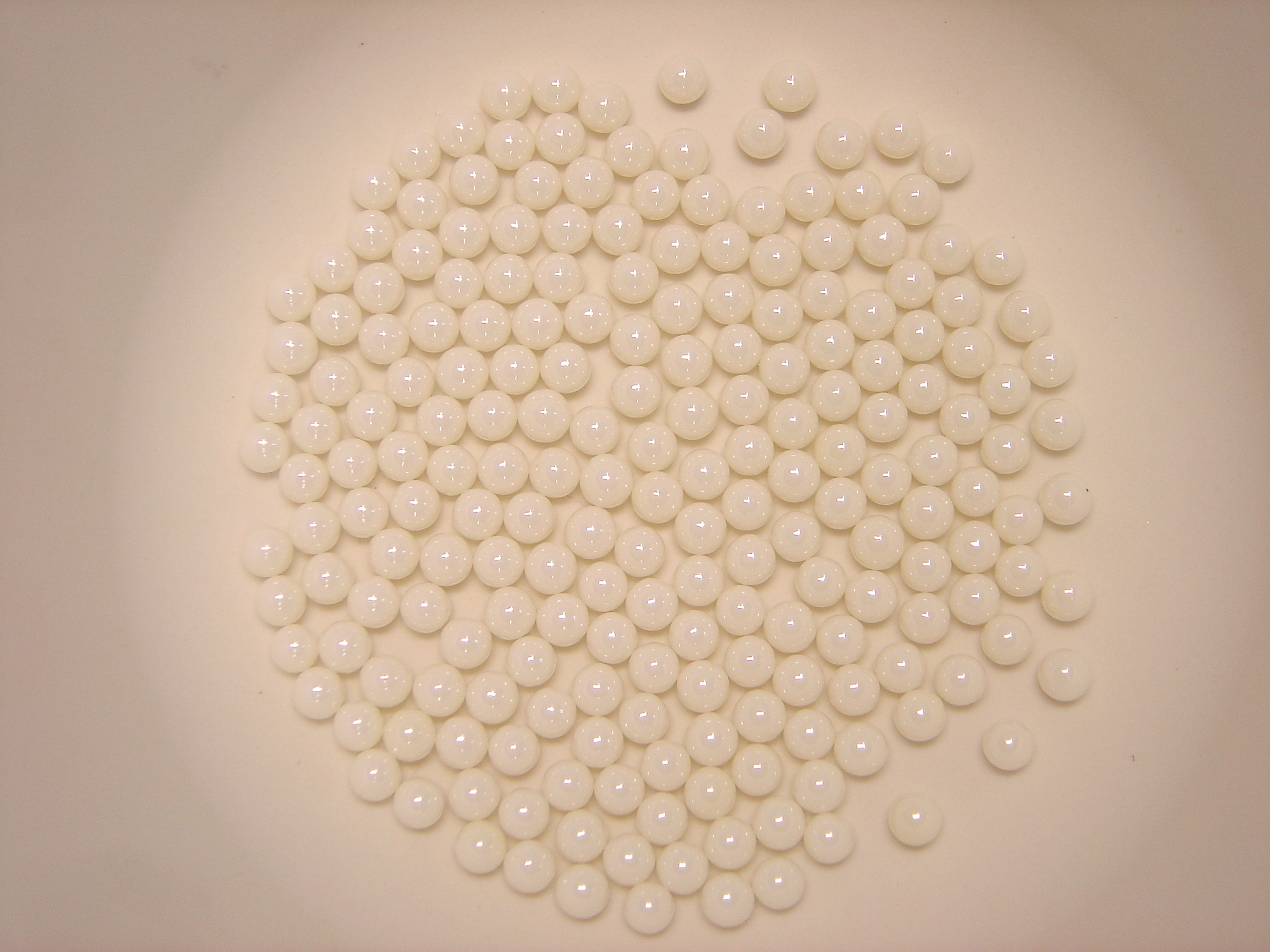

22.455.0007
3 mm Ø, 200 pieces (approx. 6 ml)
22.455.0009
5 mm Ø, 200 pieces (approx. 25 ml)
05.368.0094
10 mm Ø
05.368.0096
12 mm Ø
05.368.0113
15 mm Ø
05.368.0093
20 mm Ø
05.368.0106
25 mm Ø
05.368.0092
30 mm Ø
