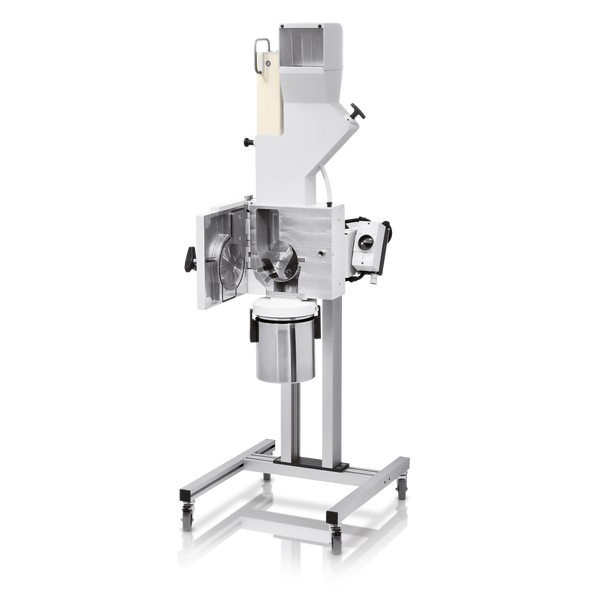

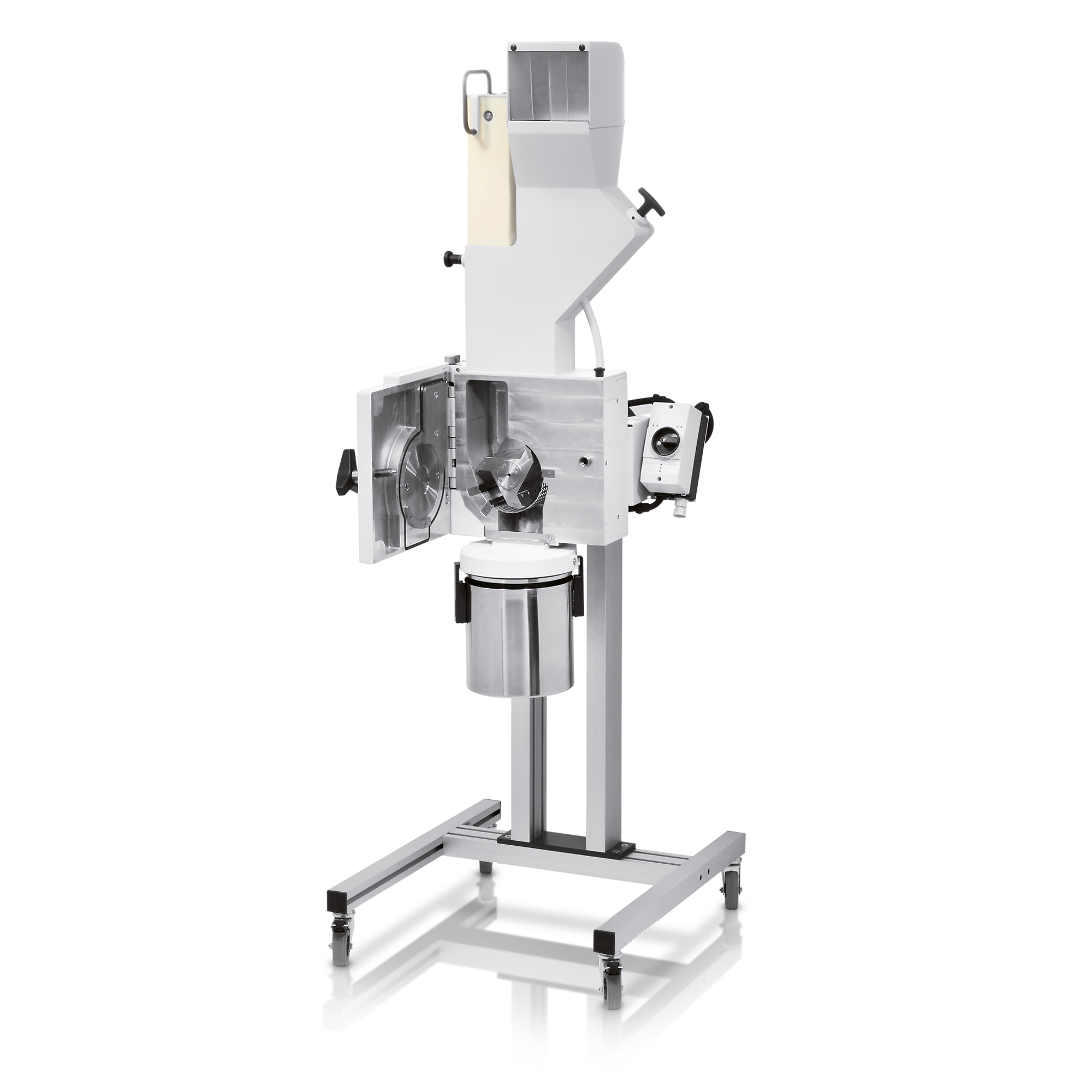

Cutting Mill SM 100
Cutting Mill SM 100 complete with collecting receptacle, 5 litres
(please order rotor, hopper, bottom sieve and optional base frame separately)
20.727.0001
SM 100
3~ 400 V, 50 Hz
20.727.0009
SM 100
220–230 V, 50/60 Hz, with frequency converter
20.727.0002
for grinding without heavy-metal contamination
20.727.0010
SM 100
220–230 V, 50/60 Hz, with frequency converter,
for grinding without heavy-metal contamination
22.824.0005
Base frame with wheels for SM 100
other electrical versions available
Rotors SM 100, SM 200, SM 300
转刀类型:
- 6叶转刀 带可更换和可拆卸的碳化钨刀片:
像切碎机一样；特别适用于中等硬度的材料
- 平行转刀:
像斧头一样工作；特别适用于软性、有弹性和纤维状的材料
- V型转刀 (仅适用SM 300 ):
像剪刀一样；特别适用于坚硬、软性和纤维状材料，提高研磨效率和样品排出
可用材质:
- 不锈钢:
适合大多数应用 - 钢 1.0580:
适用于当重金属磨损时，例如当要分析重金属含量时 无重金属磨具是专门为制备样品而设计的，用于分析样品的重金属含量。然而，磨具的磨损永远无法完全避免。
22.608.0022

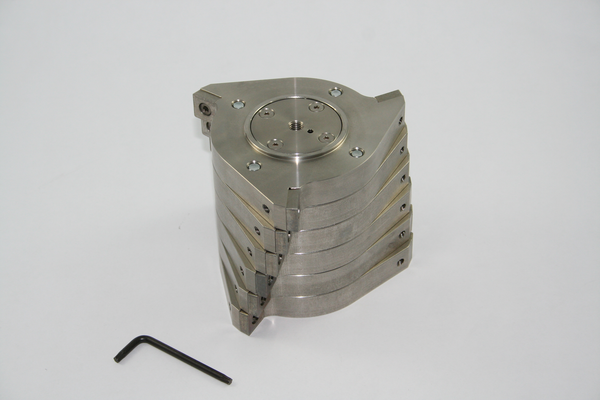

6-disc rotor, stainless steel, with reversible cutting tips of tungsten carbide
22.608.0028
6-disc rotor, steel 1.0580, with reversible cutting tips of tungsten carbide, for grinding without heavy-metal contamination
22.608.0021

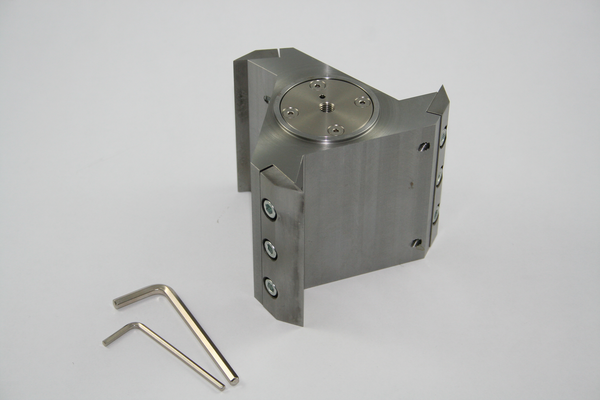

Parallel section rotor, stainless steel
22.608.0018
Parallel section rotor, steel 1.0580, for grinding without heavy-metal contamination
Hoppers
可用料斗:
- 通用料斗 - 标准应用
样品可以用柱塞压在转刀上，从而获得很好的研磨效率。 - 长料斗 - 处理长形样品如树枝的理想选择
也适用于自由流动的样品，如玉米。
22.785.0007

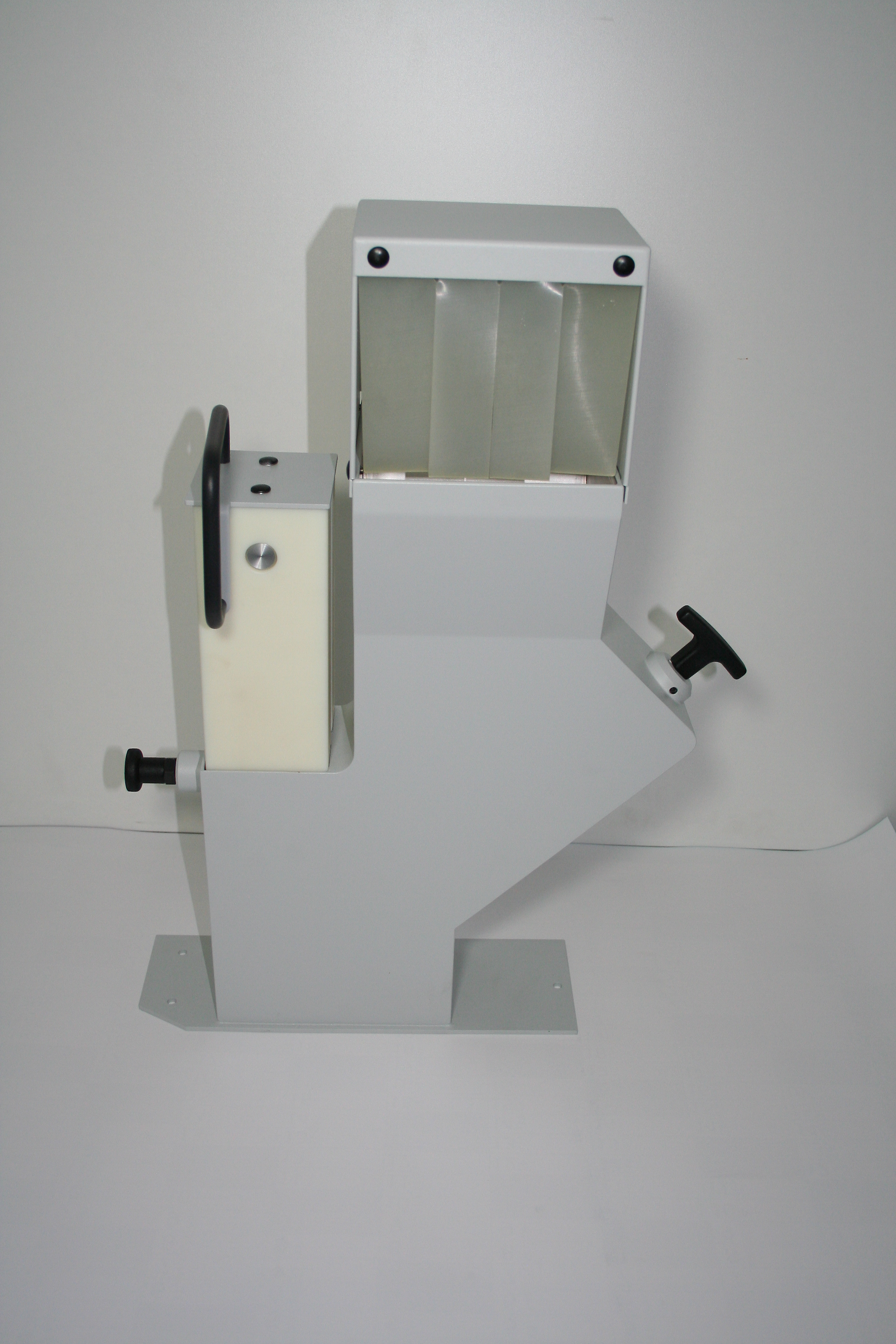

Universal hopper with plastic plunger
22.408.0004

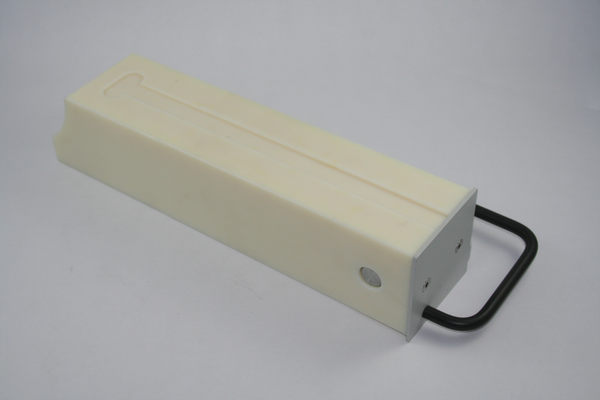

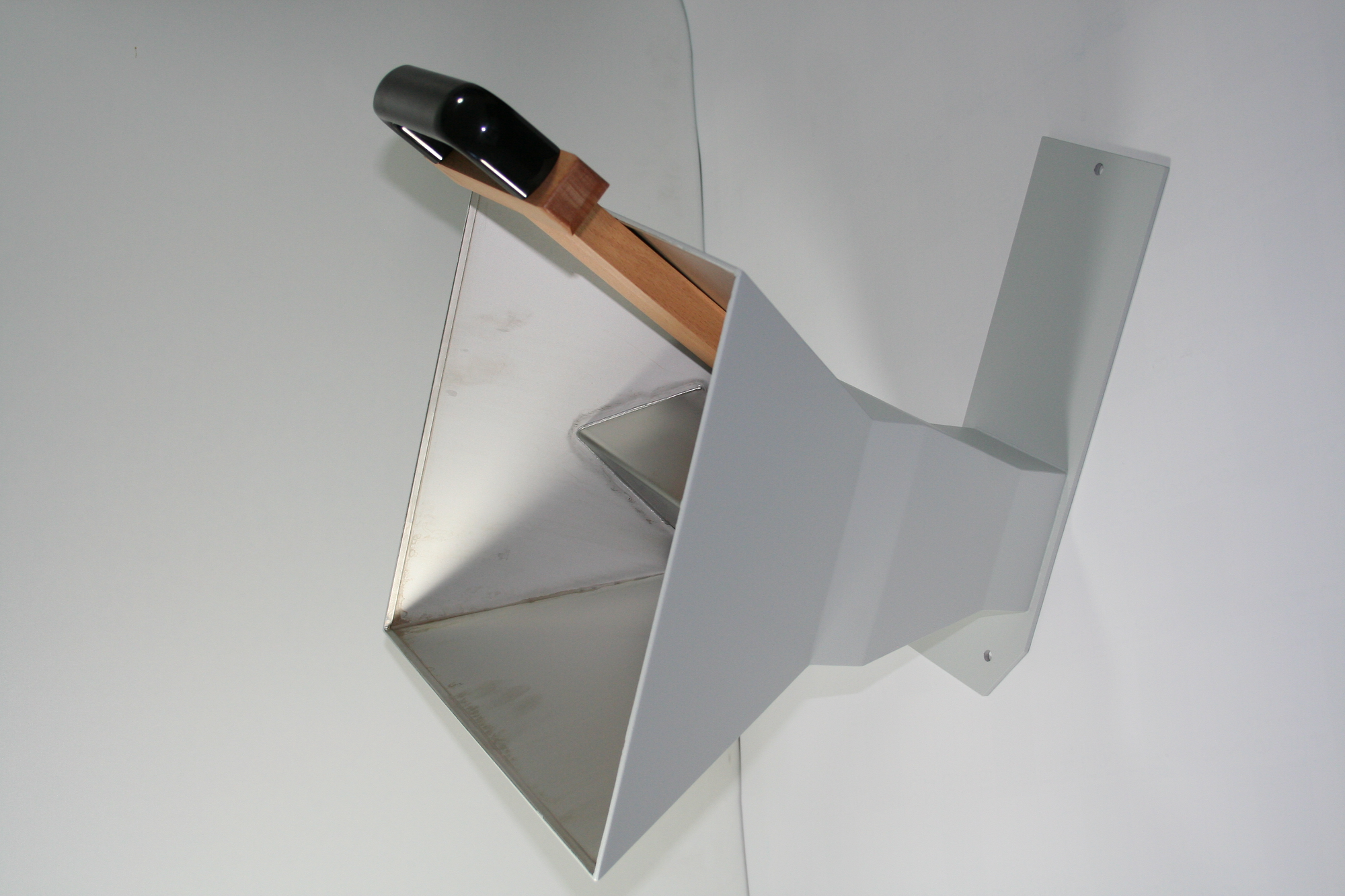

Long stock hopper with wooden plunger
Additional plungers for universal hopper
中性分析研磨用柱塞:
- 铝柱塞非常容易清洗
- 塑料柱塞适合在清洗池中清洗
- 如果首选天然材料，适合适用木柱塞
22.725.0010
Plastic plunger
22.725.0011

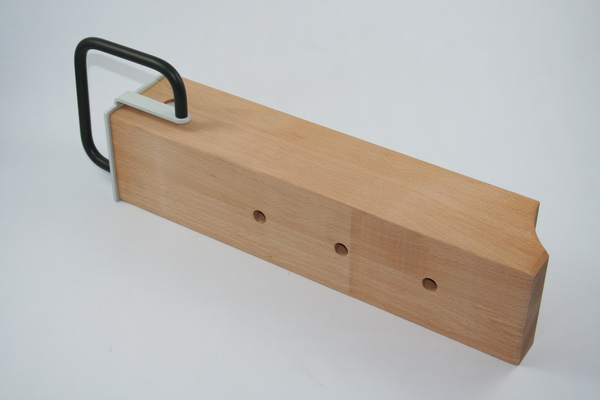

Wooden plunger
22.725.0012
Aluminum plunger
Bottom sieves SM 100, SM 200, SM 300

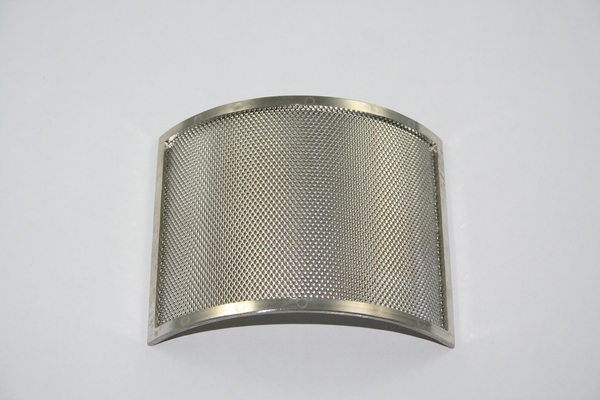

Bottom sieves of stainless steel
可用材质:
- 不锈钢:
适合大多数应用
- 钢 1.0353:
适用于当重金属磨损时，例如当要分析重金属含量时
无重金属磨具是专门为制备样品而设计的，用于分析样品的重金属含量。然而，磨具的磨损永远无法完全避免。
请注意:
像稻草这样的纤维材料可以纵向通过筛孔。这意味着样品中可能会保留比所用筛子孔径大的纤维。
03.647.0312

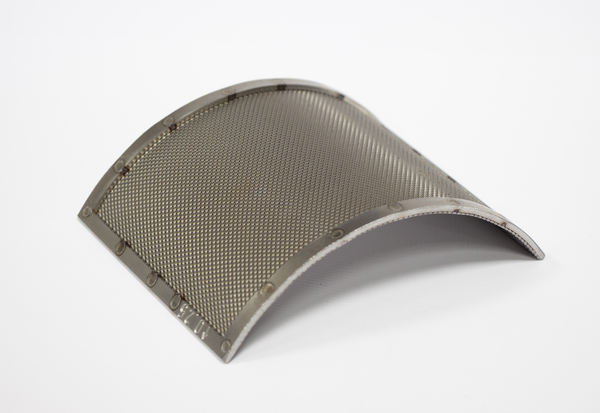

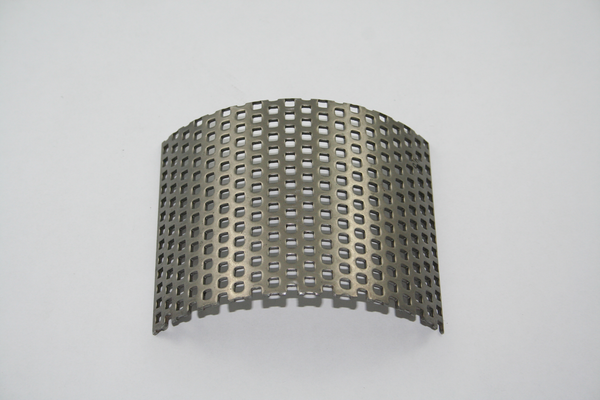

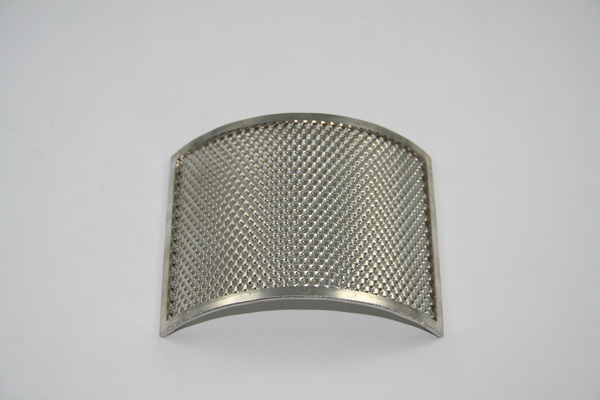

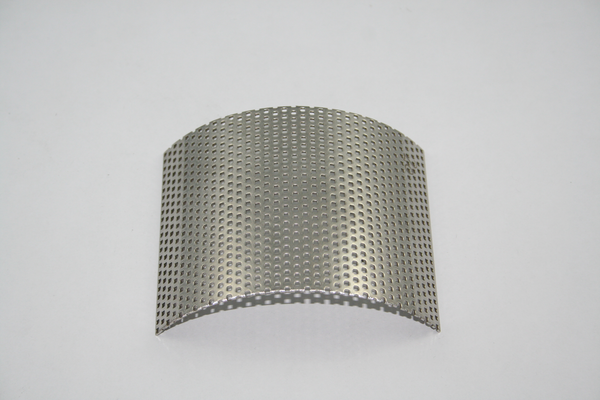

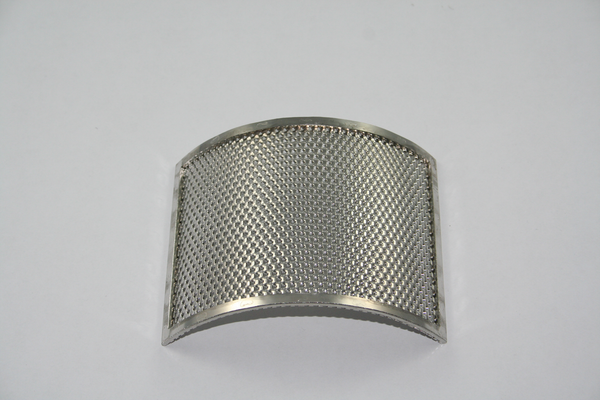

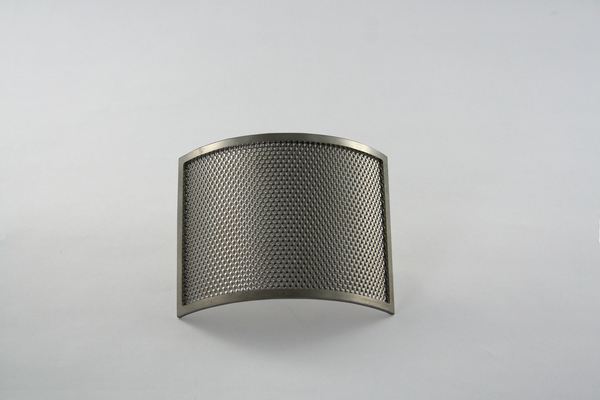

Trapezoid holes
0.25 mm
03.647.0313
Trapezoid holes
0.50 mm
03.647.0314
Trapezoid holes
0.75 mm
03.647.0315
Trapezoid holes
1.00 mm
03.647.0316
Trapezoid holes
1.50 mm
03.647.0317
Trapezoid holes
2.00 mm
03.647.0318

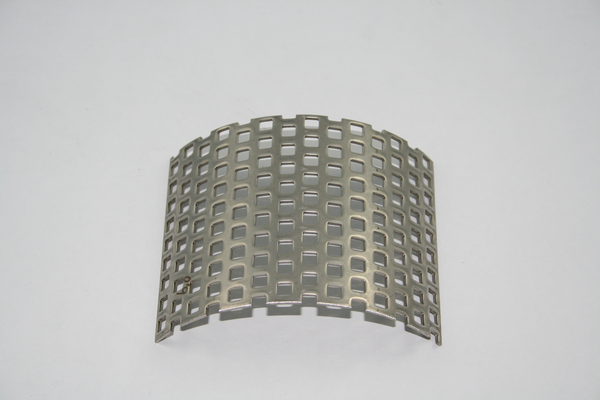

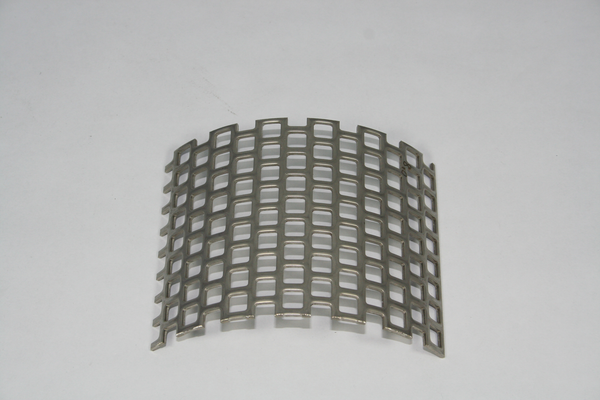

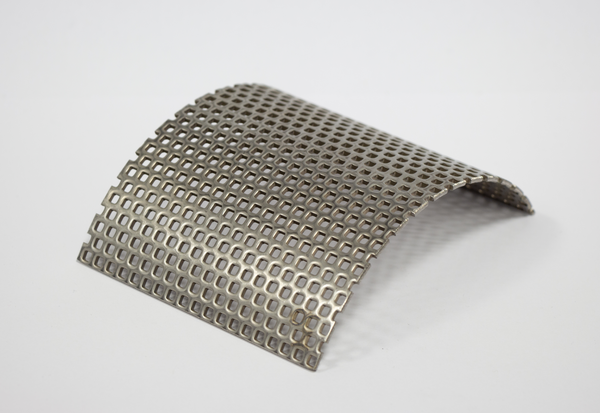

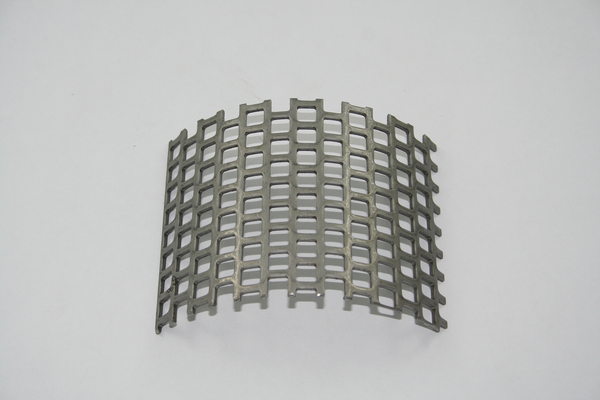

Square holes
2.00 mm
03.647.0319
Square holes
3.00 mm
03.647.0320
Square holes
4.00 mm
03.647.0321
Square holes
6.00 mm
03.647.0322
Square holes
8.00 mm
03.647.0024
Square holes
10.00 mm
03.647.0062

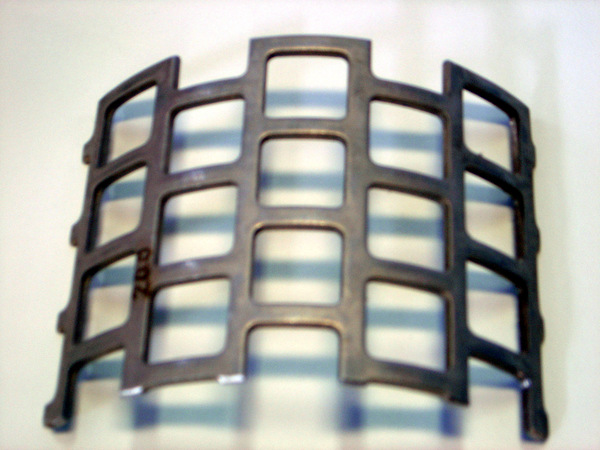

Square holes
20.00 mm

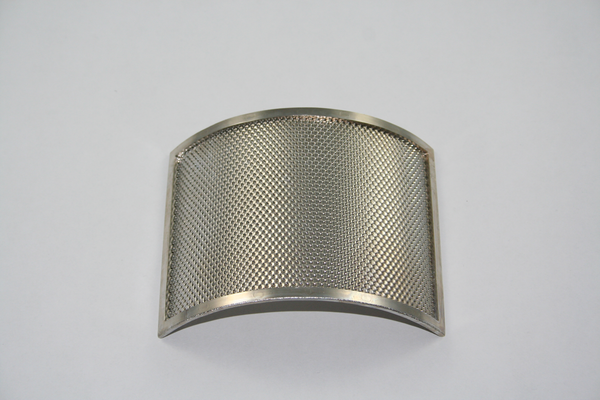

Bottom sieves of steel 1.0353 for grinding without heavy-metal contamination
可用材质:
- 不锈钢:
适合大多数应用
- 钢 1.0353:
适用于当重金属磨损时，例如当要分析重金属含量时
无重金属磨具是专门为制备样品而设计的，用于分析样品的重金属含量。然而，磨具的磨损永远无法完全避免。
请注意:
像稻草这样的纤维材料可以纵向通过筛孔。这意味着样品中可能会保留比所用筛子孔径大的纤维。
03.647.0325
Trapezoid holes
0.25 mm
03.647.0326
Trapezoid holes
0.50 mm
03.647.0327
Trapezoid holes
0.75 mm
03.647.0328
Trapezoid holes
1.00 mm
03.647.0329
Trapezoid holes
1.50 mm
03.647.0331
Square holes
2.00 mm
03.647.0332
Square holes
3.00 mm
03.647.0333
Square holes
4.00 mm
03.647.0334
Square holes
6.00 mm
03.647.0335
Square holes
8.00 mm
03.647.0359
Square holes
10.00 mm
Accessories SM 100, SM 200, SM 300
Collecting receptacles
22.003.0008

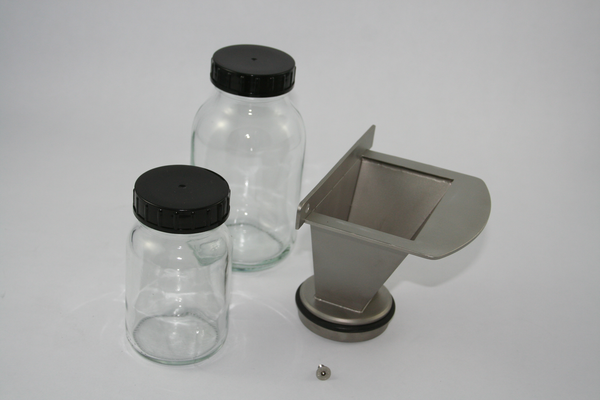

Collecting unit 250 / 500 ml, incl. 2 sample bottles
22.523.0001
Sample bottles, 250 ml, 10 pieces
22.003.0007

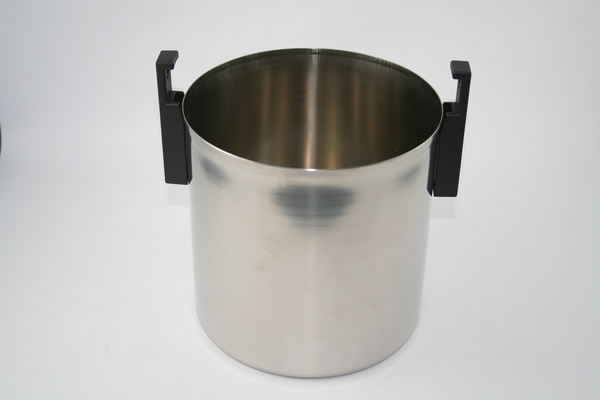

Collecting receptacle, 5 litres, stainless steel
05.045.0528
Collecting receptacle, 30 litres
22.187.0006

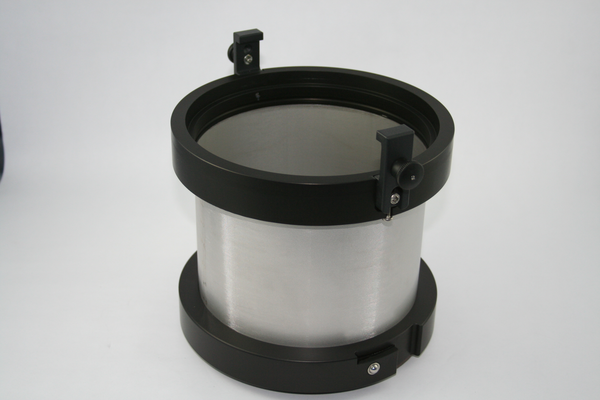

Ring-type filter for collecting receptacle, 5 litres
22.748.0001
Dust filter clamping rings for ring-type filter, incl. 5 dust filters
22.524.0002
Dust filters for ring-type filter, 25 pcs.
22.187.0007
Filter hose for collecting receptacle, 5 litres, incl. holder
Accessories for rotors
22.908.0001
Reversible cutting tip incl. screws, tungsten carbide, for 6-disc rotor (10 pcs.)
22.151.0004
Cutting plates, stainless steel, for parallel section rotor, 1 set (3 pieces)
22.151.0006
Cutting plates, steel 1.1740, for parallel section rotor, 1 set (3 pieces)for grinding without heavy-metal contamination
for grinding without heavy-metal contamination

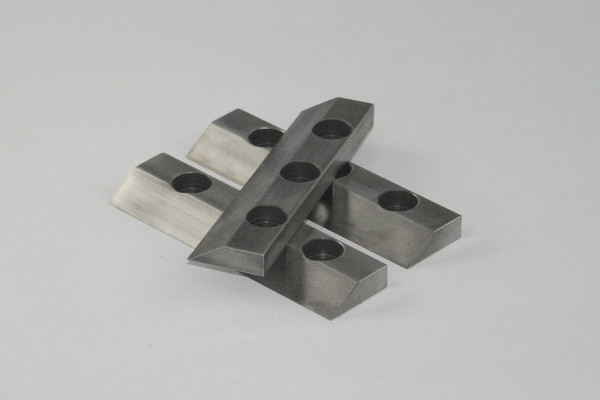

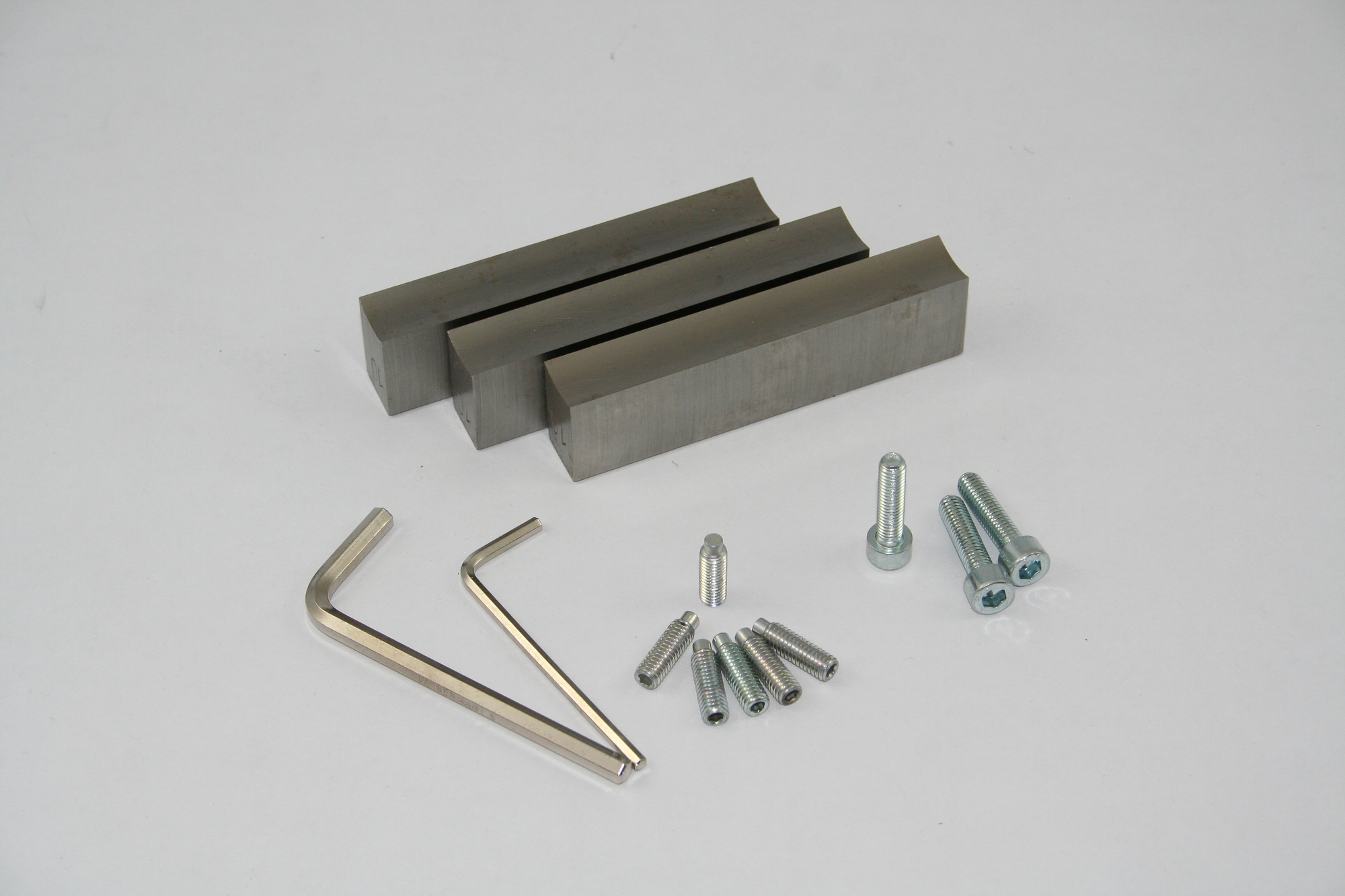

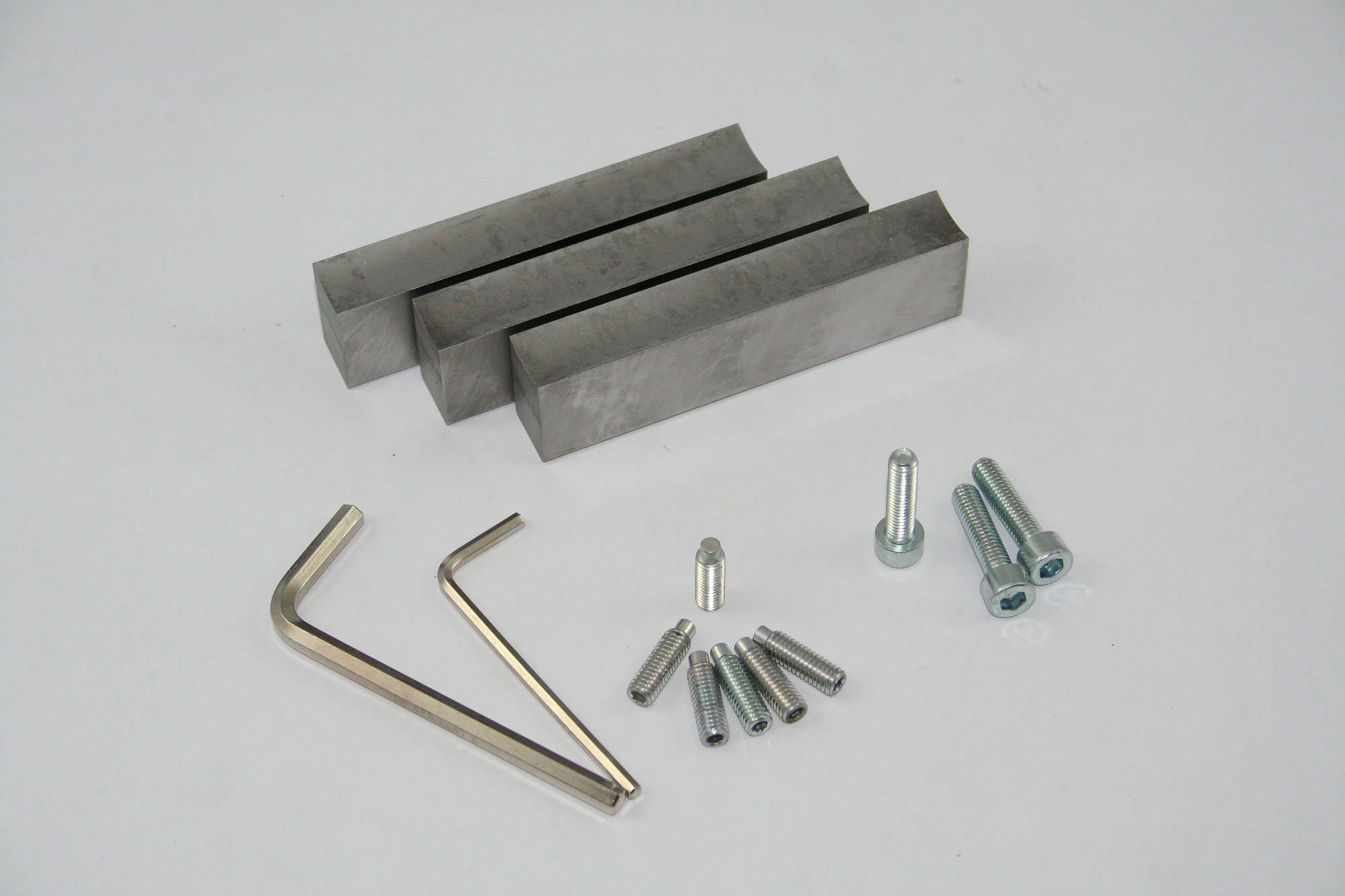

Stationary cutting bars
22.152.0007
Cutting bars, stainless steel, 1 set (3 pieces) for SM 100
22.152.0009
Cutting bars, steel 1.1740, 1 set (3 pieces) for SM 100for grinding without heavy-metal contamination
22.608.0035
Adjustment aid for cutting bars
Additional items SM 100, SM 200, SM 300
22.225.0002
Replacement extraction tool for rotor
22.111.0003
Gasket for door SM 100 / SM 200 / SM 300, 1 piece
99.200.0032
IQ/OQ Documentation for SM 100
