锤式破碎机 HM 200 坚固的设计满足高要求的最终细度

HM 200 introduction

获取您的报价 — 根据您的确切要求量身定制

选择您需要的产品，并在几秒钟内建立您的询价单。我们的专家将审核您的选择，并提供精确的、无义务的报价。

您的好处：

  • 一次性申请多个项目，节省时间
  • 由专家审查和建议来避免错误
  • 获得清晰、以应用程序为中心的报价 — 无需承诺

您的查询列表始终显示在右上角，因此您可以随时继续。

我们随时为您提供帮助！

在做决定时遇到麻烦？让我们的专家为您找到完美的选择！

联系我们

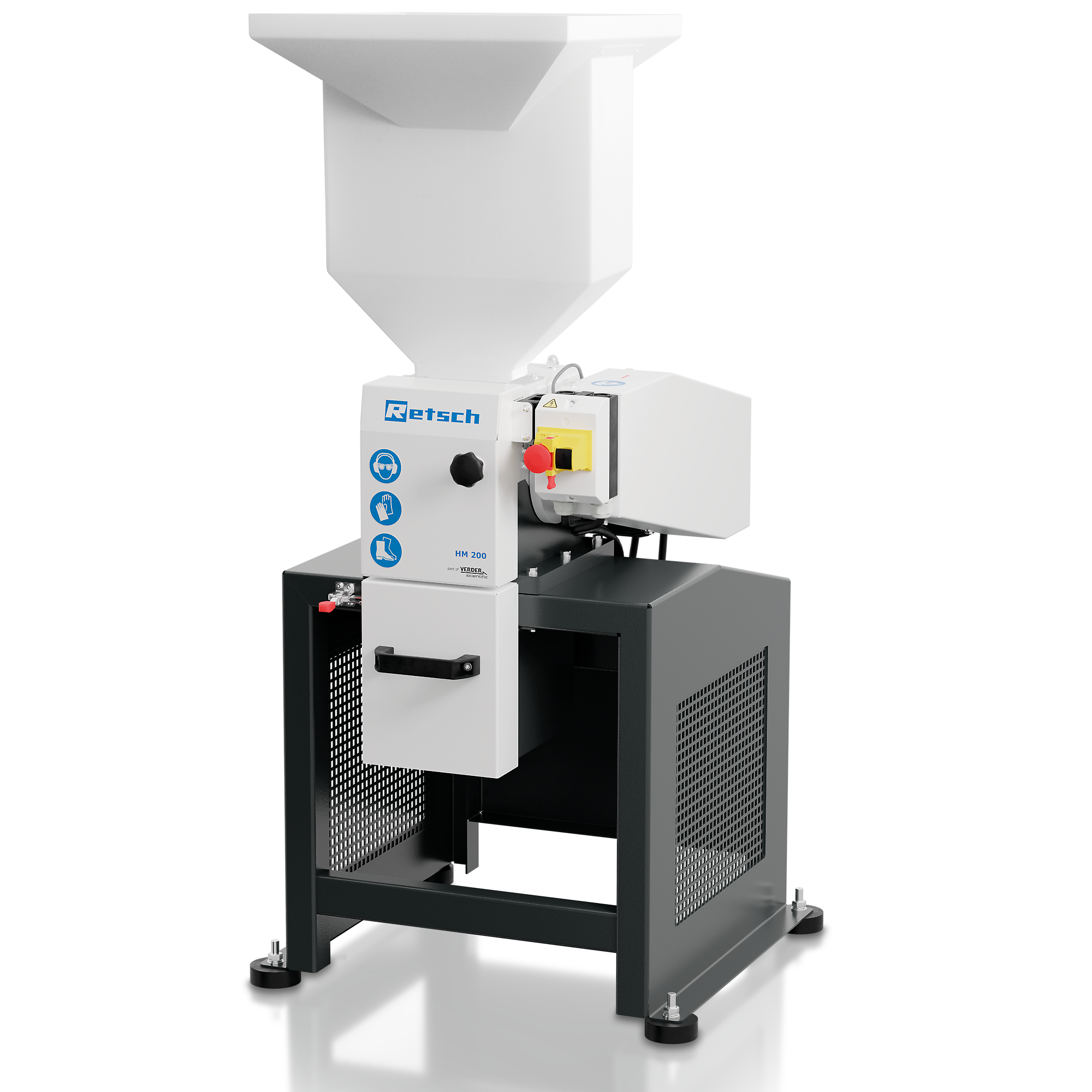

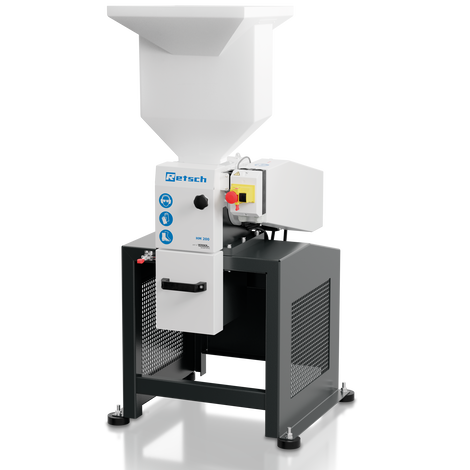

Hammer Mill HM 200

Hammer Mill incl. rotor with swing hammers, wearing plates and 10 l collecting receptacle
(please order hopper and bottom sieve separately)

21.753.0001
HM 200
3~ 400 V, 50 Hz
21.753.0002
HM 200
3~ 200-220 V, 60 Hz

other electrical versions available for the same price

Hopper

23.785.0031

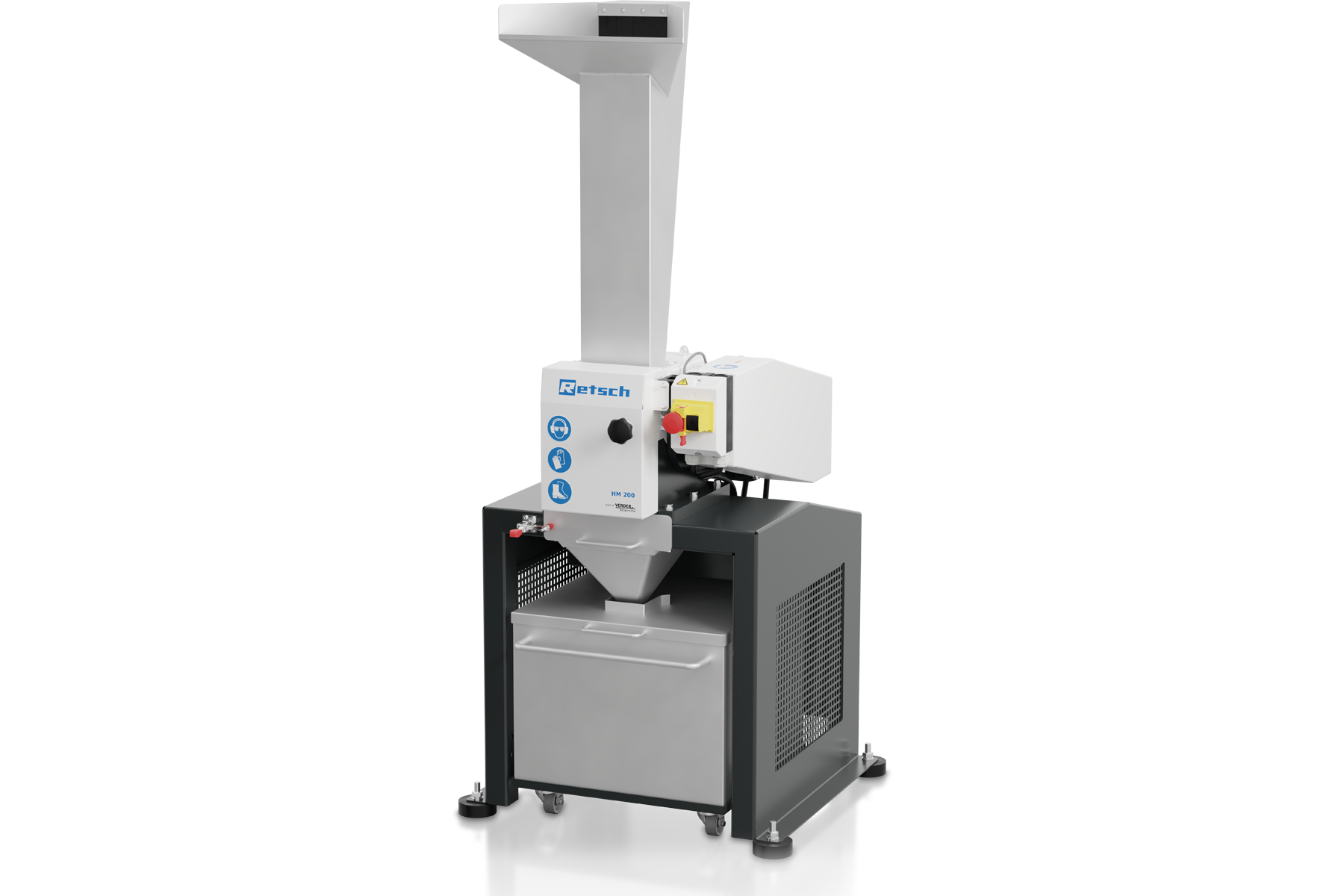

Long-stock hopper
23.785.0032

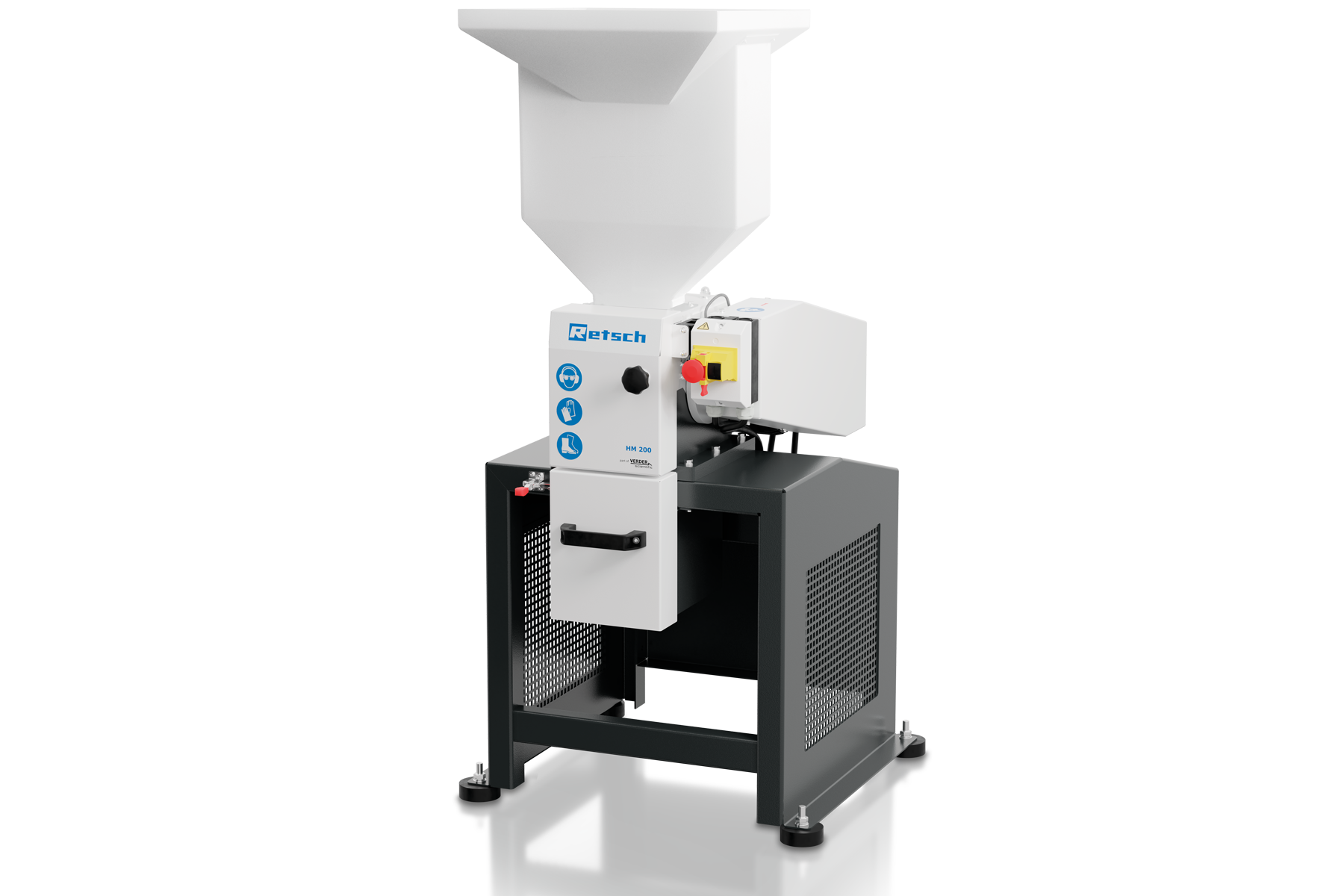

Standard hopper

Bottom sieves HM 200, steel

03.647.0563
Trapezoid holes
0.50 mm
03.647.0564
Trapezoid holes
1.00 mm
03.647.0592
Trapezoid holes
1.50 mm
03.647.0565
Round holes
2.00 mm
03.647.0566
Round holes
3.00 mm
03.647.0567
Round holes
4.00 mm
03.647.0568
Round holes
5.00 mm
03.647.0569
Round holes
6.00 mm
03.647.0570
Round holes
8.00 mm
03.647.0571
Round holes
10.00 mm
03.647.0572
Square holes
15.00 mm
03.647.0573
Square holes
40.00 mm

Cyclone for HM 200

Cyclone set with holder, connecting element, lid with connector for vacuum cleaner and sample outlet

22.935.0039
Cyclone set with collecting receptacle 30 l
03.183.0138
Cassette with outlet for use with cyclone
02.605.0420
Adjustable steel connection tubing (316L) for cyclone set
05.707.0208
FDA certified hose, 1.5 m
22.748.0017
Industrial vacuum cleaner Attix, 230 V, 50/60 Hz

Additional items HM 200

23.003.0039
Collecting receptacle, 10 litres, stainless steel
23.003.0038
Collecting receptacle, 30 litres, stainless steel
23.003.0037
Outlet for continuous operation
22.786.0036
Conversion kit for continuous operation, incl. standard hopper, outlet for continuous operation, collecting receptacle, 30 liters, stainless steel
22.748.0017
Industrial vacuum cleaner, 230 V, 50/60 Hz, incl. adapter
(other electrical versions and spare filter bags available upon request)
23.711.0035
Wear plates, hardened steel
22.002.0028
Rotor incl. swing hammers
