交叉敲击式粉碎仪 SK 300

SK Cross Beater Mill 300 - New Features Video

获取您的报价 — 根据您的确切要求量身定制

选择您需要的产品，并在几秒钟内建立您的询价单。我们的专家将审核您的选择，并提供精确的、无义务的报价。

您的好处：

  • 一次性申请多个项目，节省时间
  • 由专家审查和建议来避免错误
  • 获得清晰、以应用程序为中心的报价 — 无需承诺

您的查询列表始终显示在右上角，因此您可以随时继续。

我们随时为您提供帮助！

在做决定时遇到麻烦？让我们的专家为您找到完美的选择！

联系我们

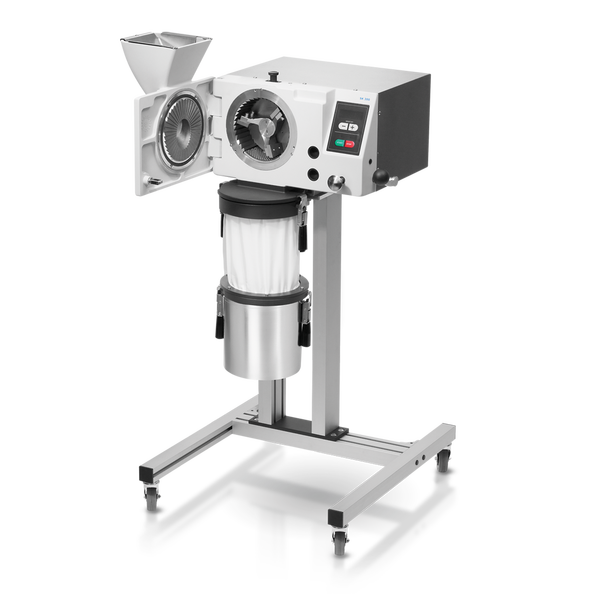

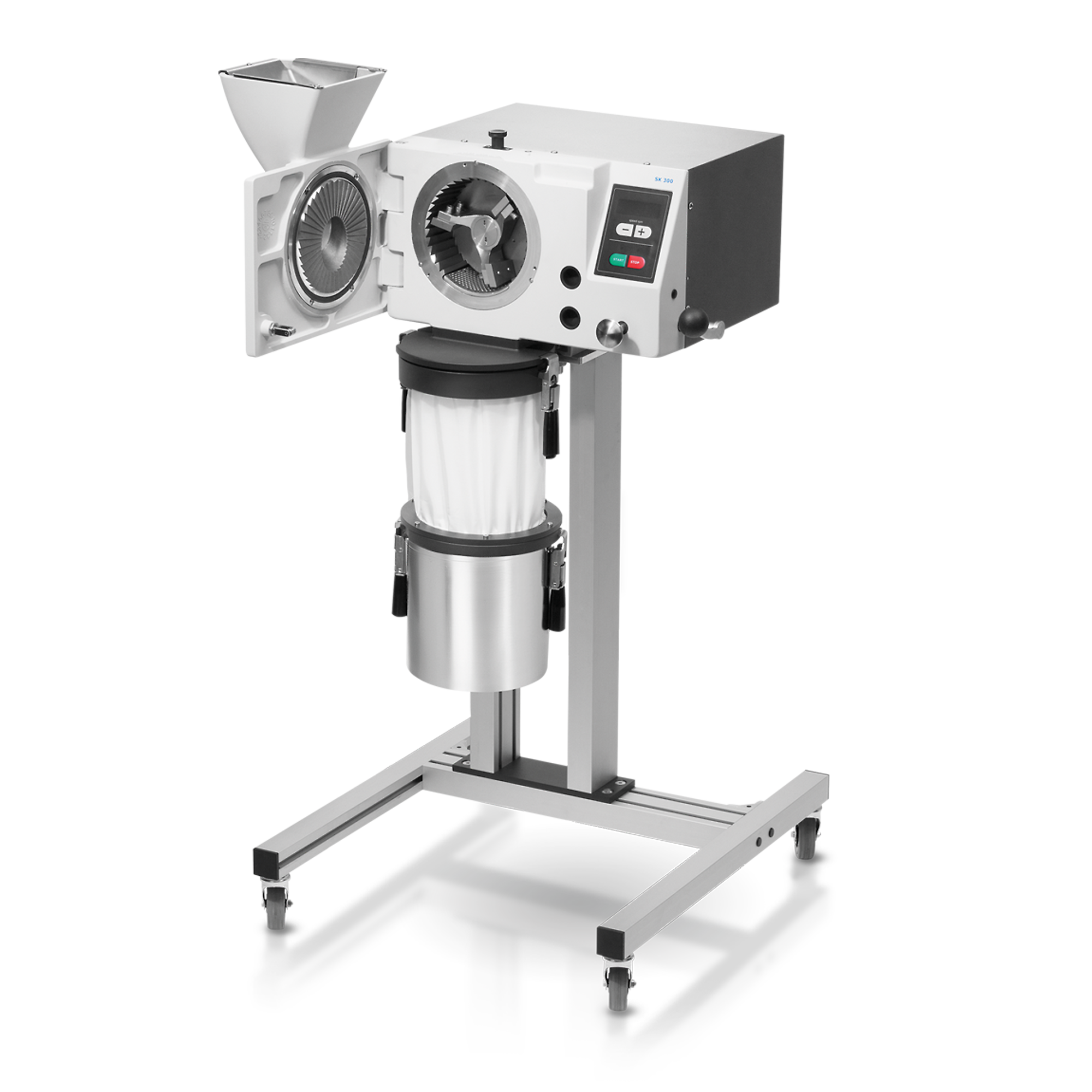

Cross Beater Mill SK 300

Cross Beater Mill SK 300 with cross beater, baffle plates, 240 mm filter hose and collecting receptacle
(please order bottom sieve and optional base frame separately)

grinding assembly / cross beater / baffle plates
20.751.0001
SK 300
200–240 V, 50/60 Hz
cast iron / cast iron / hardened steel
20.751.0002
SK 300
200–240 V, 50/60 Hz
hardened steel / cast iron / hardened steel
20.751.0003
SK 300
200–240 V, 50/60 Hz
stainless steel / stainless steel / stainless steel
20.751.0004
SK 300
200–240 V, 50/60 Hz
cast iron / cast iron / steel 1.1740
for grinding without heavy-metal contamination
22.824.0007
Base frame with wheels

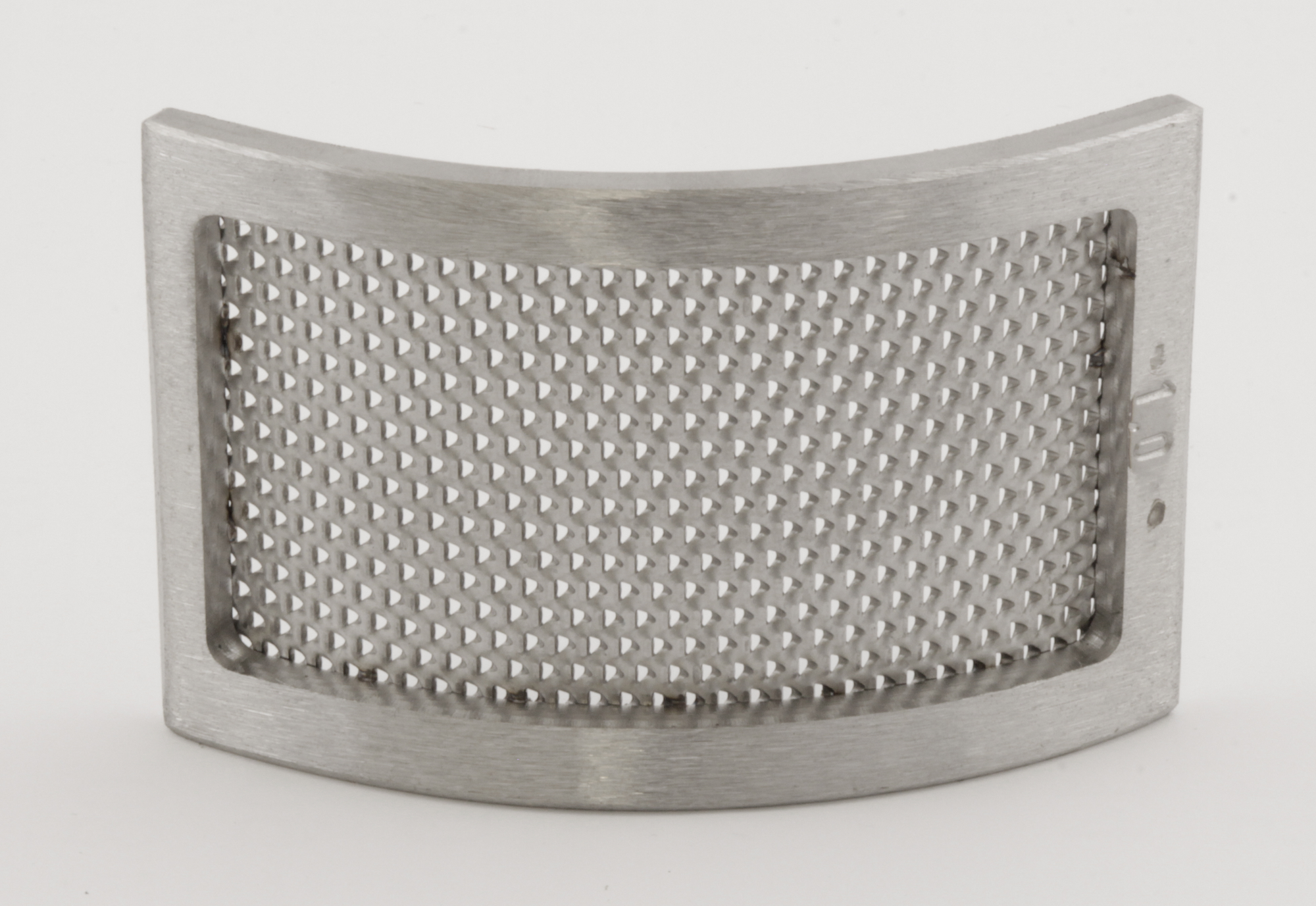

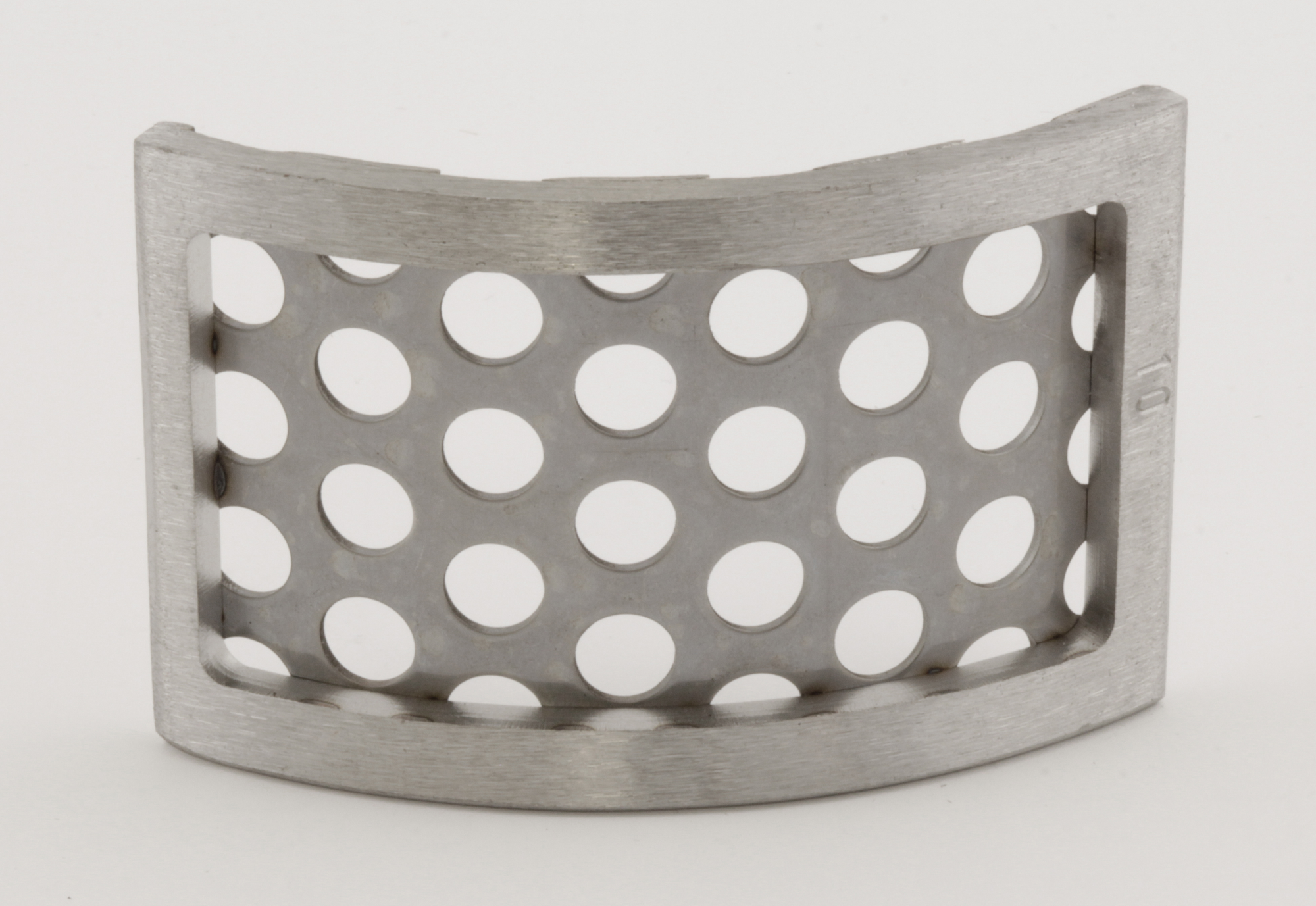

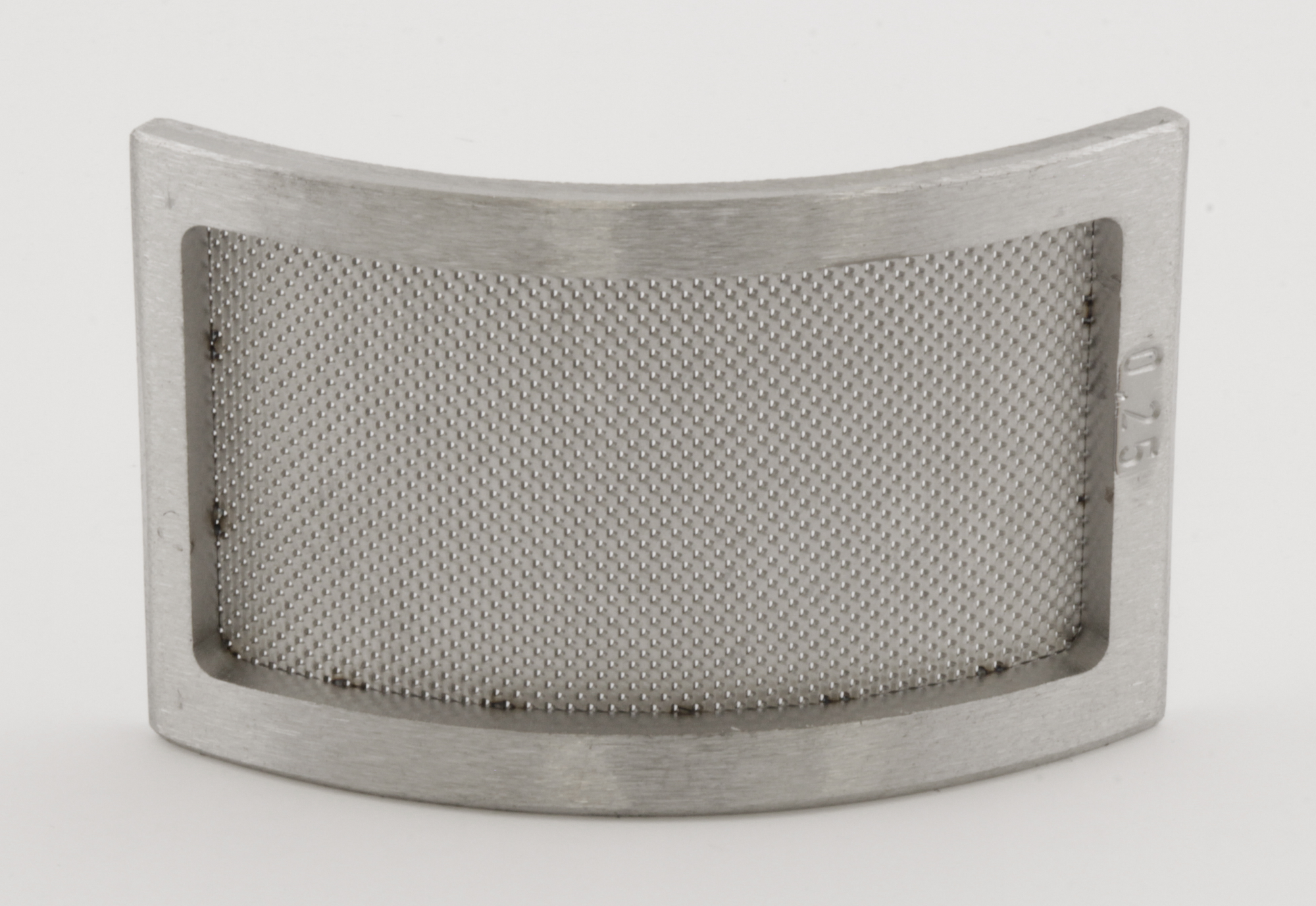

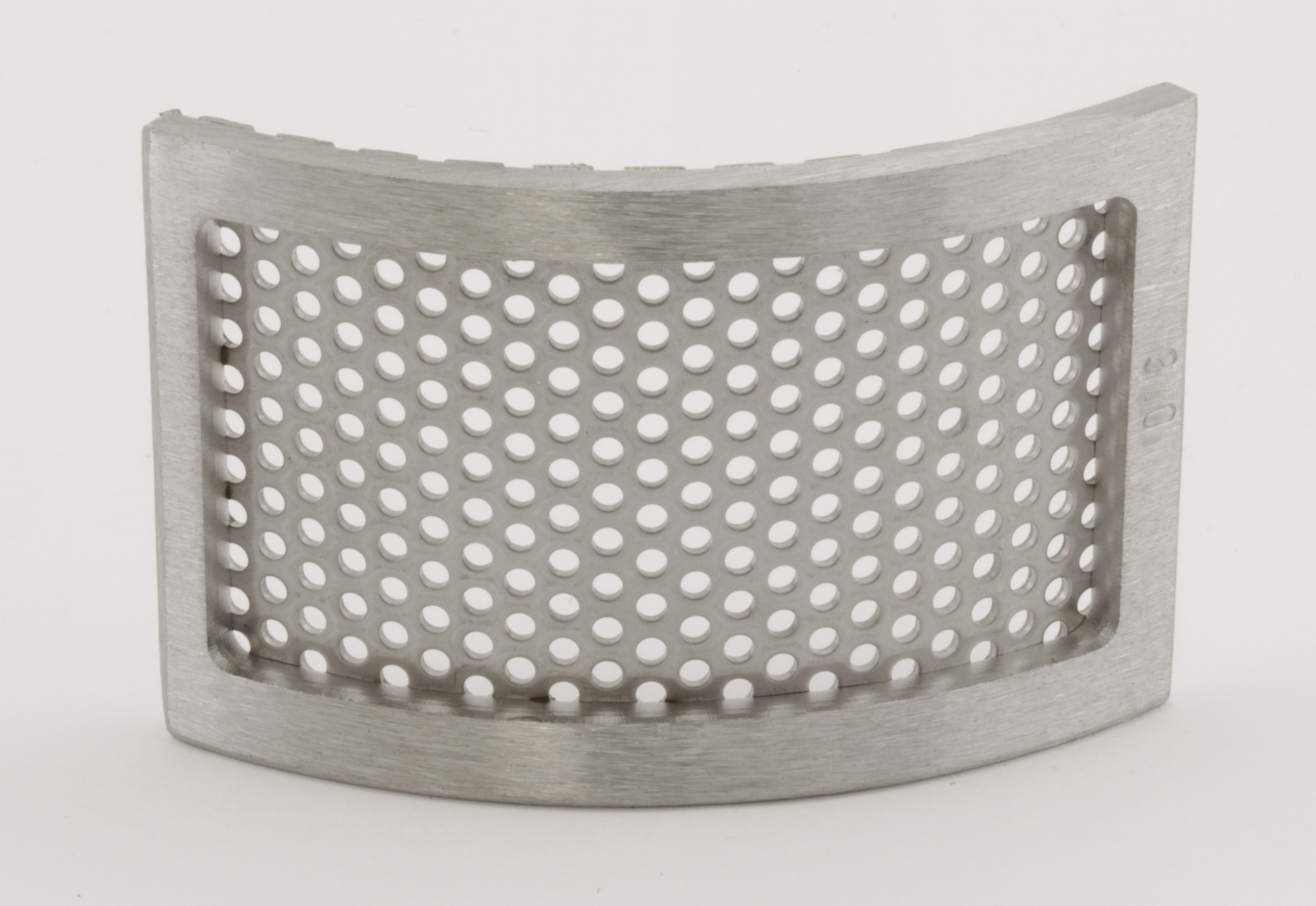

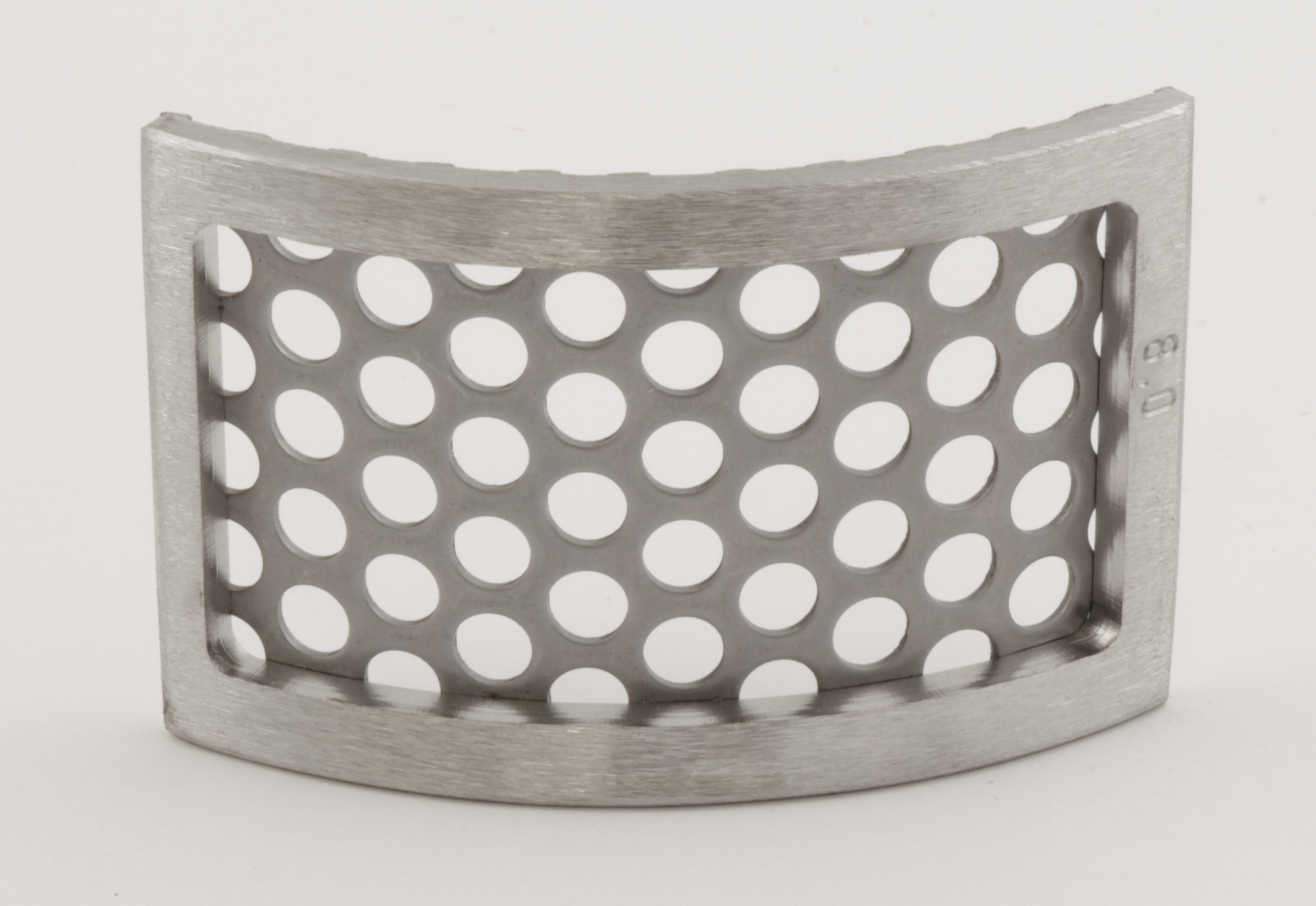

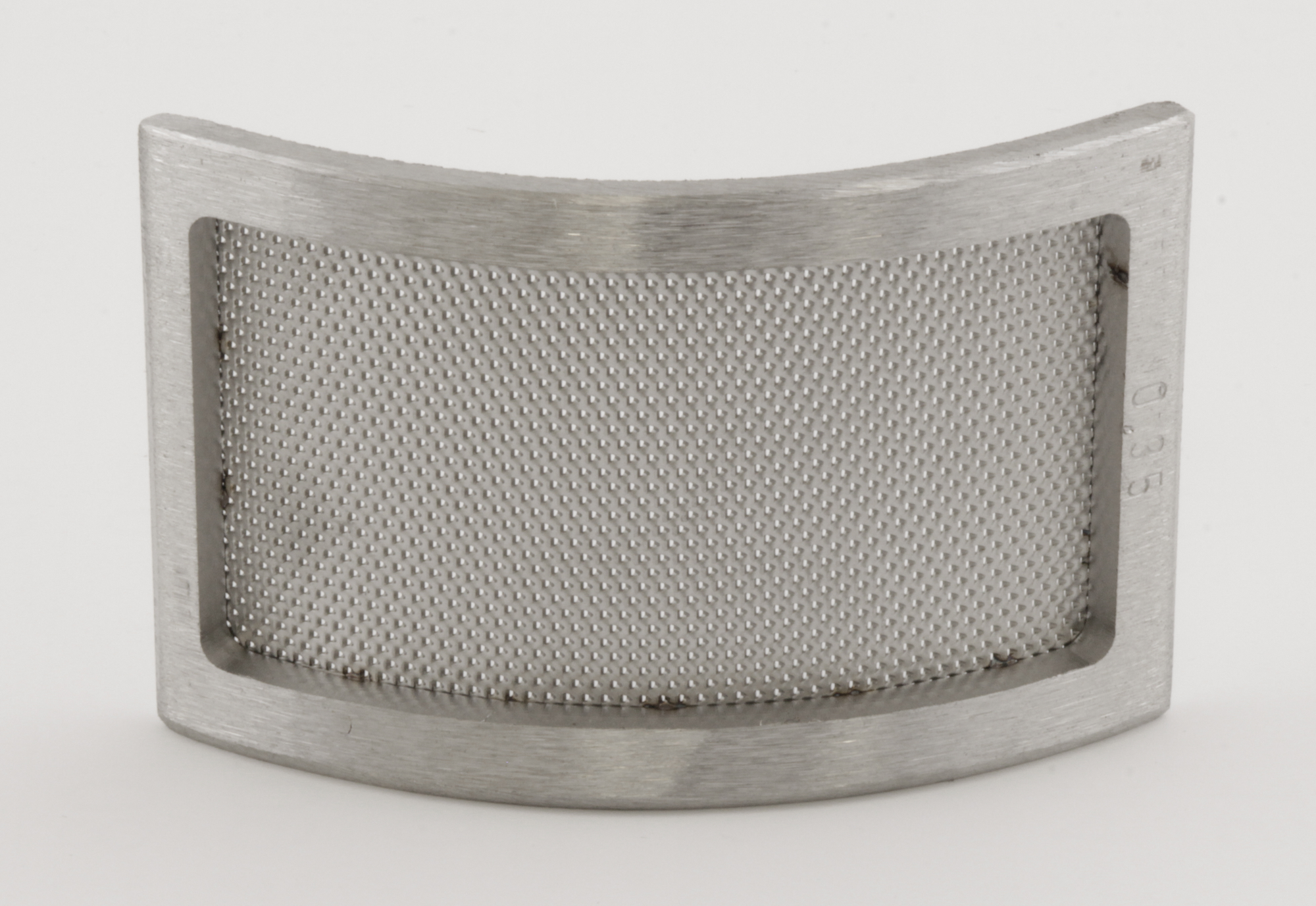

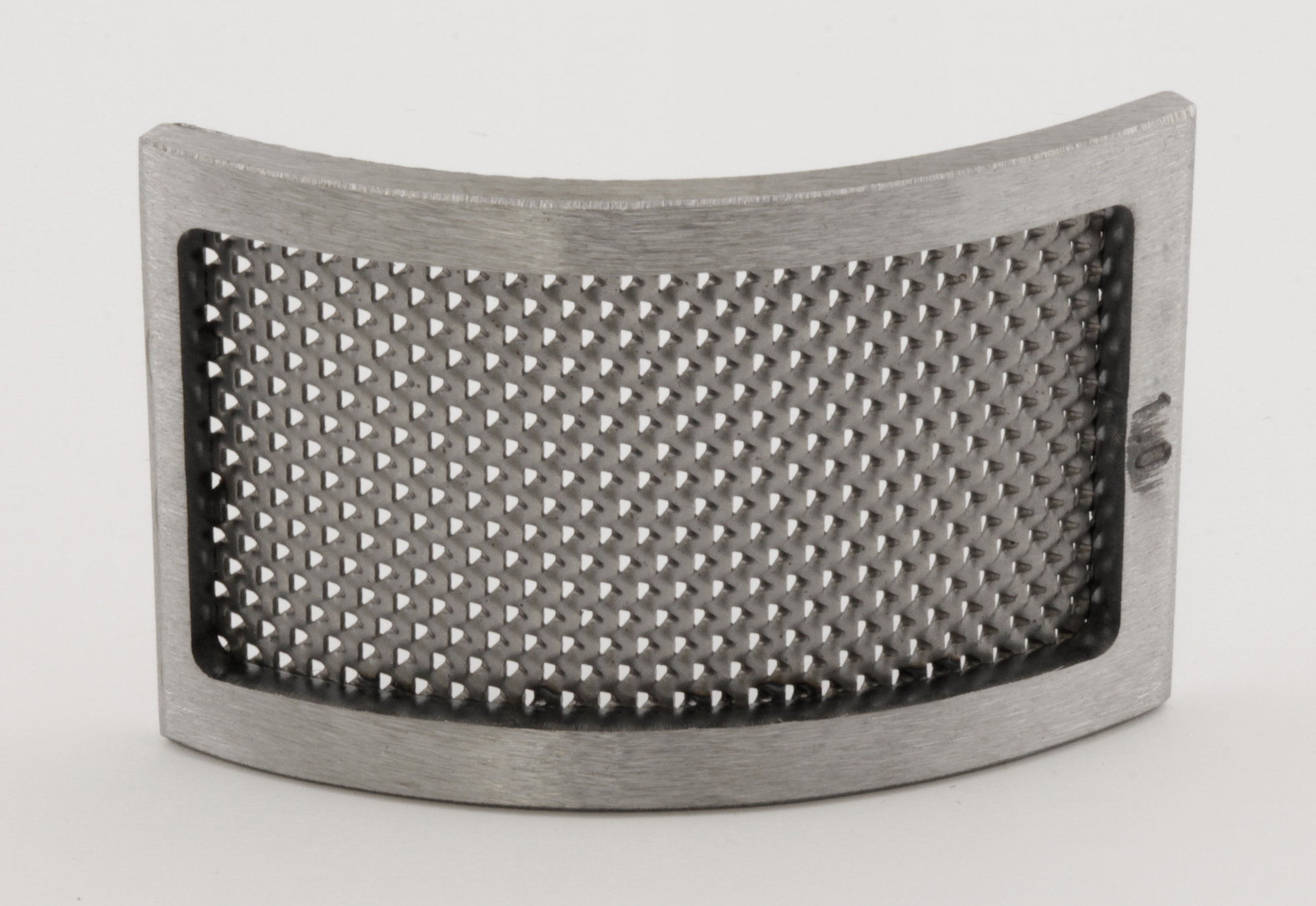

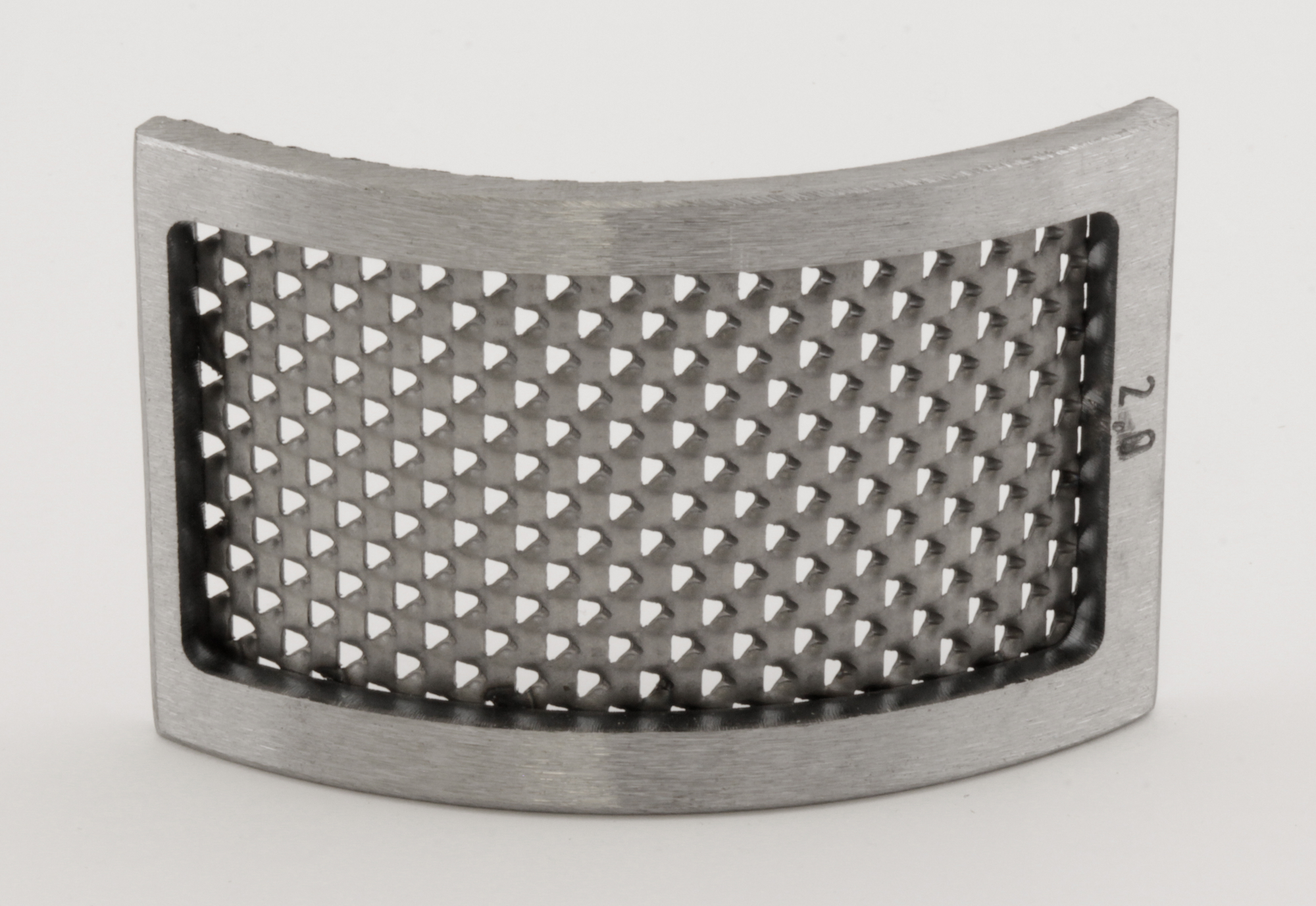

Bottom sieves SK 300

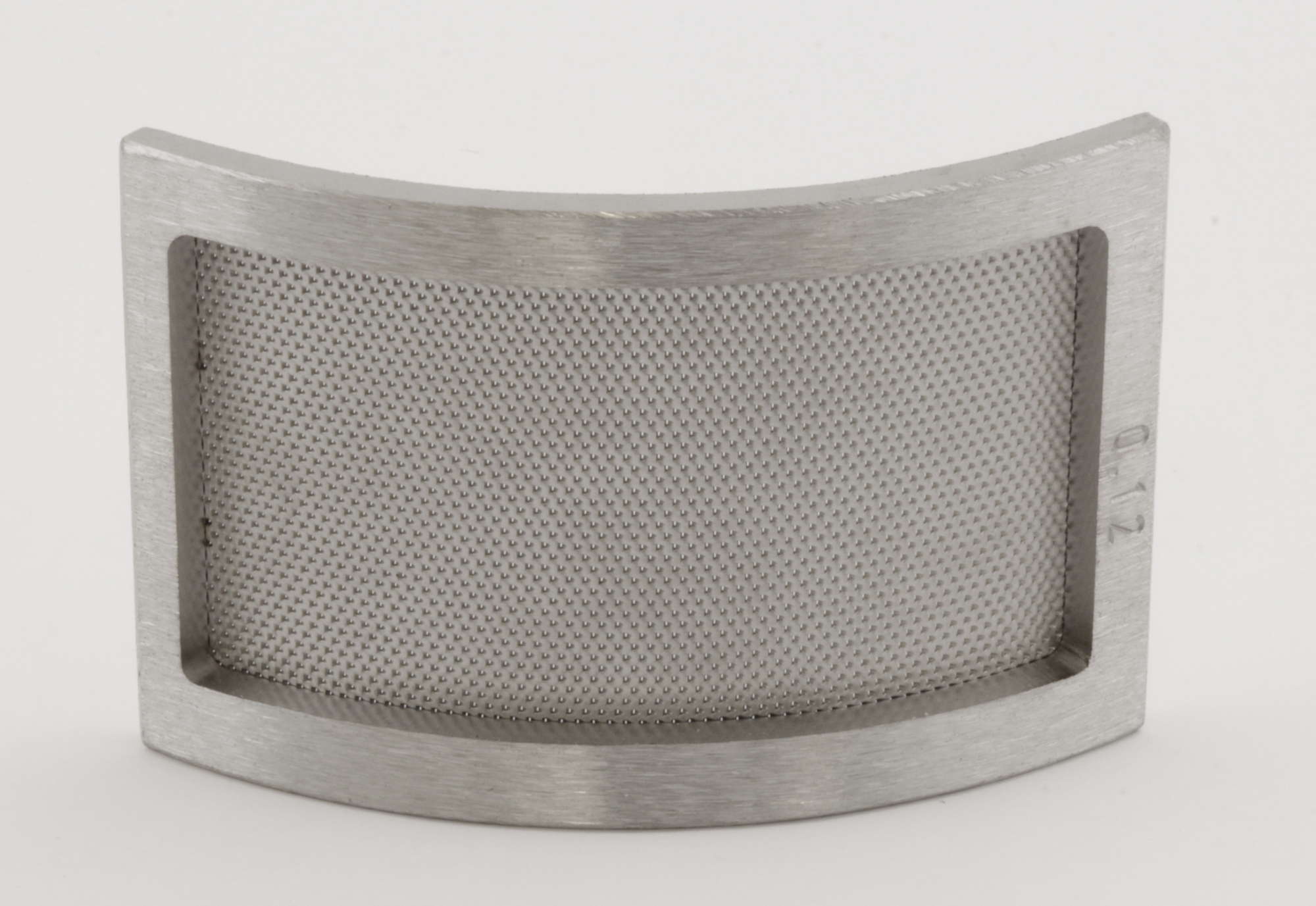

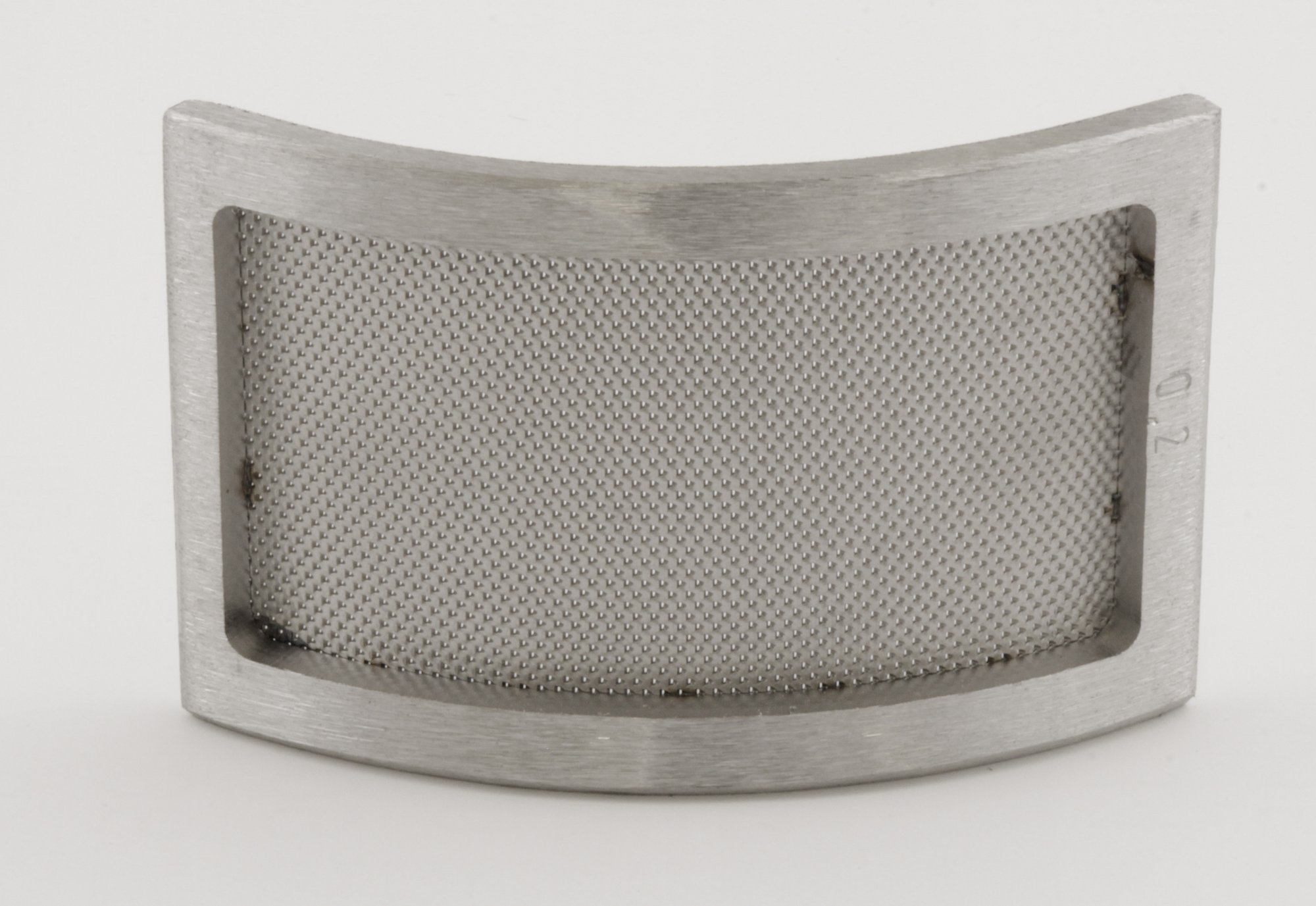

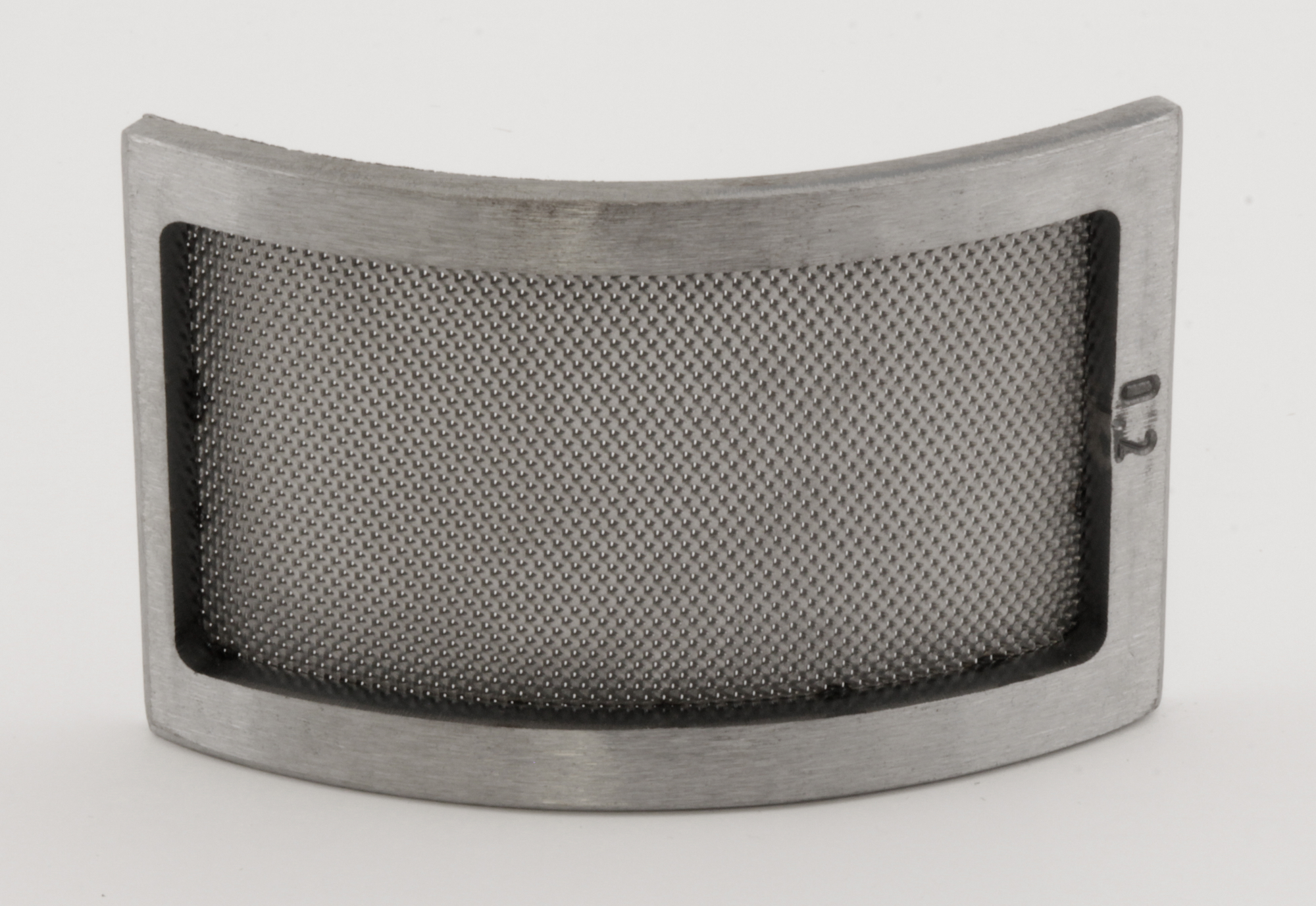

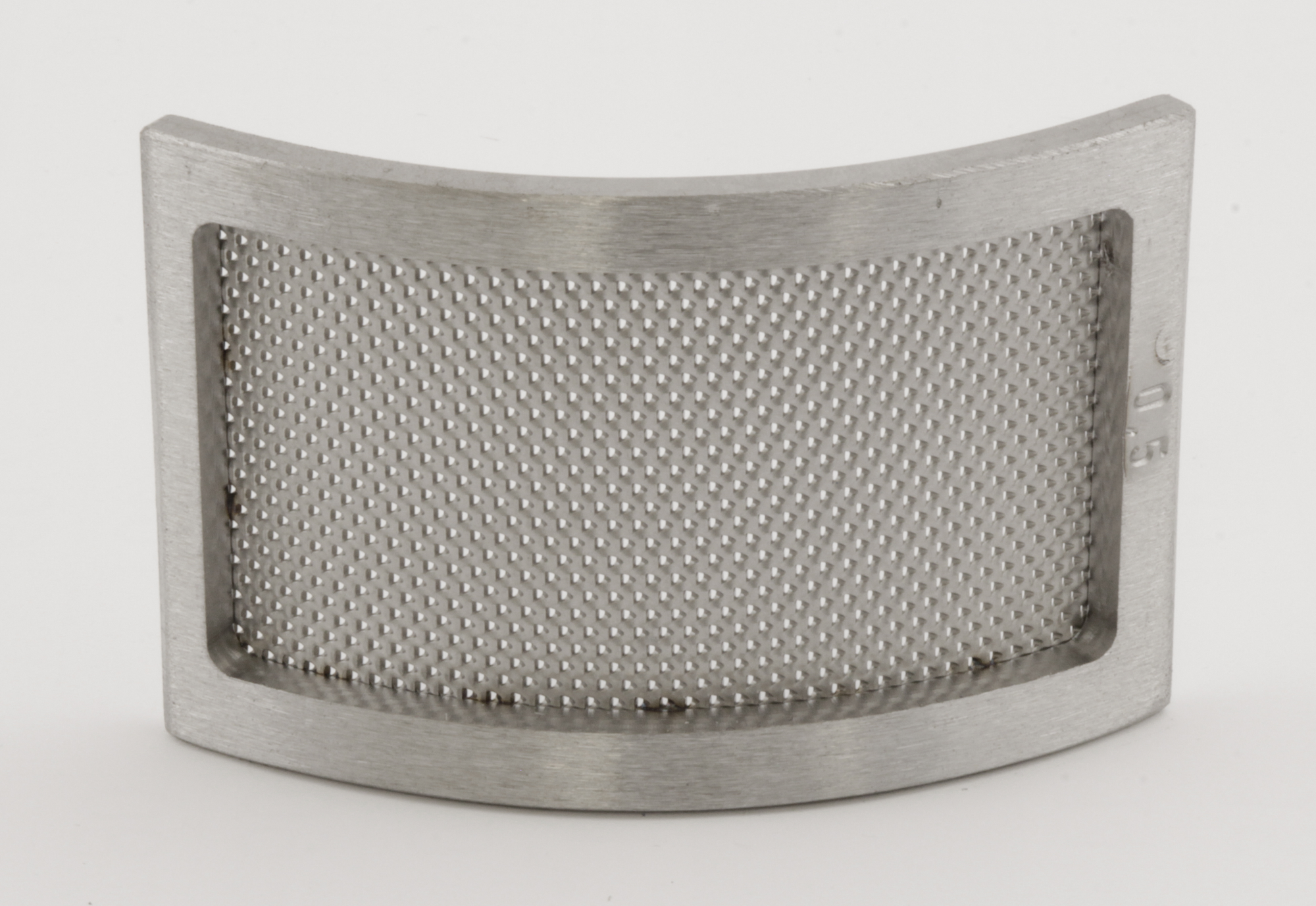

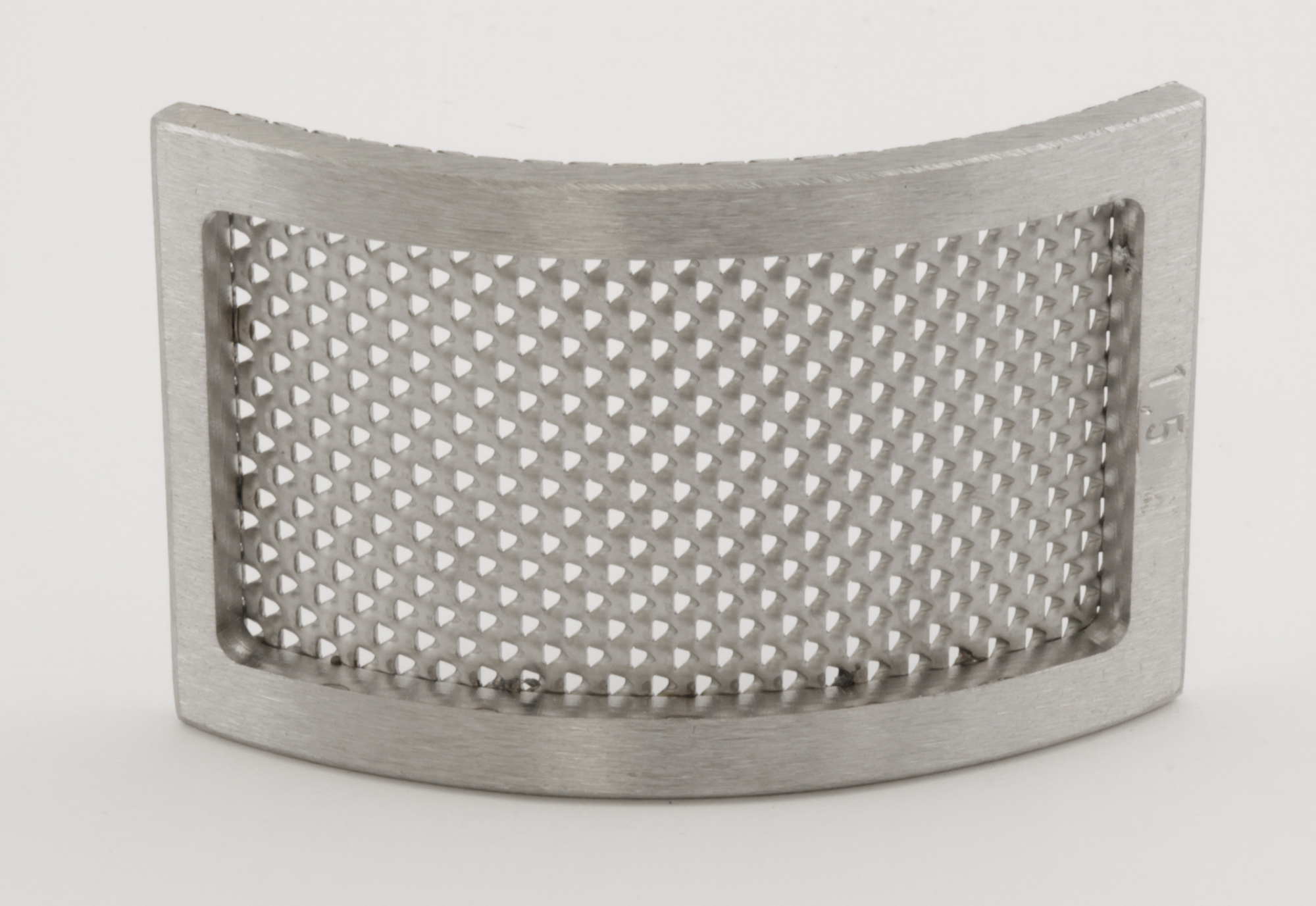

Bottom sieves SK 300 of stainless steel

02.407.0098

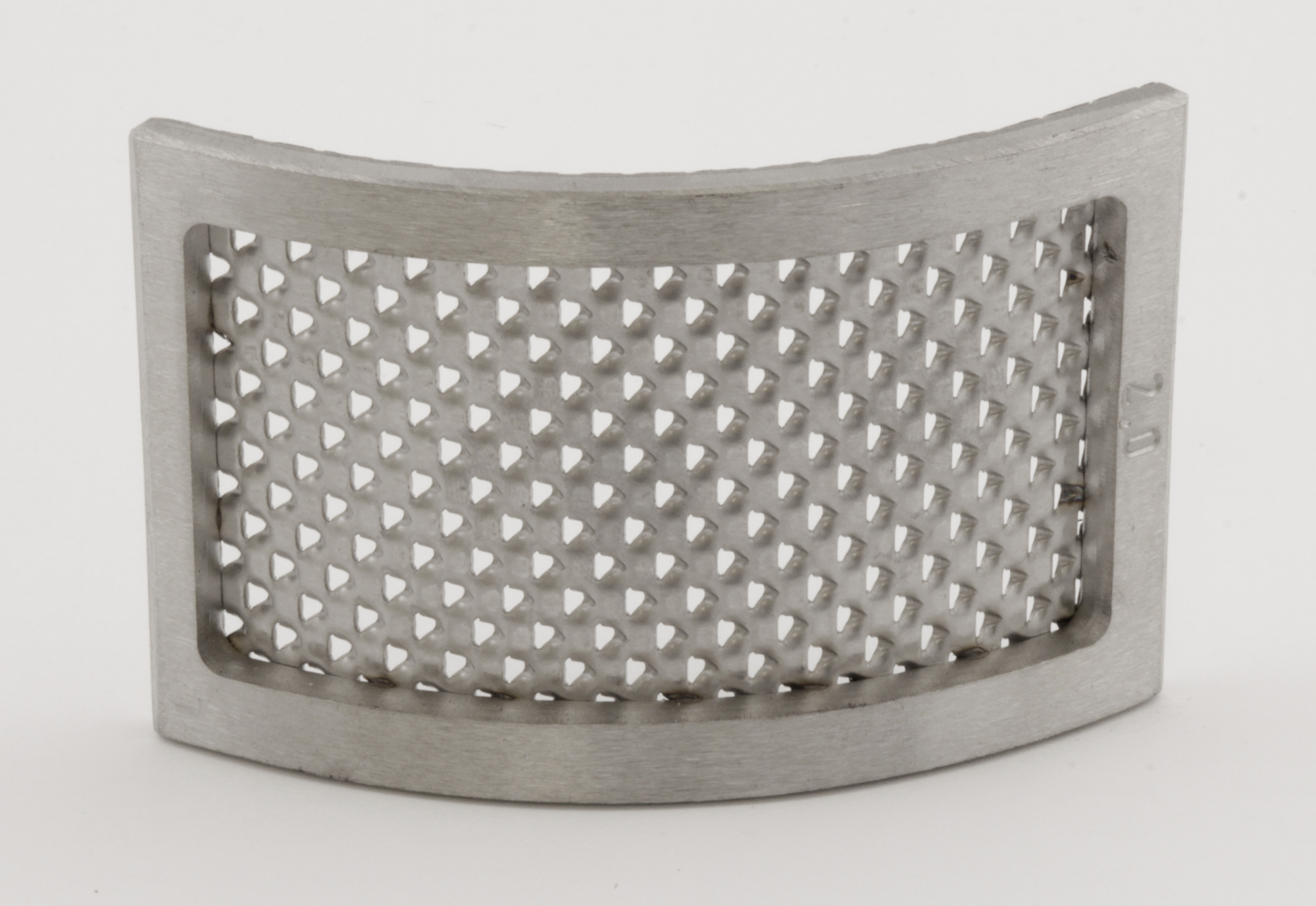

Trapezoid holes
0.12 mm
02.407.0099
Trapezoid holes
0.20 mm
02.407.0100
Trapezoid holes
0.25 mm
02.407.0121

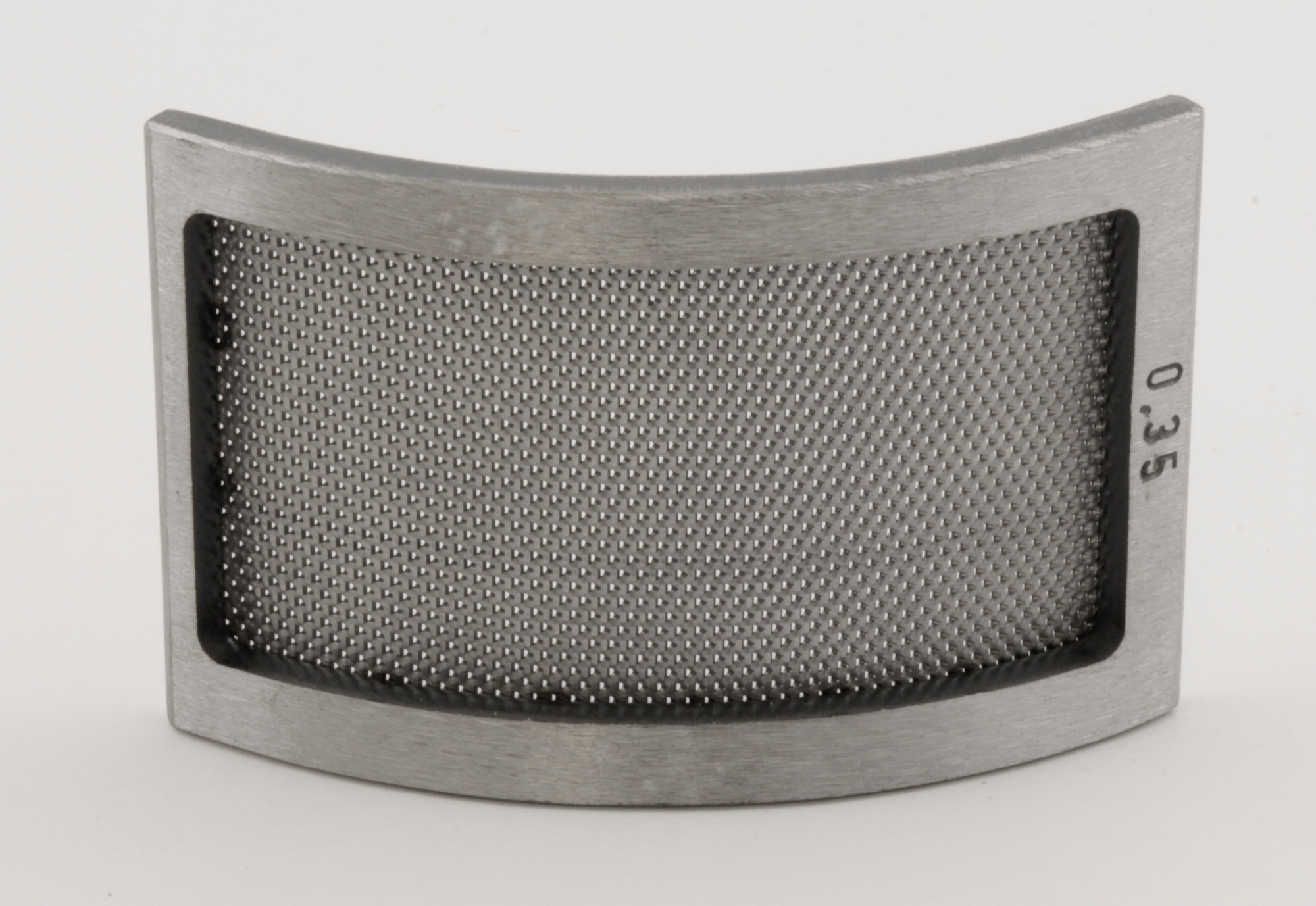

Trapezoid holes
0.35 mm
02.407.0101

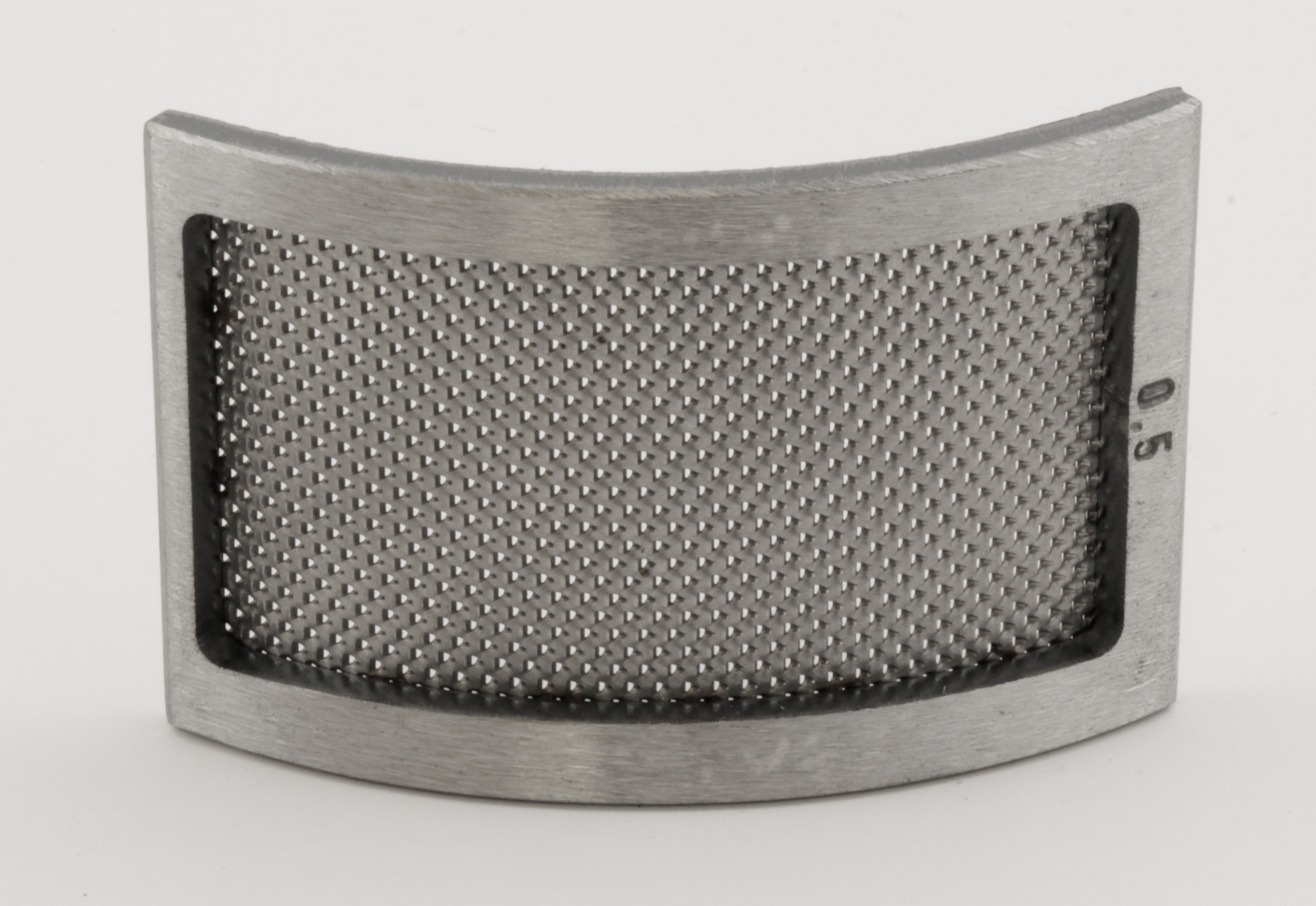

Trapezoid holes
0.50 mm
02.407.0102

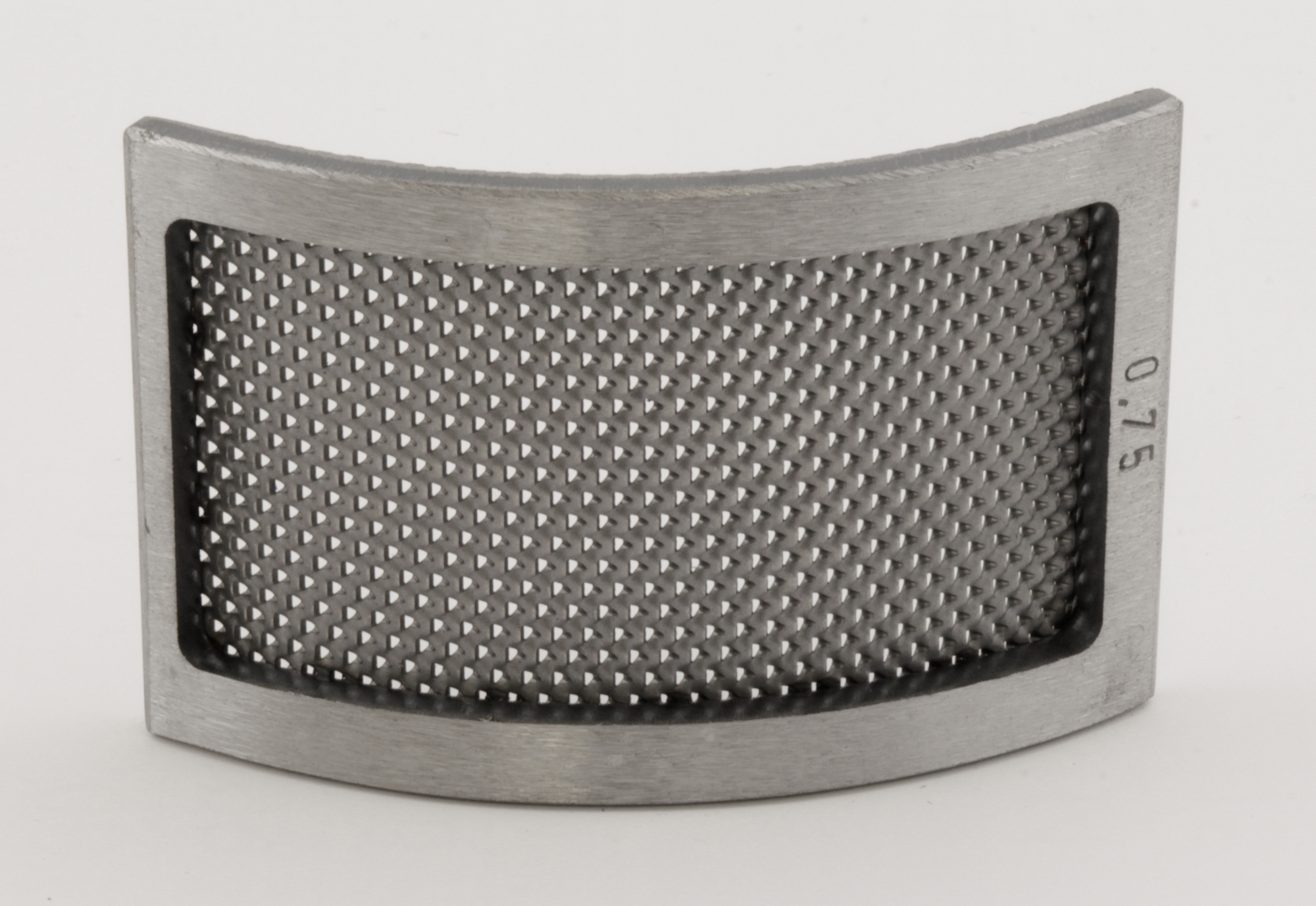

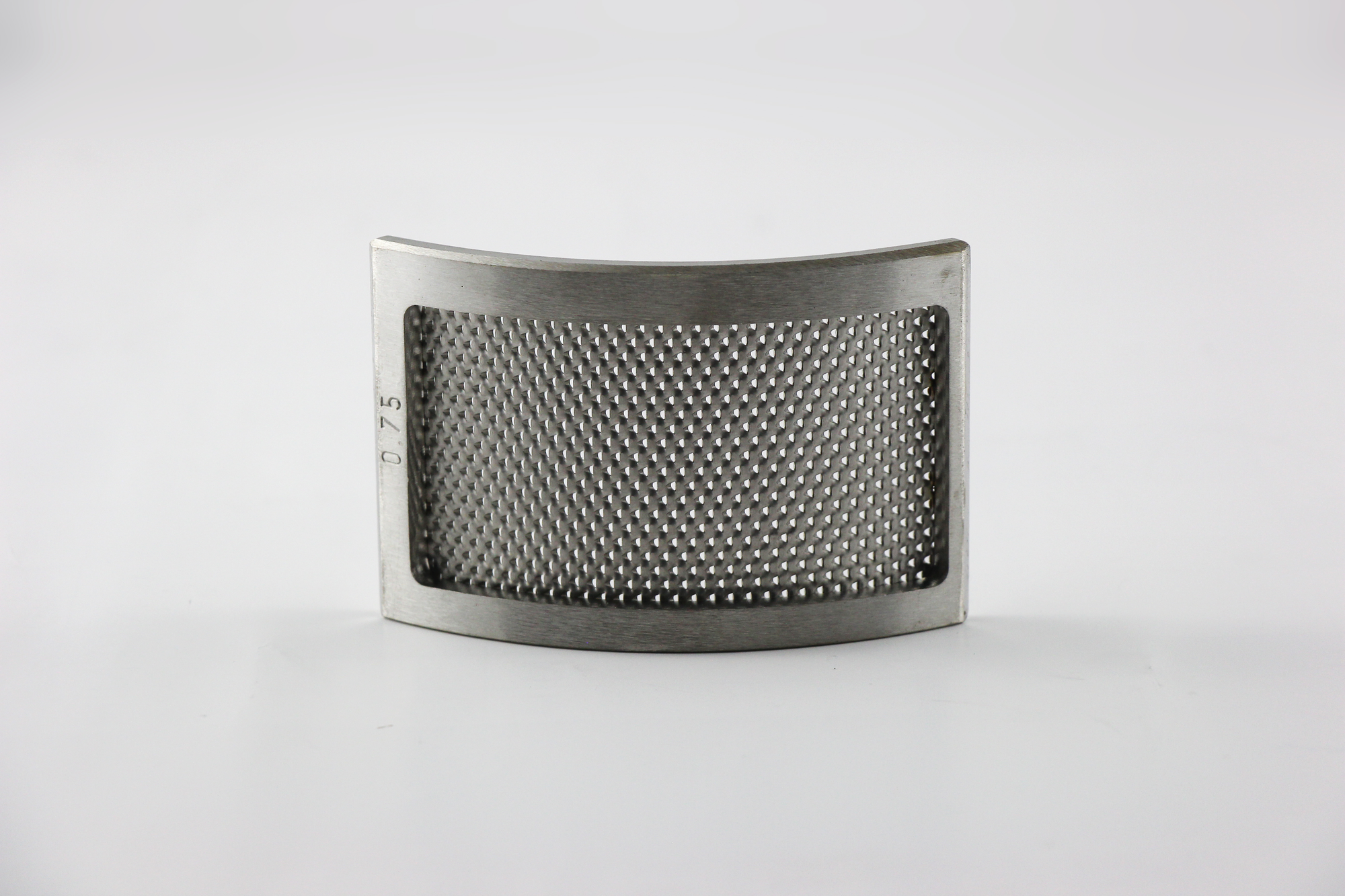

Trapezoid holes
0.75 mm
02.407.0103
Trapezoid holes
1.00 mm
02.407.0104

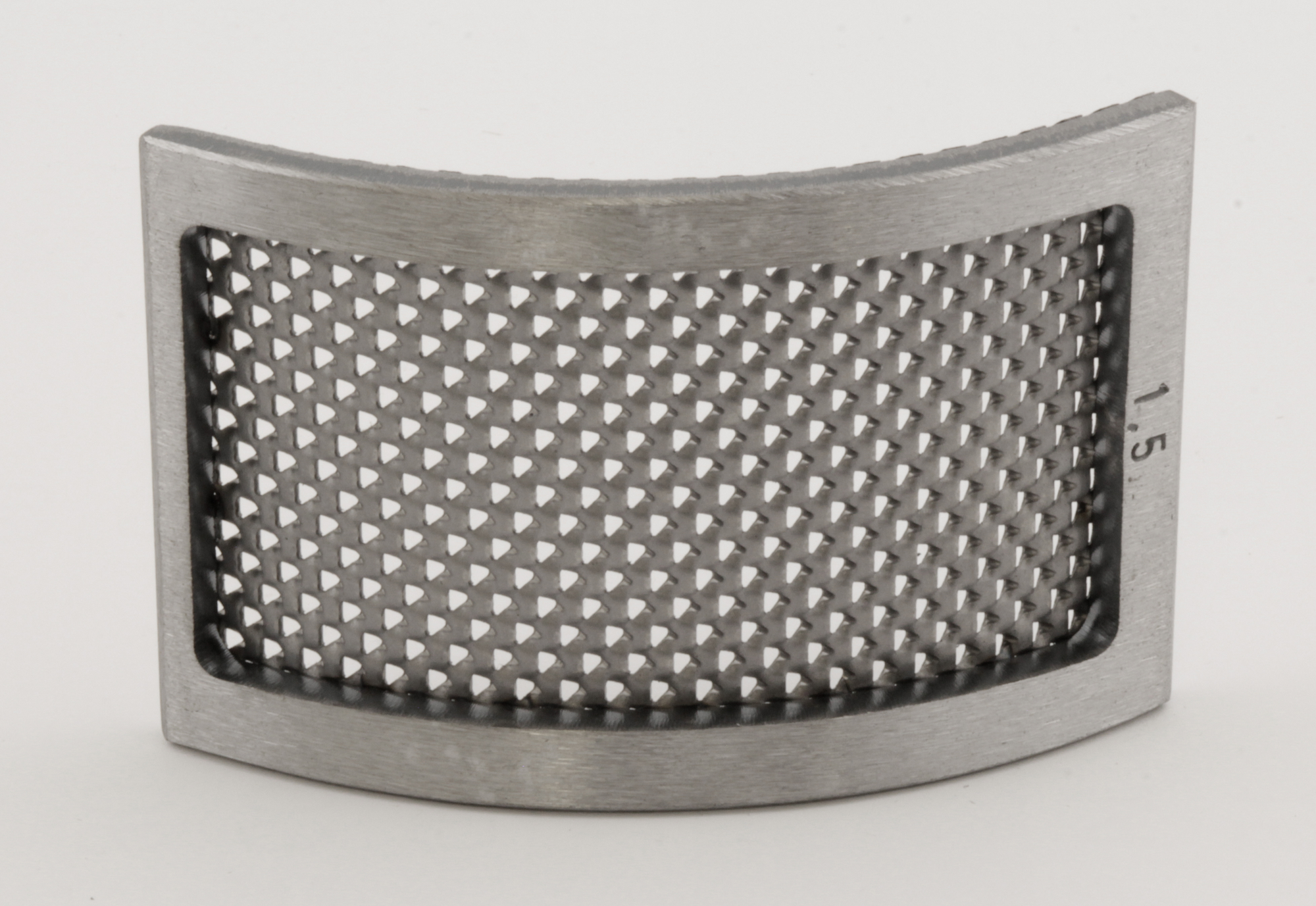

Trapezoid holes
1.50 mm
02.407.0105
Trapezoid holes
2.00 mm
02.407.0106

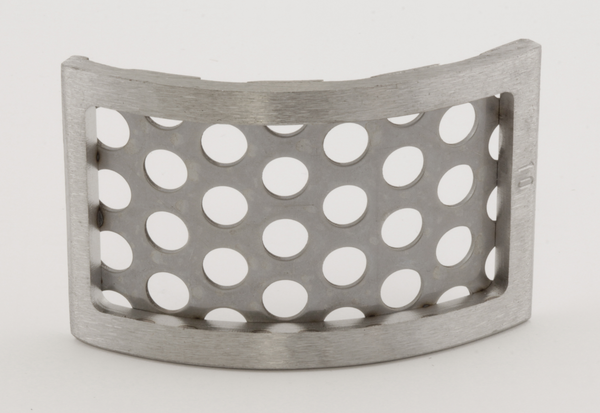

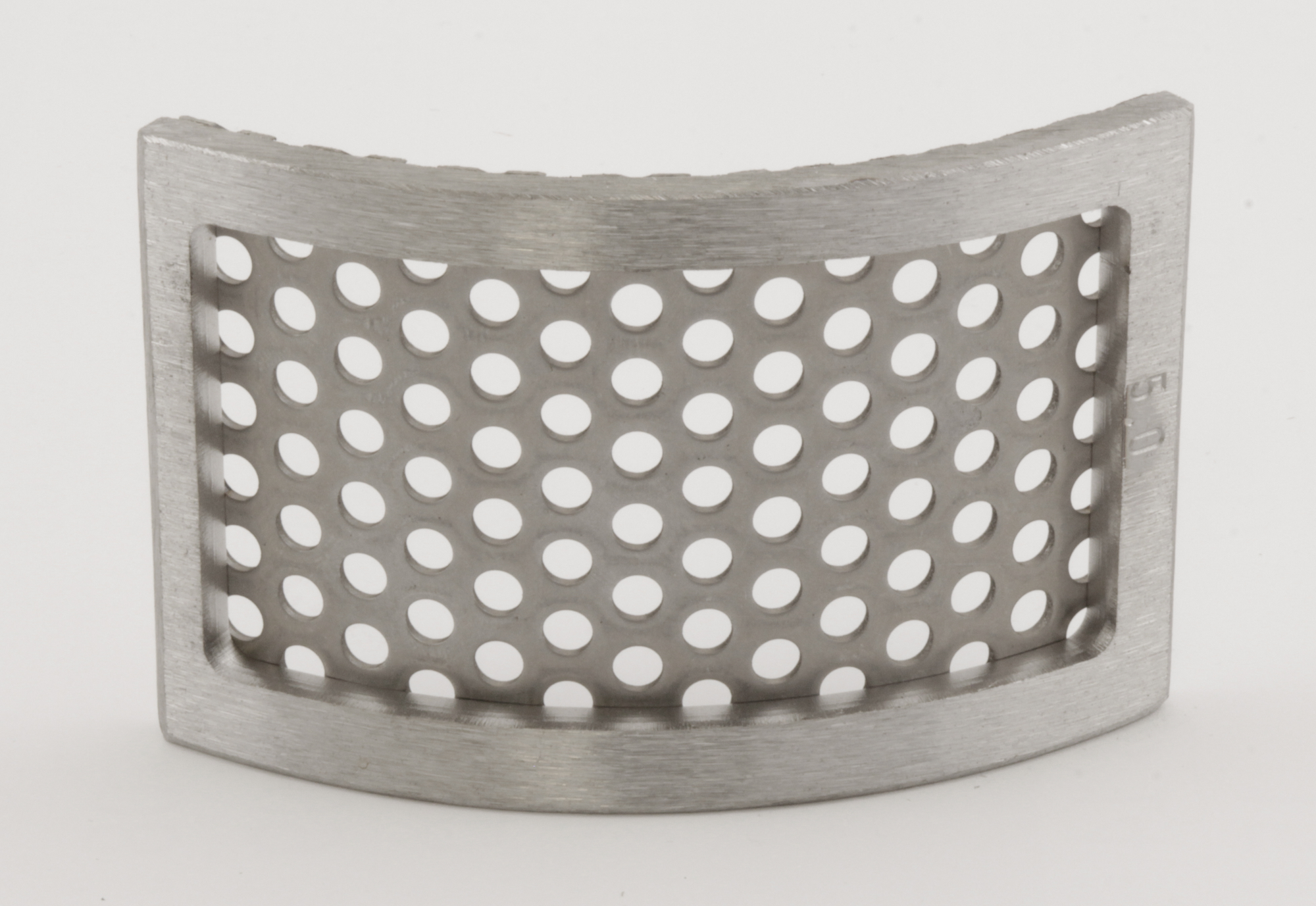

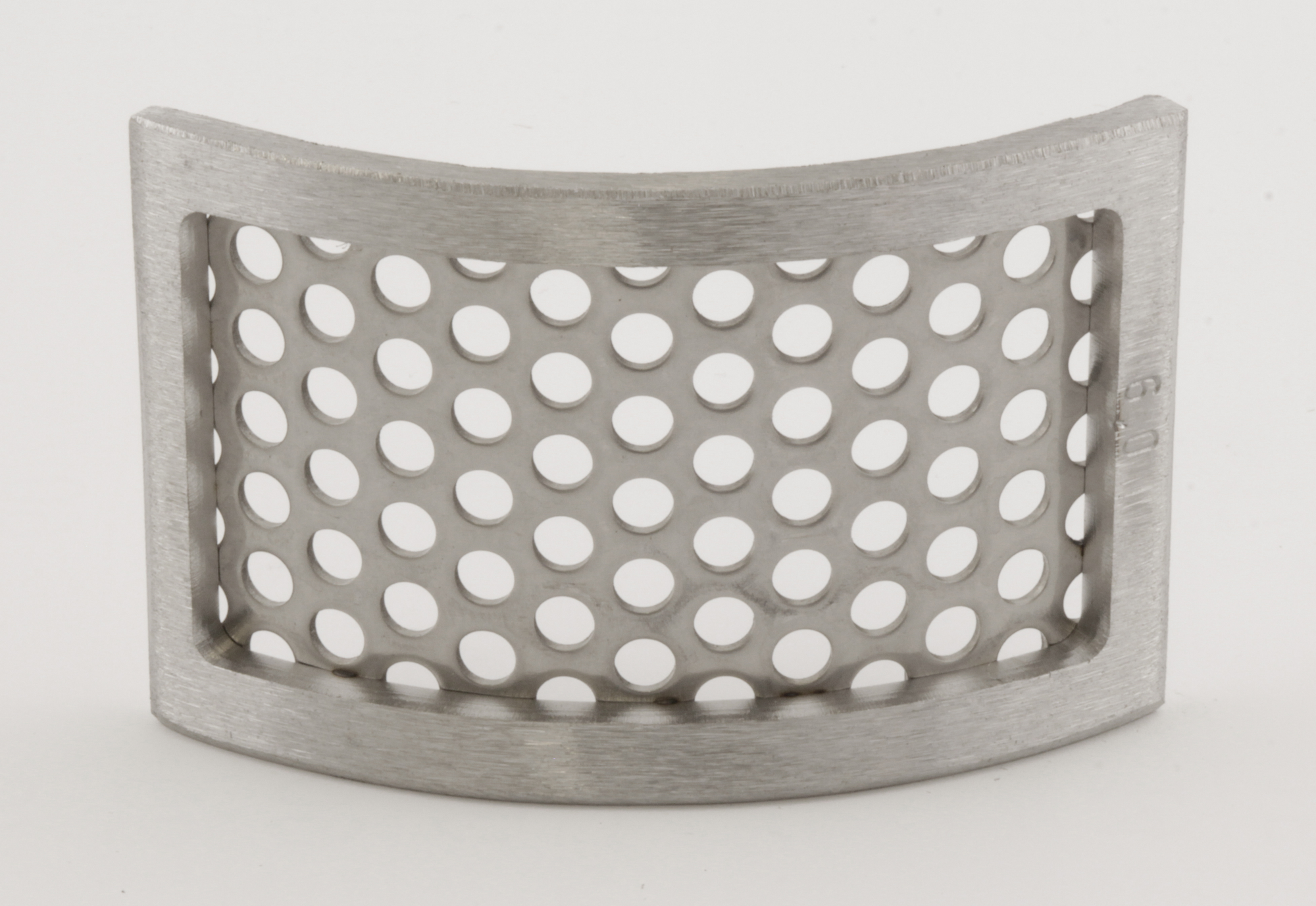

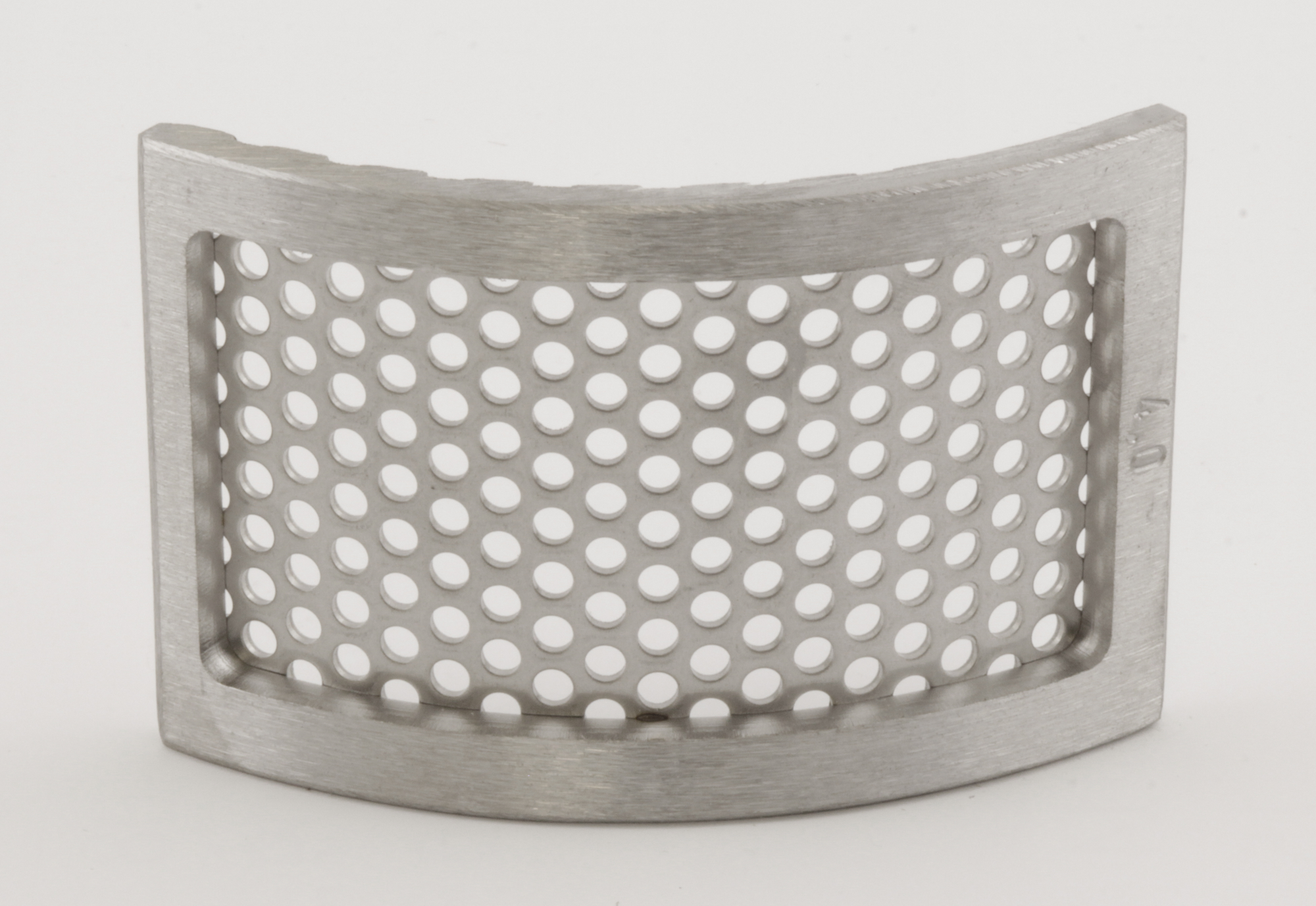

Round holes
3.00 mm
02.407.0107
Round holes
4.00 mm
02.407.0108
Round holes
5.00 mm
02.407.0109
Round holes
6.00 mm
02.407.0110
Round holes
8.00 mm
02.407.0111
Round holes
10.00 mm

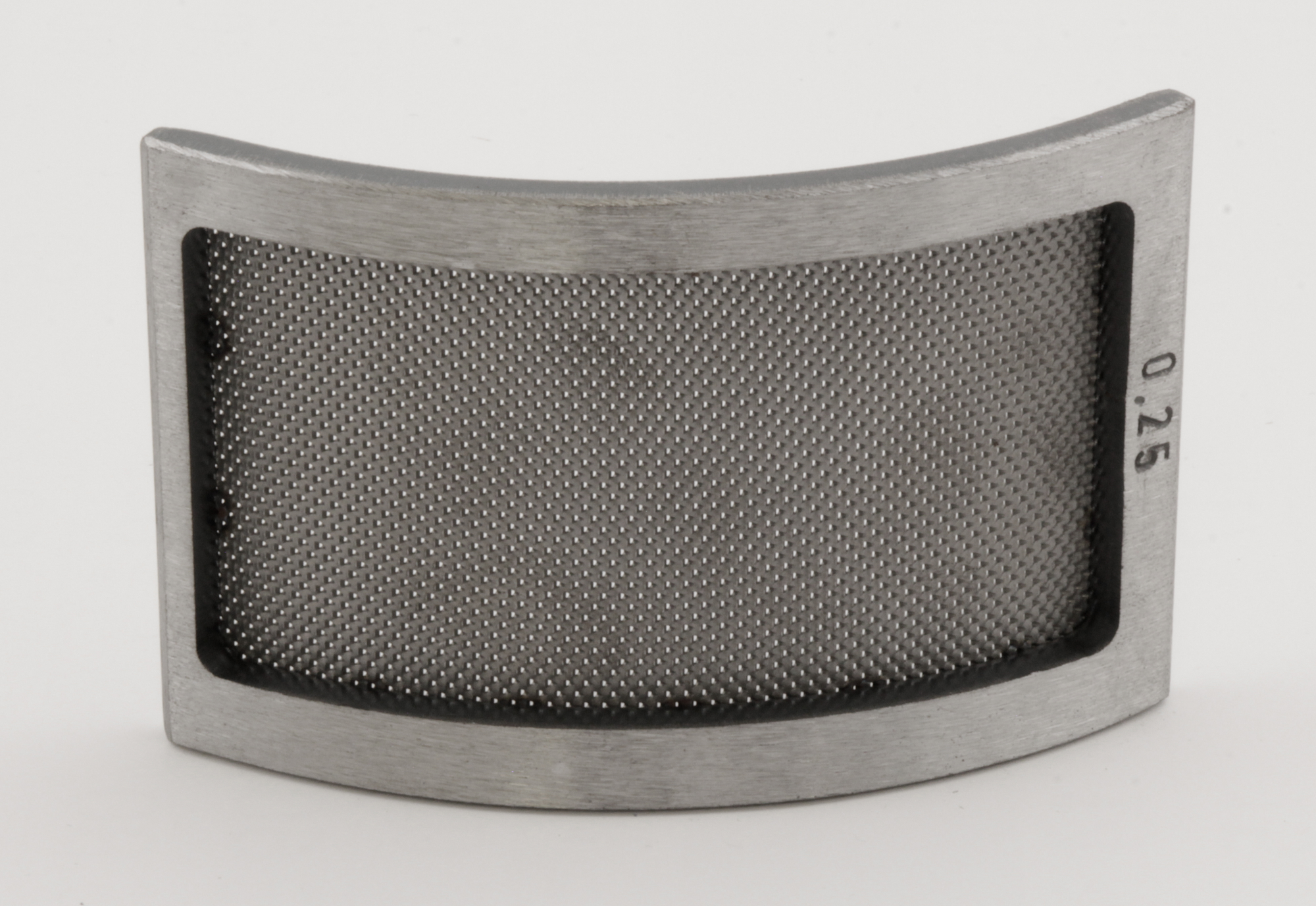

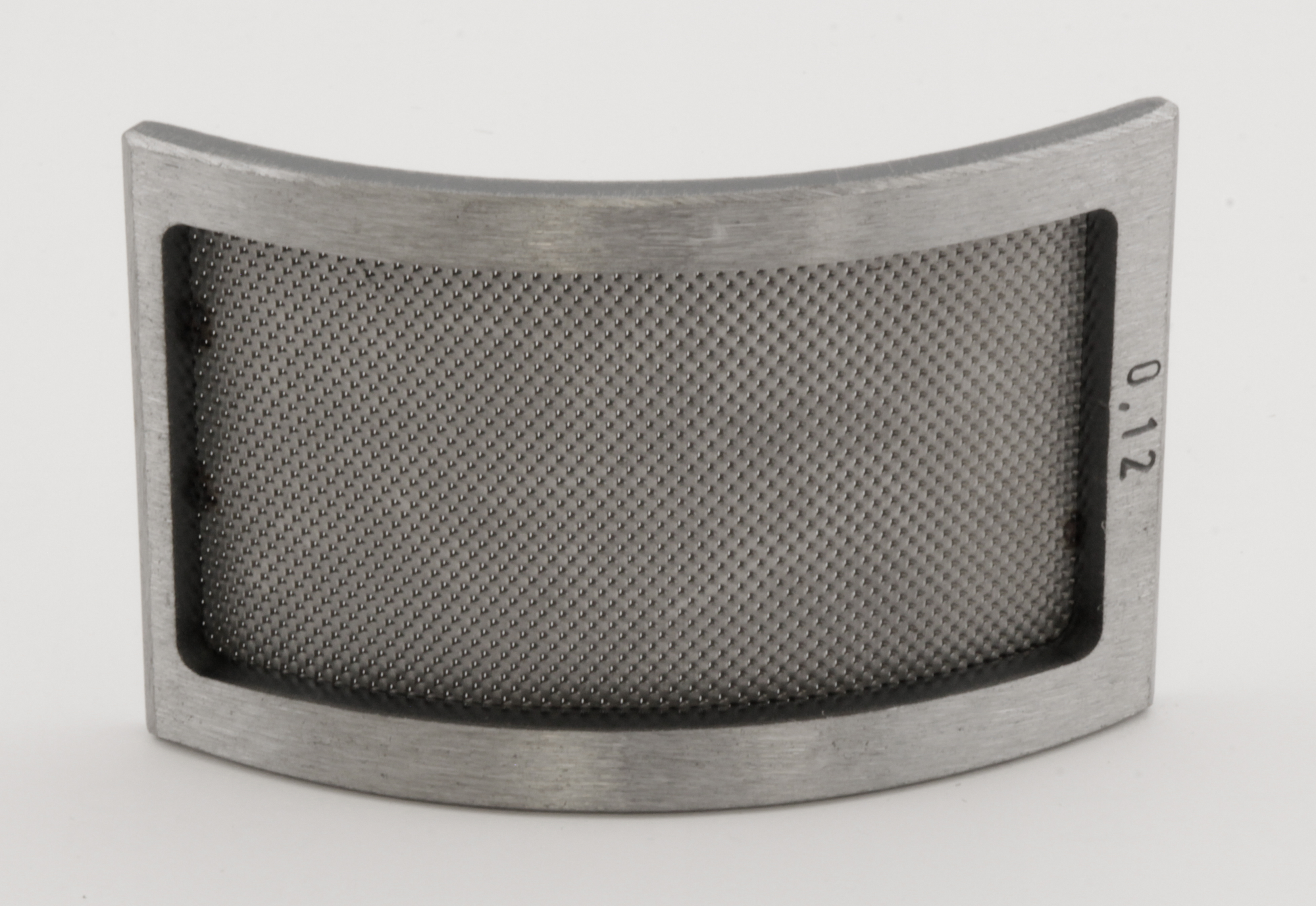

Bottom sieves of steel 1.0344 for grinding without heavy-metal contamination

02.407.0112
Trapezoid holes
0.12 mm
02.407.0113
Trapezoid holes
0.20 mm
02.407.0114
Trapezoid holes
0.25 mm
02.407.0122
Trapezoid holes
0.35 mm
02.407.0115
Trapezoid holes
0.50 mm
02.407.0116
Trapezoid holes
0.75 mm
02.407.0117
Trapezoid holes
1.00 mm
02.407.0118
Trapezoid holes
1.50 mm
02.407.0119
Trapezoid holes
2.00 mm

Cyclone-suction-combination for SK 300

22.935.0022
Cyclone unit incl. 5 litres collection receptacle (to be used with industrial vacuum cleaner)
22.935.0039
Cyclone unit incl. 30 litres collection receptacle (to be used with industrial vacuum cleaner). Requires 02.183.0158 cyclone outlet.
02.183.0158
Cyclone outlet for SK 300
22.748.0005
Industrial vacuum cleaner for mills, 230 V, 50/60 Hz
(other electrical versions and spare filter bags available upon request)

Additional items SK 300

22.187.0008
Ring-type filter for collecting receptacle 5 litres
22.748.0001
Dust filter clamping rings for ring-type filter, incl. 5 dust filters
22.524.0002
Dust filters for ring-type filter, 25 pcs.
02.011.0038
Collecting receptacle, 5 litres, stainless steel
02.187.0020
Filter hose for collecting receptacle 5 litres, length 240 mm, incl. “comfort” flange
02.186.0037
Spare filter hose for 02.187.0020
05.045.0528
Collecting receptacle, 30 litres
99.200.0023
IQ/OQ Documentation for SK 300
22.443.0004

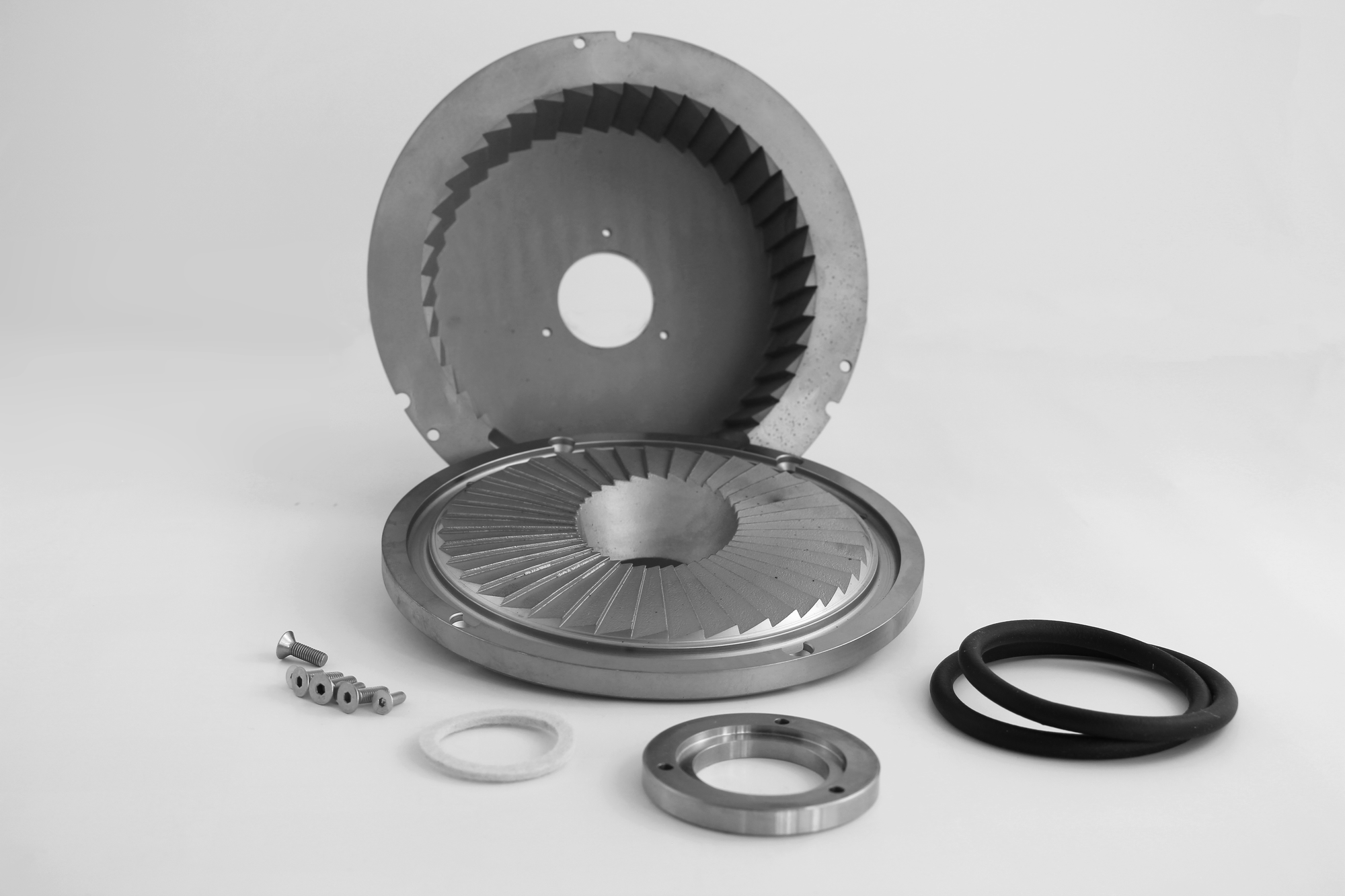

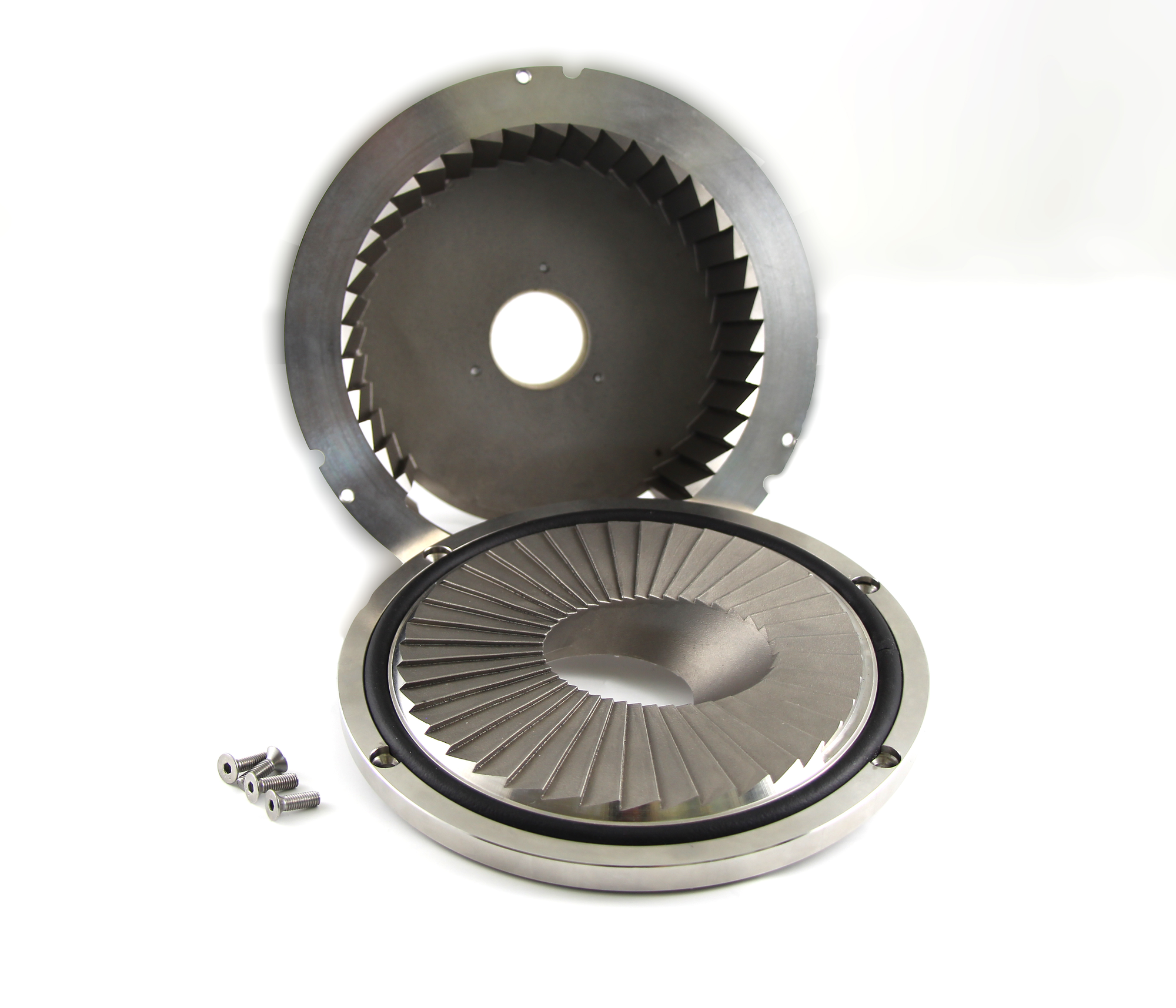

Grinding assembly
cast iron
22.443.0005
Grinding assembly
hardened steel
22.443.0006
Grinding assembly
stainless steel
22.716.0003

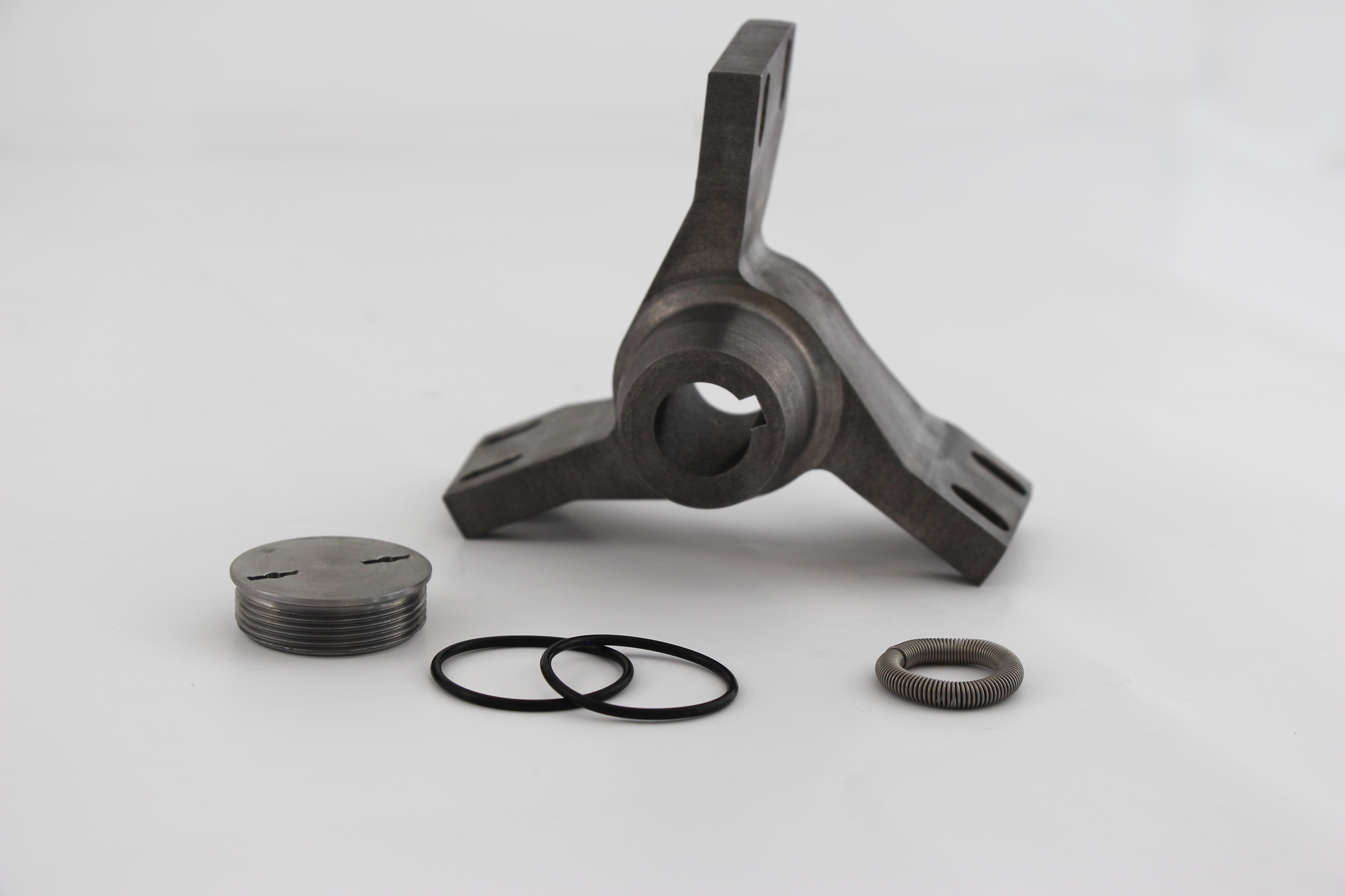

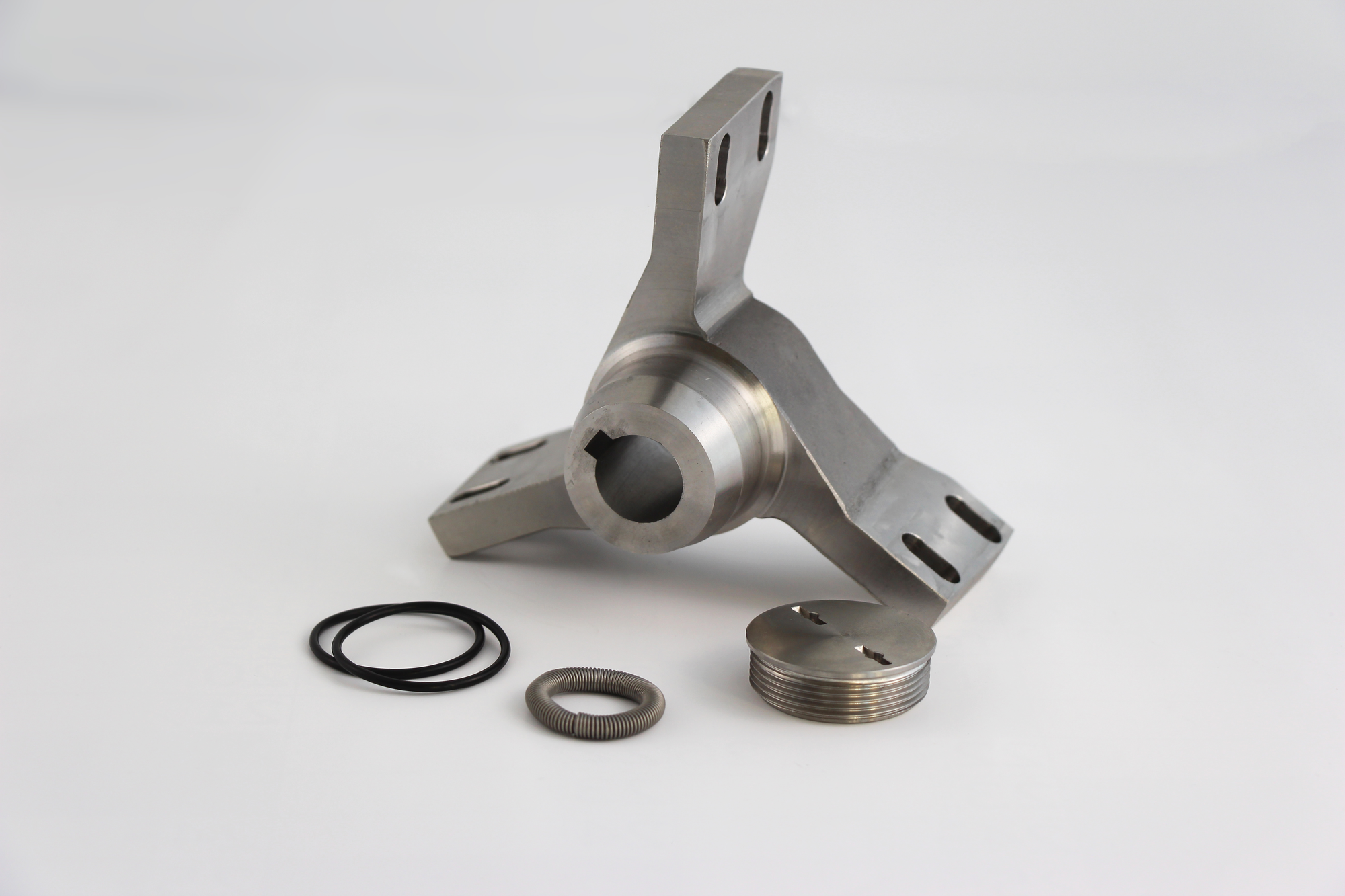

Cross beater
cast iron
22.716.0004
Cross beater
stainless steel
22.526.0007
Baffle plates
hardened steel, 3 pieces
22.526.0008
Baffle plates
stainless steel, 3 pieces
22.526.0009
Baffle plates
steel 1.1740, 3 pieces
for grinding without heavy-metal contamination

Vibratory Feeder DR 100 for SK 300

DR 100 drive unit (please order feeding kit separately)

70.938.0001
DR 100 drive unit
220–240 V, 50 Hz
70.938.0003
DR 100 drive unit
220–240 V, 60 Hz
70.938.0010
DR 100 drive unit
200 V, 50 Hz
70.938.0006
DR 100 drive unit
200 V, 60 Hz
72.020.0019
Feeding kit DR 100/3.5 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 3.5 litres and holder for hopper and fixture
72.020.0020
Feeding kit DR 100/22 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 22 litres and holder for hopper and fixture
